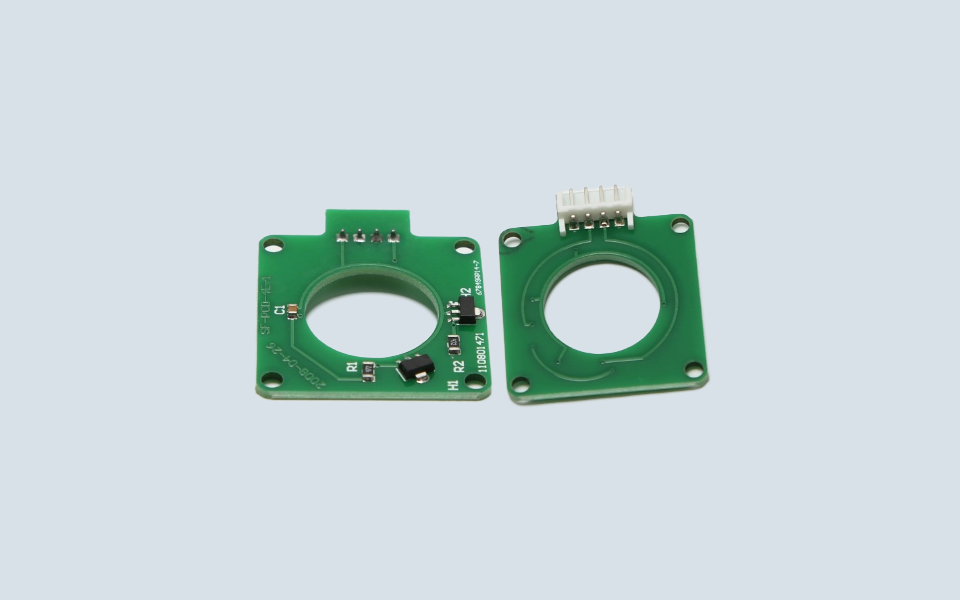

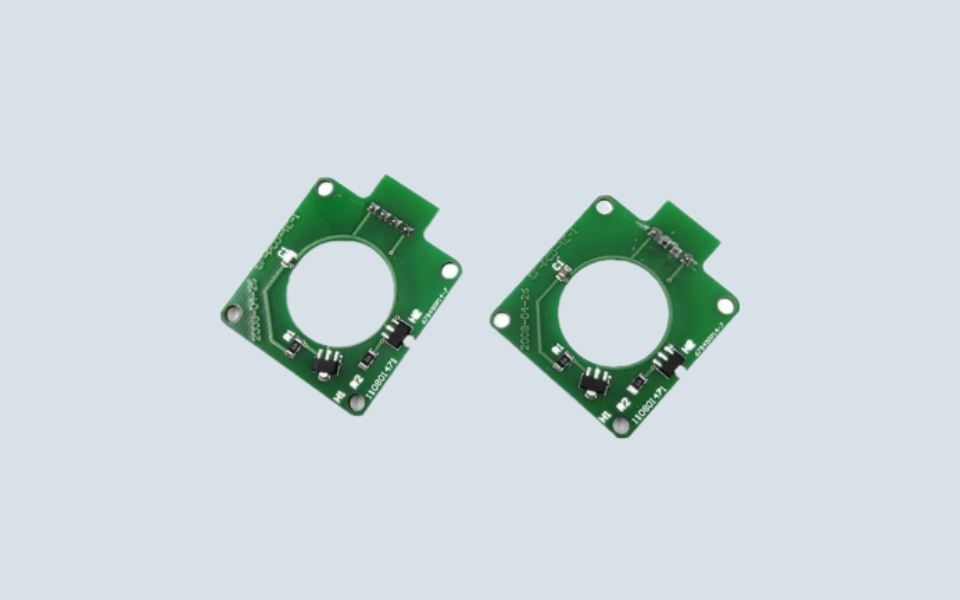

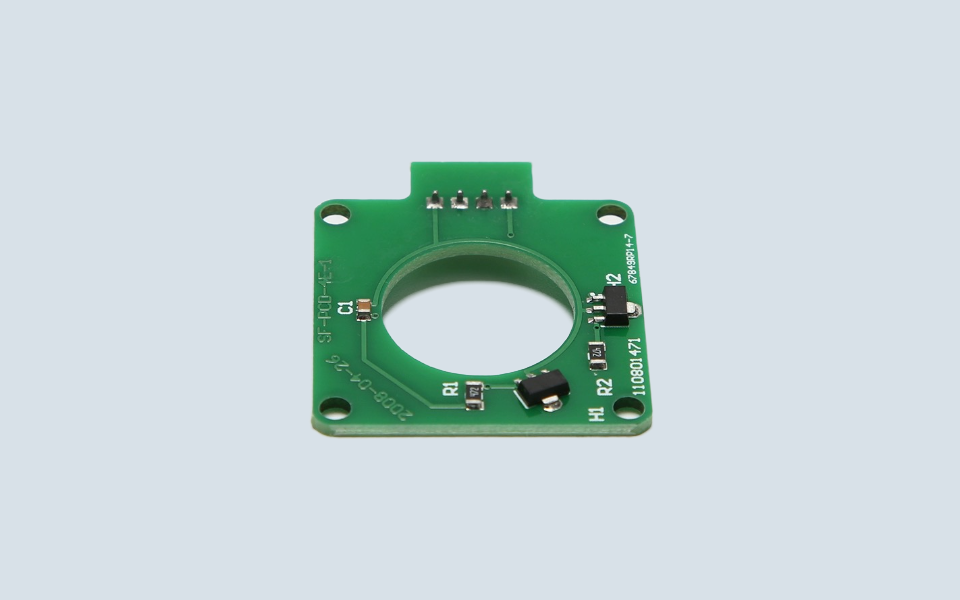

Fermator Door Encoder SF-PCD-4E-01 33mm*33mm

Position Feedback Encoder for Elevator Door Systems

Product Overview

The Fermator Door Encoder SF-PCD-4E-01 33mm*33mm is a position feedback component used in elevator automatic door systems to monitor door movement and transmit motion signals to the controller during operation.

In maintenance projects across regions such as Spain and Poland, door encoders are commonly used in Fermator automatic door systems where accurate movement monitoring and stable control response are required. During continuous door cycles, the encoder helps the controller detect movement position and operational status in real time.

The compact 33mm*33mm structure is designed for integration within automatic door operator assemblies.

---

Function in Door System

The door encoder mainly supports:

• movement position detection
• transmission of motion feedback signals
• synchronization between motor and controller
• monitoring of door travel during operation

Stable encoder feedback helps maintain accurate automatic door control.

---

Role in Door Operator Control

Inside the door operator system, the encoder helps:

• detect door movement speed
• monitor opening and closing position
• support controller response logic
• improve movement coordination during operation

Accurate signal transmission is important for stable door performance.

---

Difference from Door Contacts

Compared with standard door contacts:

• Door Contact → detects door status signals
• Door Encoder → monitors movement position and motion feedback

The encoder provides dynamic operational feedback rather than simple open/closed signal confirmation.

---

Mechanical and Signal Characteristics

The SF-PCD-4E-01 encoder is commonly associated with:

• compact installation structure
• stable signal transmission
• integration with automatic door motors
• suitability for Fermator door operator systems

Correct encoder matching is important for maintaining controller communication stability.

---

Application Context

This component is commonly used in:

• Fermator automatic door systems
• passenger elevators
• commercial and residential buildings
• maintenance and modernization projects

In high-frequency elevator environments, stable encoder performance helps maintain smoother and more accurate door movement.

---

Common Maintenance Situations

Technicians may inspect or replace the encoder when:

• door movement becomes inconsistent
• controller feedback errors appear
• abnormal opening or closing behavior occurs
• signal interruption affects operation stability

Replacing faulty encoders often improves movement accuracy and operational response.

---

Practical Notes

From a maintenance perspective:

• encoder signal stability directly affects controller performance
• wiring and connection conditions should be checked during replacement
• incorrect encoder matching may affect movement synchronization

Accurate movement feedback is important for reliable automatic door operation.

---

Frequently Asked Questions

What is the Fermator SF-PCD-4E-01 encoder used for?
It is used to monitor and transmit door movement position signals in elevator automatic door systems.

Is it the same as a door contact?
No. The encoder provides continuous motion feedback, while the contact mainly detects door status.

Why is encoder feedback important?
Because the controller relies on movement signals to manage accurate door operation.
