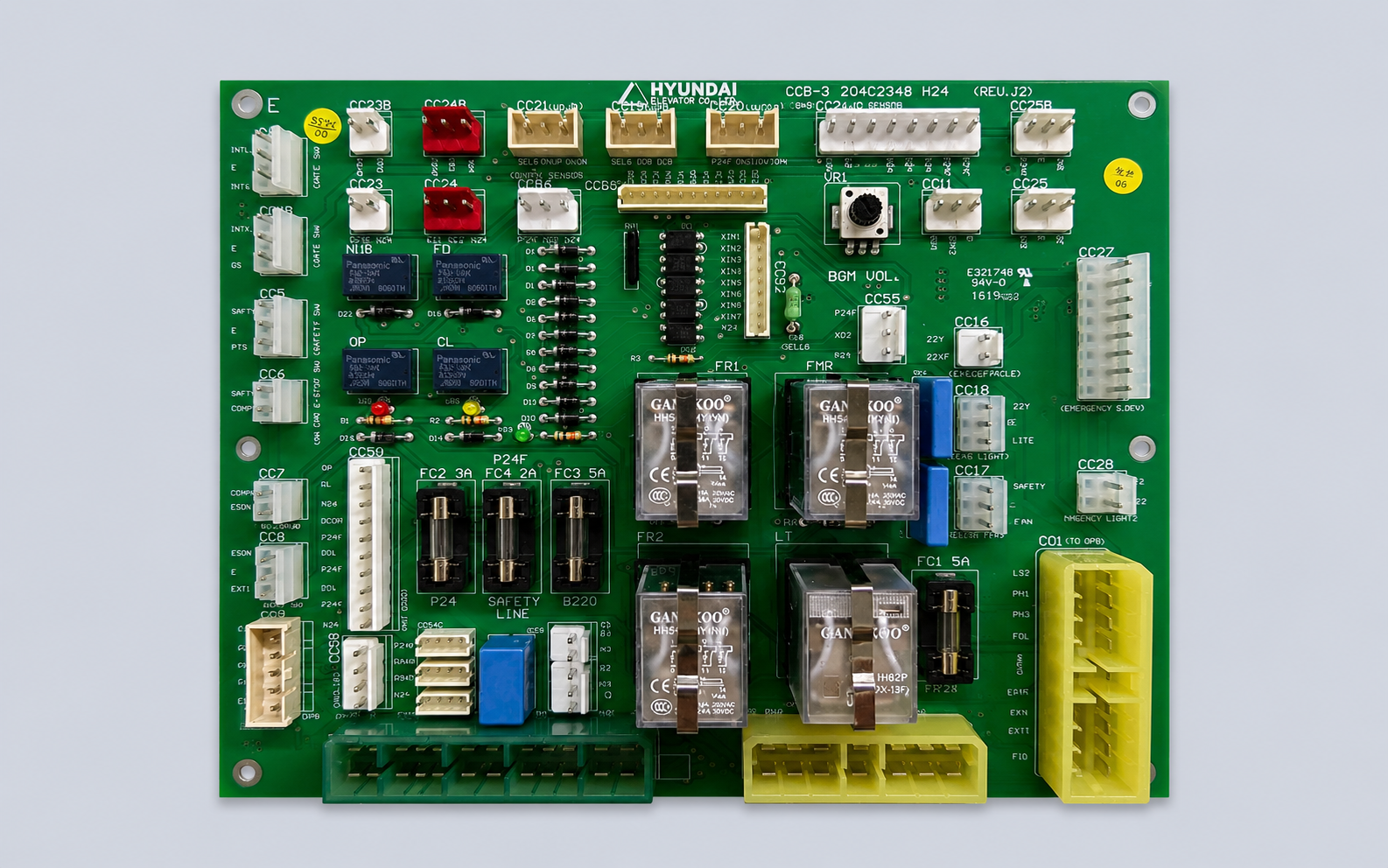

Hyundai CCB-3 204C2348 H24 Car Top Board

The Hyundai CCB-3 204C2348 H24 Car Top Board is an elevator interface PCB used in the car-top control and communication system of Hyundai elevators. It is commonly associated with STVF5 and STVF7 applications and is mainly supplied for maintenance and replacement of an existing CCB-3 board.

Match the Complete Board Number

The CCB-3 series can be found with different hardware markings, including H23 and H24 versions. For replacement, the complete identification should be checked rather than using only the CCB-3 model name.

Please confirm:

• Board model: CCB-3

• Part number: 204C2348

• Hardware marking: H24

• Front and rear PCB photos

• Connector arrangement

• Elevator control system

• Required quantity

Check Before Replacement

A similar CCB-series board should not automatically be considered interchangeable. PCB markings, connectors and the existing elevator system should be compared before installation.

FAQ

Is CCB-3 204C2348 H24 a car top board?

Yes. It is commonly identified as a Hyundai elevator car top interface or communication board.

Is H24 important when ordering?

Yes. The H24 hardware marking should be checked together with CCB-3 and 204C2348 to help confirm the correct board version.

For Hyundai CCB-3 204C2348 H24 requirements, send us clear photos of the original PCB for model checking before quotation.
