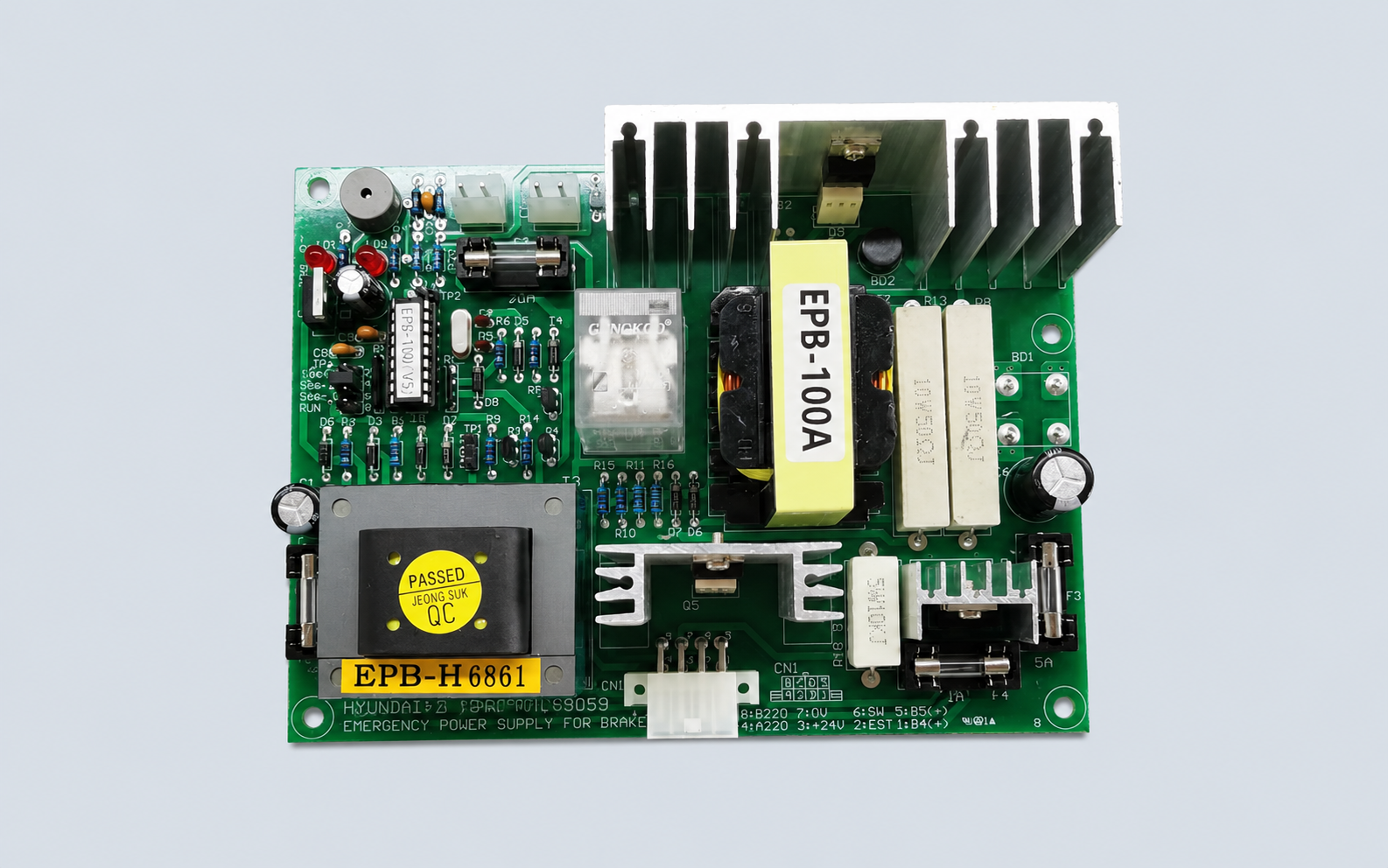

Hyundai EPB100A EPB100 Brake Power Supply Board

The Hyundai EPB100A / EPB100 Brake Power Supply Board is an electrical PCB used in the elevator brake power circuit. It provides power support for brake operation and is mainly required during maintenance, troubleshooting or replacement of an existing EPB board.

Why You May See EPB-100 and EPB-100A

Both EPB-100 and EPB-100A can be found in Hyundai elevator spare parts applications. The EPB-100 is commonly associated with the 260B008 board family, while EPB-100A is also available with similar identification.

Because these model names are very close, they should not automatically be treated as interchangeable without checking the original board.

The most useful identification details are:

• Board model: EPB-100 or EPB-100A

• Board number: 260B008 or complete suffix

• PCB revision or hardware marking

• Front and rear PCB photos

• Brake power connections

• Connector arrangement

• Additional labels or part numbers

• Required quantity

When Replacing an EPB Board

The original board number is especially useful when an older elevator has already undergone previous repairs. A replacement should be selected according to the installed PCB and brake circuit rather than only by elevator model.

FAQ

What is the Hyundai EPB100 used for?

The EPB100 series is used as a brake power supply board in Hyundai elevator control systems.

Are EPB-100 and EPB-100A the same?

They are closely related EPB brake power board models, but the complete board number, hardware version and connector layout should be checked before replacement.

Is 260B008 important for identification?

Yes. 260B008 is commonly associated with the EPB100 board family and is a useful reference when confirming the correct replacement.

For Hyundai EPB100A / EPB100 requirements, send us the original PCB photos and complete markings for replacement checking before quotation.
