Hyundai HD-BKP-100 Brake Power Supply Board

The Hyundai HD-BKP-100 Brake Power Supply Board is an electronic PCB used in the elevator braking power circuit. It is commonly associated with Hyundai STVF9 elevator applications and is mainly required for maintenance or replacement when the existing brake power board develops a fault.

When HD-BKP-100 Is Required

The HD-BKP-100 belongs to the brake power section of the elevator control system rather than the main controller or inverter drive circuit.

When troubleshooting brake-related electrical problems, technicians may inspect this board together with the brake circuit, power connections and related control components.

For replacement identification, check:

• Board model: HD-BKP-100

• Elevator system: STVF9

• PCB revision or version

• KP-BKP marking, if present

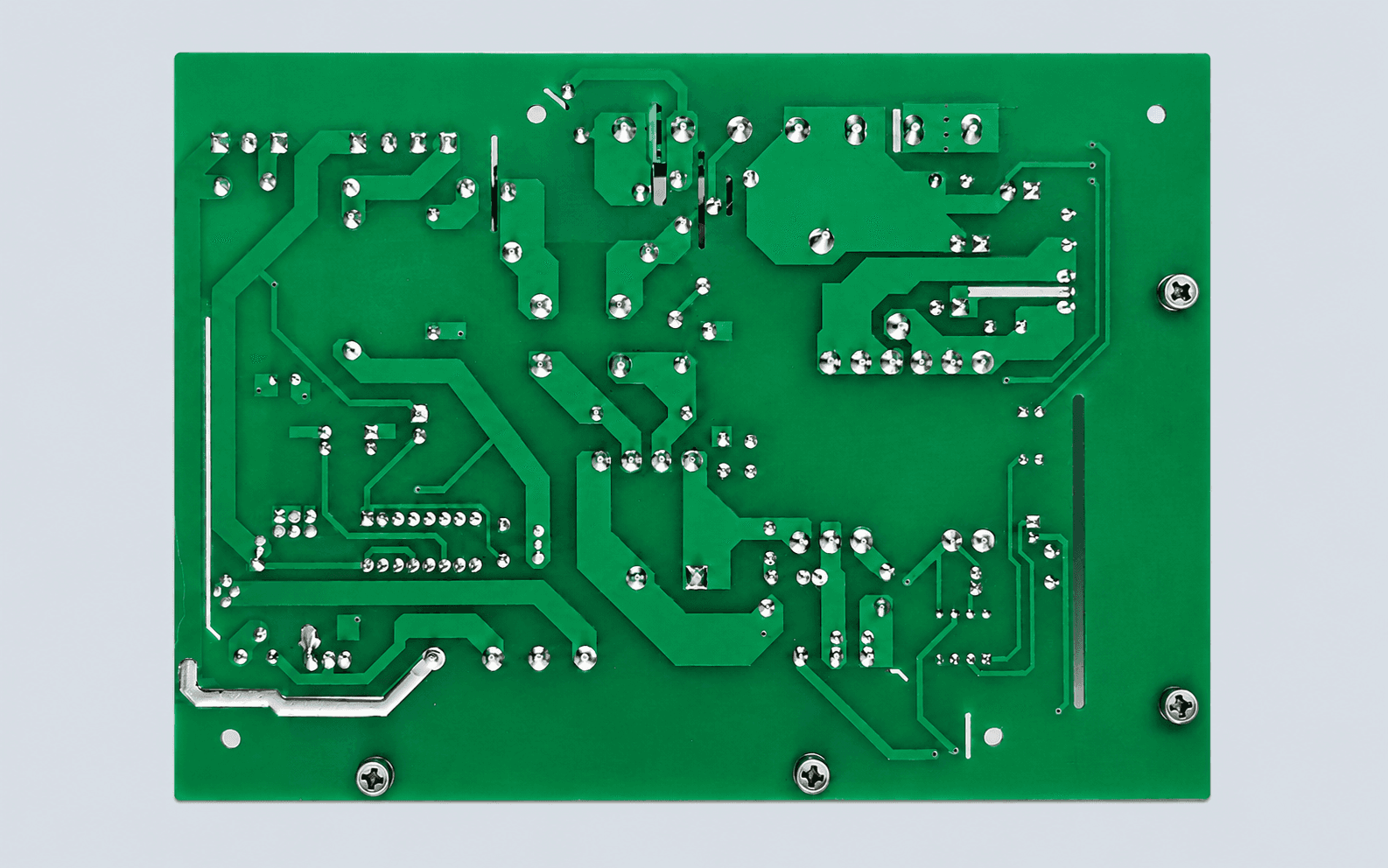

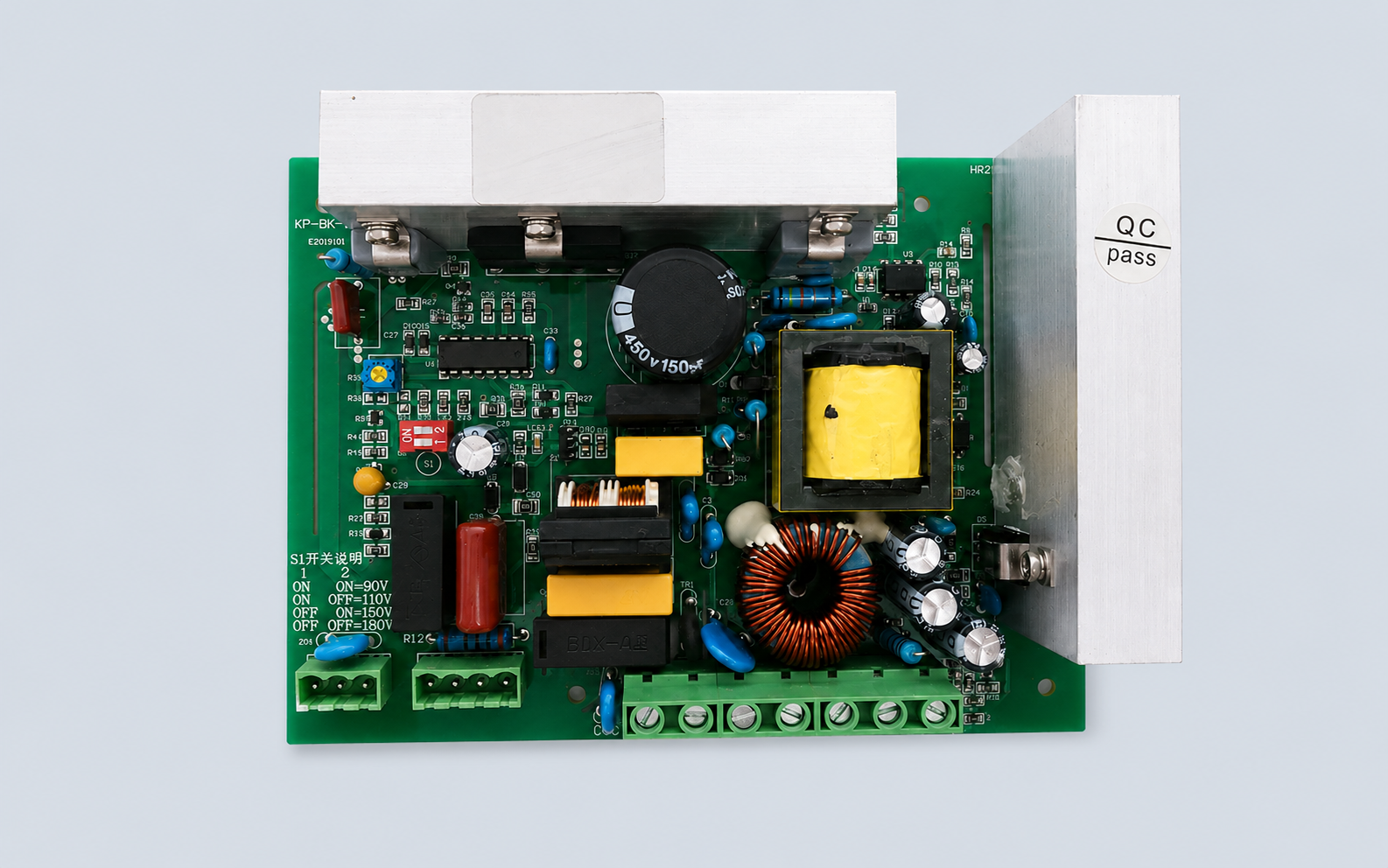

• Front and rear PCB photos

• Power terminals and connectors

• Additional labels or part numbers

• Required quantity

Use the Installed Board as the Reference

Some market versions are identified with markings such as KP-BKP V1.3a. If this information appears on the original PCB, it should be included when confirming a replacement.

Do not select another Hyundai brake board only because the function looks similar. The board model, revision and connection layout should be compared first.

FAQ

What is the Hyundai HD-BKP-100 used for?

It is used as a brake power supply board in Hyundai elevator control systems, commonly in STVF9 applications.

Is HD-BKP-100 a main control board?

No. It is associated with the elevator brake power circuit. The main controller and inverter boards are separate components.

Does the KP-BKP version matter?

Yes. If the original board carries a KP-BKP or revision marking, include it when checking compatibility.

For Hyundai HD-BKP-100 requirements, send us clear photos of the original PCB and complete markings for replacement confirmation before quotation.
