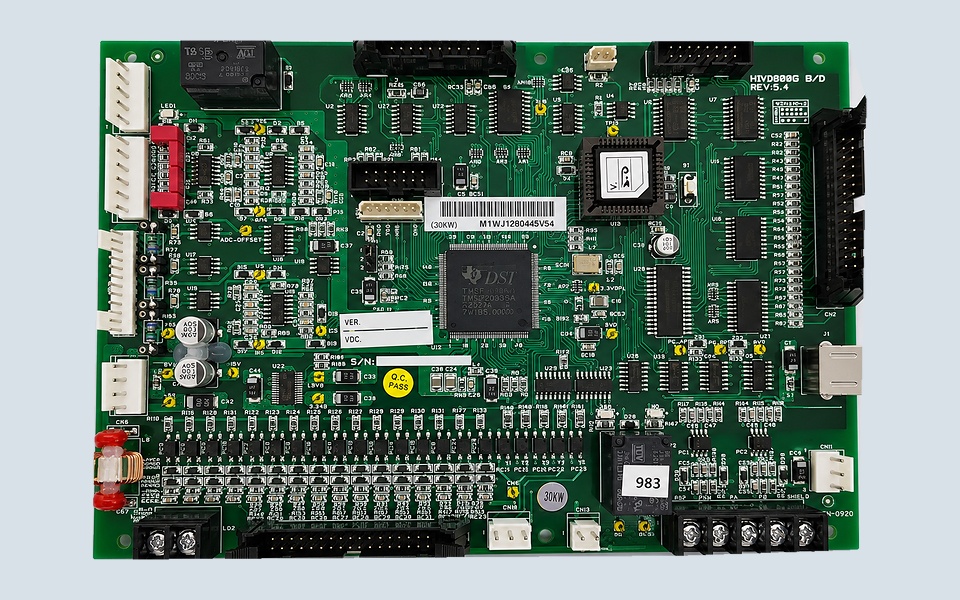

Hyundai HIVD900G B/D REV5.4 Inverter Main Board

The Hyundai HIVD900G B/D REV5.4 Inverter Main Board is the main control PCB used inside Hyundai HIVD900G elevator drives. It belongs to the inverter control section for induction motor applications and should be distinguished from the separate power supply, sensing and gate drive boards.

REV5.4 Is an Important Identification Point

For this board, the complete PCB marking provides a more reliable replacement reference than the inverter model alone.

A typical unit is identified as HIVD900G B/D REV5.4. This mainboard works within the HIVD900G drive system and manages the central inverter control functions.

When sourcing a replacement, please confirm:

• Board marking: HIVD900G B/D

• PCB revision: REV5.4

• HIVD900G inverter model

• Rated inverter power

• Front and rear PCB photos

• Connector arrangement

• Complete inverter nameplate

• Required quantity

Do Not Confuse 900G with 900SS / 900GT

HIVD900G is associated with induction or asynchronous motor applications. Hyundai also uses HIVD900SS / HIVD900GT boards for synchronous motor drive systems.

Even when the PCB structure appears similar, these drive families should be identified separately.

FAQ

What is Hyundai HIVD900G B/D REV5.4?

It is an inverter main control board used inside the Hyundai HIVD900G elevator drive.

What motor type is HIVD900G used for?

HIVD900G is designed for induction or asynchronous motor elevator applications.

Does the inverter power rating need to be confirmed?

Yes. HIVD900G systems exist in different power configurations, so the inverter nameplate and rated power should be checked together with the REV5.4 board marking.

For Hyundai HIVD900G B/D REV5.4 requirements, send us clear photos of the original mainboard and inverter nameplate for replacement checking before quotation.
