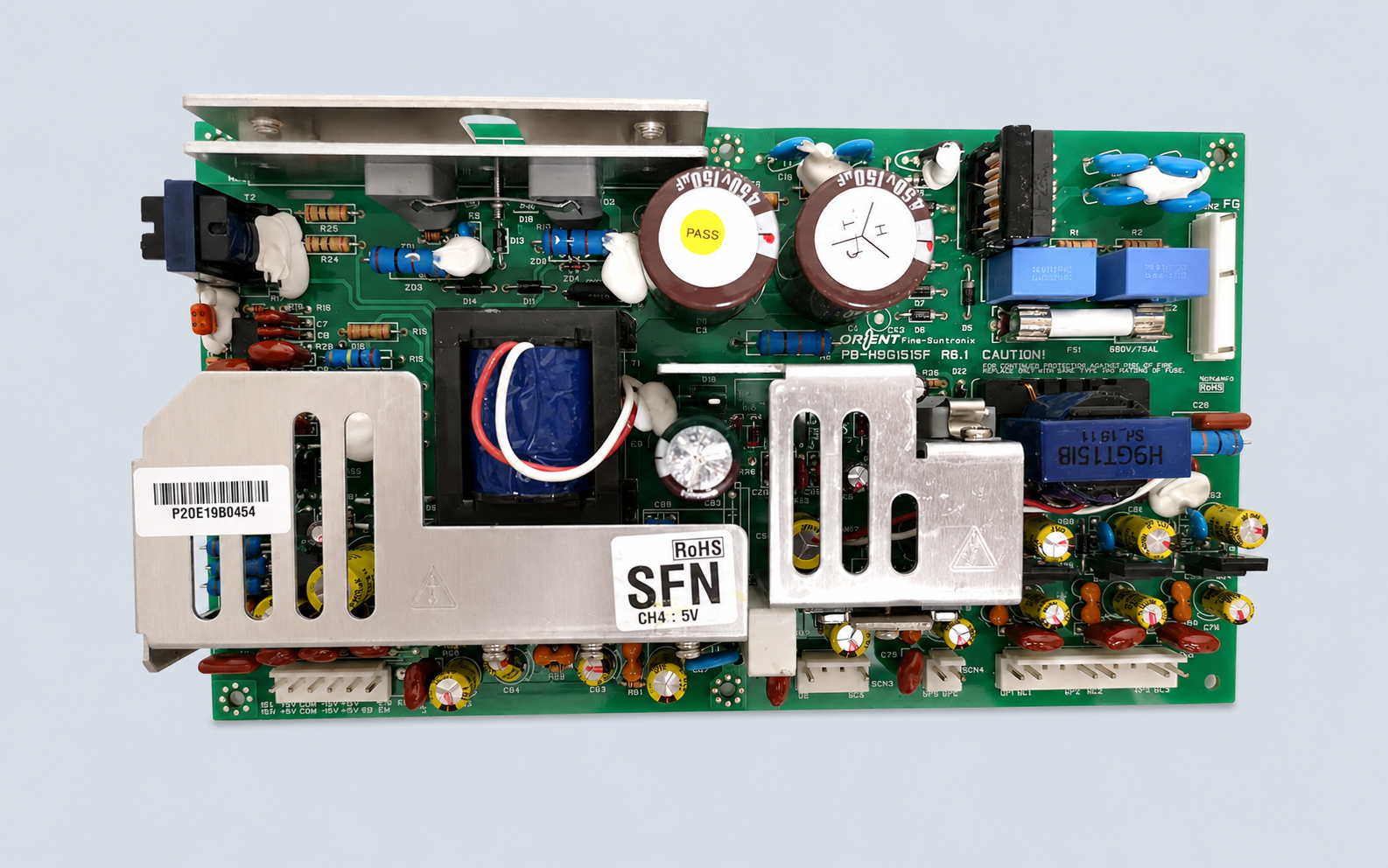

Hyundai HIVD900GT 900SS PB-H9G15SFN Power Board

The Hyundai HIVD900GT / HIVD900SS PB-H9G15SFN Power Board is an internal inverter power supply PCB used in Hyundai elevator drive systems. It belongs to the HIVD900 power supply section and provides low-voltage power for the inverter control electronics.

Identifying the H9G15SFN Version

PB-H9G15SFN is closely related to the H9G15SF power board family used with synchronous-motor HIVD900 systems such as HIVD900GT and HIVD900SS.

A commonly available H9G15SFN configuration is identified as a 5V power board. However, the complete markings on the original PCB should still be checked before selecting a replacement.

For identification, please provide:

• Inverter model: HIVD900GT or HIVD900SS

• Board model: PB-H9G15SFN

• Voltage marking

• PCB revision, if available

• Front and rear board photos

• Connector arrangement

• Required quantity

SFN and SF Should Be Checked Separately

H9G15SF and H9G15SFN are closely related model names, but they should not automatically be treated as identical boards.

When an HIVD900 inverter requires repair, the safest reference is the exact model printed on the removed PCB together with its connectors and voltage markings.

FAQ

What type of board is PB-H9G15SFN?

It is an inverter power supply board used in Hyundai elevator HIVD900 drive systems.

Is H9G15SFN the same as H9G15SF?

They belong to the same general power board family, but the exact PCB model and electrical configuration should be checked before replacement.

What information should I send before ordering?

Please send clear photos of the original PB-H9G15SFN board, inverter model, voltage marking and connector layout.

For Hyundai HIVD900GT / HIVD900SS PB-H9G15SFN requirements, send us the original PCB information for replacement checking before quotation.
