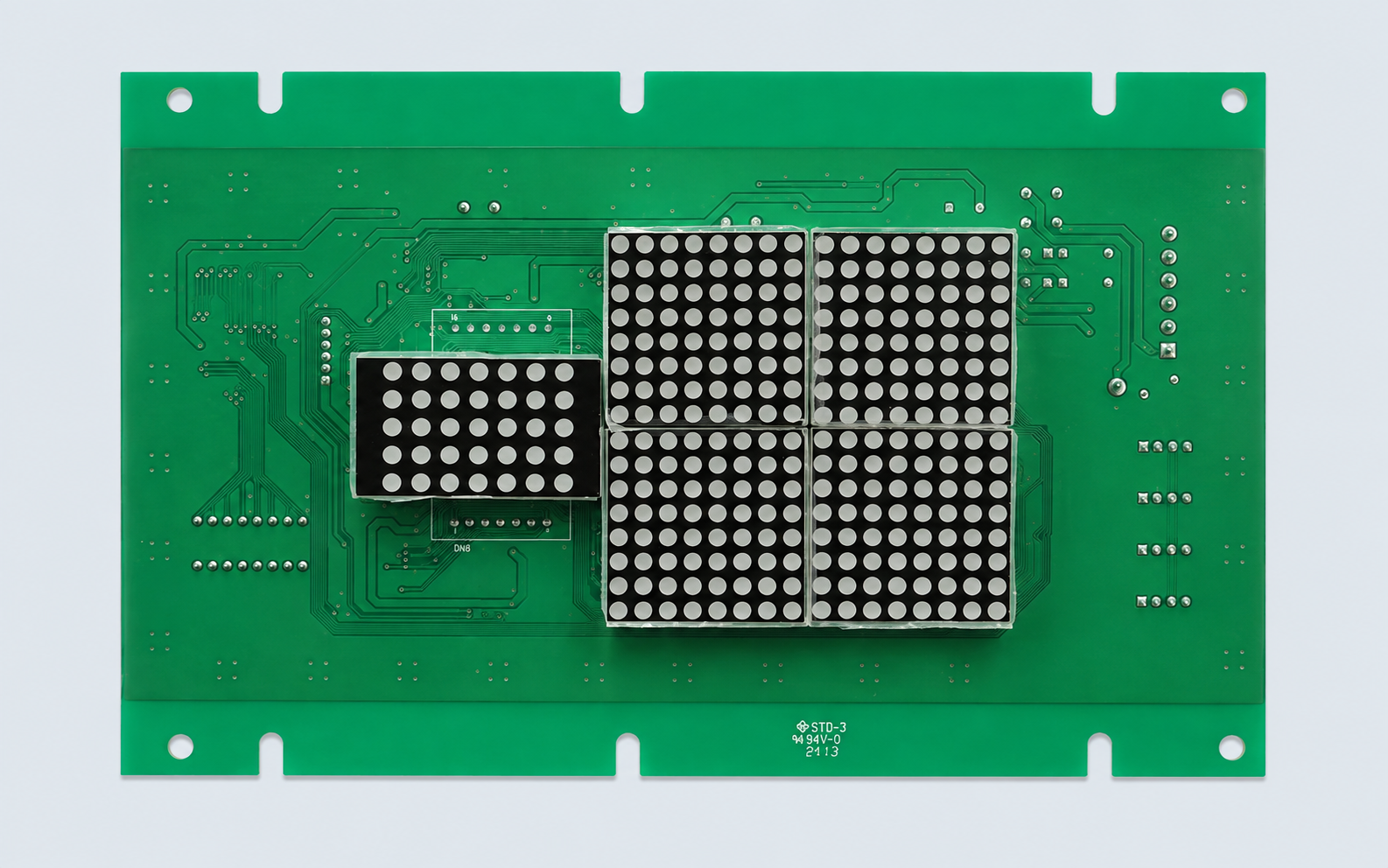

Hyundai STVF-2S HDOT-236M Display Board

The Hyundai STVF-2S HDOT-236M Display Board is an elevator indicator PCB used in Hyundai STVF-2S display systems. It is commonly supplied for landing indication and operating panel applications where the original display is identified as HDOT-236M.

For Floor and Status Indication

The HDOT-236M works as part of the passenger information system, providing floor and elevator operating information through the display panel.

It can be found in Hyundai STVF-2S applications as an LOP indicator or display board, depending on the elevator panel configuration.

When the existing display has missing segments, unstable indication or PCB damage, the HDOT-236M may be required as a replacement.

Version and Connector Details Matter

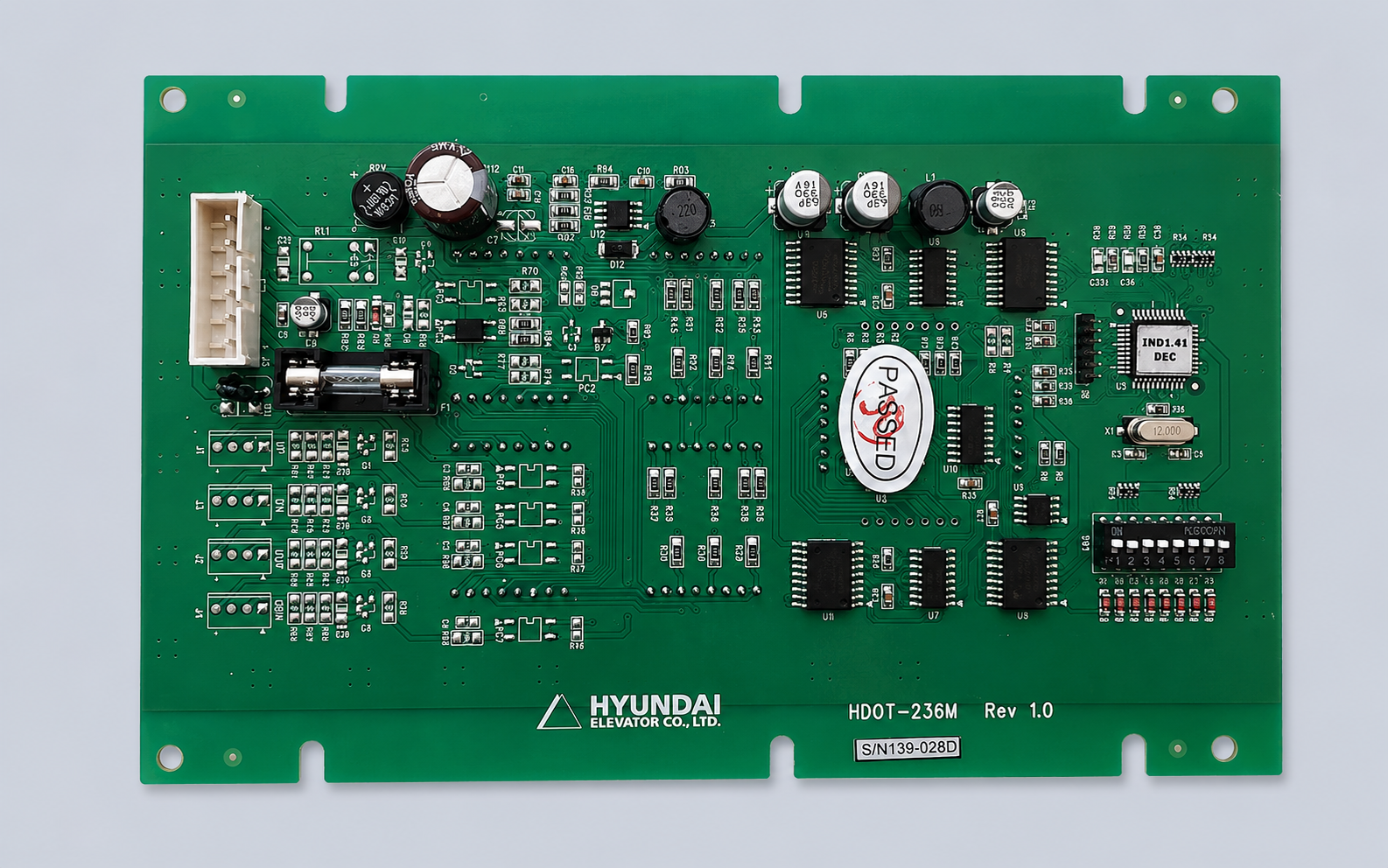

Some HDOT-236M boards are marked Rev1.0, but the revision should always be checked directly on the original PCB.

For replacement confirmation, please provide:

• Display model: HDOT-236M

• Elevator system: STVF-2S

• PCB revision

• Front and rear display photos

• Connector arrangement

• Display appearance

• Additional identification labels

• Required quantity

The board should be matched by model, revision and connector configuration rather than by display appearance alone.

FAQ

What is the Hyundai HDOT-236M used for?

It is used as an elevator display and LOP indicator board in Hyundai STVF-2S applications.

Is HDOT-236M an LCD display?

HDOT-236M is generally listed as an indicator or display board. It should be distinguished from LCD-type products such as HLCD-100.

Is the Rev1.0 marking important?

Yes. Rev1.0 is a commonly found HDOT-236M version, and the original PCB revision should be checked before replacement.

For Hyundai STVF-2S HDOT-236M requirements, send us the original display board photos and markings for replacement checking before quotation.
