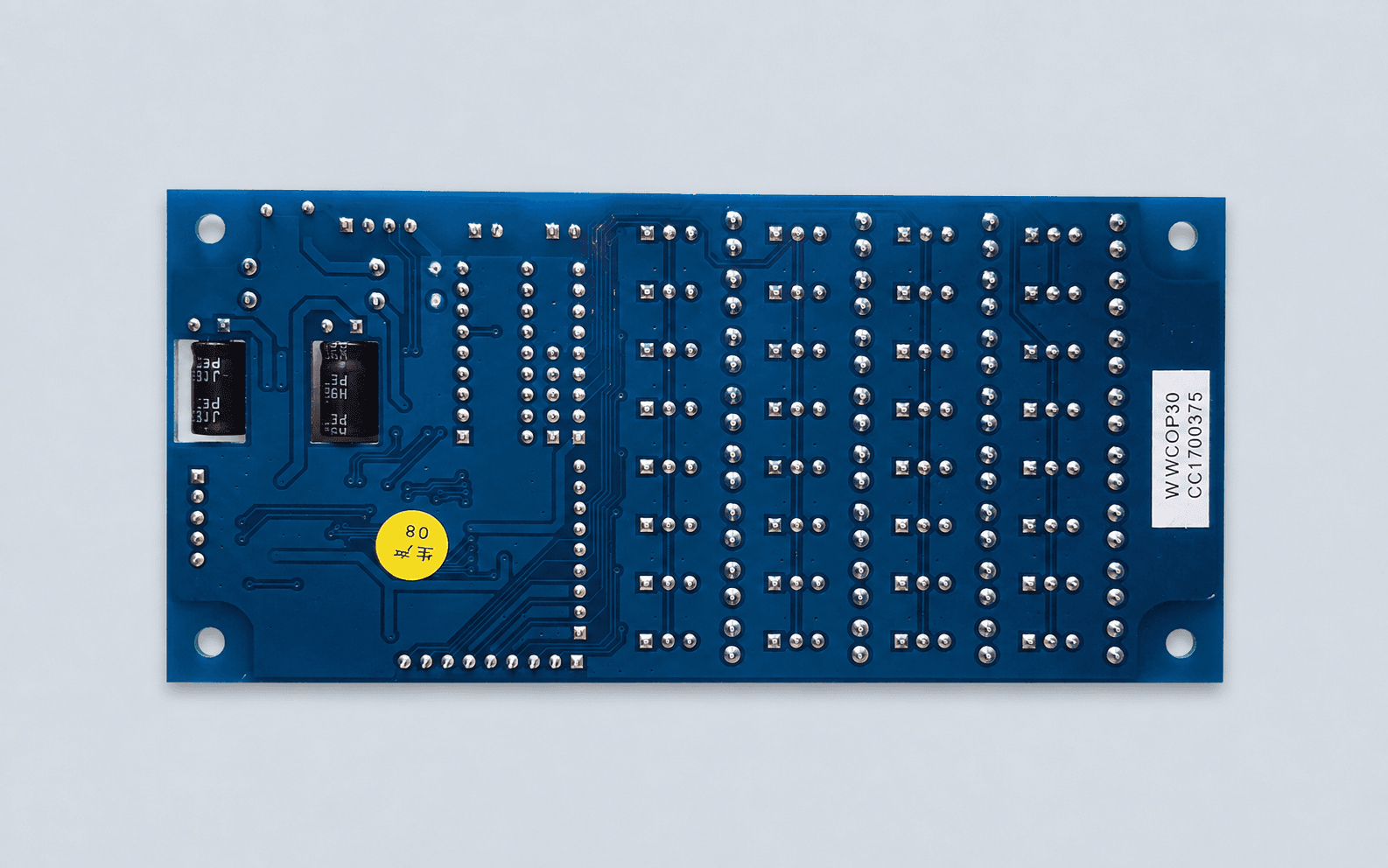

Hyundai STVF9 WCOP30 BD Rev1.5 Button Extension Board

The Hyundai STVF9 WCOP30 BD Rev1.5 is an elevator button extension and car operating panel communication board used in Hyundai STVF9 systems. It works with the main COP-30D board and is commonly associated with additional car operating panel configurations.

Used with Additional COP Functions

The WCOP30 board can be used in applications such as handicap COP, guest COP or staff operating panels. It communicates with the main COP-30D board through the elevator CAN communication circuit.

For replacement, the PCB revision and connector arrangement should be checked carefully.

Please confirm:

• Board model: WCOP30 BD

• Revision: Rev1.5

• Elevator system: STVF9

• Front and rear PCB photos

• Connector arrangement

• Additional CC or part number, if present

• Related COP configuration

• Required quantity

Check the Exact WCOP30 Version

Different WCOP30 board versions may exist in service. A similar-looking board should not automatically be considered interchangeable without checking the PCB revision, connectors and operating panel configuration.

FAQ

What is the Hyundai WCOP30 Board used for?

The WCOP30 board is used as part of the car operating panel system and supports additional button and communication functions in Hyundai STVF9 elevators.

Is WCOP30 the same as COP30D?

No. The main COP30D board and WCOP30 board are separate components. The WCOP30 board works together with the main COP30D board for additional operating panel functions.

Is Rev1.5 important when ordering?

Yes. The PCB revision should be checked together with the WCOP30 BD model and connector layout before replacement.

For Hyundai STVF9 WCOP30 BD Rev1.5 requirements, send us the original PCB photos and operating panel information for model checking before quotation.
