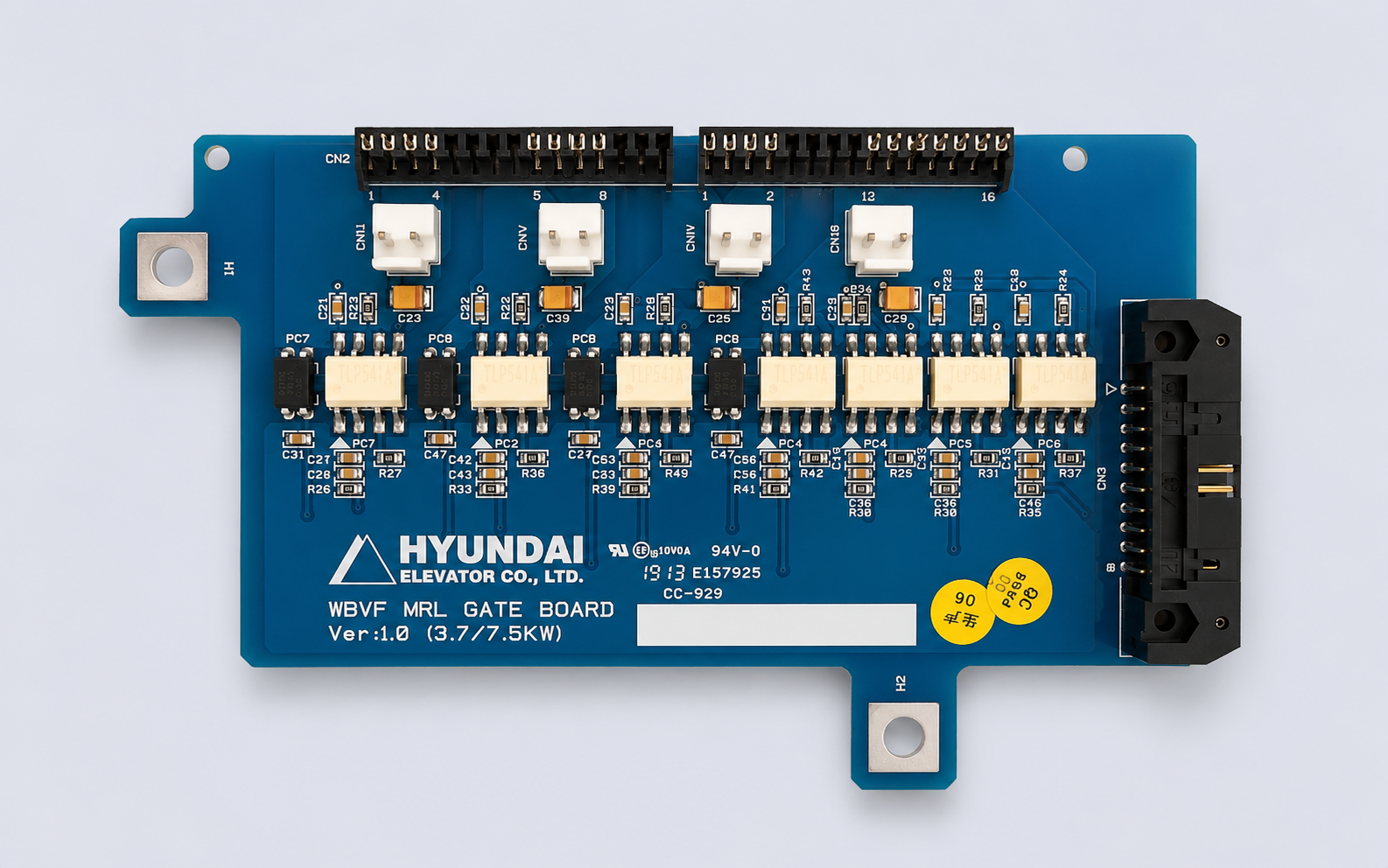

Hyundai WBVF MRL GATE BOARD

The Hyundai WBVF MRL GATE BOARD is an inverter gate control PCB used in Hyundai WBVF machine-room-less elevator drive systems. It works as part of the inverter control section and is mainly supplied for maintenance and replacement of an existing WBVF MRL gate board.

Part of the WBVF Inverter System

The gate board works together with the main inverter control board and power module to support elevator drive operation.

Different WBVF MRL gate board versions can be found in service, so the PCB version and inverter power rating should be checked before selecting a replacement.

For model confirmation, please provide:

• Board model: WBVF MRL GATE BOARD

• PCB version or revision

• Inverter power rating

• Front and rear PCB photos

• Connector arrangement

• Additional part numbers or labels

• Required quantity

Match the Drive Configuration

A gate board with a similar appearance should not automatically be considered interchangeable. The original PCB markings, inverter configuration and connector layout should be compared before replacement.

If the existing board has a version number or kW marking, please include it when requesting a quotation.

FAQ

What is the Hyundai WBVF MRL Gate Board used for?

It is part of the WBVF elevator inverter drive system and works with the inverter control and power section.

Are all WBVF MRL Gate Boards interchangeable?

Not necessarily. PCB versions and inverter power configurations may differ, so the original board information should be checked before replacement.

What information should I send for quotation?

Please send clear front and rear PCB photos, board revision, inverter power information and any additional identification numbers.

For Hyundai WBVF MRL GATE BOARD requirements, send us the original board information for replacement checking before quotation.
