KONE R6 D7 Door Cam KM902670G13 G15

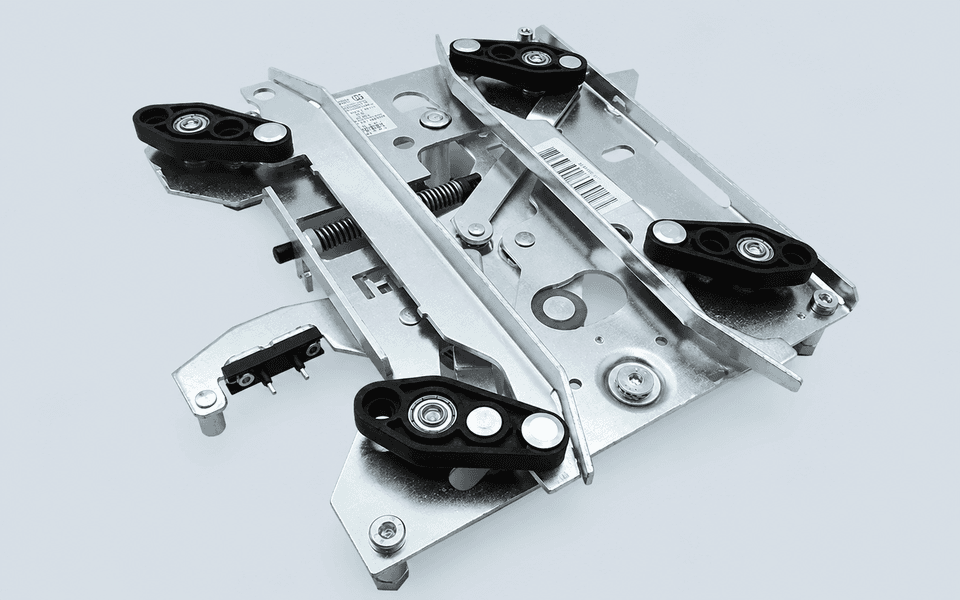

KONE KM902670G13 and KM902670G15 are car-door cam assemblies used in compatible KONE elevator door systems. The assembly is also known as a door vane, door knife, or door lock coupler.

This version is generally supplied with a mechanical lock arrangement. During door operation, the two vane blades work with the landing-door rollers, while the linkage and locking section control the engagement and release movement.

Identify the Lock Version First

For this part, the lock structure is the first detail to compare. Some visually similar KONE door cams are supplied without the complete locking mechanism, while KM902670G13 and G15 are commonly associated with R6 or D7-type assemblies with lock. KM902670G13 is also marketed as a D7 long door vane with lock.

Before ordering, check:

• KM902670G13 or KM902670G15 reference

• lock hook and release lever shape

• number and position of return springs

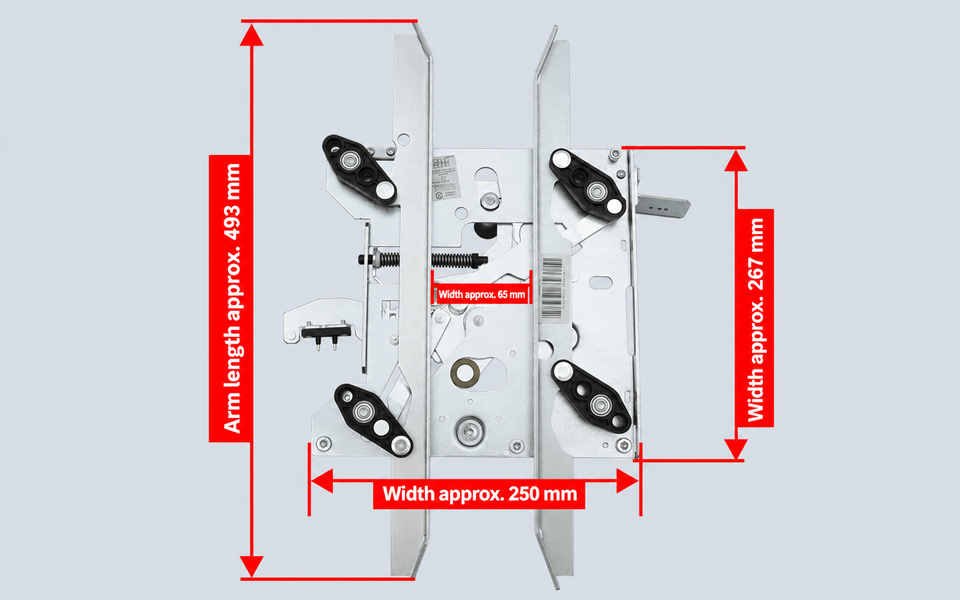

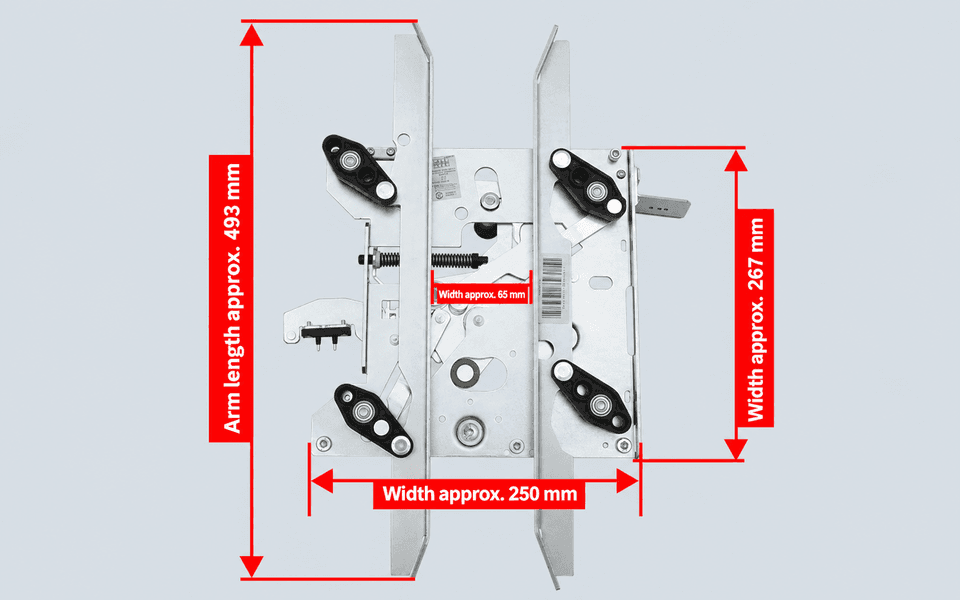

• vane blade length and spacing

• linkage arrangement

• mounting-plate dimensions

• mounting-hole positions

• door-opening direction

• landing-door roller contact side

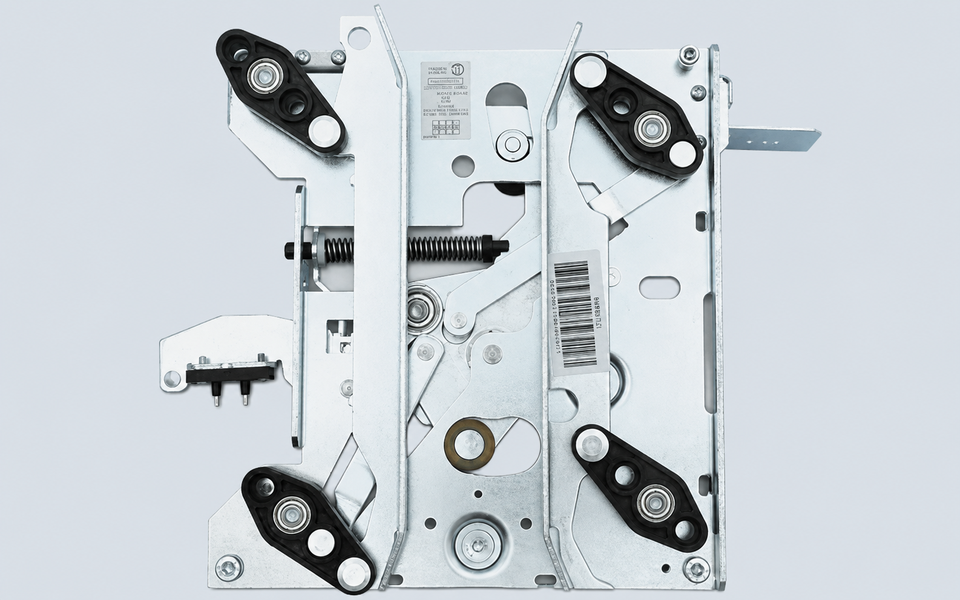

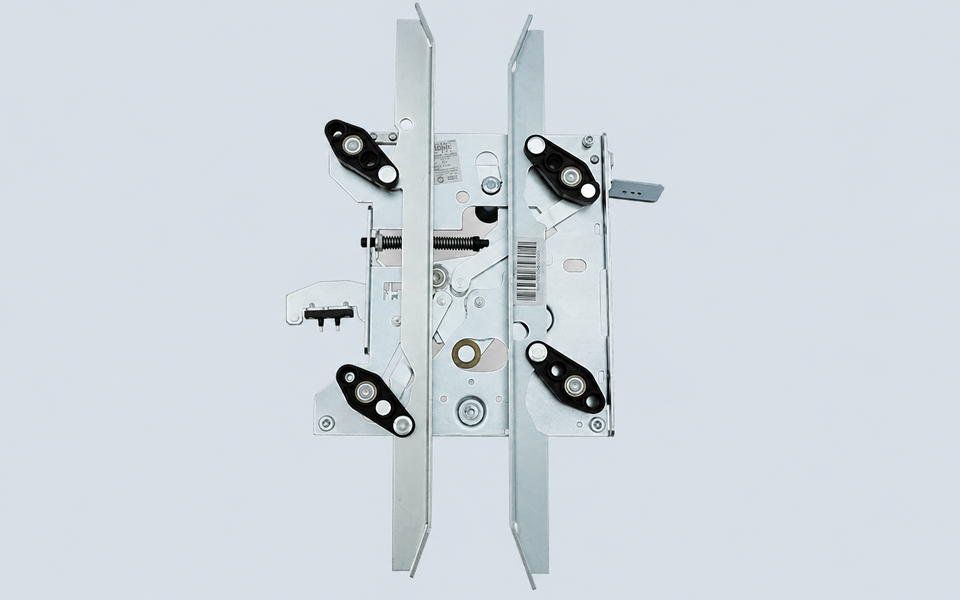

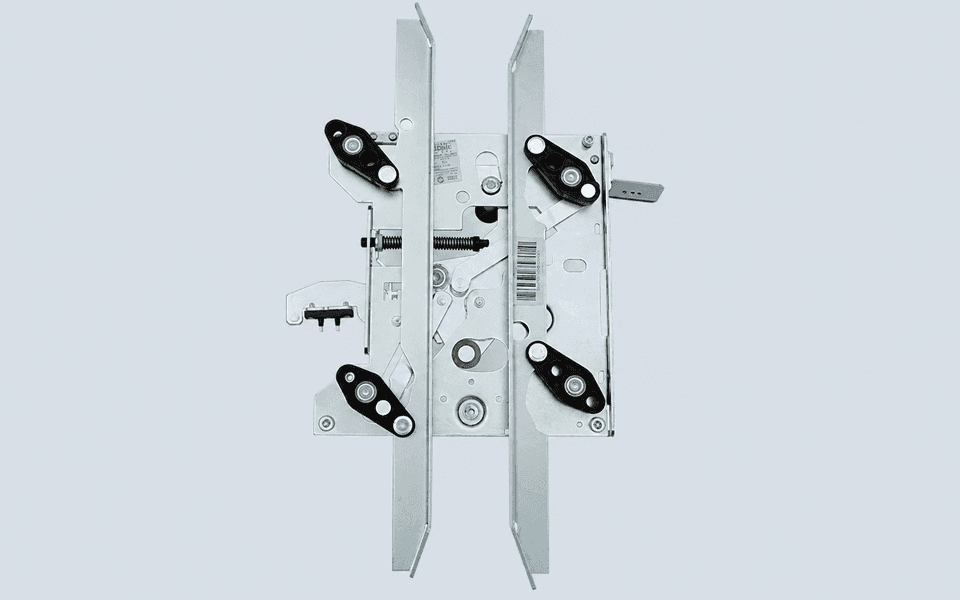

• front, rear, and installed photos

A replacement may be needed when the blades are bent, the linkage has excessive play, the return action becomes slow, or the lock section no longer resets reliably. In these cases, the elevator may show intermittent door-lock faults, poor landing-door pickup, mechanical impact, or incomplete unlocking.

Before replacing the complete assembly, technicians should also check the landing-door rollers, door alignment, mounting bracket, spring tension, and clearance between the vane blades and rollers.

For enquiries from Saudi Arabia, Jordan, Egypt, Iraq, Syria, Brazil, Chile, Spain, and Italy, sending a close photo of the lock section is usually the fastest way to distinguish this model from other KONE door cams.
