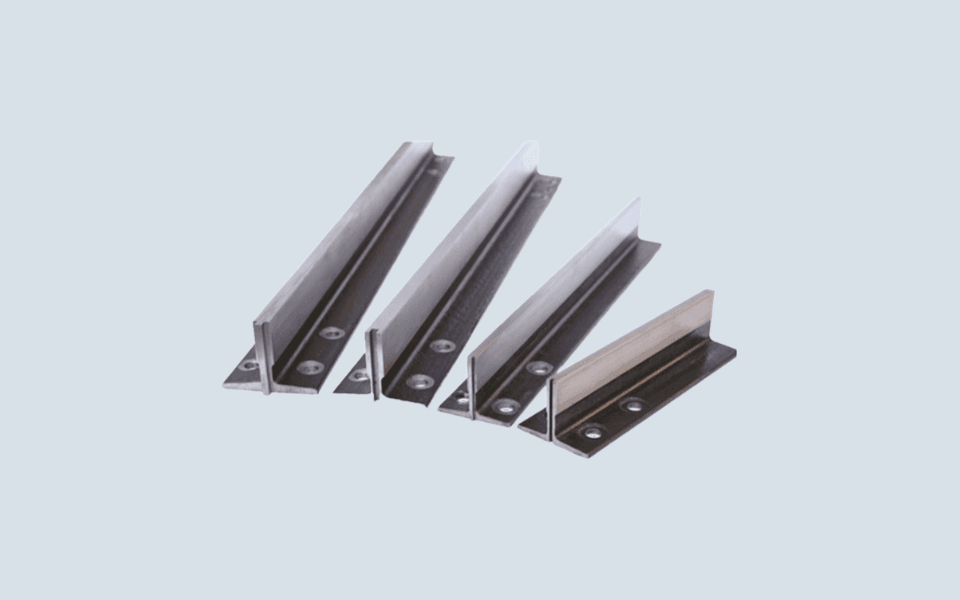

MF Elevator Guide Rail

MF Elevator Guide Rail is used as the vertical running guide for elevator cars and counterweights in elevator shaft systems.

In an elevator system, the guide rail is not just a piece of steel. It supports the running path of the elevator car or counterweight, works with guide shoes or guide rollers, and affects ride comfort, alignment, vibration, and long-term operation stability. For replacement or new installation projects, the rail profile, machining accuracy, joint condition, and packing method should all be confirmed before shipment.

This product may be searched as:

• MF Elevator Guide Rail

• MF Lift Guide Rail

• Elevator T Guide Rail

• Lift T Type Guide Rail

• Elevator Car Guide Rail

• Elevator Counterweight Guide Rail

• Elevator Guide Rail with Fishplate

• Machined Elevator Guide Rail

Selection Starts From the Rail Profile

The most important step is to confirm the correct rail specification. Different elevator projects may use different T-type guide rails, and the dimensions cannot be guessed only by appearance.

Before ordering, buyers should check:

• rail model or marking on the old rail

• rail profile size

• total rail length

• head width and base width

• rail thickness and height

• hole position and hole distance

• fishplate type

• car side or counterweight side application

• elevator speed and load if available

• old rail photo or project drawing

If the project is for maintenance or partial replacement, matching the existing rail is especially important. A rail with a similar shape may still have different hole positions, joint dimensions, or machining tolerance.

Why Machining and Straightness Matter

Elevator guide rails must be straight, stable, and properly machined. Poor rail straightness or uneven joints can cause guide shoe wear, abnormal noise, vibration, or uncomfortable running. For higher-speed elevators, the guide rail surface, joint accuracy, and alignment become even more important.

Technicians should also check whether the guide rail is used with sliding guide shoes or roller guide shoes. The contact condition, guide shoe lining, lubrication, and rail surface quality all affect final running performance.

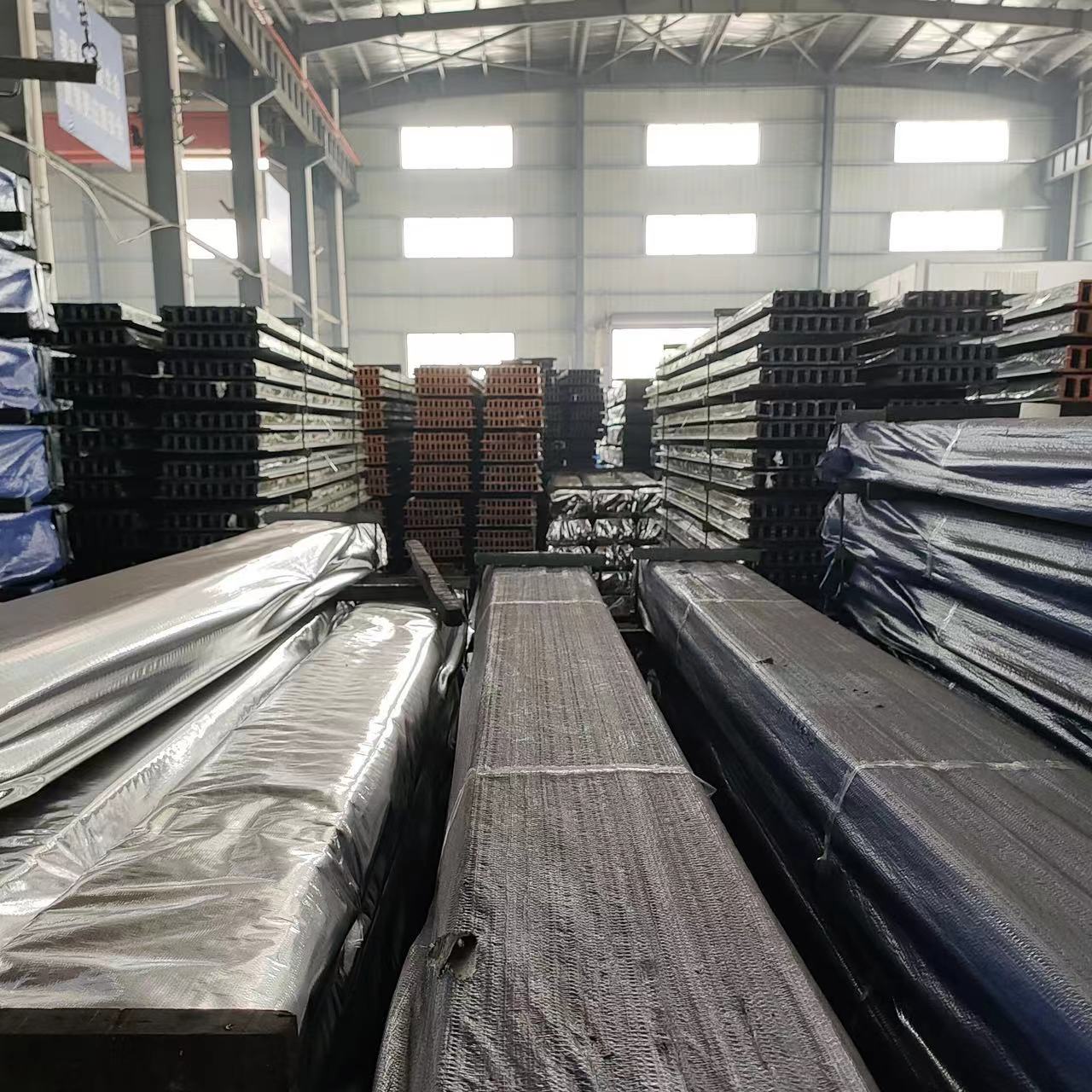

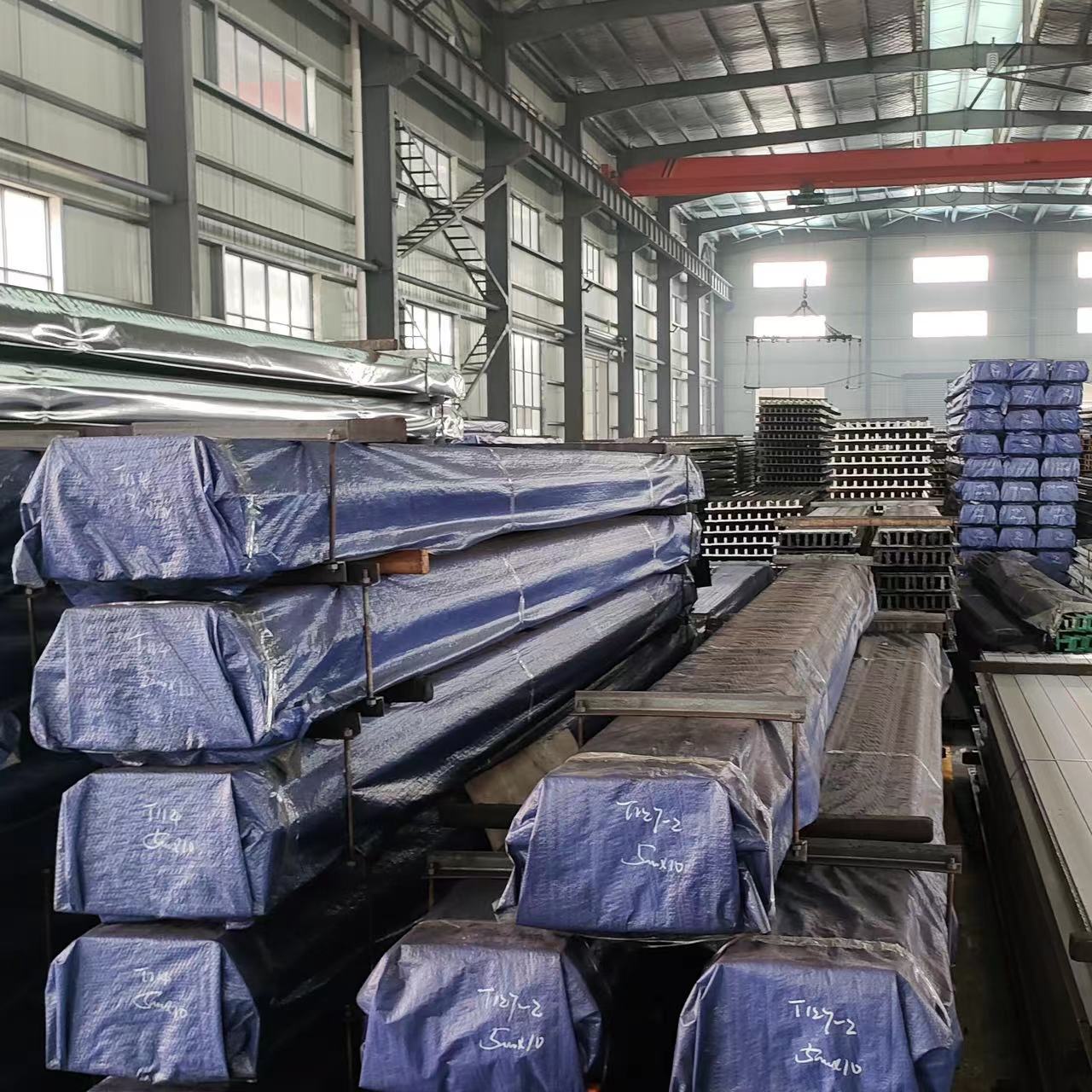

Packing and Export Notes

Guide rails are long and heavy items, so packing is part of the supply quality. For export orders, rails should be packed to reduce bending, surface damage, rust, and deformation during transportation.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, guide rail orders are often used for installation projects, modernization work, or shaft repair. Before shipment, it is better to confirm the rail specification, quantity, length, fishplates, bolts if required, and packing method.

FAQ

Can MF elevator guide rails replace other guide rails?

Not automatically. The rail profile, hole position, fishplate, length, and project requirement must be checked before replacement.

What information should I send before quotation?

Please send the rail model, old rail marking, cross-section dimensions, length, hole position, quantity, and project drawing if available.

Are guide rails shipped by air or sea?

Most elevator guide rails are shipped by sea because they are long and heavy. For urgent small replacement orders, the shipping method should be checked according to rail length and packing size.

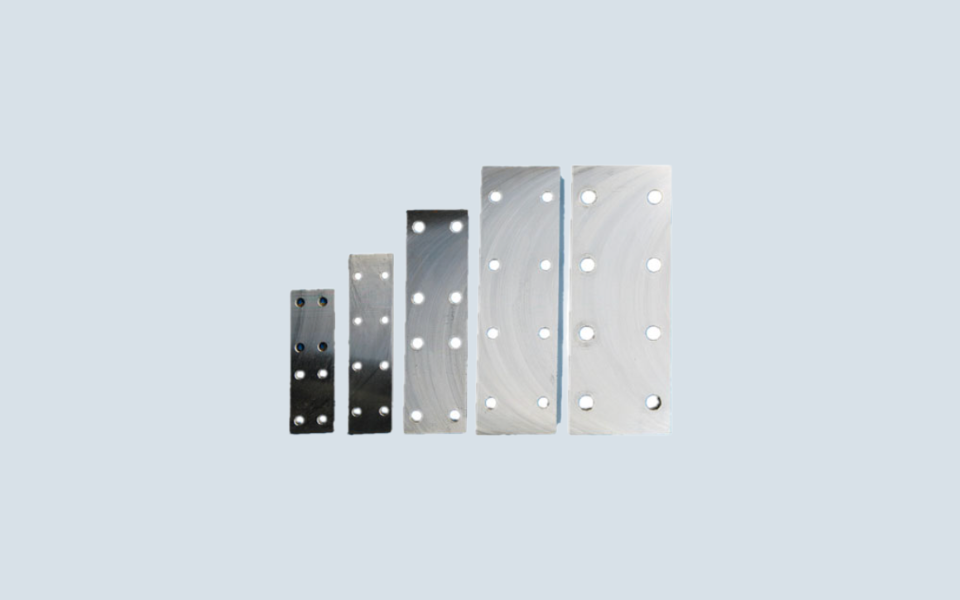

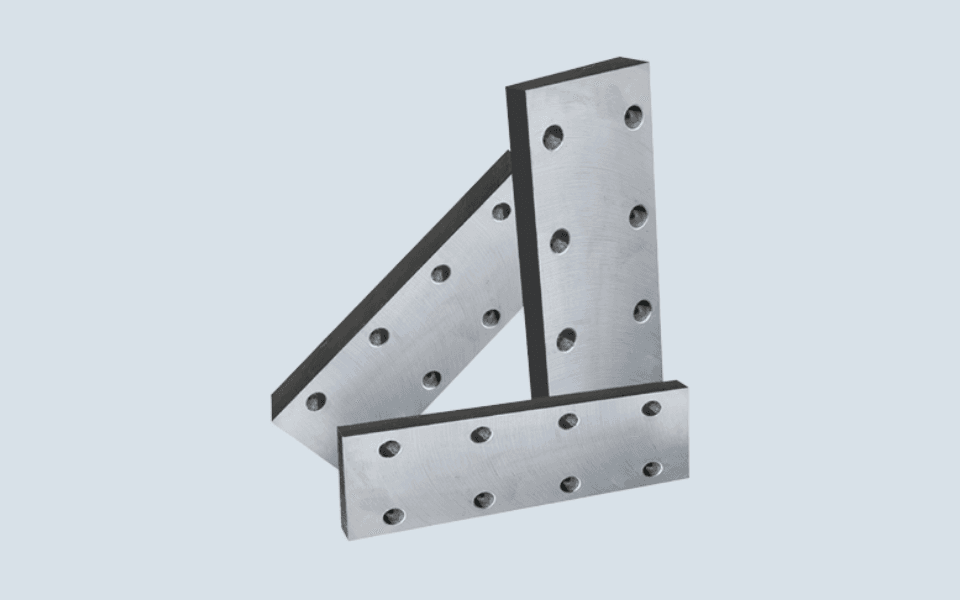

Should I order fishplates together?

If the project requires new installation or rail replacement, fishplates and related bolts should be confirmed together with the guide rail.
