Mitsubishi Elevator COP / Inspection Control Board Repair P235733B000G01 LHS-461A LHS-451A

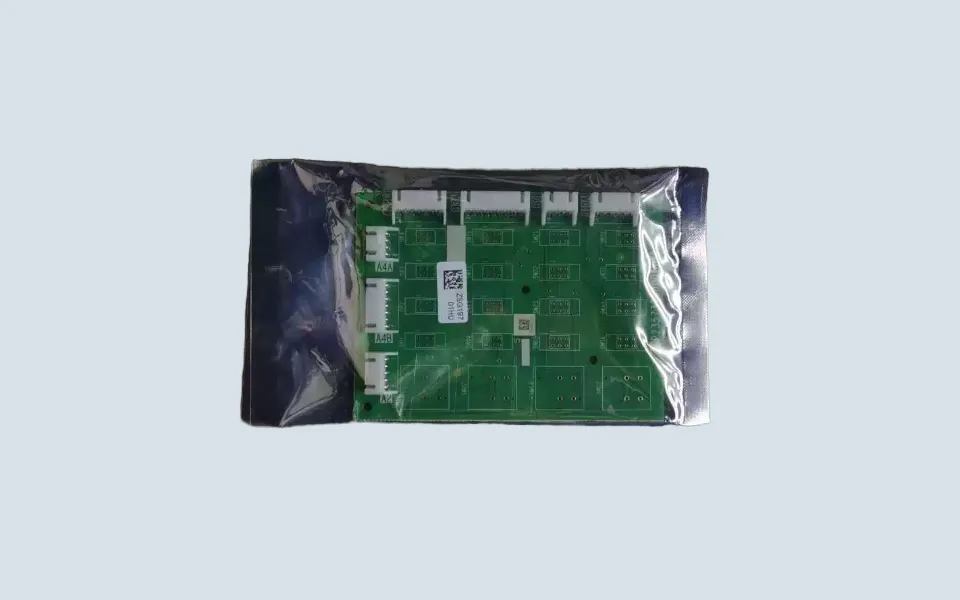

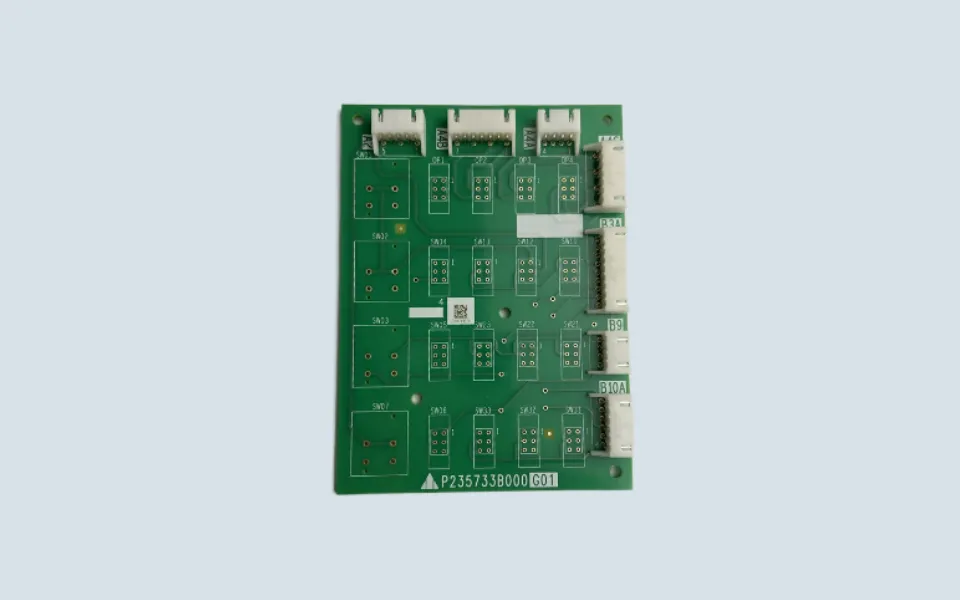

Mitsubishi Elevator Control Board P235733B000G01 is commonly identified by the related PCB model references LHS-461A and LHS-451A.

In the elevator spare parts market, this board may be described as a Mitsubishi elevator COP board, maintenance panel, car inspection board, or inspection signal control board. Public supplier listings consistently connect P235733B000G01 with LHS-461A and LHS-451A, although the exact application should still be confirmed from the original elevator system and board location.

Model References

Customers may search or request this board under several related names:

• P235733B000G01
• LHS-461A
• LHS-451A
• Mitsubishi Elevator COP Board
• Mitsubishi Elevator Maintenance Panel
• Mitsubishi Elevator Car Inspection Board
• Mitsubishi Elevator Inspection Signal Control Board

LHS-461A and LHS-451A are frequently listed together with P235733B000G01, but the models should not be treated as automatically interchangeable without checking the original PCB label, connector arrangement, and elevator configuration.

When Board Repair May Be Considered

Repair evaluation may be useful when the original board is difficult to source, the failure appears to be limited to individual electronic components, or the customer wants to retain the original Mitsubishi board configuration.

Typical reasons for requesting repair assessment may include:

• visible component damage
• intermittent board response
• damaged relay, capacitor, resistor, or connector
• inspection panel signal abnormality
• COP or maintenance panel control problems
• previous replacement board compatibility concerns

The board should be inspected before deciding whether repair is practical. A simple visible fault may be repairable, while extensive PCB burning, corrosion, damaged multilayer tracks, or unavailable programmed components may make replacement the safer option.

Information Required for Repair Evaluation

To evaluate P235733B000G01 LHS-461A / LHS-451A, please provide:

• clear front and back photos of the PCB
• close-up photos of the damaged area
• complete board label and model number
• elevator fault description
• board installation position
• connector and wiring photos
• information about previous repair attempts
• confirmation of whether the elevator suffered overvoltage, water damage, or short circuit

Providing detailed fault information helps distinguish a board failure from problems caused by the power supply, wiring, connectors, or other elevator control components.

Repair or Replacement: How to Decide

Repair is usually more suitable when:

• the PCB substrate is not severely burned
• the connector structure remains intact
• the damaged components can be identified
• the programmed control components are still functional
• the original board is difficult to replace

Replacement may be more appropriate when:

• the board has serious carbonization
• multiple circuit areas are damaged
• the PCB has extensive corrosion
• custom ICs or programmed components have failed
• the board has already been repaired several times

For safety and reliability, the final decision should be based on the physical board condition rather than only the reported elevator symptom.

Installation Reminder After Repair

Before reinstalling a repaired board, technicians should inspect the surrounding elevator circuit.

Important checks include:

• cabinet or COP power supply stability
• connector condition
• wiring terminals
• signs of short circuit
• grounding condition
• related control boards
• original fault source

If the board was damaged by an external electrical problem, reinstalling it without correcting the root cause may result in repeated failure.

For model confirmation or repair evaluation, a clear photo of the original P235733B000G01 / LHS-461A / LHS-451A board is usually the fastest way to begin.
