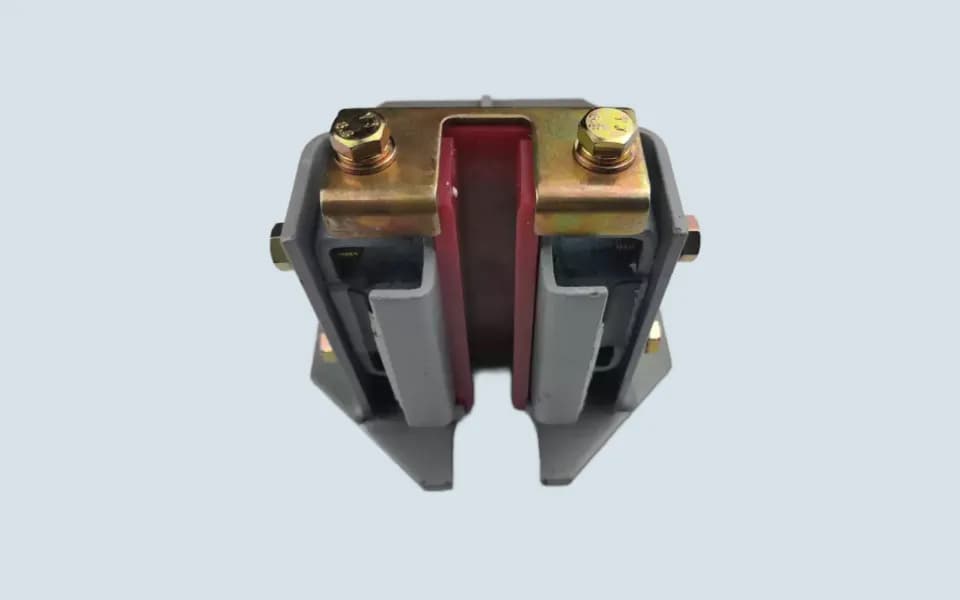

Mitsubishi Elevator Guide Shoe YA171B989G01L18

YA171B989G01L18 is commonly used in Mitsubishi elevator guide systems for car frame guidance and running stability.

This type of guide shoe is generally installed between the elevator car frame and guide rail system to help reduce vibration and maintain smooth vertical movement during operation.

Usually associated with:

• guide rail sliding
• car frame stabilization
• running alignment
• vibration reduction systems

Common Field Situation

In some older Mitsubishi elevators in Chile and Serbia, guide shoe wear may gradually increase after long-term operation, especially in buildings with high daily traffic.

Typical situations may include:

• abnormal running noise
• slight car vibration
• unstable movement feeling
• increased rail friction
• uneven sliding wear

In some modernization projects, technicians replace the guide shoe together with the insert liner during overhaul work.

Why Guide Shoe Wear Matters

Guide shoes directly affect the running condition between:

• elevator car frame
• counterweight system
• guide rails
• sliding surfaces

If the sliding gap becomes unstable, long-term rail wear and operational vibration may gradually increase.

Because of this, some maintenance companies check guide shoe condition during regular annual inspection.

Maintenance Notes

Before replacement:

• guide shoe dimensions should match original specification
• rail size compatibility should be confirmed
• sliding insert condition should also be inspected

Some Mitsubishi systems use different guide shoe structures depending on speed and load configuration.

FAQ

Can worn guide shoes cause elevator vibration?

Yes. In some Mitsubishi elevators, worn sliding surfaces may increase running vibration and rail friction during operation.

Why does the elevator become noisier after long-term operation?

Besides rail condition, guide shoe wear may also affect movement smoothness and running noise.
