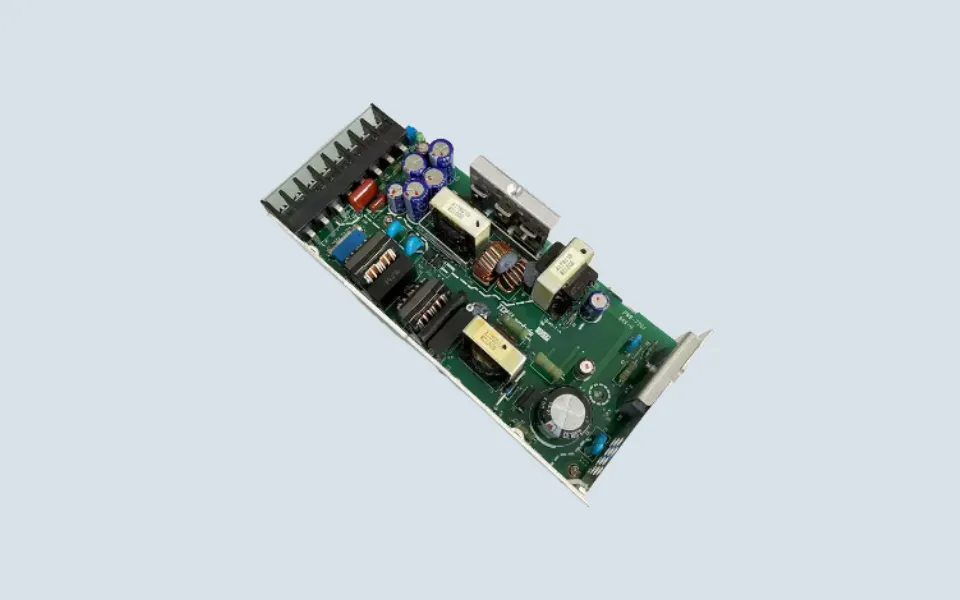

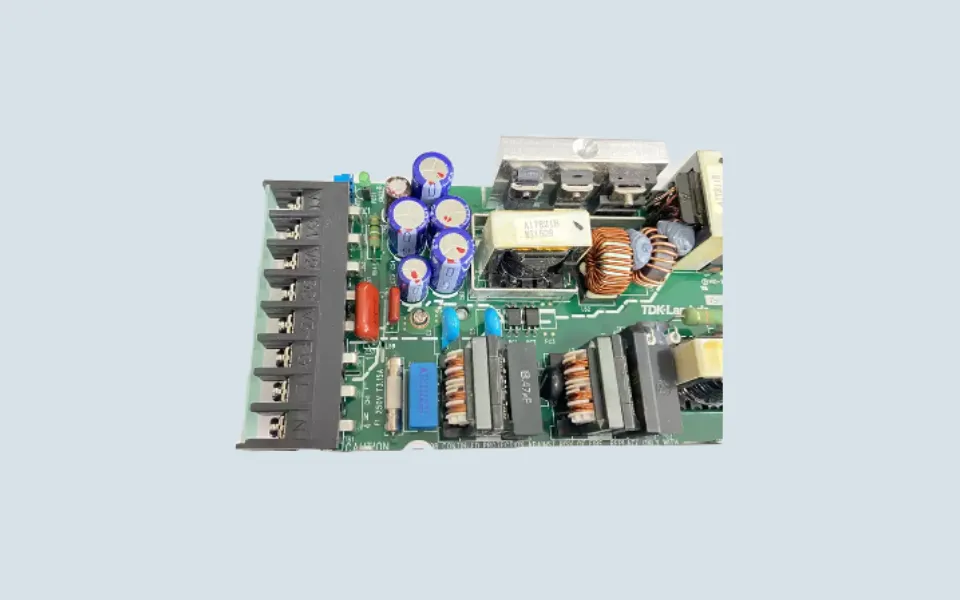

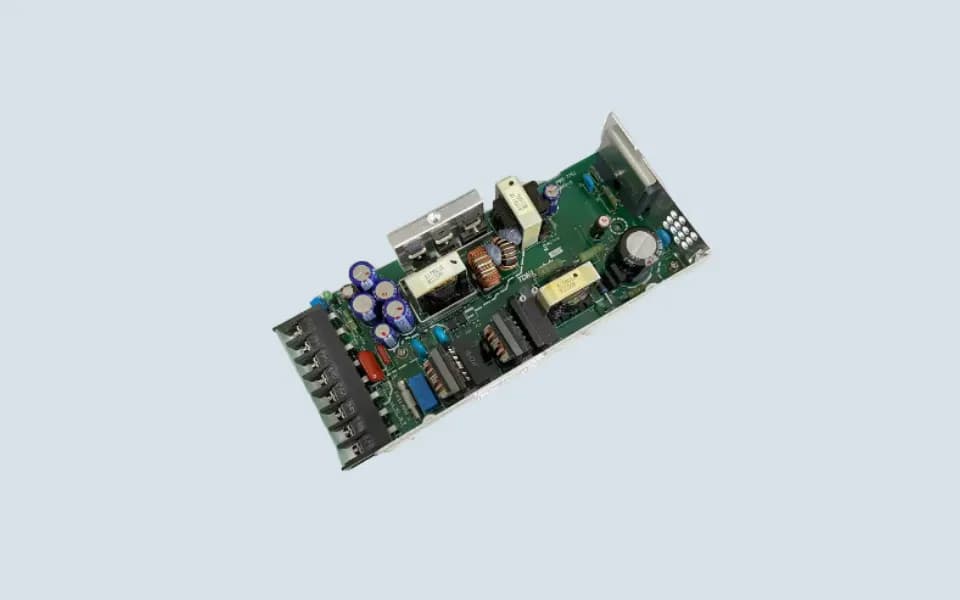

Mitsubishi Elevator Power Supply Board PWB-770J JWT75-522 JWT75-5FF

Mitsubishi Elevator Power Supply Board PWB-770J JWT75-522 JWT75-5FF is commonly used in elevator control cabinet power supply systems.

This type of power supply board provides stable low-voltage output for elevator controller circuits, signal boards, display modules, communication systems, and other electronic control components inside the elevator cabinet.

In elevator maintenance work, this board is usually checked when unstable low-voltage power causes intermittent signal loss, display reset, communication interruption, or controller-related abnormal behavior.

Commonly Requested Models

This Mitsubishi elevator power supply board may be searched under several related model numbers:

• PWB-770J
• JWT75-522
• JWT75-522/A
• JWT75-522/B
• JWT75-5FF
• JWT75-5FF/A
• TDK-Lambda JWT75 Series

Some market listings describe PWB-770J together with JWT75-5FF as an elevator PLC power supply board. Other industrial power supply listings show JWT75-522/A and JWT75-522/B as TDK-Lambda JWT75 series triple-output AC-DC power supply models.

Because JWT75-522 and JWT75-5FF may have different output voltage combinations, customers should confirm the original label, output voltage, terminal layout, and cabinet wiring before ordering. Do not replace only by appearance.

A Power Supply Fault Found During Maintenance

In one elevator maintenance case, the elevator could still operate, but several electronic functions became unstable.

The maintenance team found that the floor display sometimes restarted, and the communication board occasionally lost signal during operation.

At first, the display board and communication board were suspected.

After checking the low-voltage output inside the control cabinet, technicians found that the power supply output was unstable under load. The problem was not caused by the display board itself, but by the power supply module feeding the signal circuit.

After replacing the PWB-770J JWT75 series power supply board and checking the wiring terminals, the display and communication circuits returned to normal operation.

Why Power Supply Problems Are Often Misdiagnosed

A failing power supply board does not always stop the elevator immediately.

In real maintenance work, unstable output may cause symptoms such as:

• display reset
• communication interruption
• controller input error
• intermittent PCB restart
• unstable signal response
• random low-voltage circuit faults

These symptoms may look like a problem with the communication board, display board, interface board, or main controller. Because of this, experienced technicians usually check the power supply output before replacing expensive control boards.

Parts Often Checked Together

When servicing PWB-770J JWT75-522 JWT75-5FF power supply boards, maintenance teams usually inspect:

• input voltage
• +5V output circuit
• +12V or +15V output circuit
• wiring terminals
• fuse condition
• display boards
• communication boards
• control cabinet grounding

The JWT75 series is designed as an industrial AC-DC power supply with universal AC input range, and some models support 85–265VAC input. However, the final replacement model should still match the original elevator cabinet requirement.

Before Ordering

Please confirm the following before purchase:

• original model number
• PWB-770J marking
• JWT75-522 or JWT75-5FF label
• output voltage combination
• terminal layout
• mounting space
• original power supply photo
• elevator cabinet wiring condition

This is especially important because JWT75-522 and JWT75-5FF may look similar but can have different voltage outputs. For elevator control systems, the wrong output combination may cause display, communication, or controller circuit problems.
