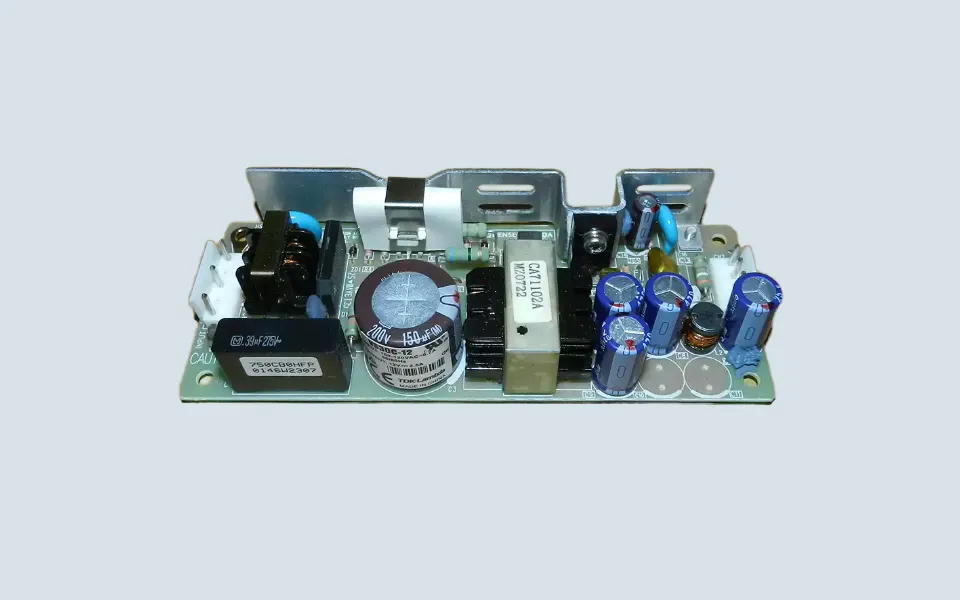

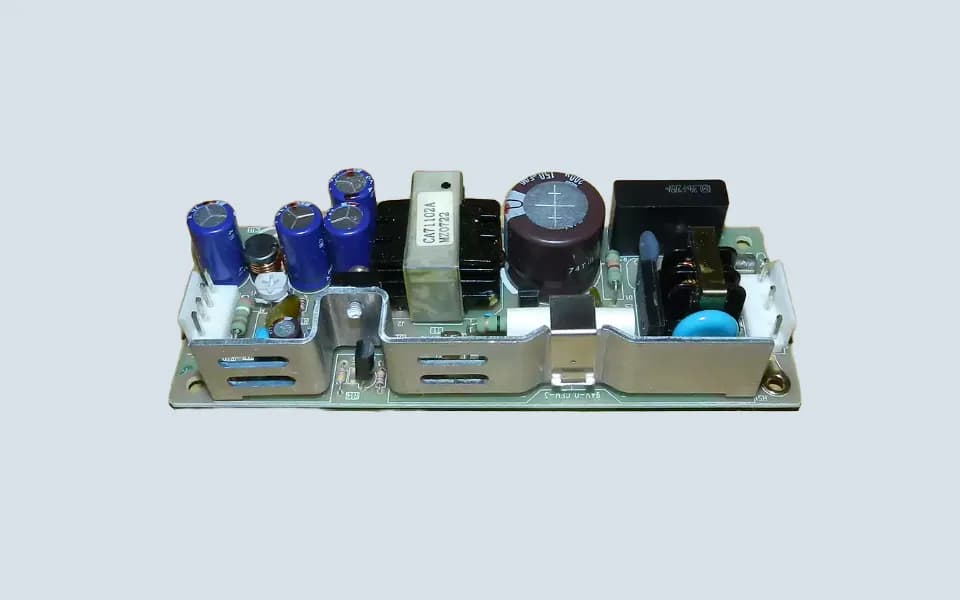

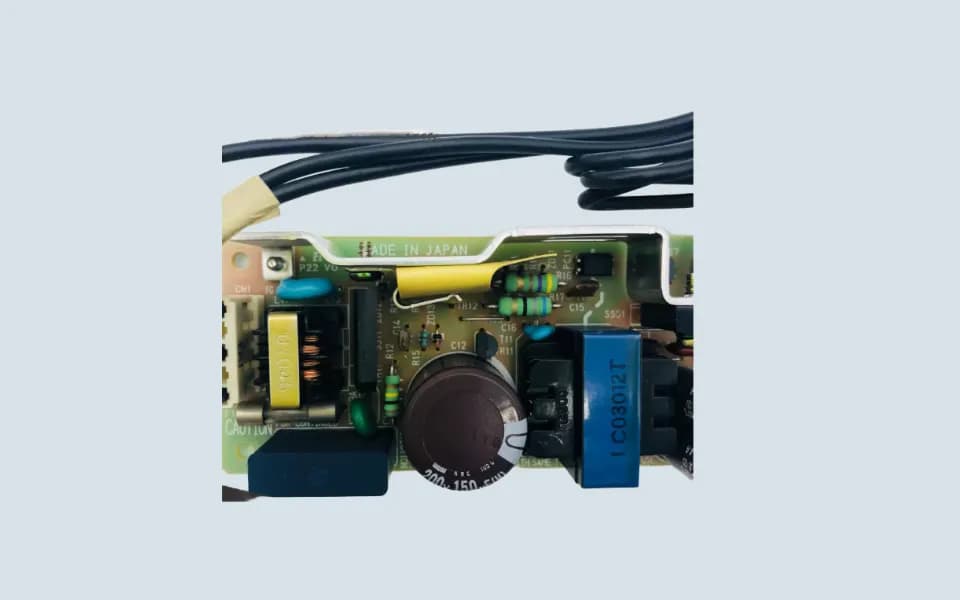

Mitsubishi Elevator Switching Power Supply Board LCA30S-12

Mitsubishi Elevator Switching Power Supply Board LCA30S-12 is commonly used in elevator control cabinet power supply systems where stable 12V DC output is required.

This power supply module is usually installed inside elevator controller cabinets or electronic control assemblies to support signal circuits, display modules, communication boards, relay circuits, and other low-voltage elevator components.

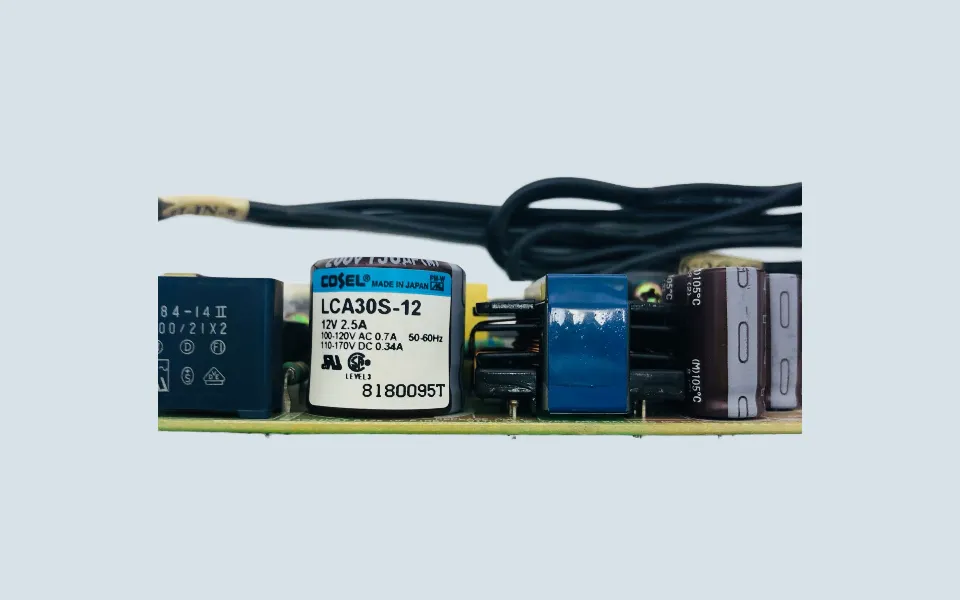

LCA30S-12 belongs to the COSEL LCA30S switching power supply series. Public technical information lists LCA30S-12 as a 12V, 2.5A, 30W single-output AC-DC power supply module. In elevator spare parts markets, it is often supplied as an elevator switching power supply for control cabinet applications.

Commonly Requested Models

Customers may search this power supply board under several related model numbers:

• LCA30S-12
• COSEL LCA30S-12
• LCA30S-12-Y
• LCA30S-3
• LCA30S-5
• LCA30S-15
• LCA30S-24
• LFA30F-12-J1

The models above belong to the COSEL LCA / related power supply series, but they should not be treated as automatically interchangeable. Output voltage, current, mounting position, terminal layout, and elevator cabinet wiring must be confirmed before replacement.

A Low-Voltage Fault Found During Maintenance

In one elevator maintenance case, the elevator could still operate, but several control cabinet functions became unstable.

The building maintenance team noticed that the floor display occasionally restarted, and the communication signal sometimes became abnormal after long operation.

At first, the display board and communication board were suspected.

After checking the cabinet power circuit, technicians found that the 12V power supply output was unstable under load. The actual problem was not caused by the display board itself, but by unstable low-voltage power feeding the signal circuit.

After replacing the LCA30S-12 switching power supply board and checking the wiring terminals, the display and communication circuits returned to stable operation.

Why Power Supply Problems Are Often Misdiagnosed

A failing switching power supply does not always cause the elevator to stop immediately.

In real maintenance work, unstable output may create symptoms such as:

• intermittent display reset
• communication signal interruption
• relay circuit instability
• controller input errors
• abnormal signal response
• random low-voltage circuit faults

These symptoms can look similar to PCB failure. Because of this, experienced technicians usually check the power supply output before replacing expensive display boards, communication boards, or controller modules.

Parts Often Checked Together

When servicing Mitsubishi Elevator Switching Power Supply Board LCA30S-12, maintenance teams usually inspect:

• 12V DC output
• AC input voltage
• wiring terminals
• fuse condition
• display board power input
• communication board power input
• cabinet grounding
• cabinet ventilation condition

In older elevator control cabinets, terminal oxidation, unstable input voltage, or poor heat dissipation may also affect power supply reliability.

Before Ordering

Please confirm the following before purchase:

• original model number: LCA30S-12
• output voltage: 12V
• output current requirement
• cabinet mounting space
• terminal layout
• input voltage requirement
• original power supply label photo
• whether LCA30S-12-Y or LFA30F-12-J1 is suitable for your system

Some LCA30S series power supplies look similar but have different output voltages. For elevator control systems, using the wrong voltage version may cause display, communication, or control circuit problems.
