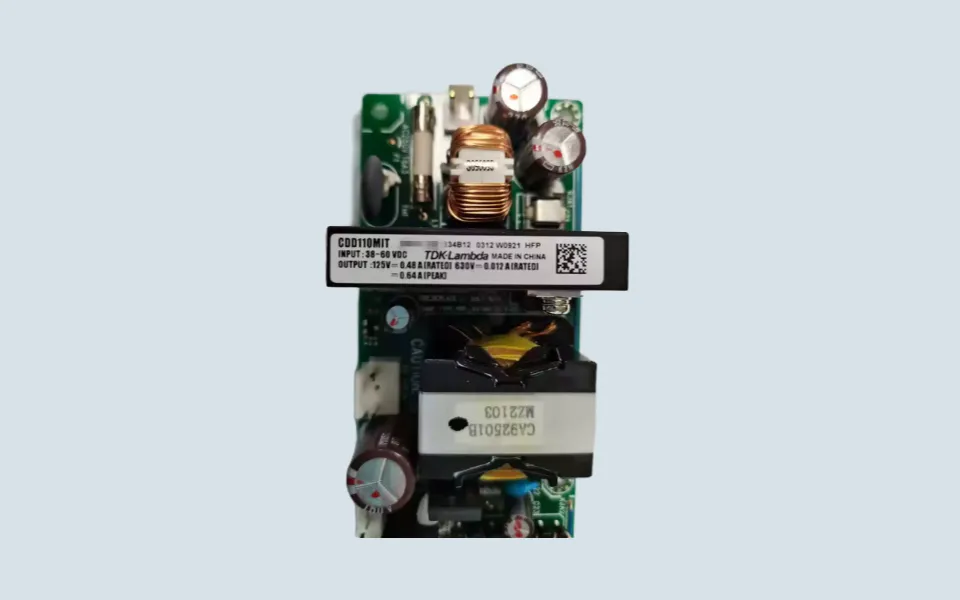

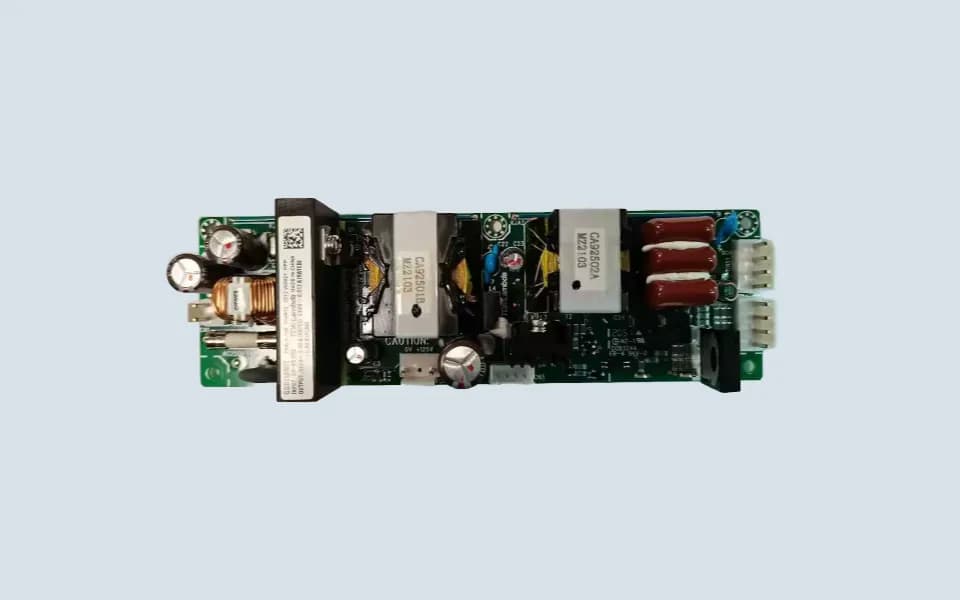

Mitsubishi Elevator Switching Power Supply CDD110MIT

Mitsubishi Elevator Switching Power Supply CDD110MIT is commonly used in Mitsubishi elevator control cabinet power supply systems.

This switching power supply is usually installed inside the elevator controller cabinet or electrical control section to provide stable power for signal circuits, control boards, display modules, communication systems, or other low-voltage electronic components.

In elevator maintenance work, CDD110MIT is usually checked when unstable power output causes intermittent electronic faults, display reset, communication interruption, or abnormal signal behavior inside the controller cabinet.

Related Mitsubishi Switching Power Supply Models

Customers searching for Mitsubishi elevator switching power supplies may also compare or request related models such as:

• CDD110MIT
• CDD36MIT-1212
• RT-3-522/MIT
• X59LX-81
• X59LX-82
• Z59LX-42
• Z59LX-46
• CTQ1000AMIT
• CTQ1000BMIT

These models should be treated as related Mitsubishi elevator power supply references, not automatically interchangeable replacements. For example, public listings show CDD36MIT-1212 as a Mitsubishi elevator accessories switching power supply, while RT-3-522/MIT and X59LX-81 / X59LX-82 appear as separate Mitsubishi elevator switching power supply models.

Before ordering, the original power supply label, output voltage, connector type, and cabinet wiring should be confirmed carefully.

A Power Supply Problem Found During Maintenance

In one elevator maintenance case, the elevator could still run normally, but the car display and some signal functions occasionally restarted during operation.

At first, the display board and communication board were suspected.

After checking the control cabinet, technicians found that the low-voltage power supply output was unstable under load. The problem was not caused by the display board itself, but by unstable power feeding the signal circuit.

After replacing the switching power supply and checking the cabinet terminals, the display and communication response returned to normal.

Why Switching Power Supply Problems Are Often Misdiagnosed

A failing switching power supply does not always shut down the elevator immediately.

In real maintenance work, technicians may notice:

• intermittent display reset
• communication board restart
• controller input errors
• unstable signal response
• random low-voltage circuit faults
• abnormal board behavior after long operation

These symptoms can look similar to PCB failure. Because of this, experienced maintenance teams usually check the power supply output before replacing expensive controller boards or display boards.

Parts Often Checked Together

When servicing Mitsubishi Elevator Switching Power Supply CDD110MIT, technicians usually inspect:

• input voltage
• DC output voltage
• wiring terminals
• fuse condition
• cabinet grounding
• communication boards
• display boards
• controller power input

In older elevator cabinets, terminal oxidation, unstable input voltage, or poor cabinet ventilation may also affect power supply reliability.

Before Ordering

Please confirm the following before purchase:

• original model number: CDD110MIT
• input voltage
• output voltage
• output current
• connector or terminal type
• installation space
• original power supply label photo
• elevator controller cabinet model

Different Mitsubishi elevator switching power supplies may look similar but have different voltage outputs or wiring structures. The safest way to confirm compatibility is to provide a clear photo of the original label and cabinet connection.
