Mitsubishi Elevator Main Motor ZPML Rotary Encoder Z65AC

The Z65AC series rotary encoder is commonly used on Mitsubishi ZPML permanent magnet synchronous traction machines.

Installed on the main motor assembly, the encoder continuously provides speed and position feedback to the elevator drive system, helping ensure smooth acceleration, deceleration, floor leveling accuracy, and stable operation.

The Z65AC encoder family is widely used across different generations of Mitsubishi traction machines and modernization projects.

Commonly Requested Models

We can supply a wide range of Mitsubishi Z65AC rotary encoder models, including:

• Z65AC-08
• Z65AC-011
• Z65AC-012
• Z65AC-015
• Z65AC-018

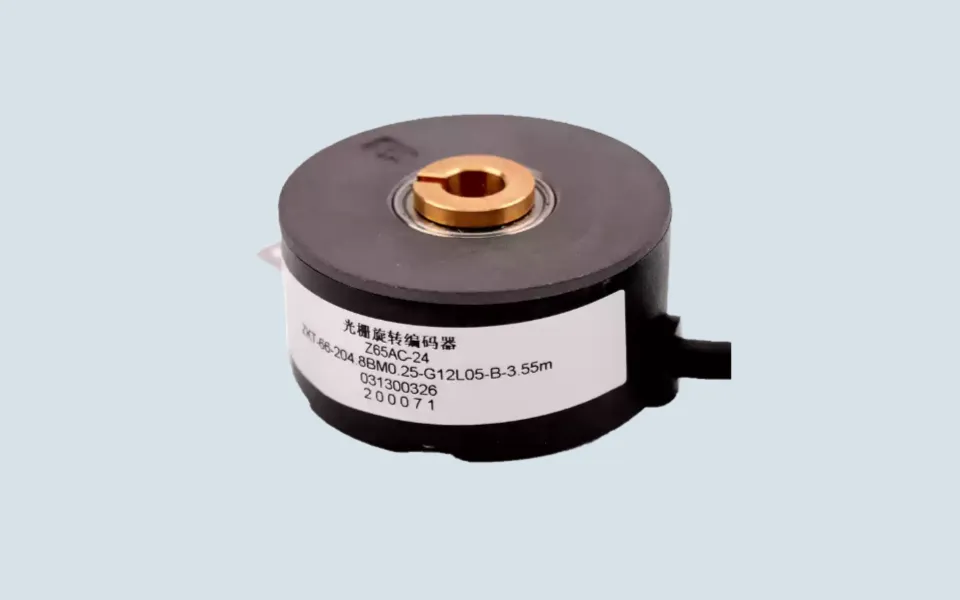

• Z65AC-24
• Z65AC-30

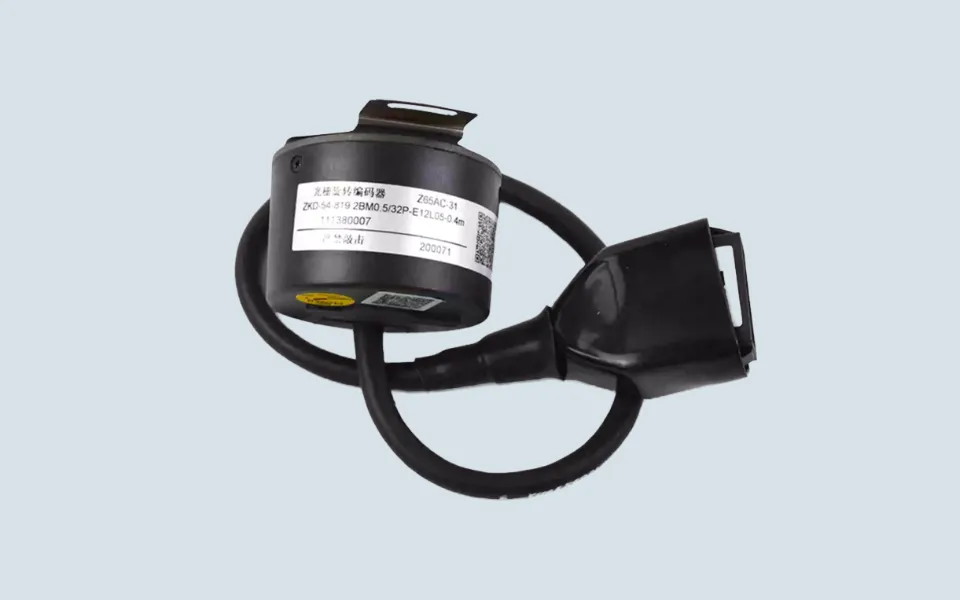

• Z65AC-31

Other Z65AC series models may also be available upon request. Please provide the encoder label, motor nameplate, or machine model for confirmation. Some suppliers also list Z65AC-08, Z65AC-011, Z65AC-012, Z65AC-015, Z65AC-018, Z65AC-30 and Z65AC-31 as common Mitsubishi encoder variants.

A Speed Feedback Problem Found During Troubleshooting

During maintenance of a high-rise office building elevator, technicians received reports that the elevator occasionally stopped slightly above floor level and generated intermittent drive alarms.

The inverter, brake system, and controller were inspected first, but no obvious fault was found.

Further analysis showed unstable feedback signals from the motor encoder.

Although the traction machine itself was operating normally, inconsistent encoder feedback affected speed monitoring and leveling accuracy.

After replacing the encoder and recalibrating the system, the elevator returned to normal operation.

Why Encoders Are Often Suspected Last

Many elevator faults appear to originate from:

• inverter systems
• drive boards
• leveling circuits
• braking systems

However, all of these systems depend on accurate speed and position feedback from the encoder.

When encoder signals become unstable, technicians may encounter:

• leveling inaccuracies
• abnormal drive alarms
• inconsistent acceleration
• speed monitoring faults
• intermittent operation issues

Because these symptoms can resemble controller or inverter failures, the encoder is often checked later in the troubleshooting process.

Components Usually Checked Together

When replacing a Z65AC encoder, maintenance teams commonly inspect:

• ZPML traction machines
• inverter drive systems
• motor feedback cables
• encoder connectors
• drive boards
• leveling circuits

In some cases, damaged cables or connector oxidation may create symptoms similar to encoder failure.

Maintenance Notes

Before ordering a replacement encoder:

• verify the complete Z65AC model number
• confirm the traction machine model
• inspect encoder cable condition
• check connector type
• verify mounting dimensions

Different Mitsubishi traction machine generations may use visually similar encoders while having different signal configurations.

Many maintenance teams recommend providing a photo of the encoder label before ordering, especially when replacing older ZPML machine encoders, to ensure model compatibility.
