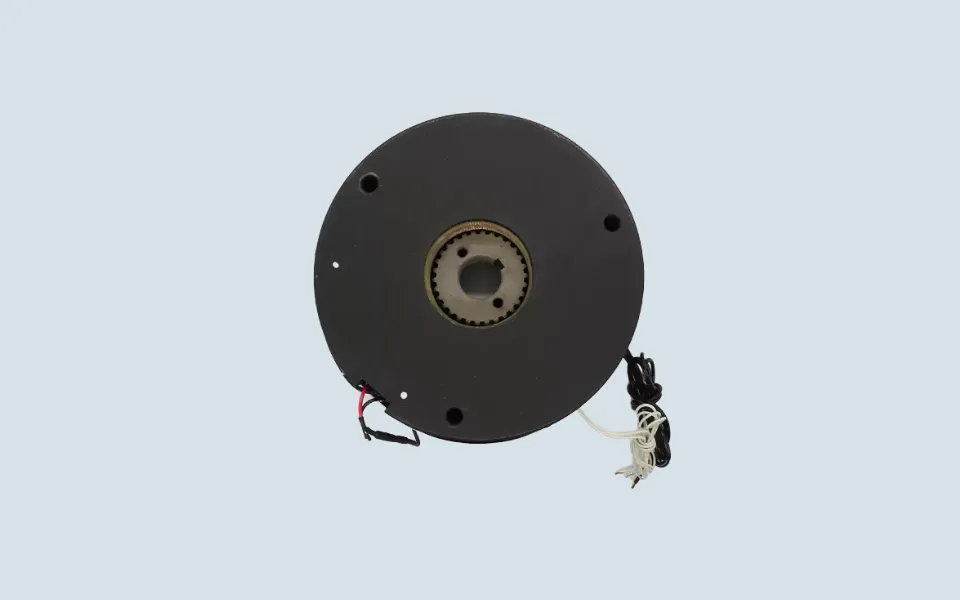

Mitsubishi Escalator Brake YS101B034GS01

Mitsubishi Escalator Brake YS101B034GS01 is commonly used in Mitsubishi escalator drive and braking systems.

This brake is installed in the escalator drive unit to help stop and hold the escalator safely during operation, inspection, and emergency protection conditions. It is usually checked during escalator maintenance when abnormal stopping noise, brake delay, overheating, or safety inspection problems appear.

Commonly Requested Models

This Mitsubishi escalator brake series may be searched under several related model numbers:

• YS101B034GS01
• YS101B034GS02
• YS101B034GS11
• YS101B034GS12

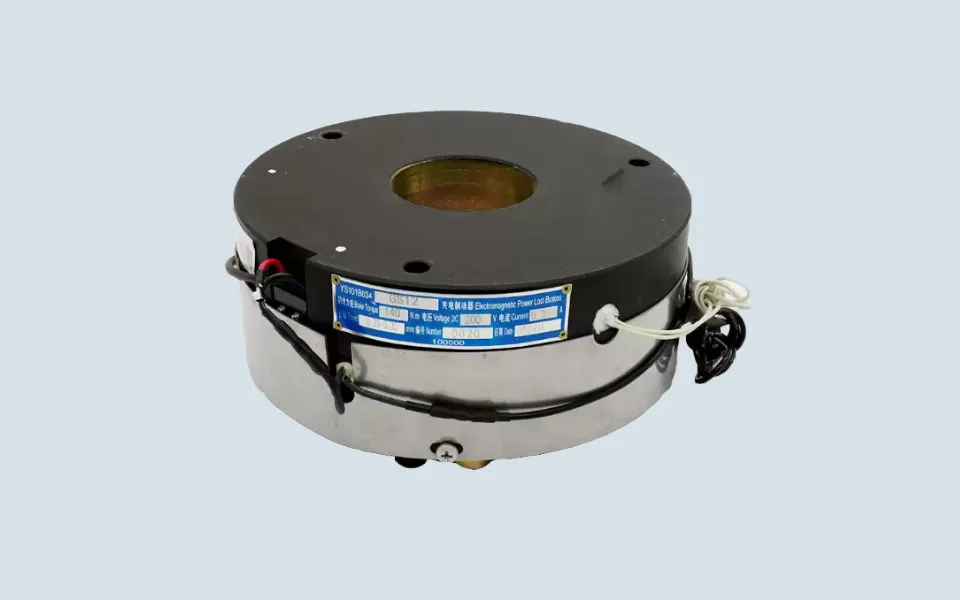

Some market listings describe these as Mitsubishi escalator electromagnetic brake or power-lost brake models. YS101B034GS01 is also listed by some suppliers with DC200V and 120N.m brake torque information. However, different GS versions should not be treated as automatically interchangeable. Brake model, voltage, mounting structure, and original escalator configuration should be confirmed before ordering.

A Brake Problem Found During Escalator Maintenance

In one shopping mall escalator maintenance case, technicians found that the escalator could stop normally, but the stopping action became louder than before.

At first, the drive chain and step system were inspected. After further checking, the brake gap and brake response were found to be unstable after long-term operation.

The brake assembly was then inspected together with the drive unit, safety circuit, and control system. After replacing the YS101B034GS01 brake and adjusting the related brake clearance, the escalator stopping condition became stable again.

Why Escalator Brake Problems Should Not Be Ignored

Escalator brake issues may appear gradually.

Maintenance teams may notice:

• abnormal stopping noise
• delayed brake release
• unstable stopping response
• brake overheating
• inspection test failure
• unusual vibration near the drive unit

These symptoms may also be related to the drive motor, safety circuit, brake coil, brake disc, or mechanical adjustment. Because escalator brakes are safety-related components, technicians usually inspect the full braking system instead of replacing only one part.

Parts Often Checked Together

When replacing Mitsubishi Escalator Brake YS101B034GS01, technicians usually check:

• drive unit condition
• brake coil
• brake gap
• safety switches
• escalator controller
• drive chain tension
• brake disc or lining condition

Mitsubishi escalator maintenance documentation shows that disc-type brake structures include parts such as field core, armature, inner disc, lining, outer disc, gap adjusting bolts, and torque adjusting bolts. This is why correct adjustment after replacement is important.

Before Ordering

Please confirm the following before purchase:

• original brake model
• GS01 / GS02 / GS11 / GS12 version
• voltage specification
• brake torque requirement
• mounting structure

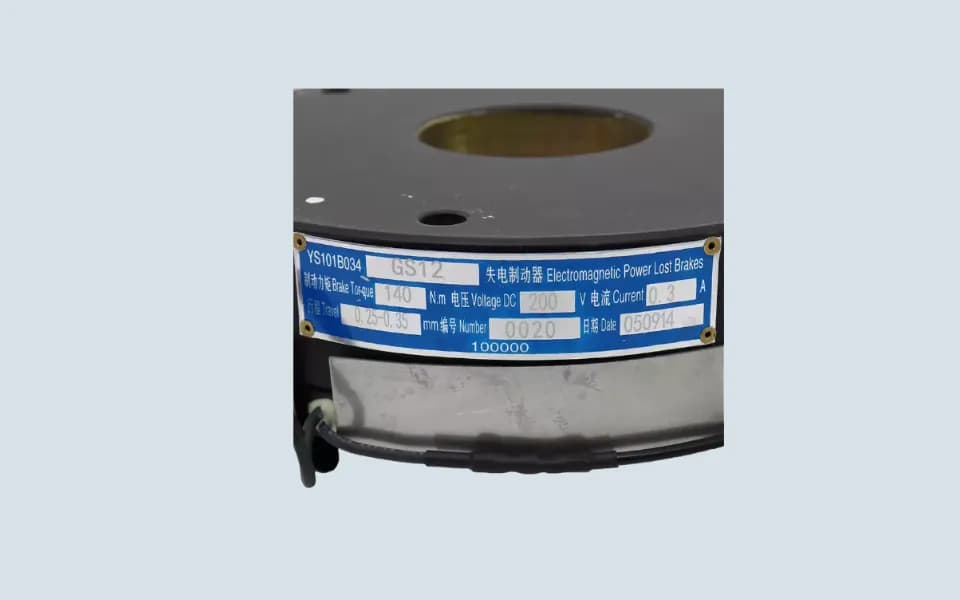

• original brake label photo
• escalator model or drive unit information

Different Mitsubishi escalator brake versions may look similar but use different electrical or mechanical specifications. A clear nameplate photo is the safest way to confirm the correct replacement.
