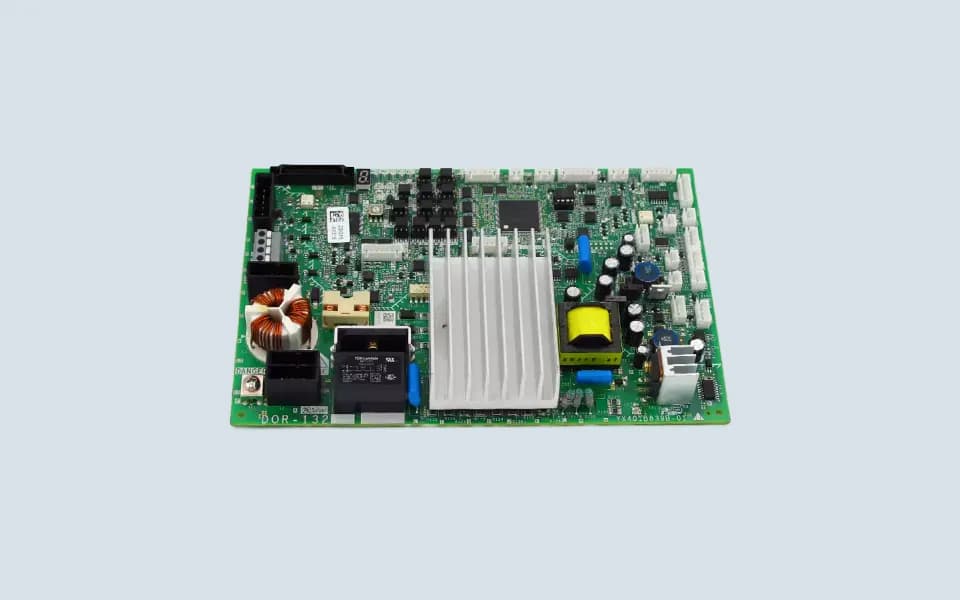

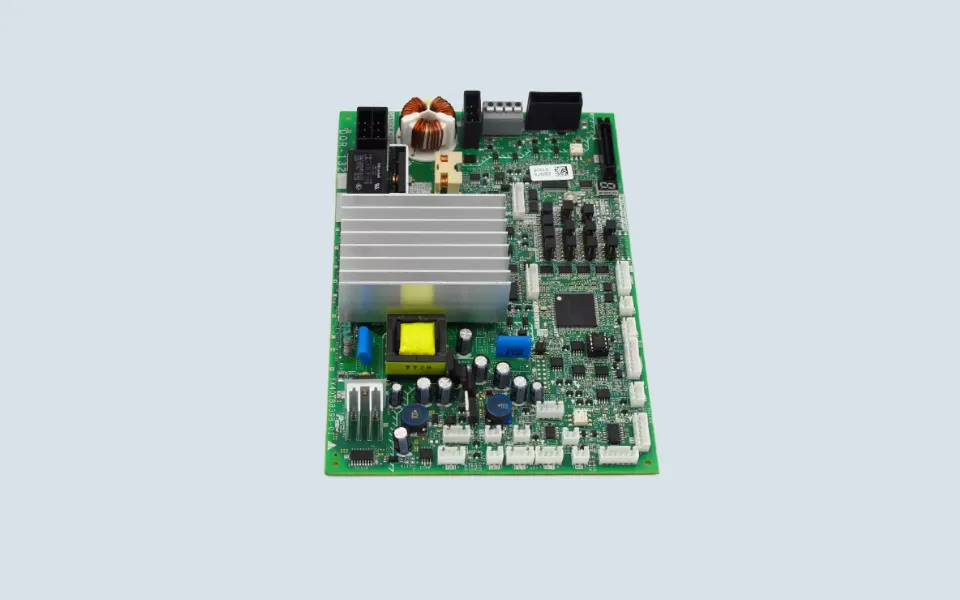

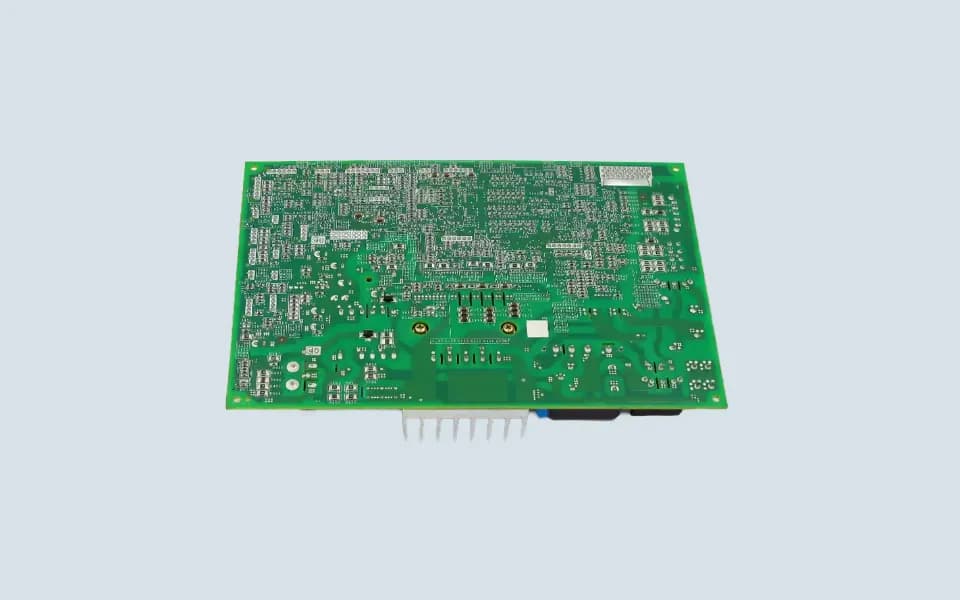

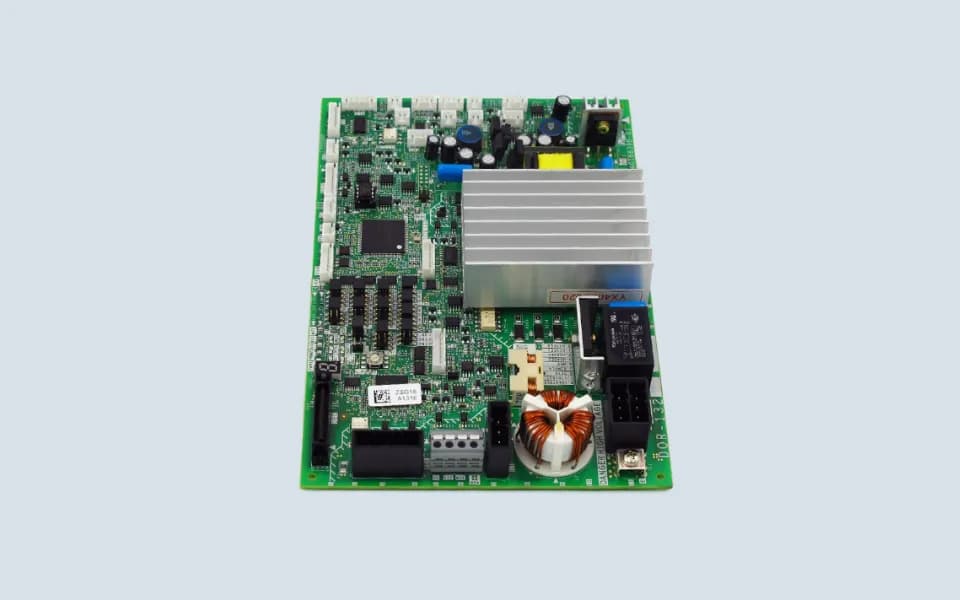

Mitsubishi Machine-Room-Less Door Operator Board DOR-1231A/B DOR-1321A

Mitsubishi Machine-Room-Less Door Operator Board DOR-1231A / DOR-1231B / DOR-1321A is used in Mitsubishi elevator door machine and door operator control systems.

In the elevator spare parts market, this board may also be called:

• Mitsubishi Door Machine PCB Board
• Mitsubishi Door Operator Board
• Mitsubishi Door Drive Board
• Mitsubishi Door Control Motherboard
• Mitsubishi ELENESSA Door Drive Board
• Mitsubishi MRL Door Operator PCB

This board is usually installed in the door operator system to control door movement, door speed response, opening and closing operation, and door machine signal processing. For machine-room-less elevators, correct door operator board matching is important because the door system is closely connected with the elevator controller, car door motor, encoder feedback, and door protection circuit.

DOR Series Model References

This page can naturally cover the following model references:

• DOR-1231A
• DOR-1231B
• DOR-1321A
• DOR-1321B
• DOR-1241A
• DOR-1240A

Public supplier pages commonly list DOR-1231A, DOR-1231B, DOR-1321A, and DOR-1321B together as Mitsubishi elevator door machine PCB board models. Other listings connect DOR-1321A with DOR-1231B, DOR-1321B, DOR-1241A, and DOR-1240A under Mitsubishi ELENESSA door drive board or lift door operator PCB descriptions.

These references are useful for search and quotation confirmation, but the final replacement should still be checked against the original board label and door operator configuration.

DOR-1231 and DOR-1321: What Buyers Should Notice

Some market sources mention that DOR-1231 has been upgraded to DOR-1321, and that the function may be similar in some applications. However, this should not be treated as automatic replacement approval for every elevator site.

Before selecting DOR-1321A or DOR-1321B to replace an older DOR-1231A / DOR-1231B board, technicians should confirm:

• Original DOR board model
• Door operator type
• Connector quantity and direction
• Board mounting position
• Door motor and encoder configuration
• Elevator system type, such as ELENESSA or MRL
• Whether the old board uses A or B version

This is especially important for overseas spare parts orders, because a visually similar DOR board may still have a different connector layout or system setting.

Door Operation Issues Related to This Board

Maintenance teams may inspect the DOR door operator board when the elevator door shows:

• Door opening failure
• Door closing timeout
• Door speed instability
• Repeated door reopening
• Door motor not responding
• Door operator fault indication
• Abnormal door movement after power-on

These symptoms are not always caused by the board itself. The door motor, belt, encoder, door rollers, light curtain, door controller wiring, and mechanical resistance should also be checked before confirming the PCB fault.

Practical Confirmation Notes

For this type of Mitsubishi door operator board, the most useful information is usually not the elevator model alone.

Before ordering, please provide:

• Clear photo of the DOR-1231A / DOR-1231B / DOR-1321A label
• Front and back photos of the PCB
• Connector area photo
• Door operator installation photo
• Door motor label if available
• Existing door fault description
• Whether the elevator is ELENESSA or another MRL system

If the original board label is unclear, photos of the door operator box and nearby wiring can help confirm the correct DOR series board.

Replacement Reminder

Do not replace the door operator board only by appearance.

Before installation, technicians usually compare the old and new board carefully and check the complete door machine system. If the original fault is caused by motor wear, encoder signal loss, belt tension, roller resistance, or light curtain signal problem, replacing only the DOR board may not solve the door operation issue.

For overseas buyers, matching the exact DOR model first, then checking connector layout and door operator configuration, is the safest way to avoid wrong supply.
