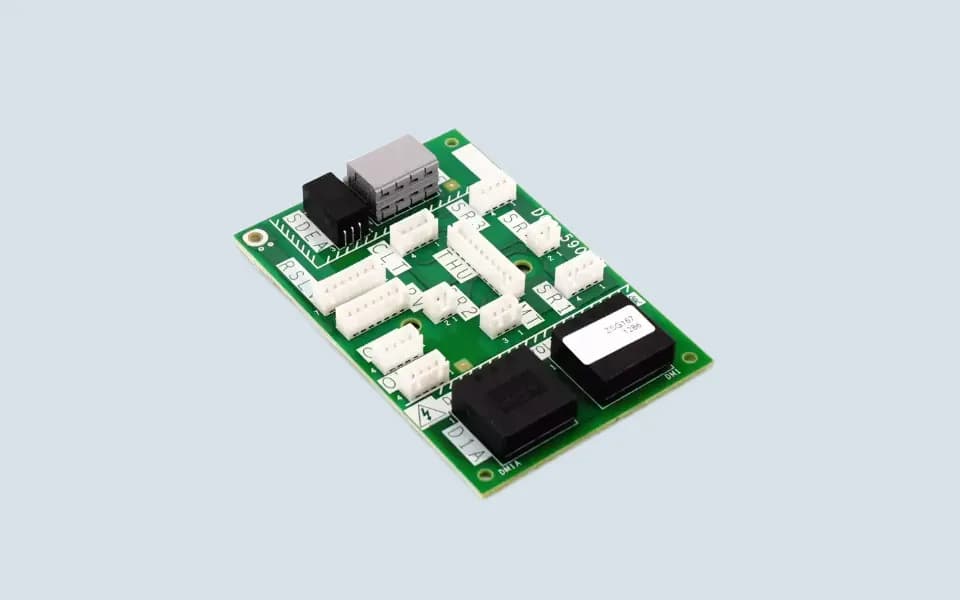

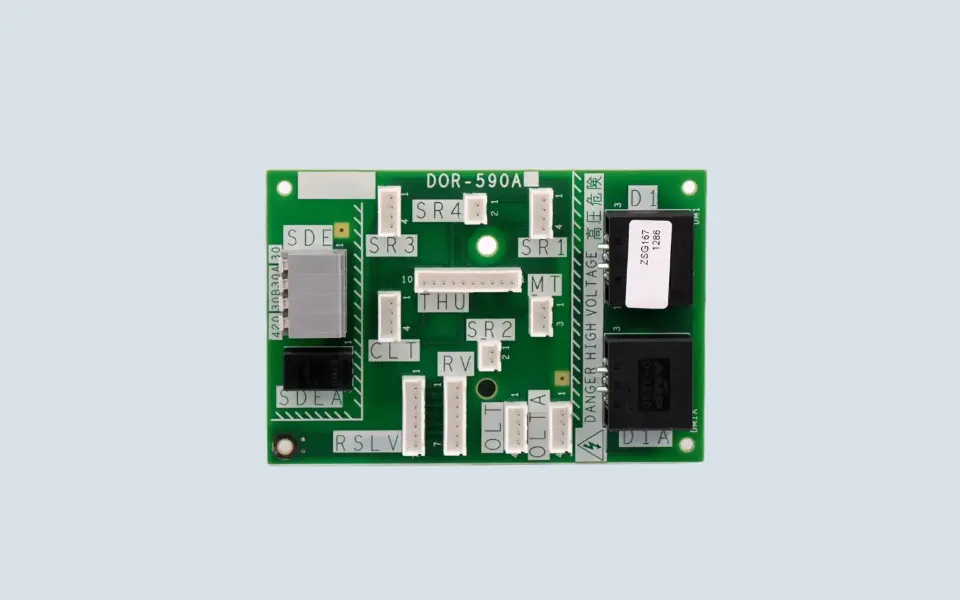

Mitsubishi MRL Door Operator Interface Board DOR-590A

Mitsubishi Machine-Room-Less Door Operator Interface Board DOR-590A is used in Mitsubishi MRL elevator door machine and car-top door operator interface applications.

In the elevator spare parts market, this board may also be searched as:

• Mitsubishi MRL Elevator Door Machine Interface Board
• Mitsubishi Door Motor Interface Extension Board
• Mitsubishi Elevator Door Machine Interface Circuit Board
• Mitsubishi Lift Extension Board for Car Top
• Mitsubishi Lift Interface Communication Motherboard
• Mitsubishi Elevator Door Motor Board

This board is usually related to the connection between the car-top door operator system, door motor circuit, and door machine signal interface. For machine-room-less elevators, the door operator interface board is often installed near the car-top or door motor area, where wiring space is limited and connector matching is important.

DOR-590 Series Model References

This page can naturally cover the following model references:

• DOR-590A
• DOR-590B
• DOR-590

Public supplier listings commonly show DOR-590A, DOR-590B, and DOR-590 together as Mitsubishi MRL elevator door machine interface board models. Some product pages also describe the installation position as the door motor area of machine-room-less elevators.

These model references are useful for search and quotation confirmation, but the final replacement should still be checked against the original board label, connector layout, and door operator system.

What Makes DOR-590A Different

DOR-590A should not be confused with a complete door controller board.

A door controller usually handles door movement logic and motor drive control. DOR-590A is more often described as a door machine interface board or extension board, meaning it is related to signal connection, wiring adaptation, or interface communication within the MRL door operator system.

In practical maintenance, technicians may check this board when there are door signal problems, abnormal door motor response, communication interruption between car-top wiring and door operator, or visible PCB damage around the door machine interface area.

Confirmation Points for Buyers

For accurate supply, please confirm:

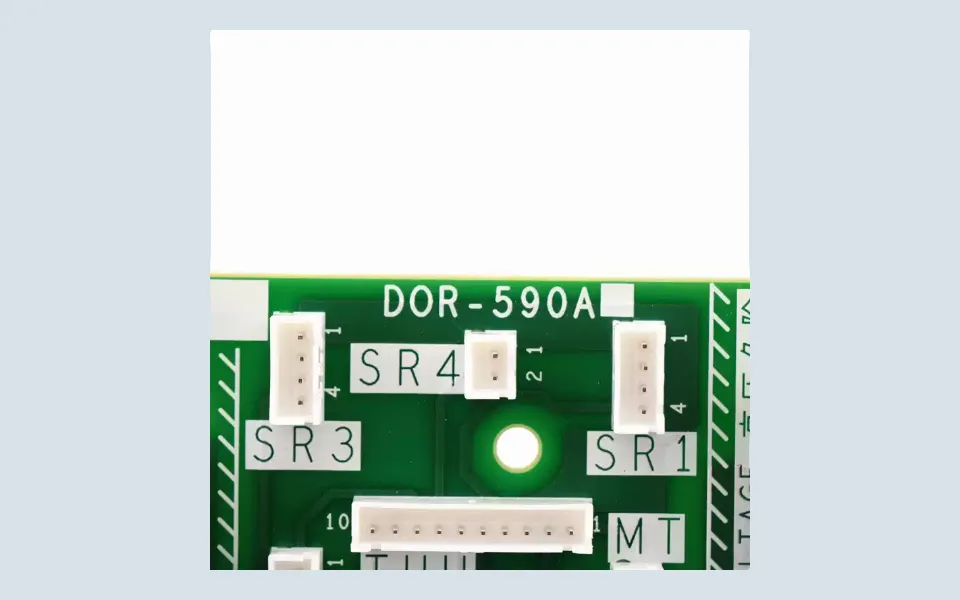

• DOR-590A or DOR-590B marking on the old board
• Front and back photos of the PCB
• Connector quantity and direction
• Car-top or door motor installation position
• Door operator wiring photos
• Door motor label if available
• Existing door fault description

If the old board only shows DOR-590 without A or B suffix, please provide a clear close-up photo of the label area and connector side. The suffix may affect board version or wiring configuration.

Door System Notes

A door operator interface board fault may create symptoms that look similar to door controller or door motor failure.

Possible site symptoms include:

• door motor signal abnormality
• unstable door response
• intermittent door operation
• door operator communication issue
• door machine interface circuit fault
• abnormal response after power-on

However, these problems may also be caused by the door controller, door motor, encoder feedback, belt tension, light curtain signal, or connector oxidation. For this reason, the interface board should be checked together with the complete door operator circuit before replacement.

Supply Reminder

For overseas buyers, matching the exact DOR model first is the safest method.

DOR-590A, DOR-590B, and DOR-590 may appear together in product listings, but they should not be selected only by appearance. Before shipment, clear photos of the original PCB, connector area, and car-top door operator installation position can reduce wrong-supply risk.
