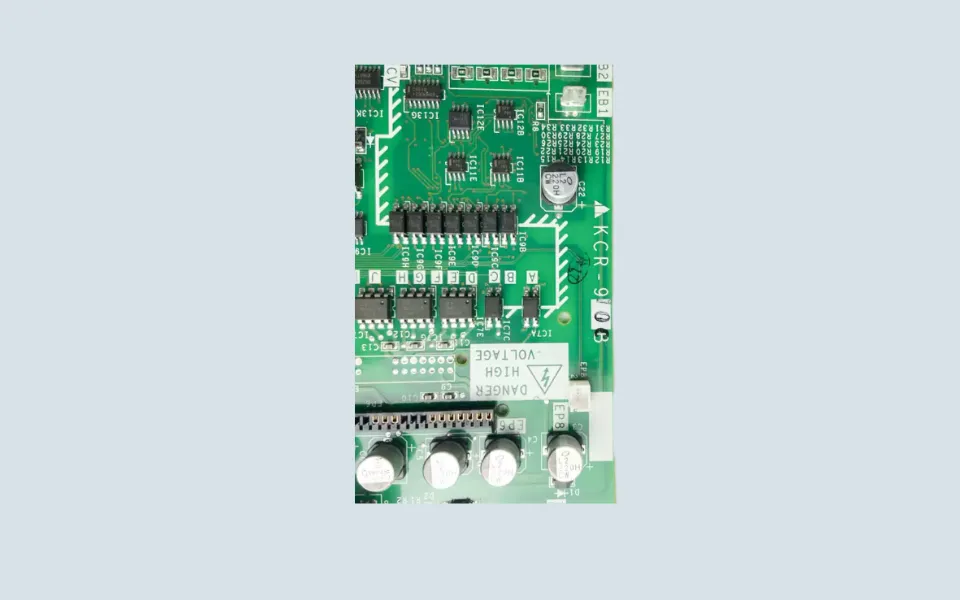

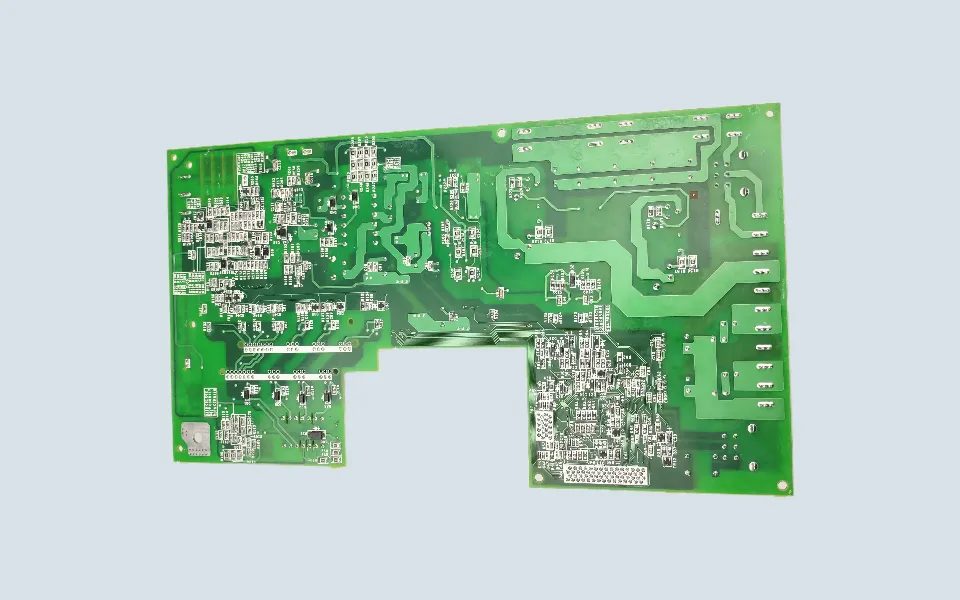

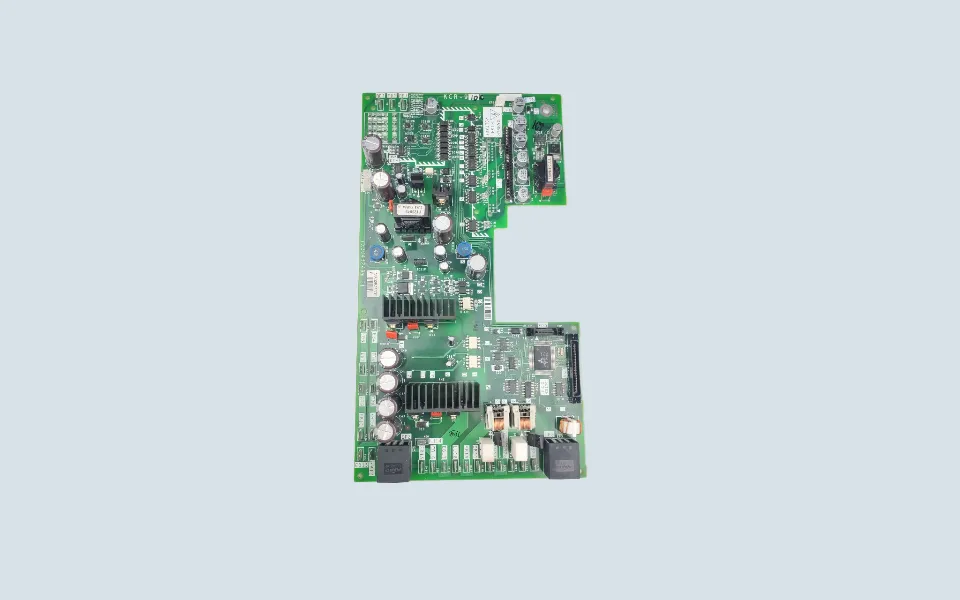

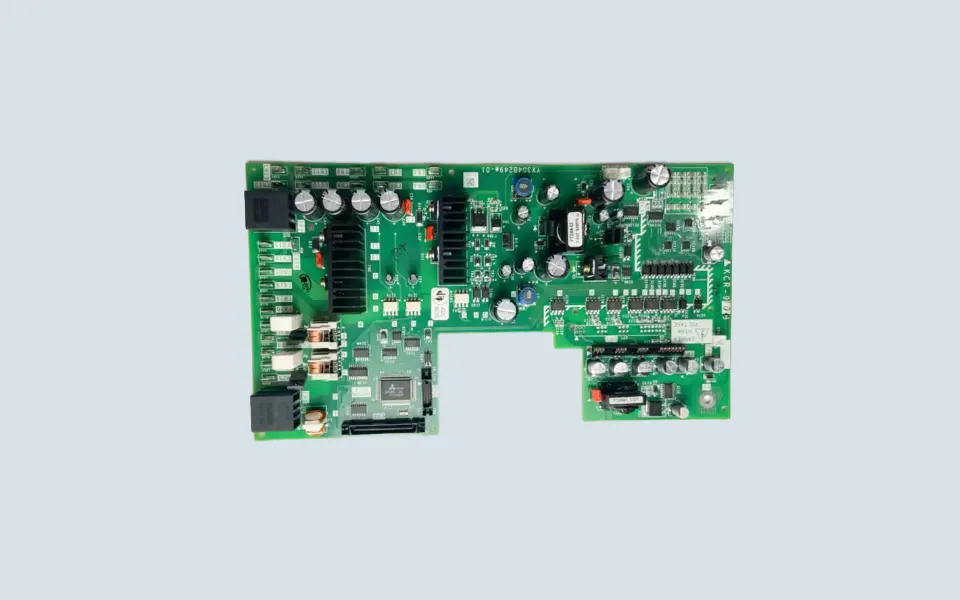

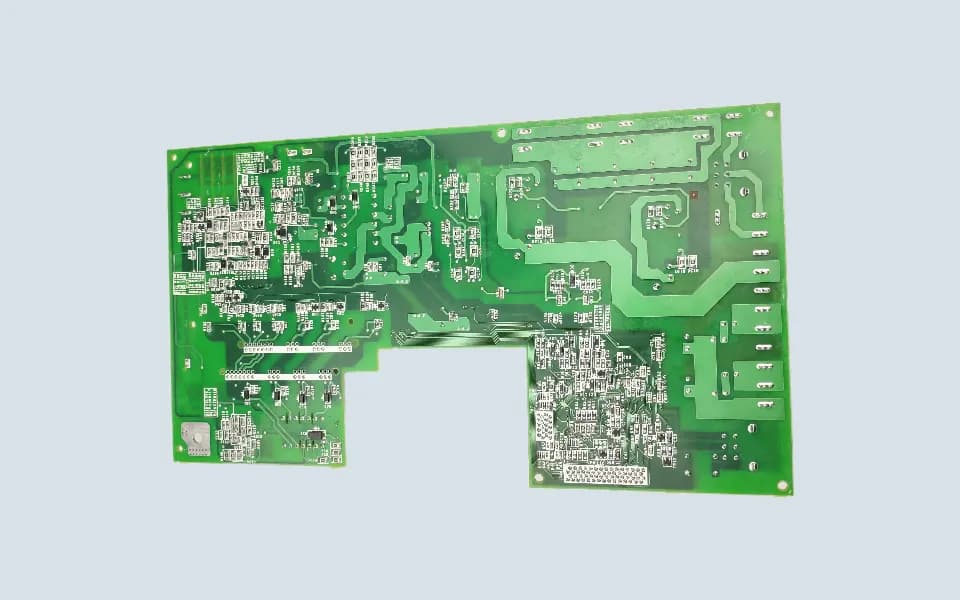

Mitsubishi Machine-Roomless Drive Board KCR-910A/B/C/D

Mitsubishi Machine-Roomless Drive Board KCR-910A / KCR-910B / KCR-910C / KCR-910D is a drive PCB board used in Mitsubishi machine-roomless elevator systems.

In the elevator spare parts market, this series is commonly described as:

• Mitsubishi MRL Elevator Drive PCB
• Mitsubishi Machine-Roomless Drive Board
• Mitsubishi Elevator Drive Board
• E1 Drive Board
• Mitsubishi Elevator Drive PCB Motherboard

This product is usually requested by the KCR model printed on the original board. For machine-roomless elevators, the drive cabinet space is more compact than traditional machine-room systems, so the correct board version and connector arrangement are especially important.

KCR-910 Series Models

This page covers the following model references:

• KCR-910A
• KCR-910B
• KCR-910C
• KCR-910D

Several public supplier pages list KCR-910A, KCR-910B, KCR-910C, and KCR-910D together as Mitsubishi elevator drive board or MRL elevator drive PCB models. Some listings also describe this series as an E1 Drive Board for Mitsubishi elevator parts.

These models should be checked against the original board label before replacement. The A / B / C / D suffix may indicate different board versions or system configurations, so it is not recommended to select only by appearance.

Why This Board Is Different From a General Control Board

KCR-910 series boards are drive-related PCBs, not simple button boards or display boards.

They are usually associated with the elevator drive cabinet, motor control signals, inverter-related circuits, and machine-roomless elevator drive operation. When the drive system has abnormal response, a technician may inspect this board together with the inverter section, power module, cabinet power input, and related wiring.

For buyers, the key point is simple: match the exact KCR number first, then confirm the cabinet connection.

What to Check on the Old Board

Before confirming supply, check these details:

• KCR-910A / KCR-910B / KCR-910C / KCR-910D marking
• Whether E1 Drive Board marking appears
• Connector quantity and direction
• Board mounting position in the MRL drive cabinet
• Front and back photos of the old PCB
• Any visible burn marks, damaged components, or overheated areas
• Elevator model or controller cabinet information if available

Some market listings also include related references such as KCA-911B, KCD-1161A, and YX304B24 near KCR-910 series descriptions. These can help with search and inquiry matching, but they should not be treated as direct replacements without checking the old board.

Replacement Advice for MRL Elevators

Machine-roomless elevator drive boards should be handled carefully because they are installed in compact drive environments with high electrical density.

Before installing a replacement KCR-910 series board, technicians usually check the surrounding drive circuit, cabinet ventilation, connectors, power supply section, and related module condition.

If the original board failed because of an external drive circuit problem, poor cooling, unstable cabinet power, or wiring short circuit, replacing only the PCB may not solve the fault.

For overseas buyers, sending clear photos of the old board is usually the fastest way to confirm whether the correct item is KCR-910A, KCR-910B, KCR-910C, or KCR-910D.
