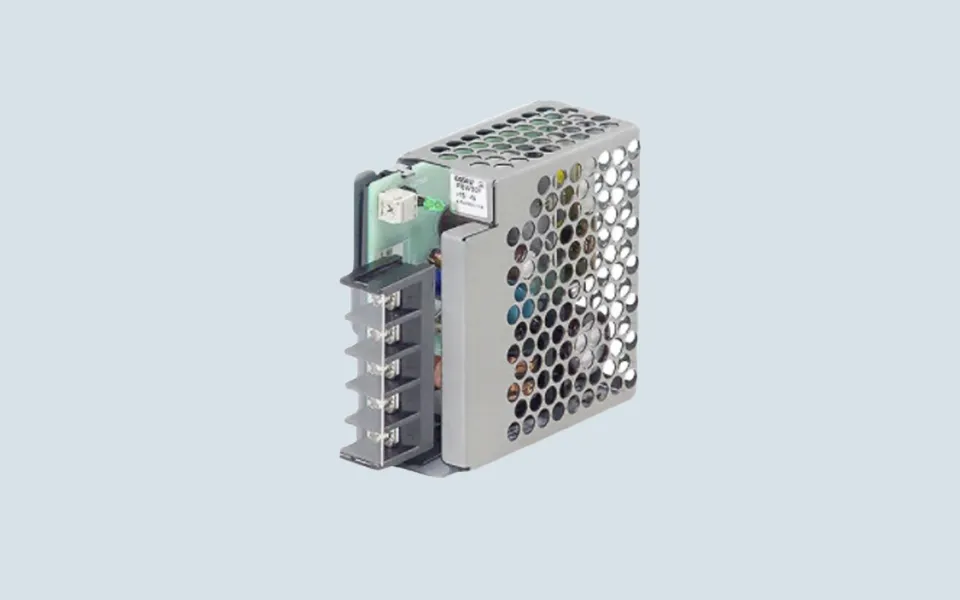

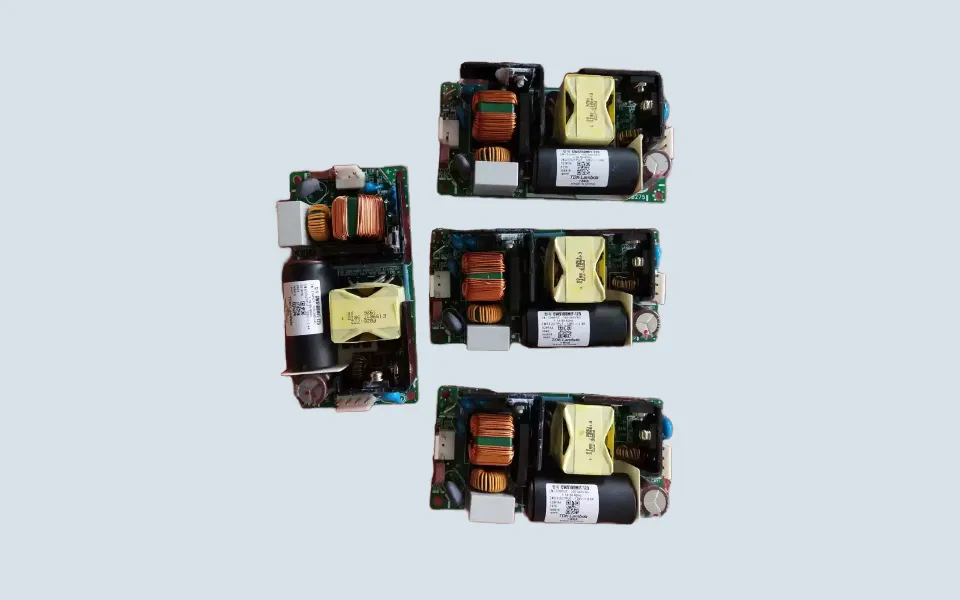

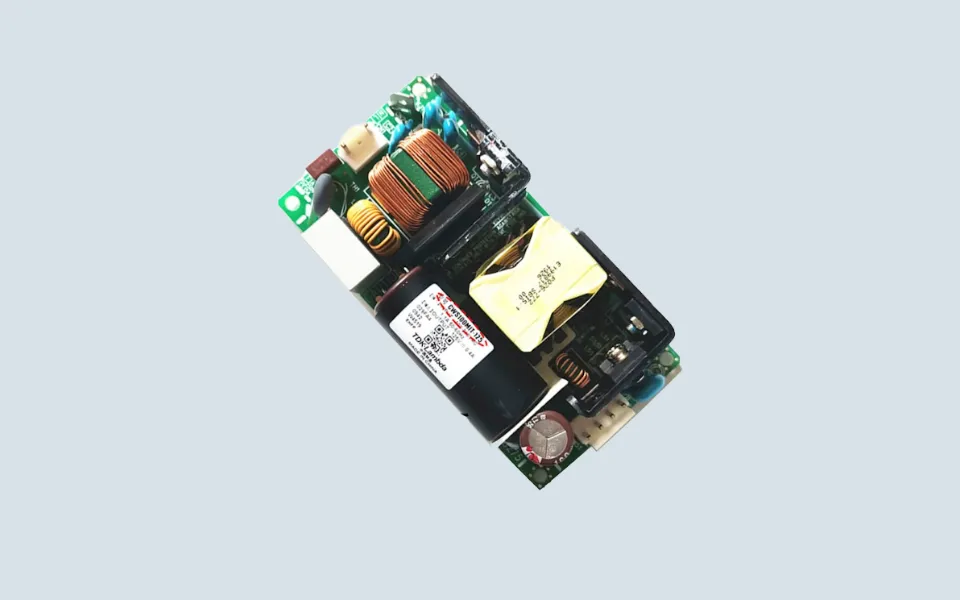

Mitsubishi Switching Power Supply CWS100MIT-125

Mitsubishi Switching Power Supply CWS100MIT-125 is used in Mitsubishi elevator control power applications.

This unit is commonly described in the elevator spare parts market as an elevator control power module, control cabinet switching power supply, or control cabinet power board. It is designed to provide stable working power for the elevator control system and related electrical circuits.

Unlike common 12V or 24V elevator power supplies, CWS100MIT-125 is listed by some suppliers with the specification:

• Model: CWS100MIT-125
• Input: 100–240VAC
• Output: DC125V
• Output Current: 0.4A

Because the output voltage is significantly higher than standard low-voltage signal power supplies, the original label and cabinet wiring must be confirmed carefully before replacement.

Product Reference Information

Customers may search this product under several names:

• CWS100MIT-125
• Mitsubishi CWS100MIT-125
• Mitsubishi Elevator Control Power Module CWS100MIT-125
• Mitsubishi Elevator Control Cabinet Power Board CWS100MIT-125
• CWS100MIT-125 100-240VAC DC125V 0.4A

Using the complete model and electrical specification in the product description helps buyers confirm that they are looking for a 125V DC control power unit rather than a lower-voltage switching power supply.

Related Control Cabinet Power Supply Models

Some elevator spare parts listings place the following models in the same Mitsubishi control cabinet power supply category:

• CUS100MB-48
• CUS100MB-48/MIT
• CUT35-522
• CWS100MIT-125

These should be treated only as related search references. Their voltage, current, terminal arrangement, mounting structure, and elevator cabinet application may be different. They should not be described as interchangeable without confirming the original system.

What Buyers Should Confirm

Most inquiries for CWS100MIT-125 should be handled by the original nameplate and wiring photos.

Before ordering, please confirm:

• complete model number: CWS100MIT-125
• input voltage
• DC125V output requirement
• 0.4A output current
• terminal and connector arrangement
• mounting position inside the control cabinet
• original elevator controller model
• front, side, and label photos of the old power supply

This is especially important because control cabinet power supplies can look similar while providing very different output voltages.

Replacement Matching Reminder

Do not select CWS100MIT-125 only by appearance or by the word “Mitsubishi.”

A power supply with the wrong output voltage may damage related circuits or prevent the elevator control system from operating correctly. Technicians should verify the cabinet wiring and electrical specification before installing the replacement unit.

For quotation and model confirmation, a clear photo of the original CWS100MIT-125 label is usually more useful than only providing the elevator model.
