Mitsubishi Switching Power Supply X59LX-298 LFA10F-12-J1

Mitsubishi Switching Power Supply X59LX-298 LFA10F-12-J1 is commonly supplied for Mitsubishi elevator electrical control and power supply applications.

This unit is usually identified by two references: the Mitsubishi elevator part reference X59LX-298 and the internal COSEL switching power supply model LFA10F-12-J1. For replacement work, both markings should be checked because the outer installation position alone may not confirm the correct power supply specification.

Power Supply Specification

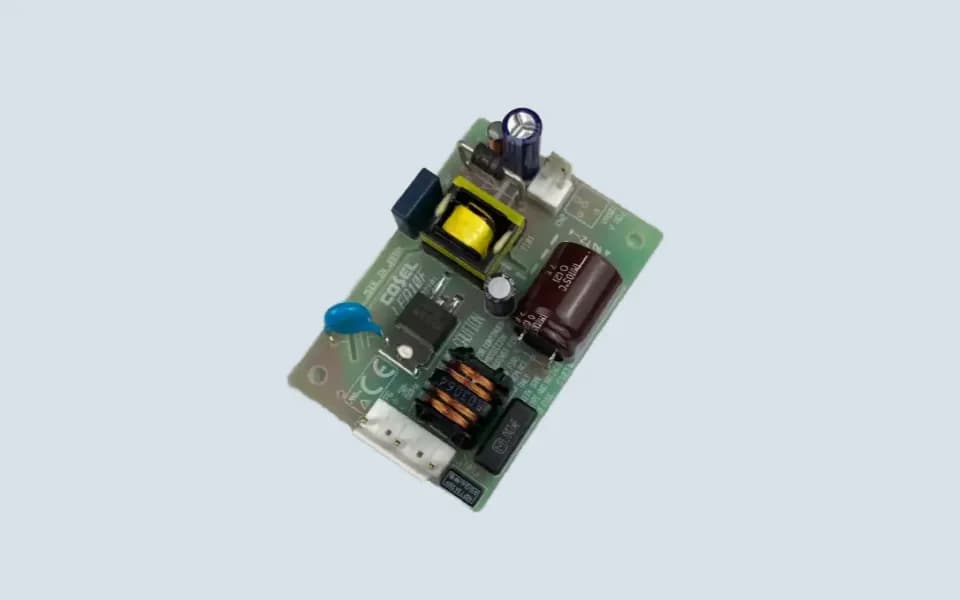

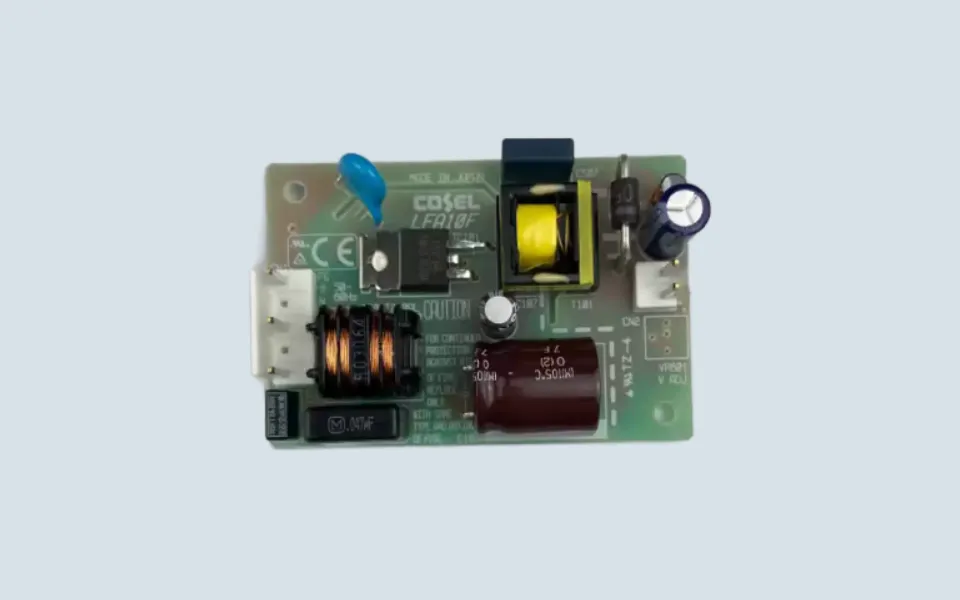

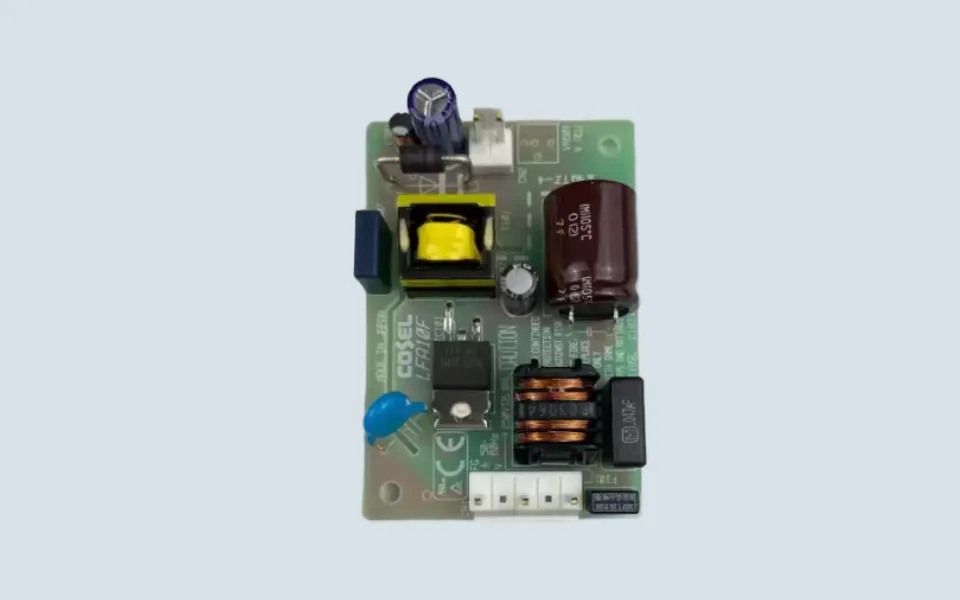

LFA10F-12-J1 belongs to the COSEL LFA10F series of compact open-frame AC-DC power supplies.

The LFA10F-12 version is specified with:

• Rated input: AC85–264V, single phase
• Output voltage: 12V DC
• Output current: 0.9A
• Output power: 10.8W
• Cooling method: natural convection
• Approximate dimensions: 50 × 22 × 73.5 mm

The J1 suffix indicates a VH series J.S.T. connector type. This connector detail is important when matching the original elevator wiring harness.

Model References Buyers May Use

Customers may search this product under several related names:

• X59LX-298
• LFA10F-12-J1
• COSEL LFA10F-12-J1
• Mitsubishi X59LX-298 Power Supply Board
• Mitsubishi Elevator Switching Power Supply LFA10F-12-J1

The COSEL LFA10F series also includes other voltage versions such as:

• LFA10F-3R3-Y
• LFA10F-5
• LFA10F-12
• LFA10F-15
• LFA10F-24

These are related series models, but they are not interchangeable because their output voltage and current ratings are different.

Which Label Should Be Matched?

For this product, the internal power supply label is more important than the general appearance.

Before confirming a replacement, buyers should check:

• X59LX-298 marking

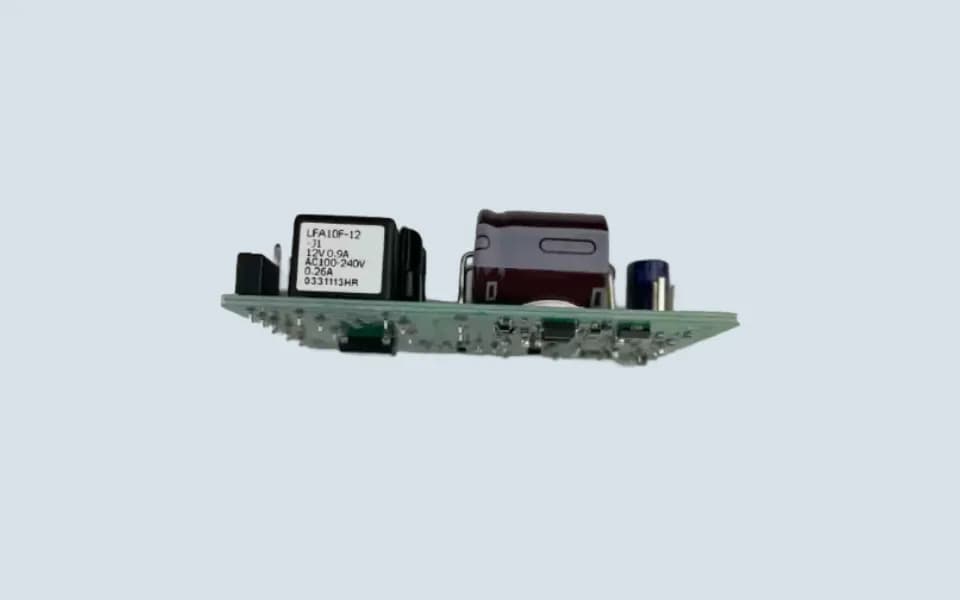

• LFA10F-12-J1 model label
• 12V DC output requirement
• J1 connector type
• connector position and wiring direction
• mounting dimensions
• original elevator cabinet photos

Some market listings place LFA10F-12-J1 and LFA30F-24-J1 under the same X59LX-298 product page, but these models have different output specifications and should not be treated as direct substitutes without checking the original unit.

Information Needed for Correct Supply

To confirm the correct Mitsubishi switching power supply, please provide:

• a clear photo of the original label
• front and side photos of the power supply
• connector and wiring photos
• elevator control cabinet information
• original output voltage requirement

Matching the exact label helps avoid ordering a visually similar power supply with the wrong voltage or connector configuration.
