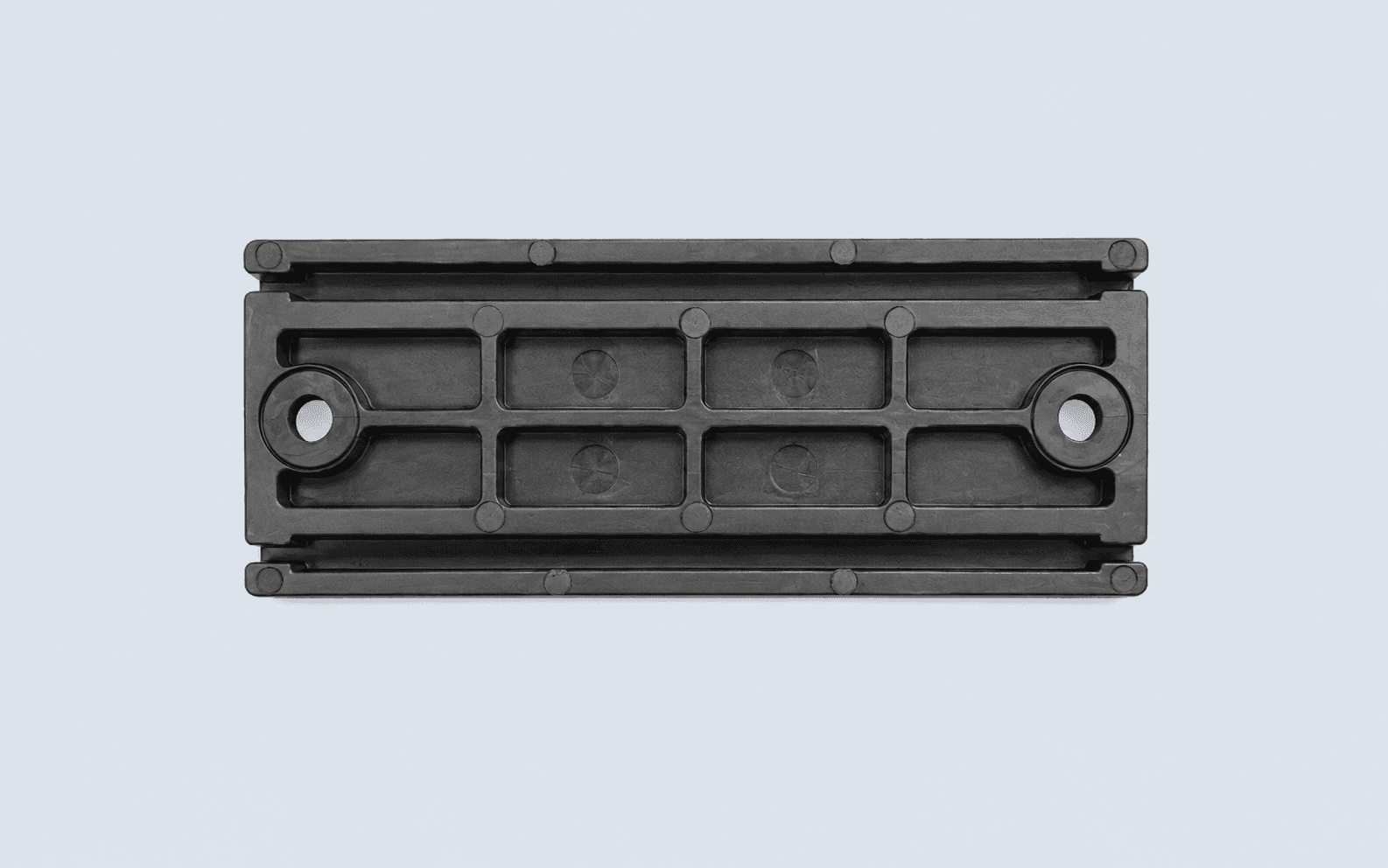

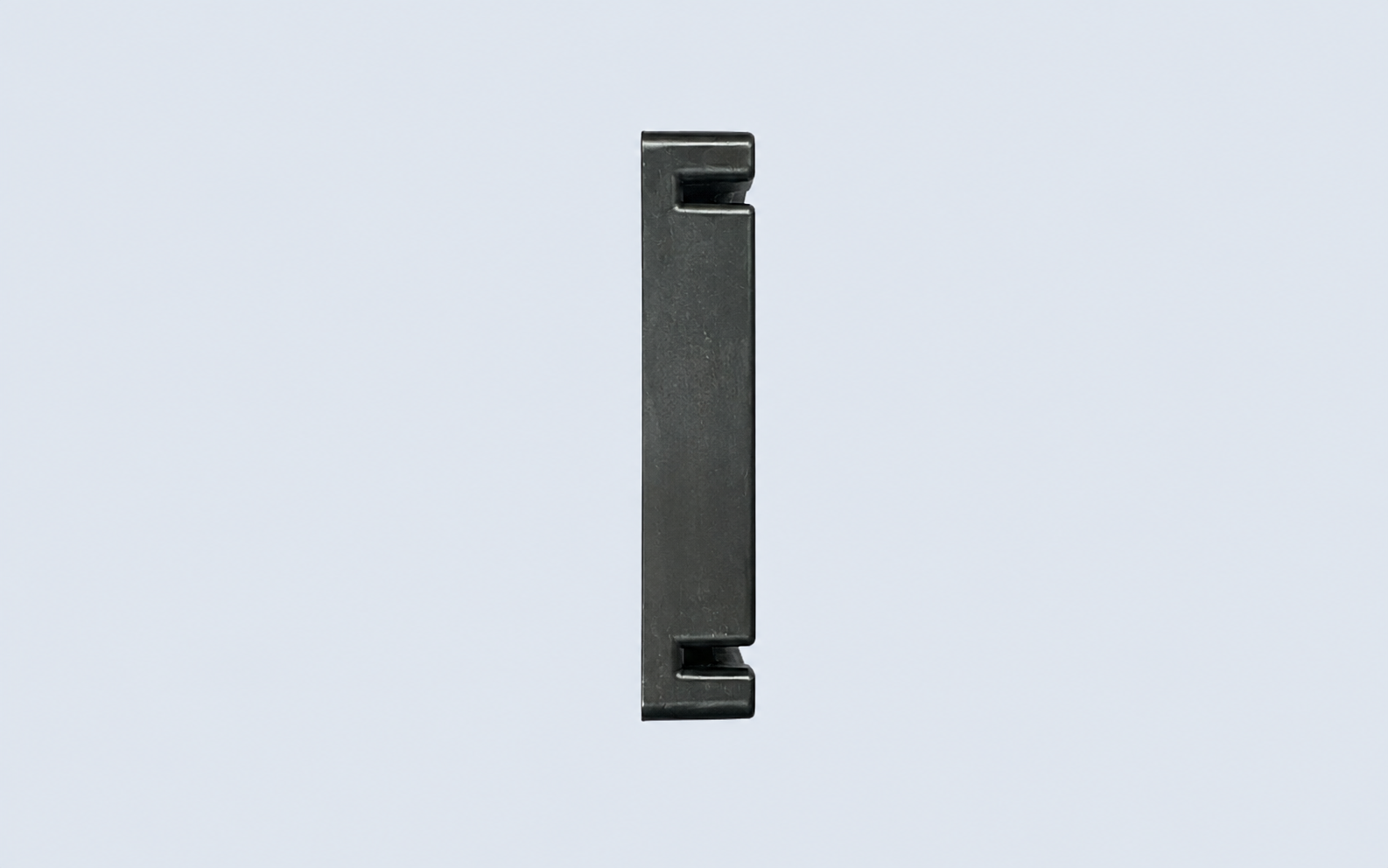

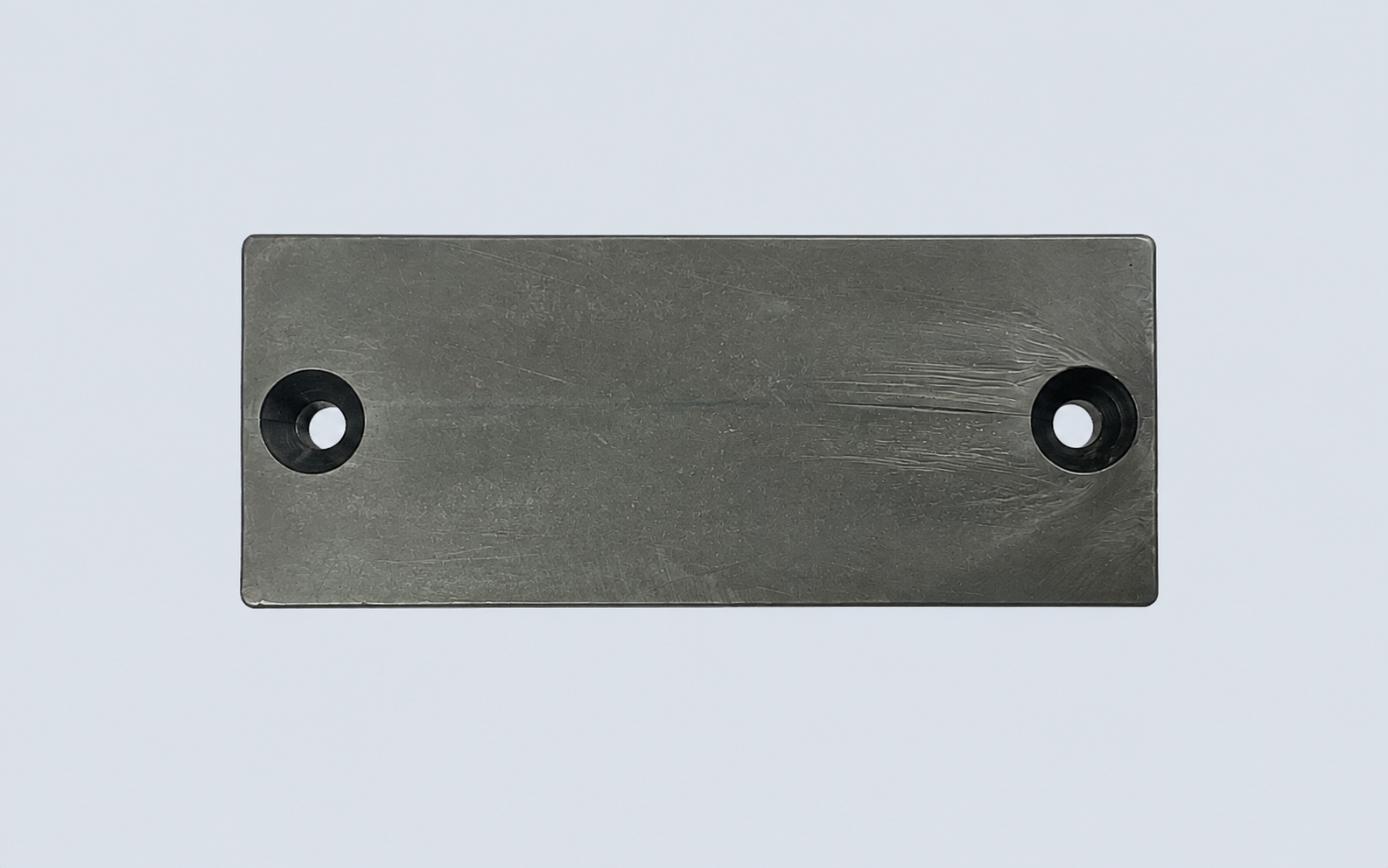

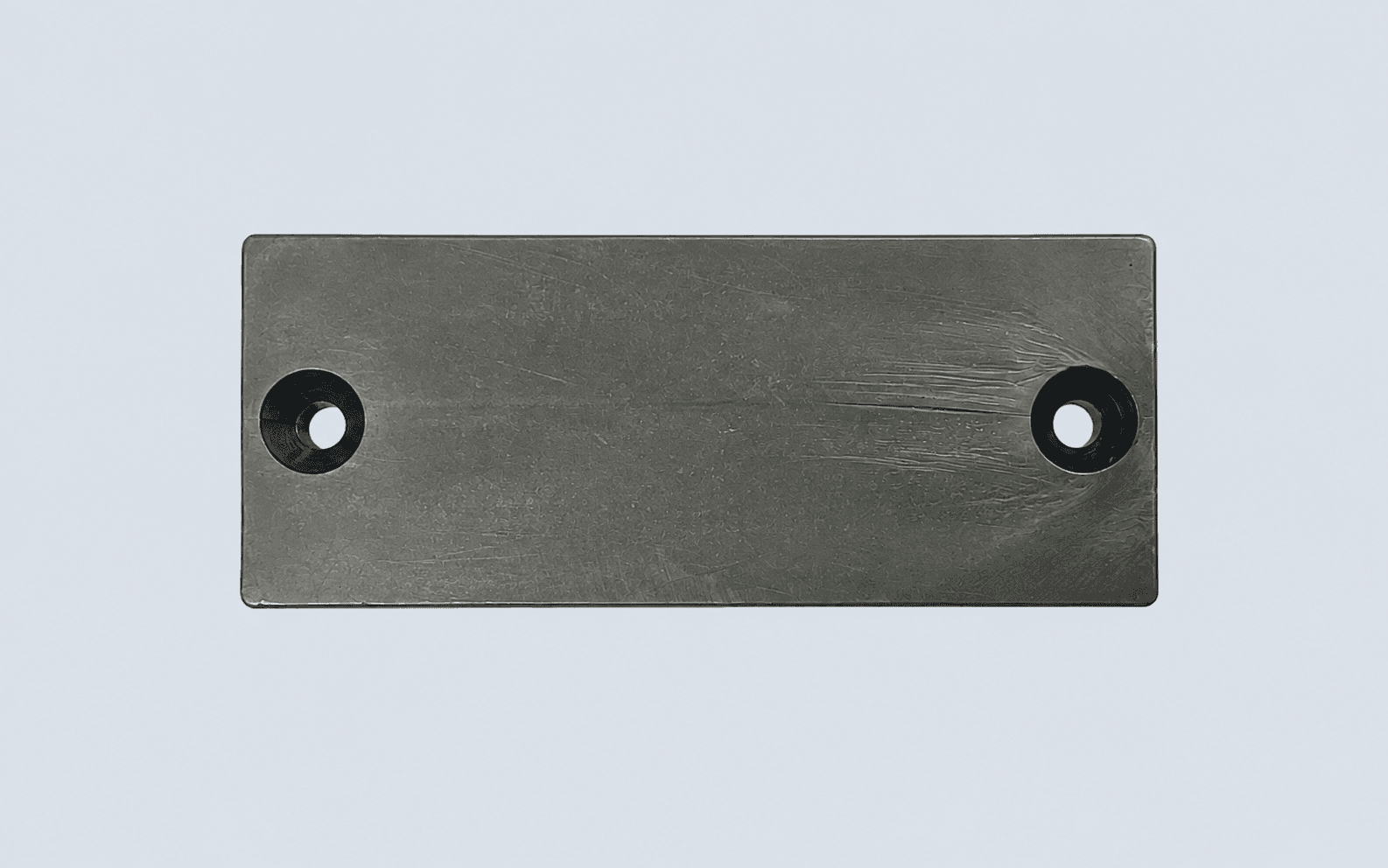

OTIS GAA385GX1 Steel Belt Slider

The OTIS GAA385GX1 Steel Belt Slider is a mechanical guide component used in OTIS Gen2 elevator steel belt and position reference system applications. It is designed to guide and support the belt-related assembly while maintaining stable positioning during elevator operation.

A Small Part With a Precise Fit

The GAA385GX1 is commonly identified as a steel belt slider or guide shoe slider rather than a conventional elevator car guide shoe.

A commonly documented specification is:

• Part number: GAA385GX1

• Application: OTIS Gen2

• Part type: Steel Belt Slider

• Approx. size: 90 × 35 × 8 mm

• Mounting hole center distance: 76 mm

• Reversible design

Because dimensional accuracy affects installation, the existing slider should be measured before replacement.

Check Wear and Mounting Dimensions

A worn slider can show surface abrasion, deformation or excessive clearance around the guided component.

When sourcing a replacement, please confirm:

• GAA385GX1 part number

• Overall length, width and thickness

• Mounting hole spacing

• Front and rear photos

• Related belt / PRS assembly

• Required quantity

FAQ

What is OTIS GAA385GX1 used for?

It is used as a steel belt slider or guide component in OTIS Gen2 elevator applications, including position reference system assemblies.

Is GAA385GX1 a door slider?

No. It is more commonly documented as a steel belt slider / guide shoe slider rather than an elevator door slider.

What dimensions should be checked?

A commonly listed size is approximately 90 × 35 × 8 mm with 76 mm mounting hole center distance, but the original part should still be measured before ordering.

For OTIS GAA385GX1 requirements, send us clear photos and dimensions of the original slider for replacement checking before quotation.
