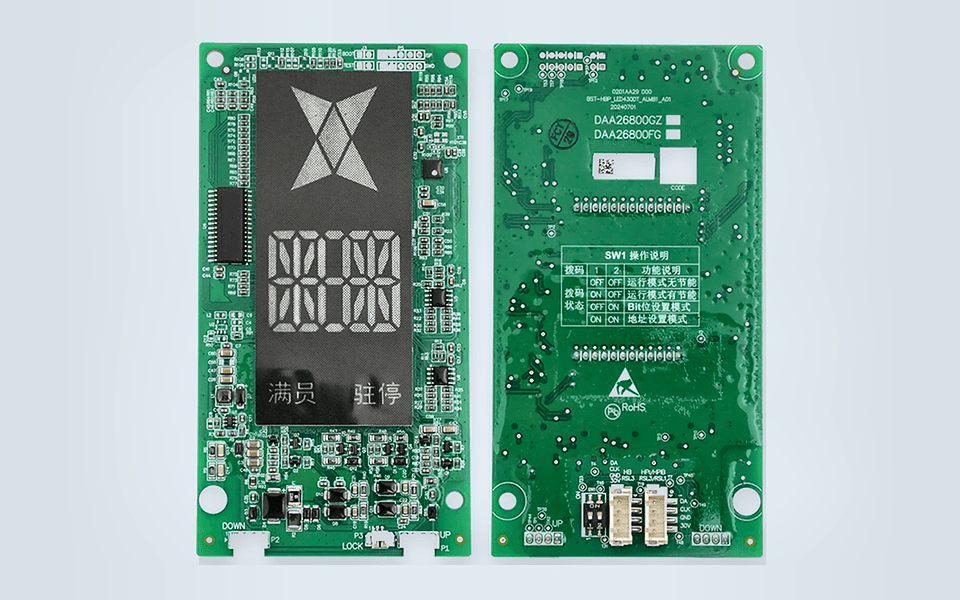

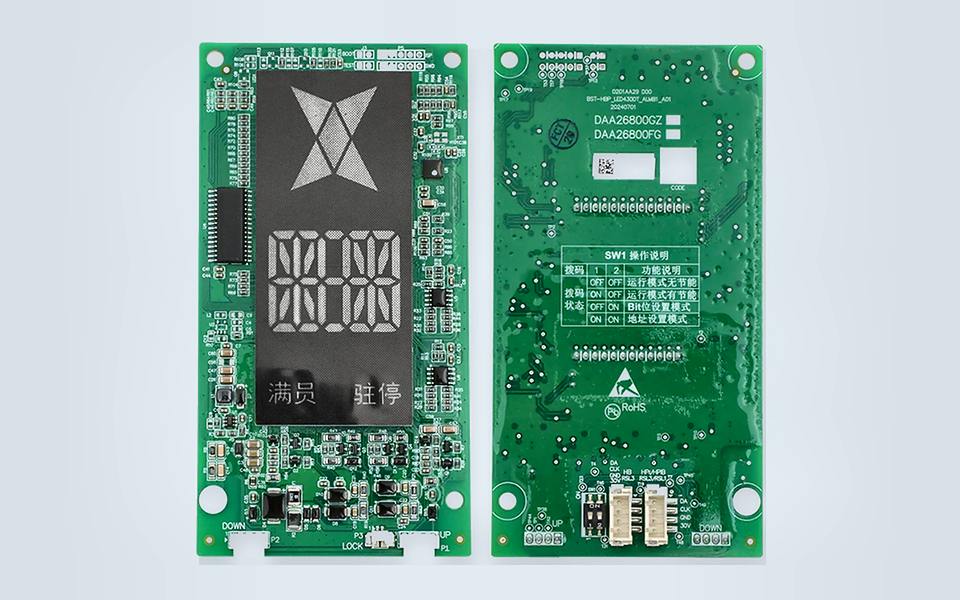

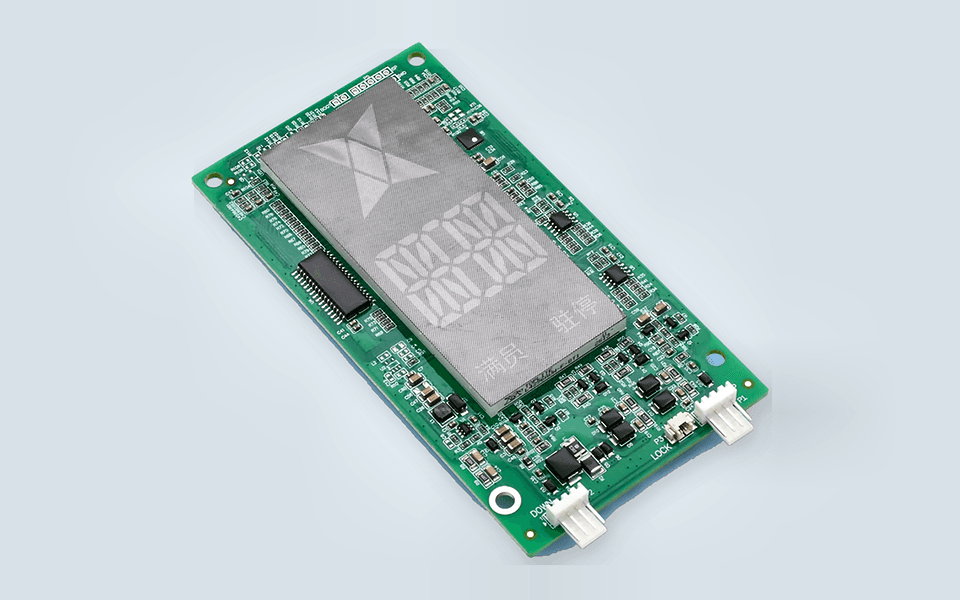

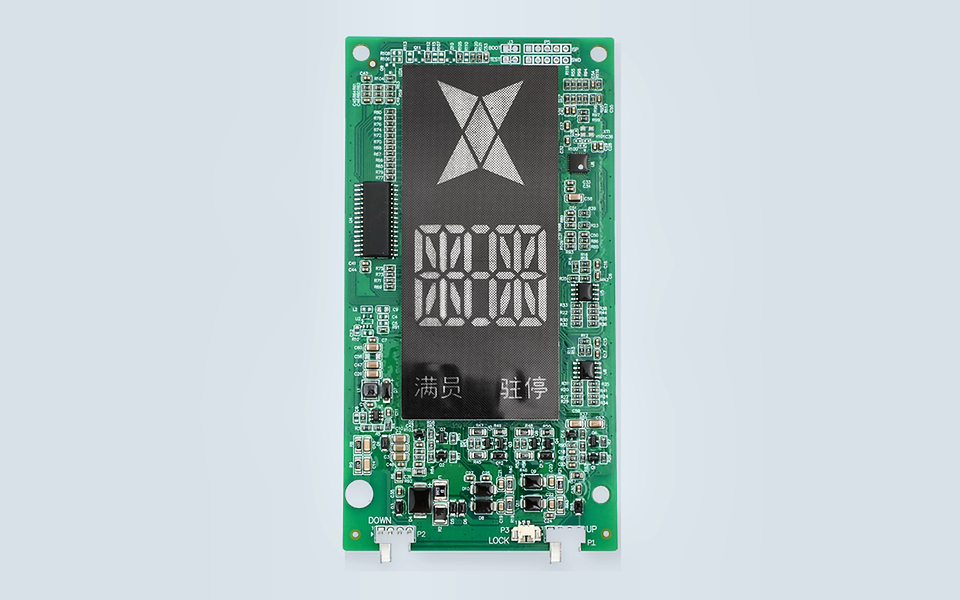

OTIS LOP Display Board DAA26800FG DAA26800G DAA23500CD

OTIS DAA26800FG, DAA26800G, and DAA23500CD are display-board references used in compatible OTIS elevator landing operating panels and external call stations.

These products are commonly supplied as LOP display boards, hall indicator boards, or external call display assemblies. Depending on the original panel configuration, the display may show the floor number, travel direction, or other elevator status information.

This product may also be searched as:

• OTIS DAA26800FG

• OTIS DAA26800G

• OTIS DAA23500CD

• OTIS LOP Display Board

• OTIS External Call Display

• OTIS Hall Indicator Board

• OTIS Elevator Floor Display

• OTIS Landing Display PCB

• OTIS Call Station Display

Check the Complete Display Panel

A board with the same general shape may still have a different display format, connector arrangement, or panel application. For this reason, the replacement should be compared with the complete original landing panel rather than selected only from one printed number.

Before ordering, please provide:

• DAA26800FG, DAA26800G, or DAA23500CD marking

• all additional PCB references

• illuminated display photo

• single-digit or double-digit display

• display colour

• floor-number and arrow style

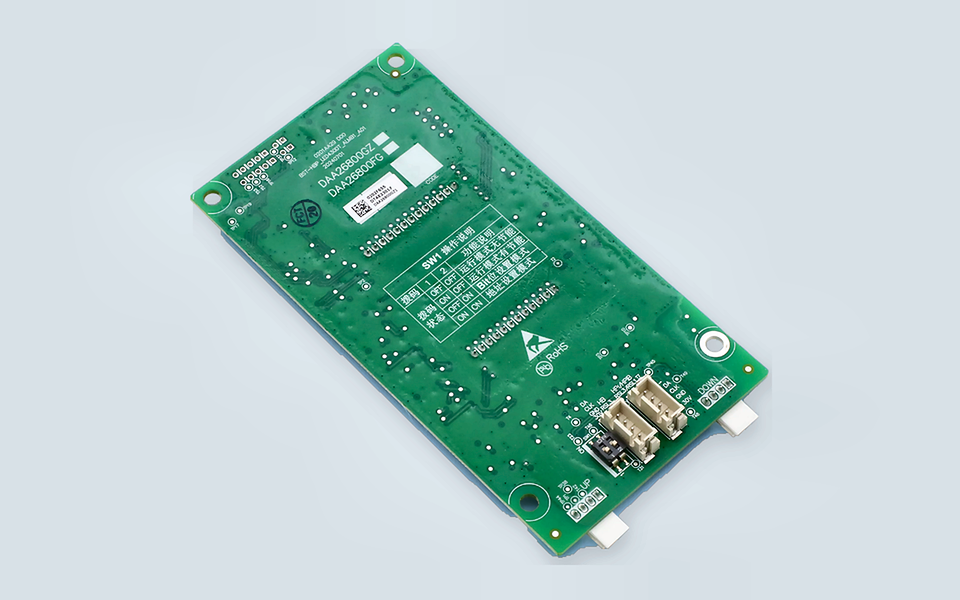

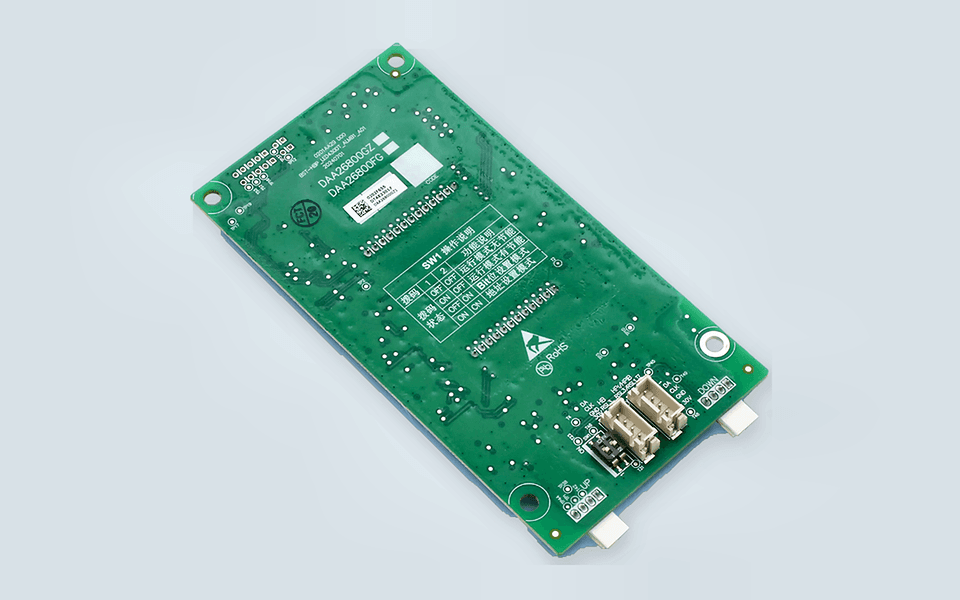

• front and rear PCB photos

• connector quantity and position

• complete LOP or hall-panel photo

• elevator controller information

• quantity required

Public replacement listings commonly identify DAA26800FG and DAA26800G as OTIS external-call or outbound-call display boards. DAA23500CD is also marketed as an external-call display component associated with the same general display family. However, compatibility should still be confirmed from the original panel and PCB.

Photograph the Display While It Is Powered

An illuminated photo can reveal important details that cannot be confirmed from the unpowered PCB alone.

Replacement may be required when:

• the floor number is incomplete

• individual segments do not illuminate

• direction arrows fail

• the display flickers

• the panel remains completely dark

• connectors or PCB components are damaged

Before replacing the display board, technicians should also inspect the panel power supply, communication wiring, connector terminals, plugs, and controller output. A power or communication problem may produce symptoms similar to a defective display PCB.

Installation and functional testing should be carried out by qualified elevator technicians. Floor indication, direction display, landing-call operation, and communication with the controller should be verified before the elevator returns to service.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Colombia, Spain, and Italy, an illuminated-display photo together with clear pictures of every visible number is recommended before shipment.

FAQ

Are DAA26800FG and DAA26800G the same board?

They are commonly listed within the same OTIS external-call display family, but direct interchangeability should not be assumed. The PCB revision, display type, connectors, and panel configuration should be checked first.

Is DAA23500CD a landing display board?

Public spare-parts listings describe DAA23500CD as an OTIS external-call display-board component and frequently list it together with DAA26800FG or related display references.

Can I order only by the part number?

The number is important, but the illuminated display, connector layout, PCB photos, display colour, and complete landing panel should also be confirmed.

What photos are most useful?

Please send one illuminated-display photo, both sides of the PCB, close-ups of all printed numbers, the connectors, and the complete LOP or hall call panel.
