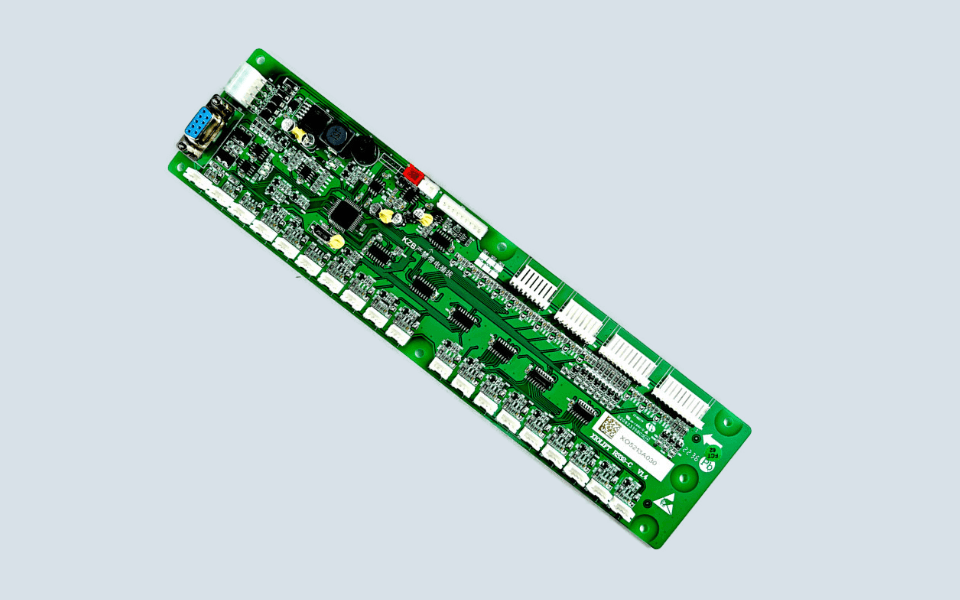

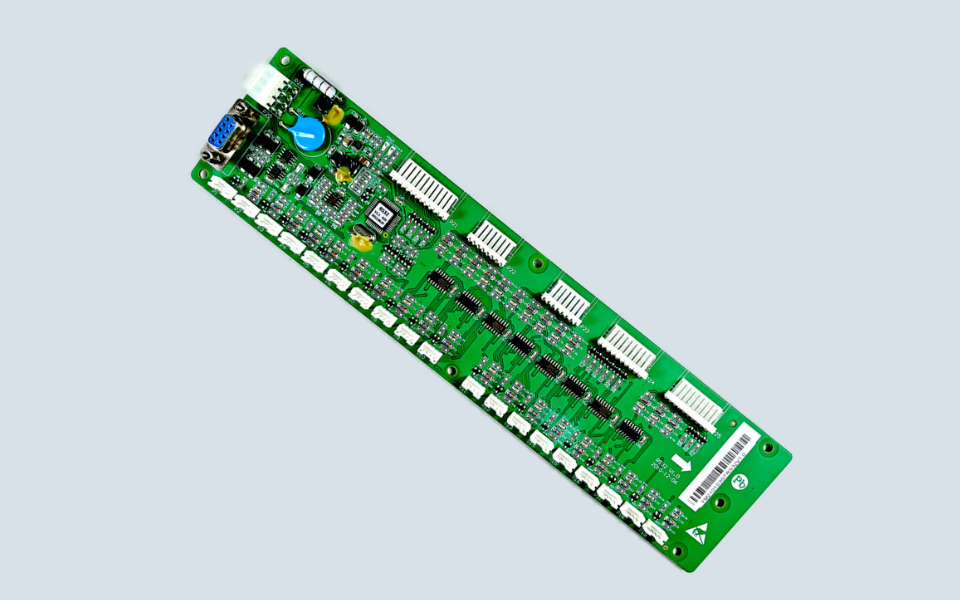

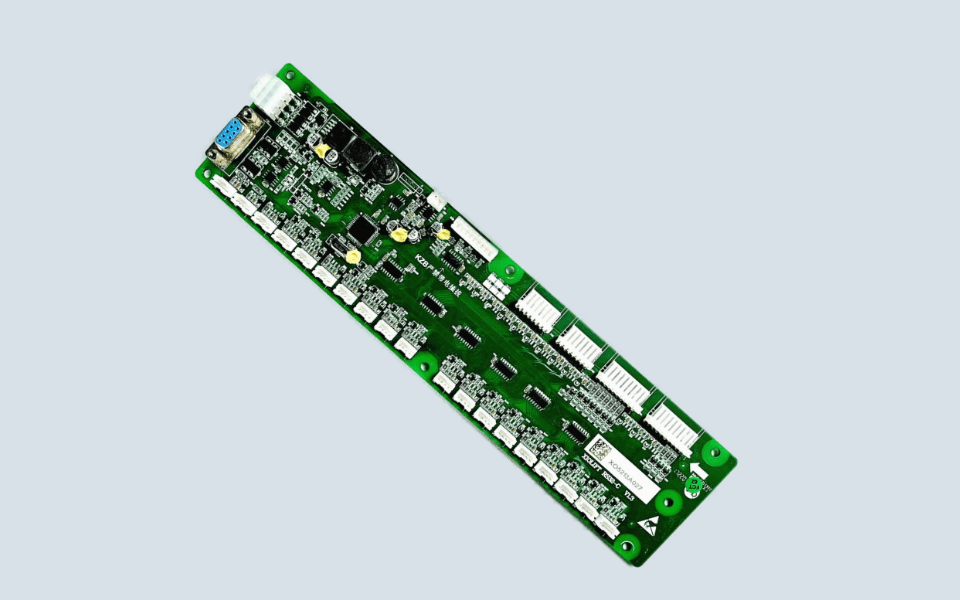

OTIS Xizi Elevator Car Communication Address Board DBA26800J1 RS32-C

OTIS Xizi Elevator Car Communication Address Board DBA26800J1 RS32-C is used in elevator car communication, address signal, and RSEB / RS32 board applications.

This board is usually related to the elevator car-side communication system, where input and output signals, address communication, car display output, and communication with the main control board may be processed depending on the elevator system configuration.

In the elevator spare parts market, this product may also be searched as:

• OTIS Elevator RS32 Board
• Xizi OTIS Car Communication Board
• Elevator Car Address Board
• RSEB RS32 Board
• DBA26800J1 Communication Board
• DAA26800J1 RS32 Board
• RS32-C Car Communication Board
• Elevator Address Communication PCB Board

The main model references for this page are:

• DBA26800J1
• DAA26800J1
• RS32
• RS32-C

These references are useful for search and quotation confirmation. However, RS32, RS32-C, and DBA26800J1 should not be treated as automatically interchangeable without checking the old board version, plug type, function configuration, and elevator system requirement.

Why This Board Should Be Confirmed by Version

DBA26800J1 / RS32-C is not just a simple signal PCB.

This type of board may be involved in car communication, address coding, RSL communication, car display output, and input / output signal processing. In some market descriptions, RS32 boards are also divided by whether they include the voice comfort function. The black plug-in is often used as a visible reference for identifying the voice-related version.

For this reason, buyers should not confirm this board only by the general name “car communication board.” The exact old PCB label and visible plug structure should be checked first.

RS32, RS32-C and DBA26800J1 Matching Notes

A common mistake is assuming that all RS32-related boards can be used in the same way.

In real replacement work, the following points should be confirmed:

• Whether the old board is RS32 or RS32-C
• Whether the old PCB shows DBA26800J1 or DAA26800J1
• Whether the board has voice comfort function
• Whether a black plug-in appears on the old board
• Whether the elevator is OTIS, Xizi OTIS, Hangzhou Theo, or another related system
• Whether parameters or address settings are required after replacement

Some versions may be easier to install directly in specific systems, while other versions may require address or parameter adjustment. This should be handled by a qualified elevator technician.

Where This Board Is Usually Checked

Maintenance teams may inspect this board when there are problems such as:

• car communication abnormality
• RSL communication fault
• car display signal problem
• address signal error
• input or output signal not responding
• cabin-side communication interruption
• visible PCB or connector damage
• abnormal response between the car board and main control board

These symptoms may also be caused by communication wiring, connector oxidation, power supply issue, address setting error, display board fault, or main controller problem. The complete signal path should be checked before confirming the RS32 board fault.

Information Needed Before Ordering

Before ordering OTIS Xizi Elevator Car Communication Address Board DBA26800J1 RS32-C, please provide:

• Complete old board label photo
• Whether the board shows DBA26800J1 or DAA26800J1
• Whether the old version is RS32 or RS32-C
• Front and back photos of the PCB
• Clear photo of the plug and connector area
• Whether black plug-in is present
• Elevator system information if available
• Existing communication or address fault description
• Whether any parameter setting was changed on site

If the old board label is unclear, a full photo of the car communication box or COP-related wiring area can help confirm the correct board faster.

FAQ

Can RS32 and RS32-C be used interchangeably?
They should not be treated as automatically interchangeable. RS32, RS32-C, and DBA26800J1 may have different version or setting requirements. The old board label and site configuration should be checked first.

Are DBA26800J1 and DAA26800J1 related?
They often appear together in market listings for OTIS / Xizi OTIS RS32 car communication or address board applications, but the actual replacement should still be confirmed by the old board marking and connector layout.

What is the black plug-in used for?
In some RS32 board versions, the black plug-in is used as a visible reference for the voice comfort function. It is useful to send a clear connector photo before ordering.

Practical Replacement Notes

Do not select DBA26800J1 RS32-C only by appearance.

Elevator car communication boards may look similar, but the board version, address setting, communication function, plug structure, and system compatibility may be different. Before installation, technicians should compare the old and new board carefully and check the communication wiring, address setting, connector terminals, and related display or main control board.

For overseas buyers, sending clear photos of the original DBA26800J1 / DAA26800J1 board, connector area, plug type, and car communication installation position is the safest way to reduce wrong supply before shipment.
