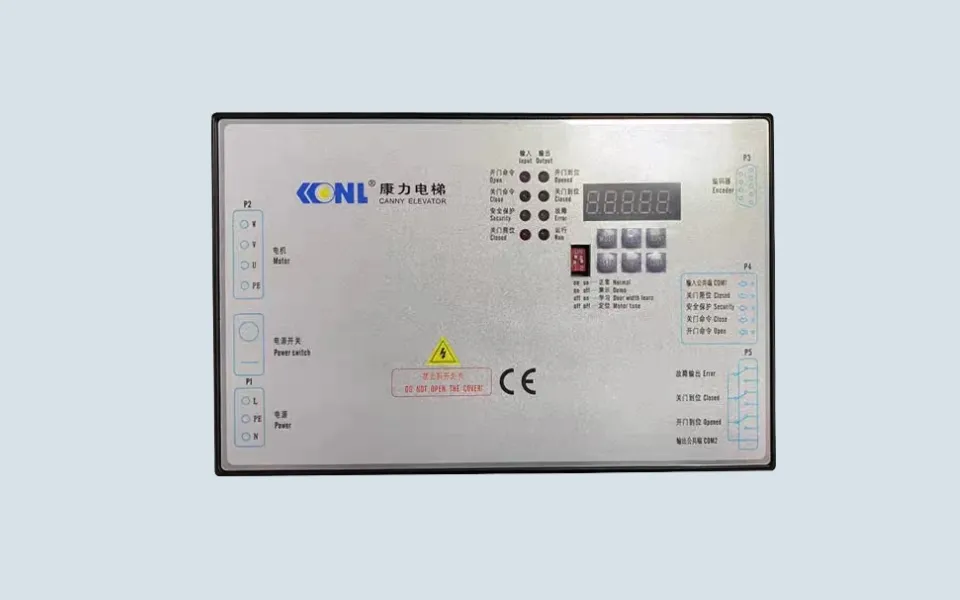

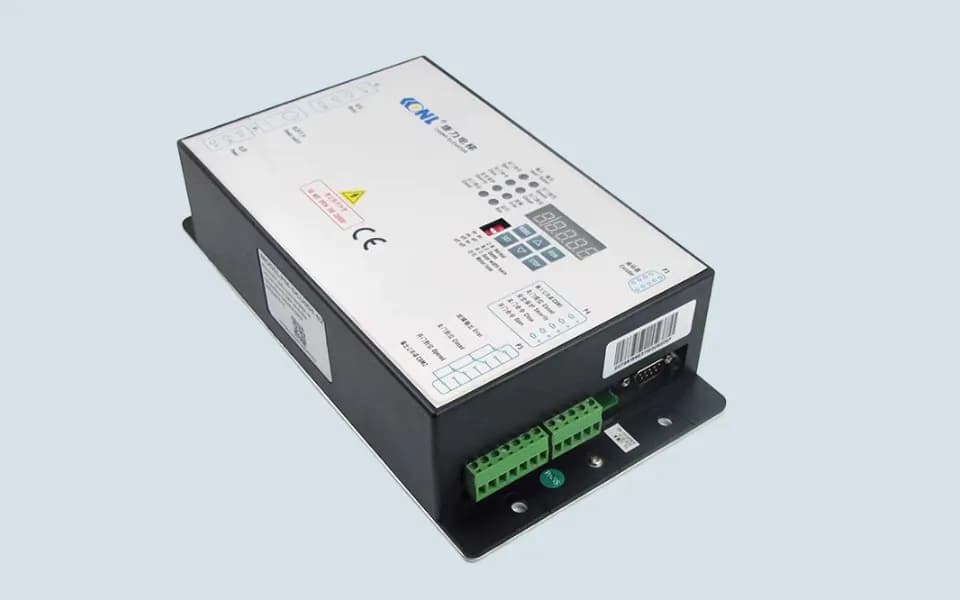

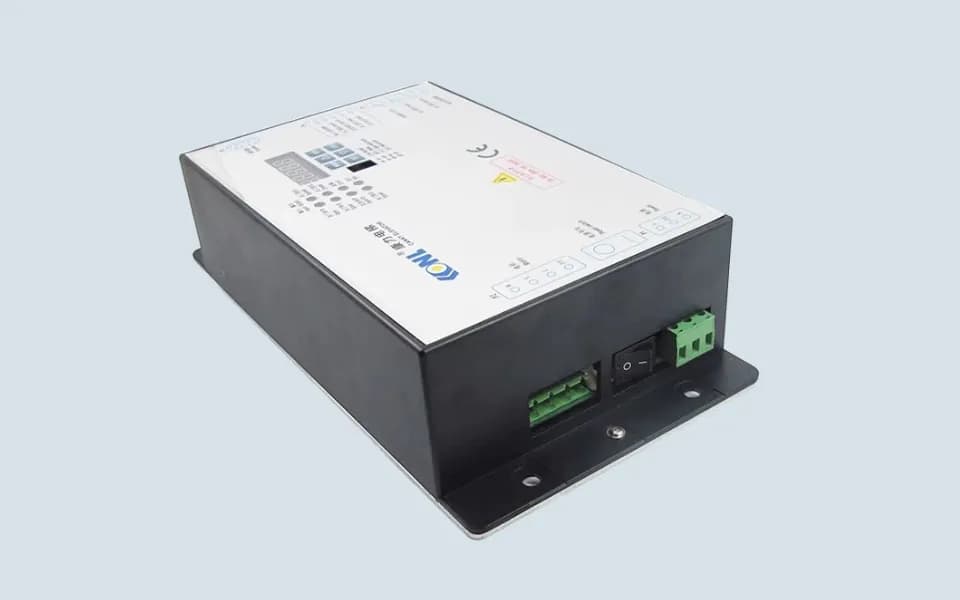

Elevator door motor frequency converter PM-DCU004-02
Please add the quotation and send it to us and get in touch with us immediately
- Globle service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Machine frequency converter PM-DCU004-02:
- PM-DCU004-02 is a special door machine controller for CANNY Elevator. It is a special drive system for elevator doors that controls permanent magnet synchronous motors. It can achieve the best door opening and closing speed curve, is efficient, reliable, simple to operate, and has small mechanical vibration.
- Main features: door width self-learning, automatic door opening and closing demonstration, fault alarm and automatic protection functions, optional clamping and detection functions.
- Rated power 400W, rated frequency 50/60HZ, input voltage AC220V, output voltage 0~220V, output current 2A.
Note: This product is a new national standard product. Due to product updates, a new national standard bypass detection function has been added compared to the old product. If the controller does not send a door closing signal, just change F5-18 from 2 to 0.
You can also choose related products, such as: Inspection box interface board
