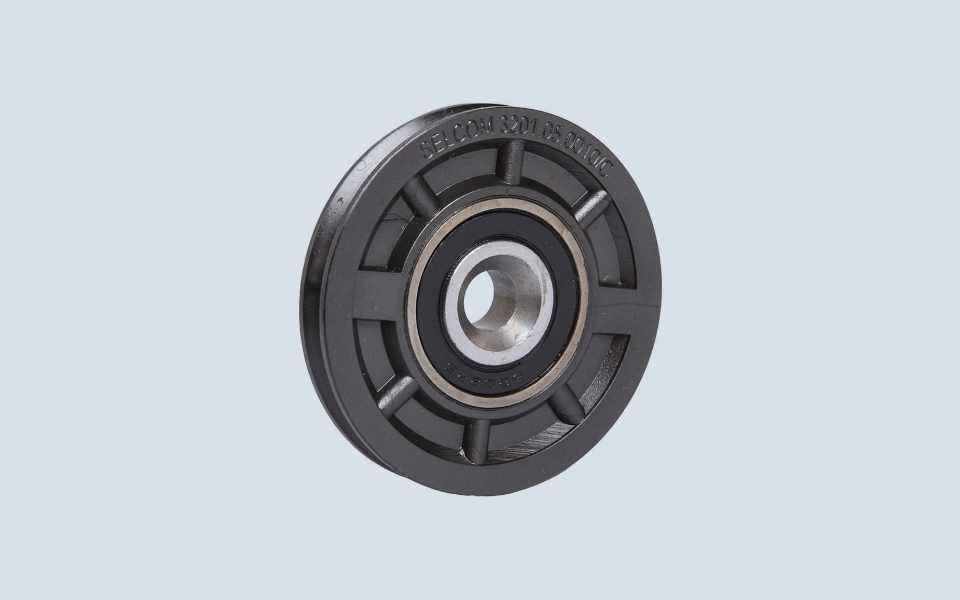

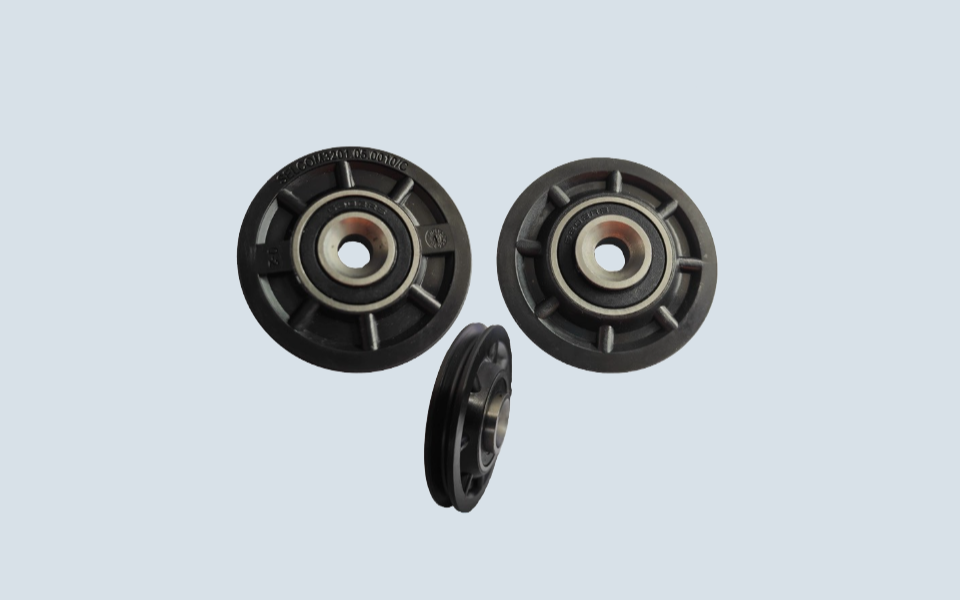

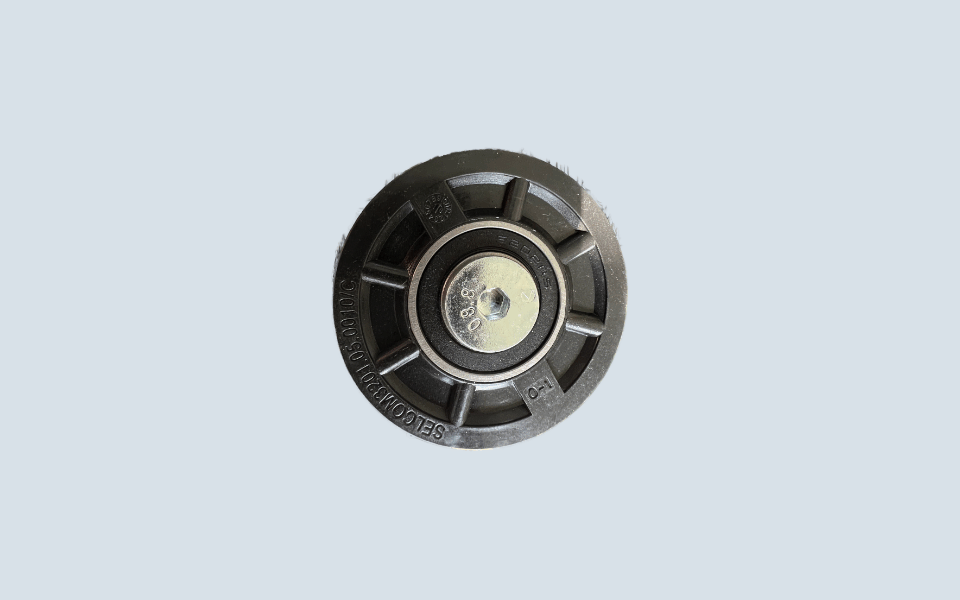

Selcom Door Rope Roller 64mm 3201.05.0010

Guide Roller for Elevator Door Rope Transmission Systems

Product Overview

The Selcom Door Rope Roller 64mm 3201.05.0010 is a guide roller used in elevator door systems where rope-based transmission is applied. Its main purpose is to support and guide the movement of the rope during door operation, allowing smoother motion transfer within the door mechanism.

In rope-driven door assemblies, the condition of the guiding roller has a direct influence on rope stability and movement consistency. A properly functioning rope roller helps the rope move along its intended path with reduced friction and improved running smoothness. This supports more stable door opening and closing performance while also helping to reduce wear on the rope itself.

Because the roller is exposed to continuous movement and repeated mechanical contact, wear on the running surface or internal support structure may gradually affect door transmission quality over time.

---

Functional Role in Rope Transmission

Unlike rollers that primarily support door panels, the rope roller is designed to guide the movement of the transmission rope within the door operator system.

Its main functions include:

• Guiding rope travel within the mechanism

• Reducing friction between rope and supporting surface

• Helping maintain stable motion transfer

• Limiting unnecessary rope deviation during operation

A well-positioned rope roller contributes to smoother transmission performance and helps maintain consistent door response.

---

Operational Characteristics

The 64mm roller diameter provides an appropriate guiding surface for rope travel in compatible Selcom door systems. Stable rope guidance is especially important where repeated opening and closing cycles place continuous movement demand on the transmission path.

When the roller becomes worn, technicians may observe:

• Rope movement instability

• Increased operating noise

• Uneven transmission response

• Visible wear on rope contact surface

Replacing the rope roller in time helps preserve overall transmission efficiency and reduces unnecessary stress on associated mechanical parts.

---

Technical Specifications

---

Maintenance Notes

During maintenance inspection, technicians may check the rope roller when rope movement becomes less stable or when visible roller wear appears.

Replacement is generally recommended if:

• The roller surface becomes worn or damaged

• Rope tracking becomes uneven

• Operating noise increases during door movement

Maintaining the roller in good condition helps improve rope travel consistency and prolongs service life of the transmission system.

---

Frequently Asked Questions

What is the function of a door rope roller in an elevator system?
It guides the movement of the transmission rope and helps maintain stable motion within the door mechanism.

How is it different from a door panel roller?
A rope roller supports rope travel, while a panel roller mainly supports movement of the door panel itself.

When should the rope roller be replaced?
Replacement is recommended when wear, noise, or unstable rope movement affects door transmission performance.
