STEP 08GQ09 AS380 Elevator Service Tool

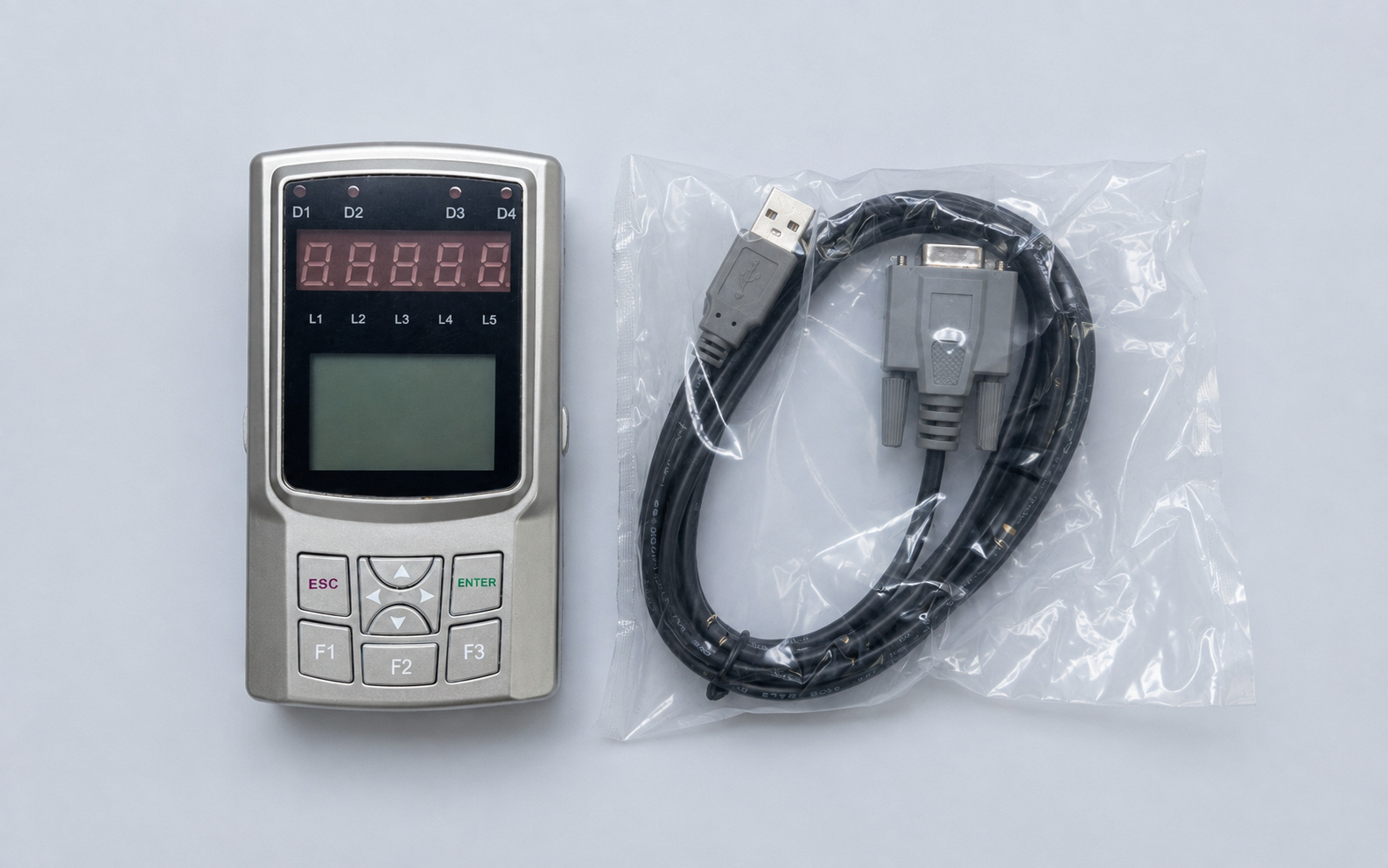

The STEP 08GQ09 AS380 Elevator Service Tool is a handheld operator used for elevator commissioning, parameter checking and maintenance work with compatible STEP control and drive systems. It is commonly used with AS380 applications and is identified by the 08GQ09 model marking.

A Handheld Tool for Elevator Maintenance

Unlike an elevator control PCB, the 08GQ09 is a portable service and diagnostic device used by technicians during elevator adjustment and troubleshooting.

It can be connected to a compatible STEP system to access operating information and assist with controller or inverter setup.

Typical identification includes:

• Model: 08GQ09

• Product type: Elevator service tool

• Application: STEP AS380

• Handheld keypad / operator

• Compatible protocol version

Protocol Version Is Important

Different 08GQ09 service tools may be supplied for different elevator communication protocols.

A tool that looks identical externally may not communicate correctly with every AS380 installation. For this reason, the elevator controller type and required protocol should be confirmed before ordering.

Please provide:

• Controller or inverter model

• Existing service tool model, if available

• Required protocol

• Controller nameplate or PCB photo

• Connector information

• Required quantity

FAQ

What is STEP 08GQ09 used for?

It is a handheld elevator service and test tool used for adjustment, parameter checking and maintenance of compatible STEP systems such as AS380.

Is 08GQ09 a PCB board?

No. It is a handheld service operator/test tool rather than an elevator control PCB.

Can one 08GQ09 work with every AS380 system?

Not necessarily. Different protocol versions exist, so the controller and communication protocol should be confirmed before ordering.

For STEP 08GQ09 AS380 requirements, send us the controller information or existing service tool details for compatibility checking before quotation.
