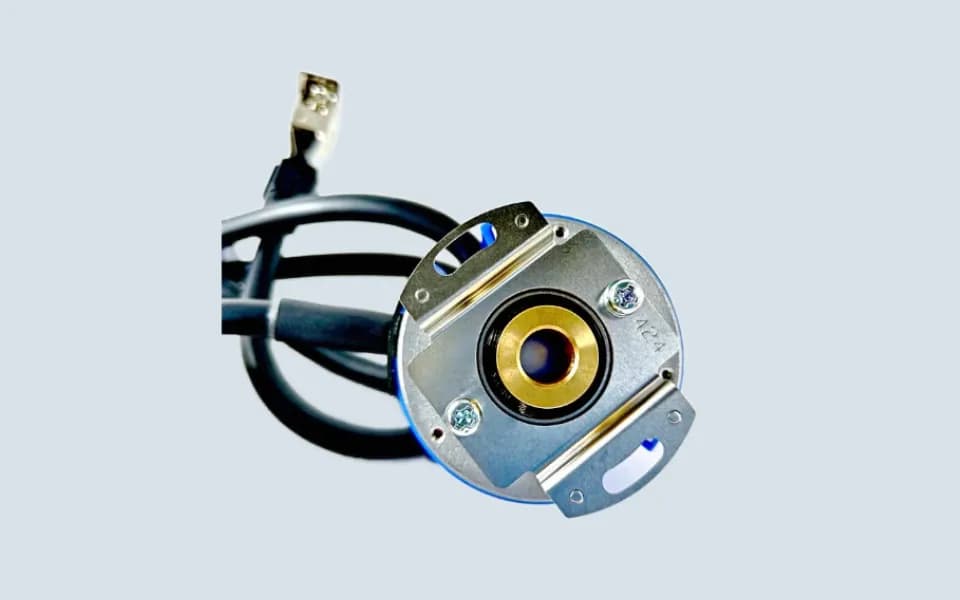

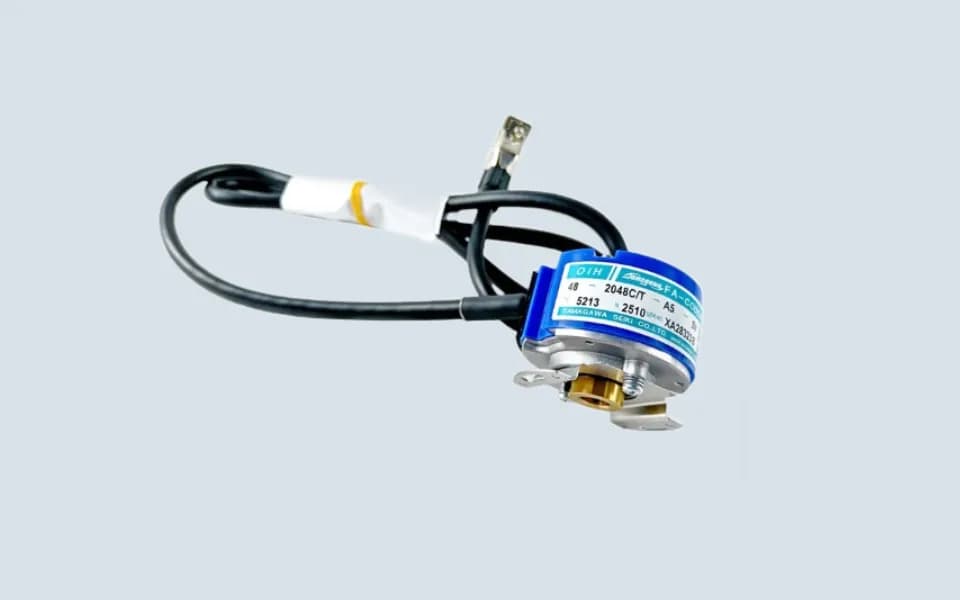

Tamagawa Encoder OIH48-2048C TS5213N2510

Tamagawa Encoder OIH48-2048C TS5213N2510 is used in elevator motor feedback, speed detection, and position signal applications.

This encoder is normally installed on the elevator traction machine, motor shaft, or related drive feedback position, depending on the original elevator system configuration. It provides feedback signals to the elevator drive or controller so that the system can monitor motor rotation, running speed, direction, and position-related feedback during elevator operation.

In elevator maintenance and spare parts purchasing, this product may be searched under several different names:

• Tamagawa Elevator Encoder
• Tamagawa Rotary Encoder
• Elevator Motor Encoder
• Elevator Traction Machine Encoder
• Elevator Speed Feedback Encoder
• Elevator Drive Feedback Encoder
• Tamagawa OIH48 Encoder
• OIH48-2048C Encoder
• TS5213N2510 Encoder
• OIH48-2048-A5-5V Tamagawa Encoder

The main model references for this page are:

• OIH48-2048C
• TS5213N2510
• OIH48-2048-A5-5V
• OIH48 2048C
• OIH48 2048 A5 5V
• Tamagawa TS5213N2510
• Tamagawa OIH48-2048C
• Tamagawa OIH48-2048-A5-5V

These references are useful for search coverage and customer inquiry matching. However, they should not be treated as one confirmed universal replacement. For actual replacement, the old encoder label, output signal type, supply voltage, connector type, cable definition, shaft connection, mounting size, and elevator drive requirement must be checked before ordering.

Used for Elevator Motor Feedback

This product should not be described only as a normal rotary encoder.

In an elevator system, the encoder is an important feedback component for the motor and drive control. The elevator drive uses encoder feedback to monitor motor rotation and speed response. If the encoder signal is missing, unstable, or incorrect, the elevator may not run normally, or the drive may report speed feedback or encoder-related faults.

A damaged encoder may cause problems such as unstable running, abnormal start or stop, vibration, speed deviation, direction feedback fault, drive trip, or failure to complete inspection running. However, these symptoms may also come from the encoder cable, connector, motor-side coupling, drive parameter setting, wiring shield, grounding, or controller input. The complete feedback path should be checked before confirming the encoder fault.

OIH48-2048C and TS5213N2510 Should Be Checked Together

For this product, the most important point is the old encoder label.

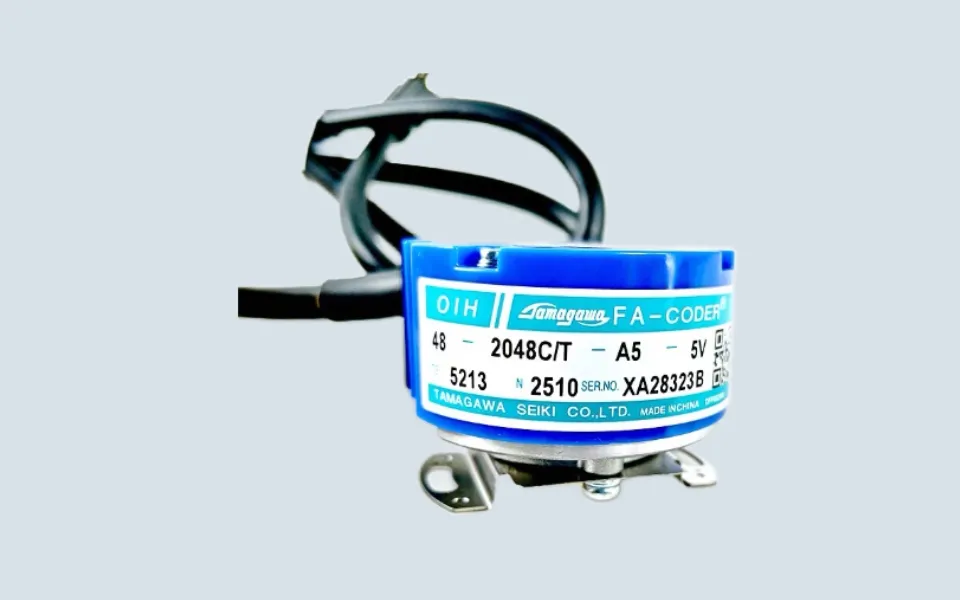

Some old units may show TS5213N2510 as the main Tamagawa model number. Other labels or supplier records may show OIH48-2048C, OIH48-2048-A5-5V, or similar OIH48 series markings. These references should be checked together, because customers may search by either the Tamagawa model number or the encoder body specification.

Before quotation, buyers should confirm:

• complete model number on the old encoder label
• whether the label shows TS5213N2510
• whether the label shows OIH48-2048C or OIH48-2048-A5-5V
• supply voltage shown on the old unit
• output signal type and channel definition
• connector type or cable outlet type
• cable length if important
• shaft size and coupling connection
• mounting flange and screw hole position
• encoder installation position on the motor or traction machine
• drive brand or elevator controller model if available
• old encoder front, side, rear, connector, and label photos
• fault code or running symptom from the elevator site

For this product, a clear label photo and connector photo are more reliable than only writing “Tamagawa encoder”.

Where This Encoder Is Usually Checked

Maintenance teams may inspect or replace this Tamagawa encoder when the elevator has problems such as:

• encoder feedback fault
• motor speed feedback abnormality
• elevator unable to run after drive start
• unstable inspection running
• abnormal vibration during movement
• wrong direction feedback
• drive reporting encoder signal loss
• intermittent running fault
• damaged encoder cable or connector
• old encoder needing replacement during traction machine repair

These problems may also come from motor wiring, drive parameter mismatch, loose coupling, damaged shield cable, poor grounding, controller input fault, or incorrect encoder phase connection. The encoder should be checked together with the drive feedback wiring and motor-side mechanical connection before confirming replacement.

Connector, Voltage, and Mounting Must Match

Do not replace Tamagawa Encoder OIH48-2048C TS5213N2510 only by similar appearance.

Elevator encoders may look similar from the outside, but the supply voltage, output signal, connector definition, shaft size, cable direction, mounting flange, and resolution marking may be different. If the wrong encoder version is installed, the drive may not receive correct feedback, or the elevator may still show speed feedback and running faults after replacement.

Before installation, technicians should compare the old and new encoders carefully. The connector, cable definition, shaft coupling, mounting holes, and label markings should match the original unit. If the old label shows a voltage or signal marking such as A5-5V, this information should be confirmed before ordering instead of assuming compatibility by model name only.

For overseas buyers, sending clear photos of the old encoder label, connector, cable, shaft connection, mounting flange, and motor installation position is the safest way to confirm the correct replacement before shipment.

Practical Procurement Notes

This product is often purchased by elevator maintenance companies, repair teams, and spare parts distributors for elevator motor feedback and drive system repair.

For customers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, inquiries for this type of Tamagawa elevator encoder often come from urgent drive faults or motor feedback problems at the job site. In many cases, the buyer may only have a label photo from the old encoder or a photo taken near the traction machine.

When sending an inquiry, the buyer should provide the complete model number, old label photo, connector close-up, cable information, shaft or coupling photo, mounting position, and quantity required. If the encoder will be shipped together with other elevator drive parts or control components, model and interface confirmation should be completed before packing to reduce the risk of wrong supply.
