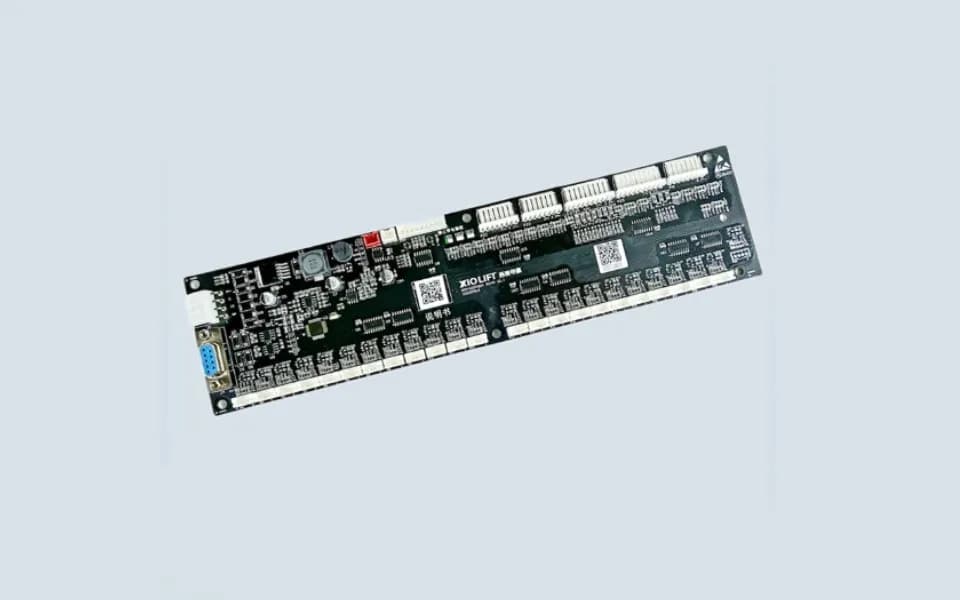

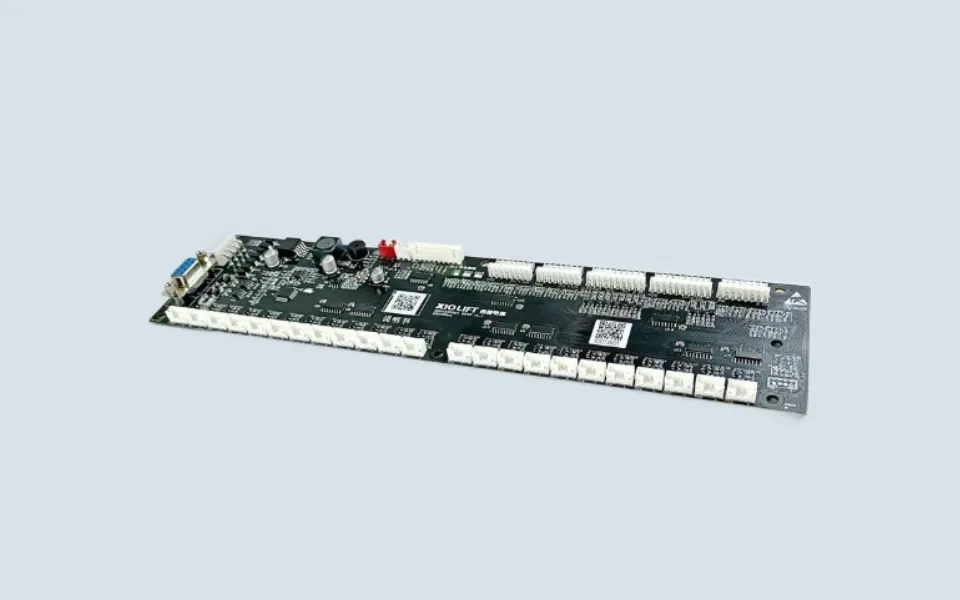

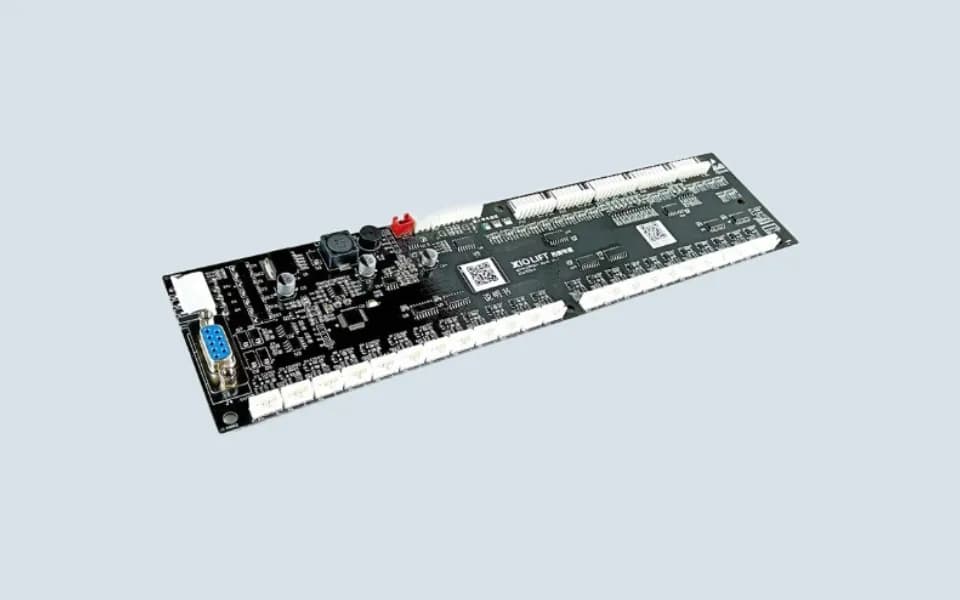

XIOLIFT Car Communication Board RS40-C

XIOLIFT Car Communication Board RS40-C is used for elevator car-side communication and signal transfer in XIOLIFT elevator systems.

This board is usually related to the communication path between the car operating panel, car-top unit, travelling cable interface, and elevator control system. In actual maintenance work, it is normally identified by the RS40-C marking on the PCB, connector layout, wiring plug direction, board version, and its installation position inside the car-side electrical area.

In elevator spare parts purchasing, this product may be searched under several different names:

• XIOLIFT Car Communication Board
• XIOLIFT Elevator Communication Board
• RS40-C Communication Board
• RS40C Elevator Board
• XIOLIFT RS40-C Board
• Elevator Car Communication PCB
• Elevator Car Signal Board
• Elevator COP Communication Board
• Elevator Car Interface Board
• XIOLIFT Elevator PCB Board

The main model references for this page are:

• RS40-C
• RS40C
• RS-40-C
• XIOLIFT RS40-C
• RS40-C Car Communication Board
• RS40-C Elevator Communication Board
• XIOLIFT Car Communication Board RS40-C

These references are useful for search coverage and customer inquiry matching. However, they should not be treated as confirmed interchangeable part numbers. For actual replacement, the old PCB marking, connector layout, car-side wiring, switch setting, and installation position must be checked before ordering.

The Board Behind Car-Side Signal Communication

RS40-C should not be described as a normal elevator PCB only by appearance.

In many elevator systems, the car side has several signal sources, including COP buttons, display signals, call commands, car-top unit wiring, and travelling cable connections. The communication board helps these car-side signals reach the elevator controller or related interface board according to the original system design.

When this board has poor connector contact, damaged components, unstable signal transfer, or a wrong version installed, the elevator may show COP response problems, car display abnormality, communication fault, button command failure, or intermittent car-side signal loss.

These symptoms do not always mean the board itself is damaged. The travelling cable, COP wiring, car-top connector, controller communication port, power supply, grounding, or address setting may also need to be checked.

RS40-C Marking Is the First Thing to Photograph

For this product, the old board marking is more important than a general description like “communication board”.

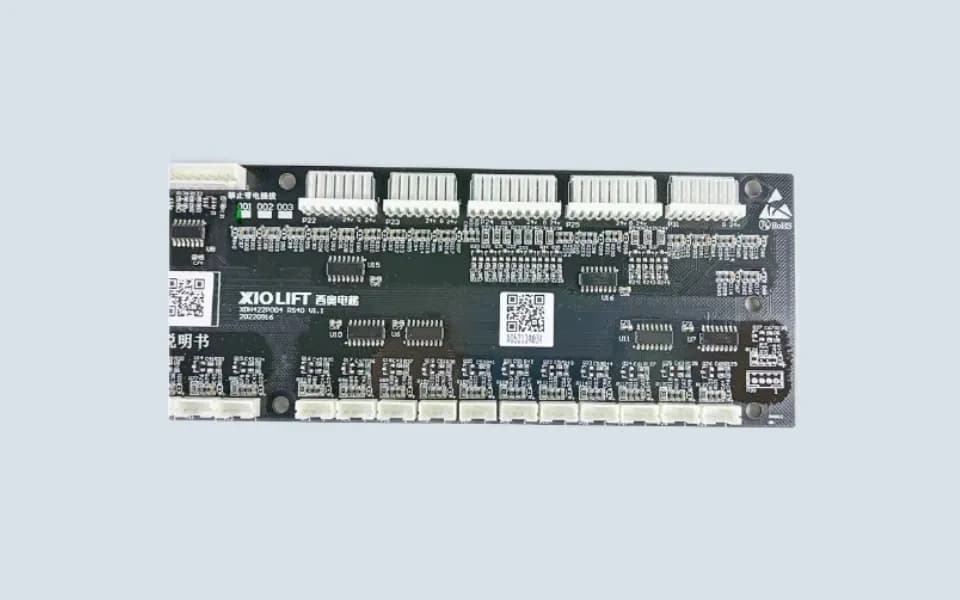

Some customers may send an inquiry only saying “XIOLIFT car communication board”. But for matching, the PCB should be checked for RS40-C, RS40C, RS-40-C, or any additional version marking printed on the board.

Before quotation, buyers should confirm:

• complete PCB marking on the old board
• whether RS40-C is printed on the board
• board version or revision code if available
• connector quantity and connector position
• wiring plug direction
• communication terminal or interface area
• address switch, DIP switch, or jumper position if included
• board size and fixing position
• installation position inside COP, car-top unit, or car-side electrical box

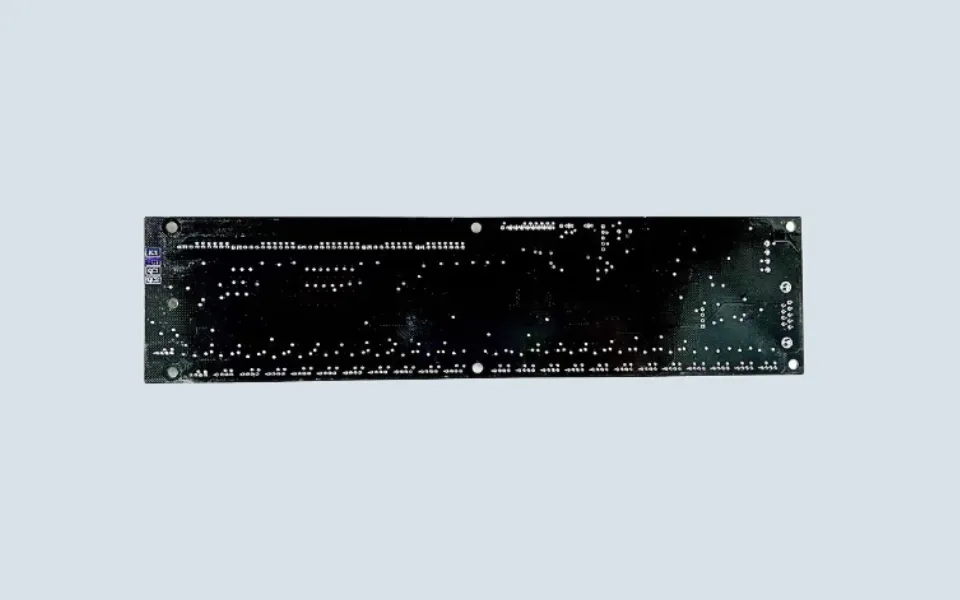

• old board front and back photos
• close-up photos of each connector
• elevator controller, COP, or car-top unit information if available
• fault code or site symptom description

A clear PCB silkscreen photo and connector photo can reduce a lot of communication time before shipment.

Typical Fault Clues From the Elevator Site

Maintenance teams may check the RS40-C board when the car-side signals are not behaving normally.

Common site situations include:

• COP buttons not responding correctly
• car display or indicator signal abnormality
• car communication fault on the controller
• intermittent car-side signal loss
• elevator not receiving car command properly
• loose connector on the communication board
• burned component or damaged PCB track
• fault after COP repair or travelling cable work
• abnormal signal after replacing another car-side board
• old board removed for replacement during maintenance

These problems may be caused by the RS40-C board, but they may also come from connector oxidation, travelling cable damage, incorrect plug position, COP board fault, car-top unit wiring, or controller-side communication failure.

For this reason, the board should be checked as part of the complete car communication circuit, not as an isolated PCB.

Connector Direction and Settings Should Not Be Guessed

Do not replace XIOLIFT Car Communication Board RS40-C only by a similar board size.

Elevator communication boards may look similar from the outside, but the connector definition, plug direction, address setting, jumper position, and circuit revision may be different. If the wrong board or wrong setting is used, the elevator may still report communication faults after replacement.

Before installation, technicians should compare the old board and new board carefully. The connector direction, board fixing holes, PCB marking, switch setting, and wiring plug position should match the original unit.

If there are DIP switches, jumpers, or address labels on the old board, their positions should be recorded before removal. This is especially important when the board is connected with COP signals, car-top wiring, or travelling cable communication.

Photo Confirmation for Overseas Orders

This product is often purchased by elevator maintenance companies, spare parts distributors, and repair teams for XIOLIFT elevator communication system repair.

For buyers in Saudi Arabia, Jordan, Egypt, Iraq, UAE, Kuwait, Brazil, Chile, Spain, and Italy, inquiries for this kind of XIOLIFT car communication board usually come from job-site troubleshooting. In many cases, the buyer only has photos of the old RS40-C board taken inside the car-side electrical area or near the COP wiring.

Before ordering, buyers are advised to send:

• old board model photo
• complete front side photo
• complete back side photo
• connector close-up photos
• switch or jumper setting photo
• installation position photo
• fault description from the elevator site
• quantity required

If the RS40-C board will be shipped together with other XIOLIFT elevator spare parts such as COP boards, display boards, car-top boards, travelling cable parts, or control cabinet boards, model and interface confirmation should be completed before packing to reduce the risk of wrong supply.
