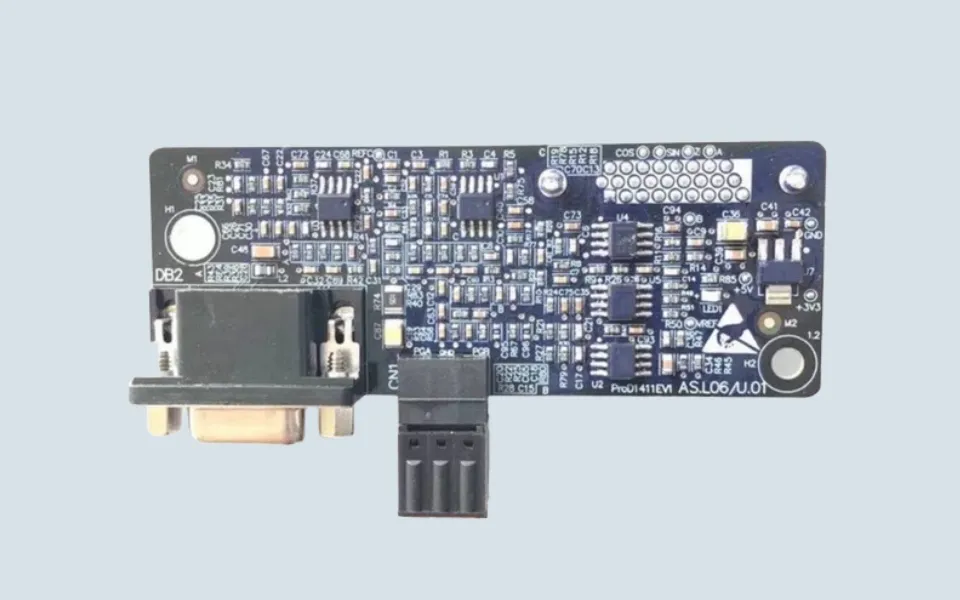

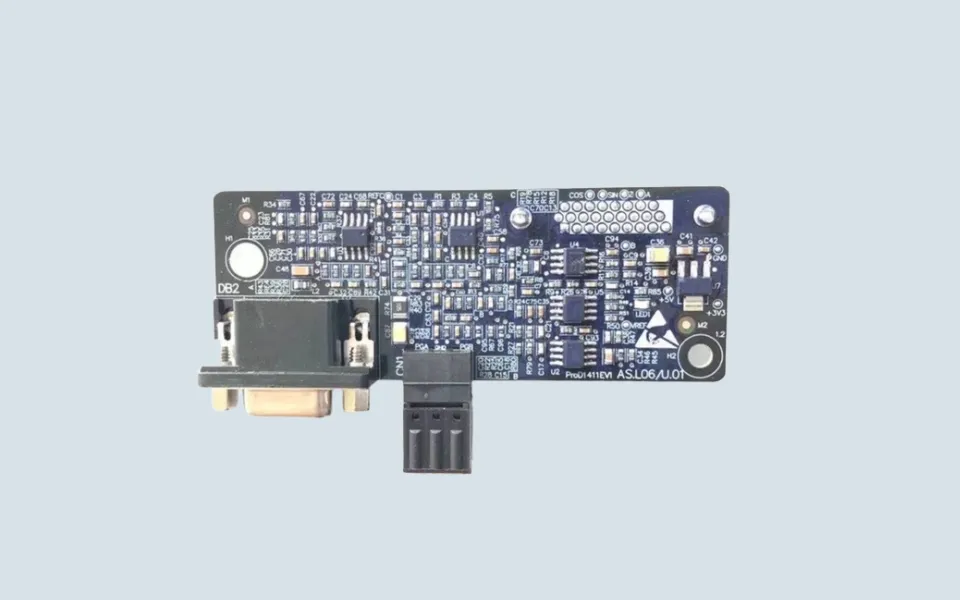

CANNY Elevator PG Card AS.L06

CANNY Elevator PG Card AS.L06 is used in elevator inverter and encoder feedback signal applications.

A PG card is not a normal control board. It is usually connected with the elevator inverter or integrated drive system, helping process encoder feedback signals for motor speed control, running stability, and drive response.

In the elevator spare parts market, this product may also be searched as:

• Elevator PG Card AS.L06
• Elevator Integrated Inverter PG Card
• Elevator Inverter PG Card
• Lift Inverter PG Card
• AS.L06 Encoder PG Card
• Elevator Drive Feedback Card
• Elevator PCB Board AS.L06

The main model reference for this page is:

• AS.L06

Related market references may include:

• AS.L06/U
• AS.L06/G
• AS.L06/W
• AS.L06/D
• AS.T025
• AS380D
• C7000
• AS380 inverter PG card

These references are useful for search coverage and quotation confirmation. However, different suffixes such as U, G, W, or D should not be treated as automatically interchangeable. The final replacement should still be confirmed by the old PG card label, inverter model, encoder type, and connector layout.

Inverter Feedback Application

AS.L06 should be understood as a PG feedback card used with elevator inverter systems.

In elevator drive control, the inverter needs accurate feedback from the motor encoder or speed feedback device. The PG card helps the drive system receive and process this signal. If the PG card does not match the inverter or encoder configuration, the elevator may show speed feedback errors, abnormal running response, startup problems, or drive fault alarms.

This is why AS.L06 should not be selected only by appearance.

Version and System Matching

Before ordering CANNY Elevator PG Card AS.L06, please confirm:

• Complete AS.L06 marking on the old card
• Whether the old card shows AS.L06/U, AS.L06/G, AS.L06/W, or AS.L06/D
• Inverter model or integrated drive model
• Encoder type if available
• Front and back photos of the PG card
• Connector quantity and connector direction
• Installation position inside the inverter or control cabinet
• Existing inverter fault code or drive feedback fault description

For this type of product, a clear photo of the old inverter label is also useful. It helps confirm whether the required card is AS.L06 or another inverter PG card version.

Common Fault Situations

Maintenance teams may check the PG card when the elevator has problems such as:

• inverter encoder feedback fault
• abnormal startup response
• unstable running speed
• drive fault after power-on
• speed signal error
• motor feedback signal abnormality
• elevator running vibration caused by feedback issue
• visible PCB or connector damage

These symptoms may also be caused by the encoder, encoder cable, inverter parameter setting, motor wiring, grounding problem, or inverter main board. The complete feedback circuit should be checked before confirming the PG card fault.

Practical Replacement Notes

Do not replace AS.L06 only by model similarity.

Elevator PG cards may look similar, but the suffix version, encoder signal type, connector definition, and inverter compatibility may be different. Before installation, technicians should compare the old and new PG card carefully and check the inverter parameters, encoder wiring, and feedback signal connection.

If the original fault was caused by encoder cable damage, incorrect grounding, inverter parameter error, or motor feedback problem, replacing only the PG card may not solve the issue.

For overseas buyers, sending clear photos of the original AS.L06 PG card, inverter label, connector area, and encoder wiring is the safest way to reduce wrong supply before shipment.

FAQ

Is AS.L06 only used for CANNY elevators?
AS.L06 is widely searched as an elevator inverter PG card. It may appear in different elevator drive systems or spare parts listings. For CANNY elevator use, the old card label and inverter model should be checked first.

Is AS.L06/U the same as AS.L06/G or AS.L06/W?
They are related AS.L06 series references, but they should not be treated as automatically interchangeable. The suffix version, connector layout, and inverter system must be confirmed before replacement.

What photos are needed before ordering?
Please provide the old PG card front and back photos, AS.L06 label, inverter label, connector area, and encoder wiring photo if available.
