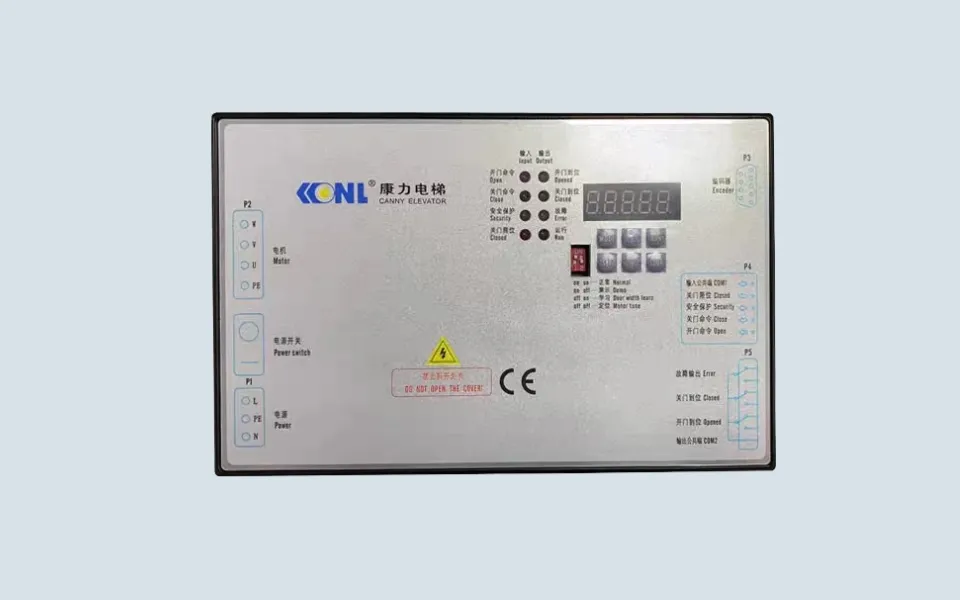

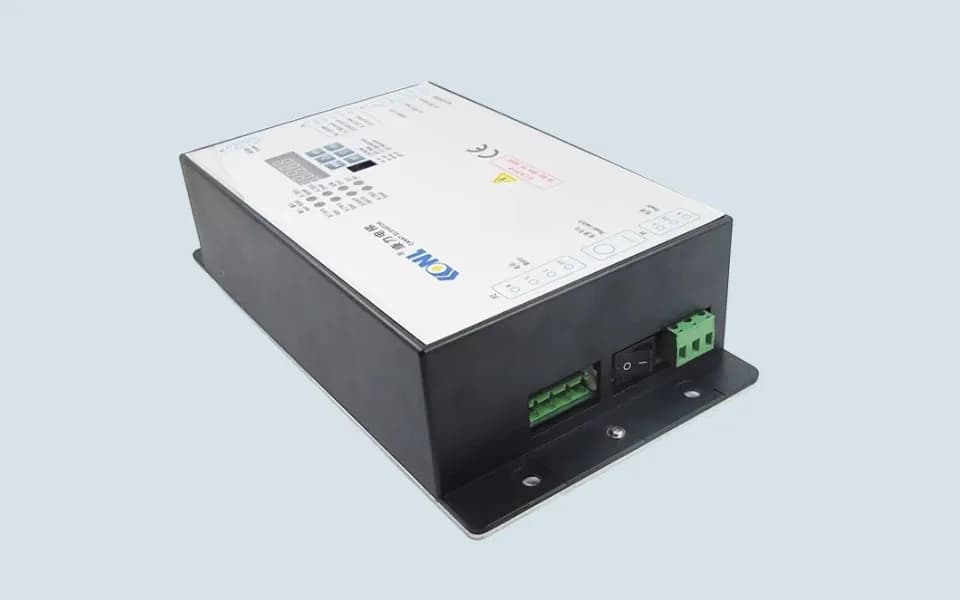

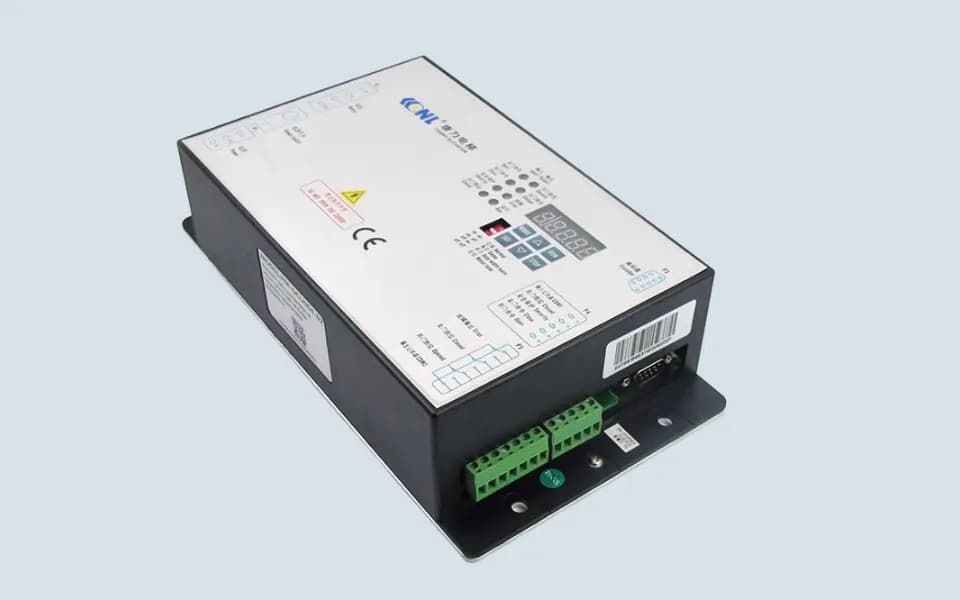

CANNY Elevator Door Operator Inverter PM-DCU 004-02

CANNY Elevator Door Operator Inverter PM-DCU 004-02 is used in CANNY elevator door machine control systems.

This product is not a main elevator traction inverter. It is a dedicated door operator inverter, also called a door machine controller or door motor frequency converter. Its main function is to control the elevator door motor during opening and closing operation, helping the door system run with smoother speed response and more stable movement.

In the elevator spare parts market, this product may also be searched as:

• CANNY Elevator Door Operator Inverter
• CANNY Elevator Door Machine Controller
• CANNY Elevator Door Motor Frequency Converter
• CANNY Elevator Door Inverter
• PM-DCU004-02 Door Controller
• PM-DCU 004-02 Door Operator Controller
• Elevator Door Motor Drive Controller

The main model reference for this page is:

• PM-DCU004-02

Related model reference:

• PM-DCU004-01

PM-DCU004-01 is often mentioned together with PM-DCU004-02 in the market. In many replacement inquiries, buyers may ask whether the older PM-DCU004-01 can be replaced by PM-DCU004-02. This should be confirmed according to the original door machine system, parameter settings, wiring, and site commissioning requirement.

Door Operator Control Application

PM-DCU004-02 is mainly used for elevator door motor control.

It helps manage:

• door opening speed
• door closing speed
• acceleration and deceleration curve
• door width learning
• door motor response
• door protection and fault alarm
• automatic door opening and closing demonstration

Compared with a simple relay control component, a door operator inverter has a direct influence on door movement quality. If the inverter setting is incorrect, the elevator door may move too fast, close too slowly, reopen repeatedly, or fail to complete door closing correctly.

Basic Technical Reference

Common market specifications for PM-DCU004-02 include:

• Rated power: 400W
• Rated frequency: 50/60Hz
• Input voltage: AC220V
• Output voltage: 0–220V
• Output current: 2A
• Application: CANNY elevator door machine control

These parameters should be checked against the old controller label before ordering. If the old unit has different voltage, motor type, or door operator configuration, the replacement should be confirmed before shipment.

Site Matching and Commissioning Notes

PM-DCU004-02 should not be selected only by appearance.

Before ordering, please confirm:

• Complete PM-DCU004-02 marking
• Whether the old unit is PM-DCU004-01 or PM-DCU004-02
• Door motor type
• Input voltage
• Connector and wiring layout
• Door operator model if available
• Old inverter label photo
• Existing door fault description
• Whether parameter adjustment is required after replacement

Some market information mentions that PM-DCU004-02 is a newer version with additional bypass detection function compared with older products. If the controller does not send a door closing signal after replacement, parameter adjustment may be required on site. Therefore, this product should be installed and commissioned by elevator maintenance technicians who understand CANNY door operator settings.

Common Door Faults Related to This Unit

Maintenance teams may check the door operator inverter when the elevator door shows problems such as:

• door motor not running
• door opening or closing failure
• unstable door speed
• door closing signal abnormality
• repeated door reopening
• door width learning problem
• door machine fault alarm
• inverter display or parameter issue

These symptoms may not always be caused by the inverter itself. The door motor, encoder or feedback signal, door belt, rollers, guide track, light curtain, door lock signal, and wiring terminals should also be checked before confirming replacement.

Practical Replacement Reminder

CANNY PM-DCU004-02 should be treated as a door machine drive controller, not a plug-and-play mechanical part.

After replacement, technicians may need to check wiring, restore parameters, perform door width learning, and test the complete door opening and closing process. If the old fault was caused by motor overload, mechanical resistance, unstable power, or wiring damage, replacing only the inverter may not fully solve the problem.

For overseas buyers, sending clear photos of the old PM-DCU004-02 or PM-DCU004-01 label, wiring terminals, and door operator installation position is the safest way to confirm the correct replacement before shipment.
