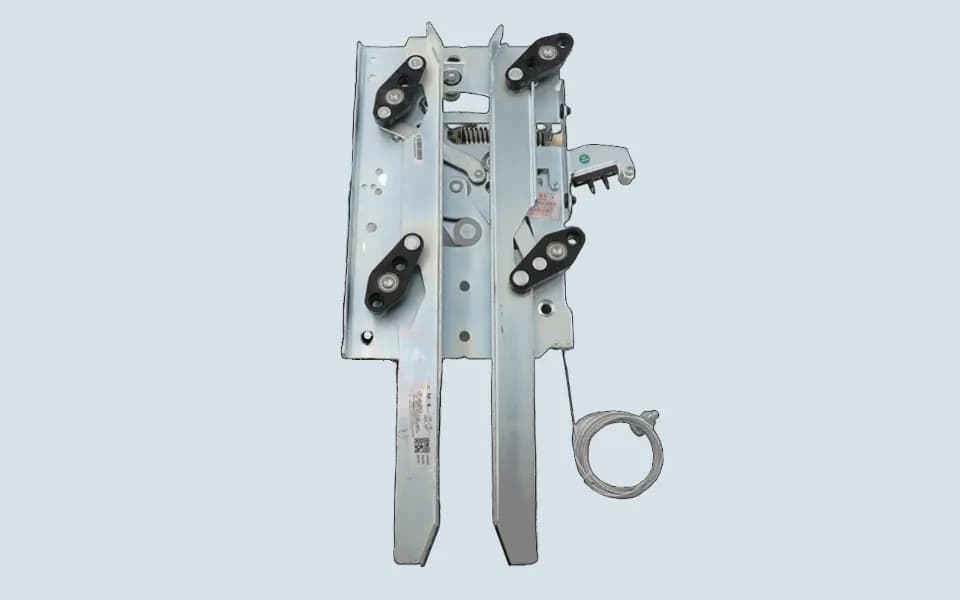

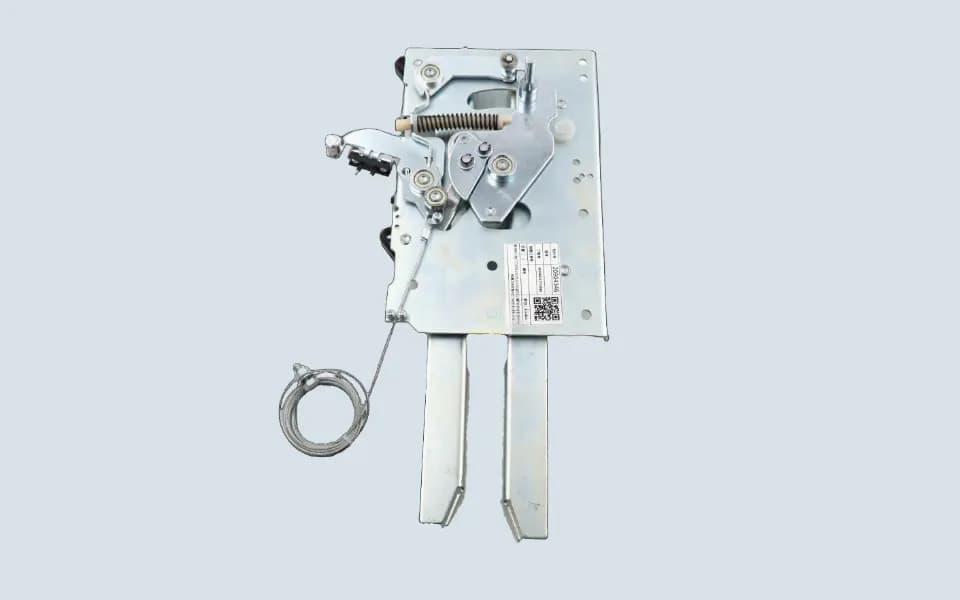

CANNY Elevator Door Cam FWL-01 XD-CS01

CANNY Elevator Door Cam FWL-01 XD-CS01 is used in elevator door system and car door locking mechanism applications.

In the elevator spare parts market, this product may also be searched as:

• CANNY Elevator Door Cam
• CANNY Elevator Door Vane
• CANNY Elevator Door Knife
• Elevator Car Door Vane FWL-01
• Elevator Door Knife XD-CS01
• Elevator Door Cam XD-CS01
• Car Door Locking Device

The main model references for this page are:

• FWL-01
• XD-CS01

Because different suppliers may use different names for the same door system component, buyers should confirm this product by the old part photo, model label, door operator structure, and installation position before ordering.

Door System Application

The elevator door cam, door vane, or door knife is an important mechanical part in the elevator door system.

It is usually related to the interaction between the car door and landing door locking mechanism. During elevator operation, the correct door cam or vane structure helps the door system engage, unlock, and operate properly according to the elevator door mechanism design.

This part should not be selected only by the general name “door cam,” because similar products may have different length, direction, mounting hole position, or locking structure.

Version and Direction Confirmation

Before ordering CANNY Elevator Door Cam FWL-01 XD-CS01, please confirm:

• Complete model number: FWL-01 or XD-CS01

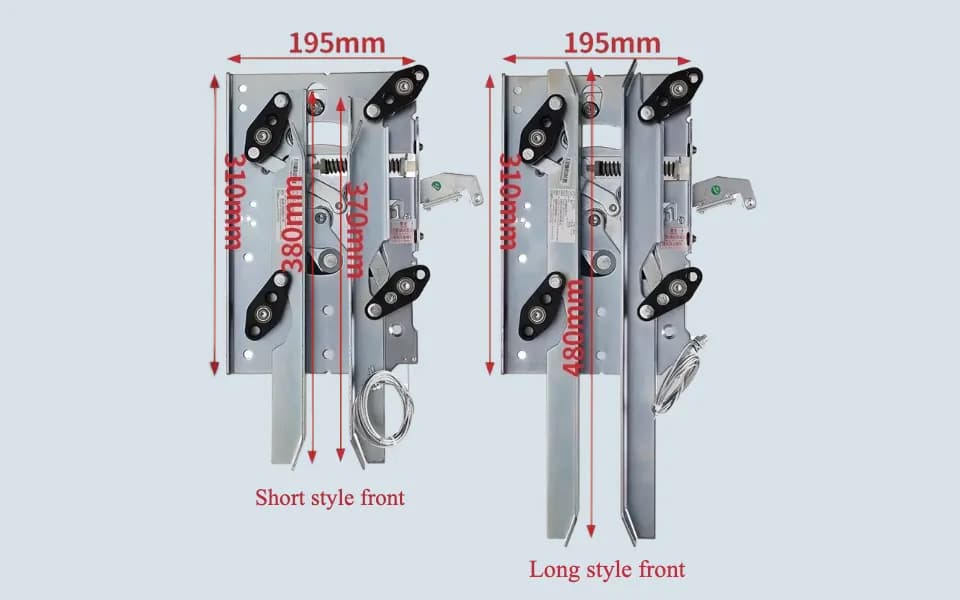

• Short version or long version
• Left-opening or right-opening requirement
• Installation position on the door operator
• Mounting hole distance
• Overall length and width
• Old part front and side photos
• Door operator model if available
• Whether the old part is described as door cam, door vane, or door knife

For some market listings, the short version may have limited direction options, while long versions may be available for left or right opening applications. The actual selection should depend on the old part and site door system.

Common Door Faults Related to This Part

Maintenance teams may check the door cam or door vane when the elevator door has problems such as:

• landing door not unlocking correctly
• door locking mechanism not engaging smoothly
• abnormal door opening or closing movement
• mechanical collision around the door lock area
• worn or deformed door vane
• wrong replacement after previous maintenance
• door system adjustment problem

These symptoms may also be caused by the door lock, door operator, roller, belt, hanger, linkage, or mechanical adjustment. For this reason, technicians should check the complete door system before confirming replacement.

Practical Replacement Notes

Do not replace FWL-01 XD-CS01 only by appearance.

A similar-looking elevator door cam may not fit correctly if the direction, length, bracket position, or locking contact area is different. Before installation, technicians should compare the old and new part carefully and check whether the door mechanism moves smoothly after adjustment.

For overseas buyers, sending clear photos of the old FWL-01 / XD-CS01 door cam from the front, side, and mounting position is the safest way to confirm the correct replacement before shipment.
