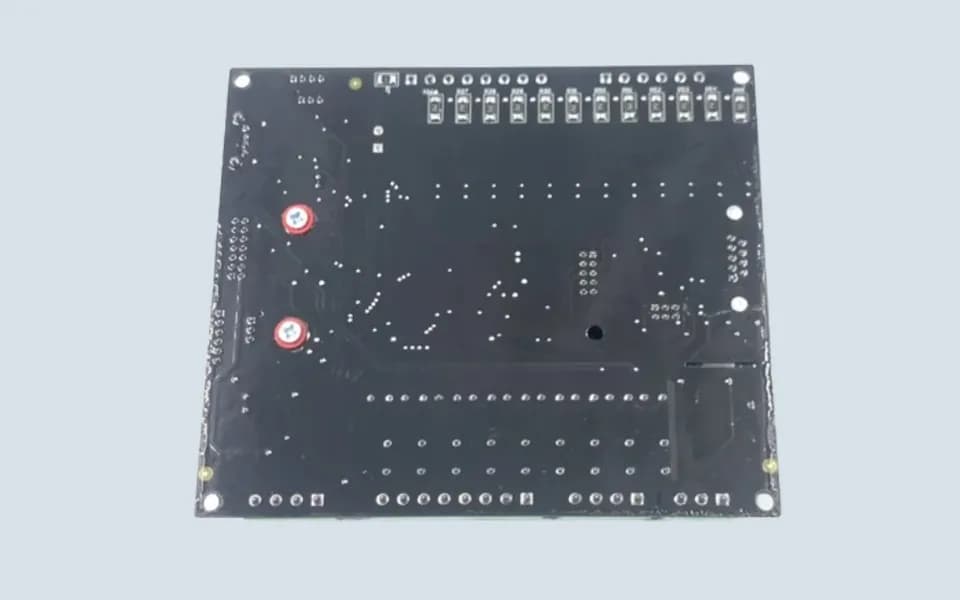

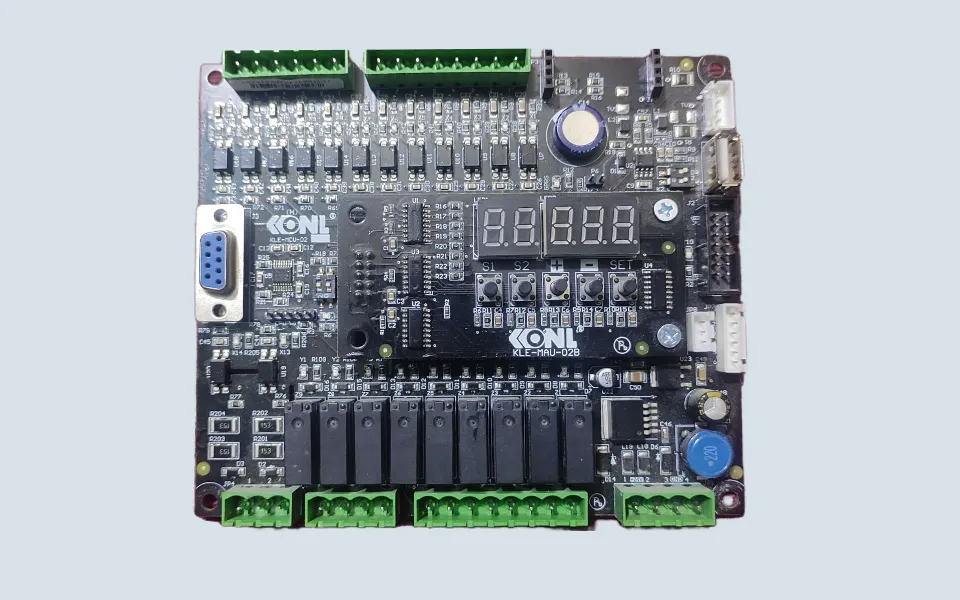

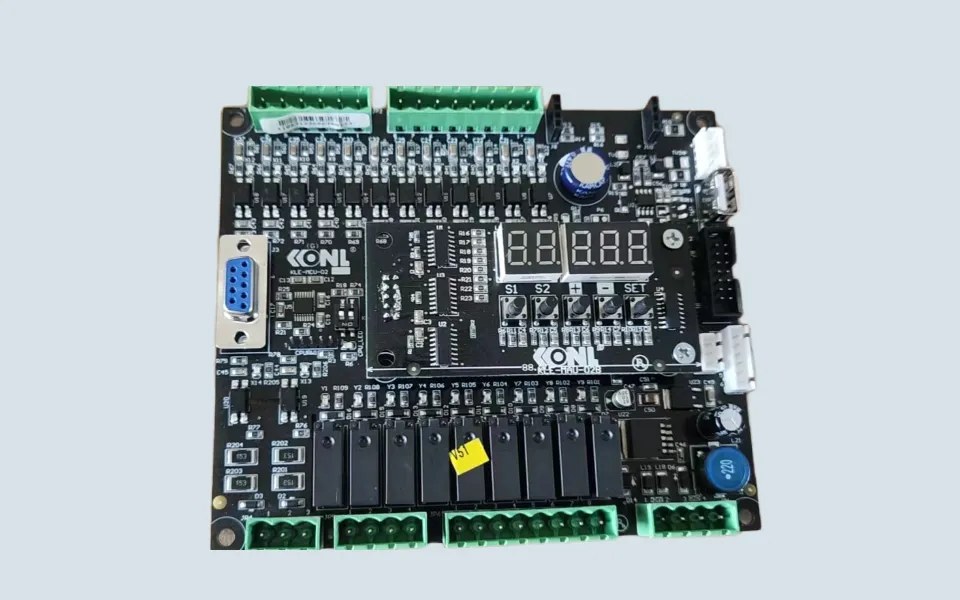

CANNY KLE-MCU-02 Escalator Controller Main PCB

CANNY KLE-MCU-02 Escalator Controller Main PCB is used in CANNY escalator control cabinet systems.

This board should be positioned as an escalator controller main PCB or MCU main board. It is different from elevator mainboards used in lift control cabinets, and it should also be separated from other CANNY escalator boards such as KLE-MSU-01A.

In the escalator spare parts market, this product may also be searched as:

• CANNY Escalator Controller Main PCB
• CANNY Escalator MCU Board
• CANNY Escalator Main PCB Board
• CANNY Escalator Control Cabinet Board
• CANNY Escalator Mainboard Panel
• CANNY Escalator PCB Board

The main model reference for this page is:

• KLE-MCU-02

Related version references may include:

• KLE-MCU-02F
• KLE-MCU-02D
• KLE-MAU-02B

These references are useful for search coverage and quotation confirmation. However, the final replacement should still be checked by the old board label, cabinet wiring, connector layout, and escalator control system configuration.

Why This Page Should Focus on MCU Control

KLE-MCU-02 should not be described only as a general escalator main board.

The model name itself suggests an MCU-related control board, and market listings often place KLE-MCU-02D and KLE-MCU-02F under CANNY escalator main PCB board categories. This makes the page more suitable for buyers who are searching for the controller core board inside the escalator cabinet.

For accurate replacement, technicians should confirm whether the original board label shows KLE-MCU-02, KLE-MCU-02D, or KLE-MCU-02F.

Escalator Cabinet Application

KLE-MCU-02 is usually installed inside the escalator control cabinet.

It may be connected with:

• escalator operation signal
• safety circuit input
• inspection operation wiring
• control cabinet terminals
• fault display board
• operation panel board
• relay or interface circuit
• power supply section

Because this board is linked to multiple escalator control functions, it should not be selected only by appearance or by the general word “main board.”

Difference From KLE-MSU-01A

KLE-MCU-02 and KLE-MSU-01A should be handled as different product pages.

KLE-MSU-01A is better positioned as an escalator function control main board. KLE-MCU-02 is better described as an escalator controller main PCB or MCU board.

This distinction helps buyers understand that the two boards may belong to the same CANNY escalator control cabinet area, but they are not the same item. The old PCB label must be checked before ordering.

What Buyers Should Confirm

Before ordering CANNY KLE-MCU-02 Escalator Controller Main PCB, please confirm:

• Complete KLE-MCU-02 marking on the old board
• Whether the board shows KLE-MCU-02D or KLE-MCU-02F
• Whether KLE-MAU-02B appears as a related operation PCB
• Front and back photos of the PCB
• Connector quantity and connector direction
• Escalator control cabinet installation position
• Nearby board numbers inside the cabinet
• Terminal wiring photos
• Fault display information if available
• Existing escalator fault description from the maintenance technician

For this type of board, a complete cabinet photo is very useful because it helps confirm the relationship between the main PCB, operation PCB, wiring terminals, and fault display section.

Replacement Notes

Do not replace KLE-MCU-02 only by board shape.

CANNY escalator PCB boards may look similar from the front, but the version, connector definition, cabinet wiring, and system configuration may be different.

Before installation, technicians should compare the original and replacement board carefully. The safety circuit, power input, control terminals, operation panel connection, and fault display board should also be checked.

If the old board was damaged by unstable power, moisture, wiring short circuit, connector oxidation, or an external safety circuit fault, replacing only the MCU board may not fully solve the problem.

For overseas buyers, sending clear photos of the old KLE-MCU-02 board, complete escalator control cabinet, connector area, and nearby PCB boards is the safest way to reduce wrong supply before shipment.
