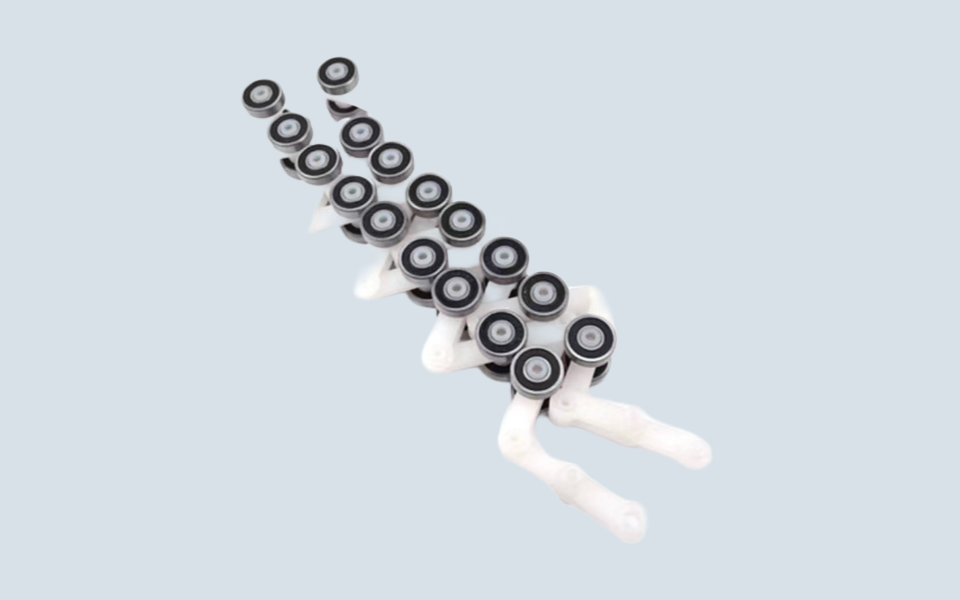

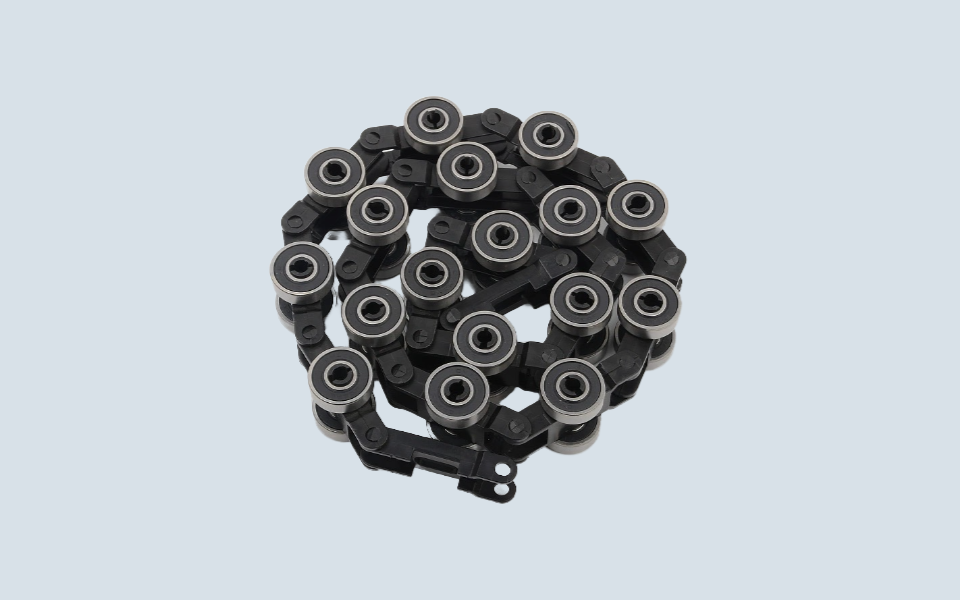

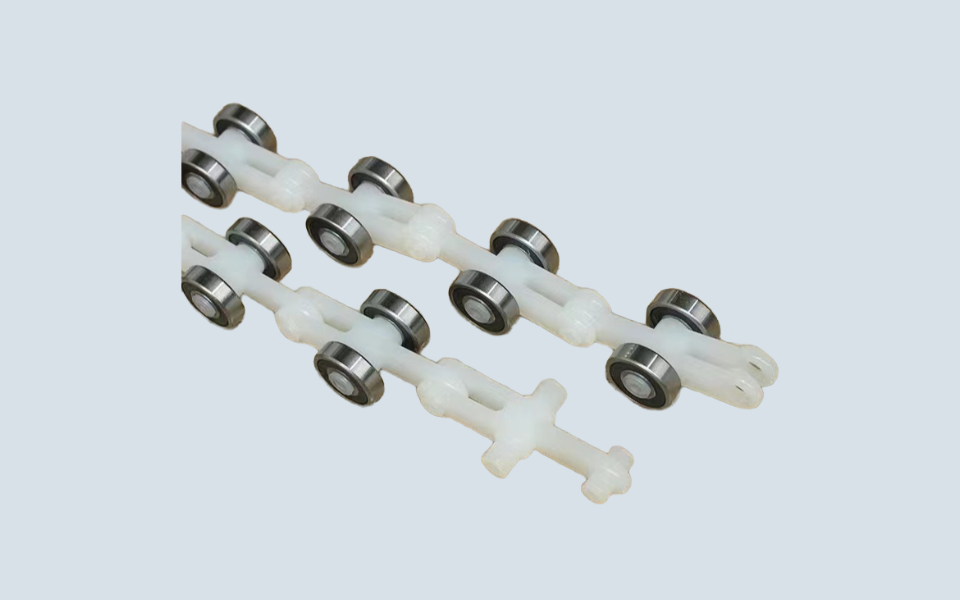

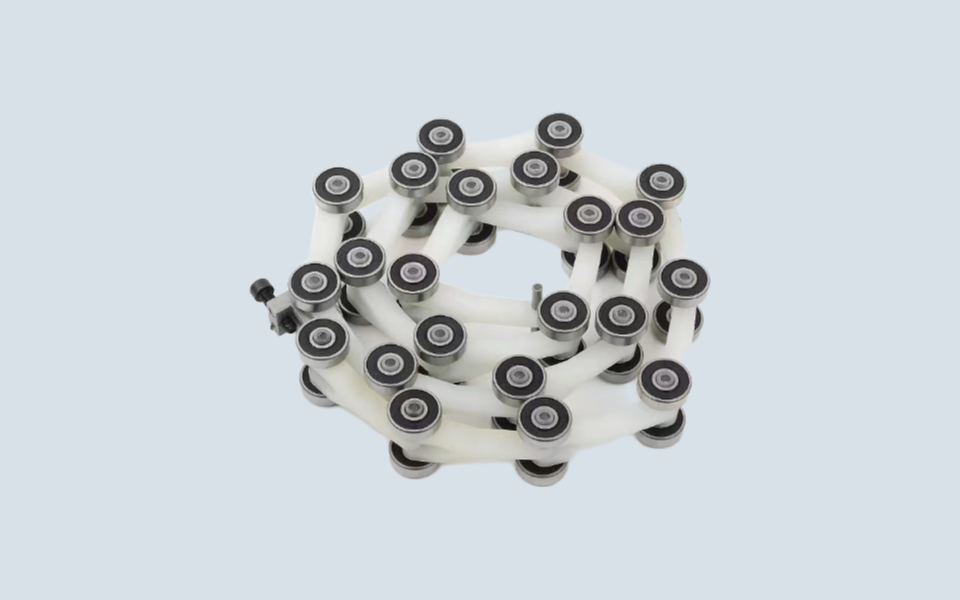

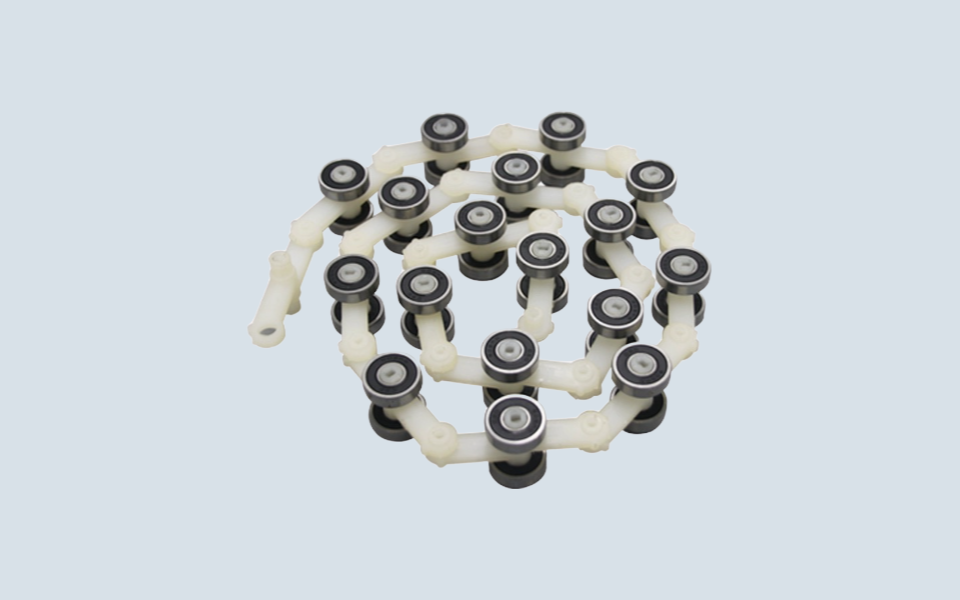

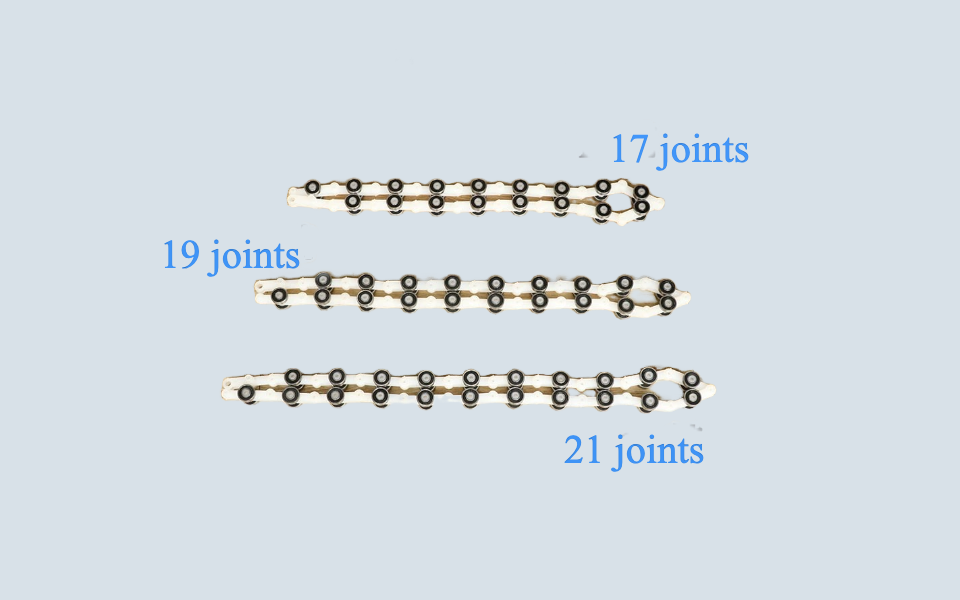

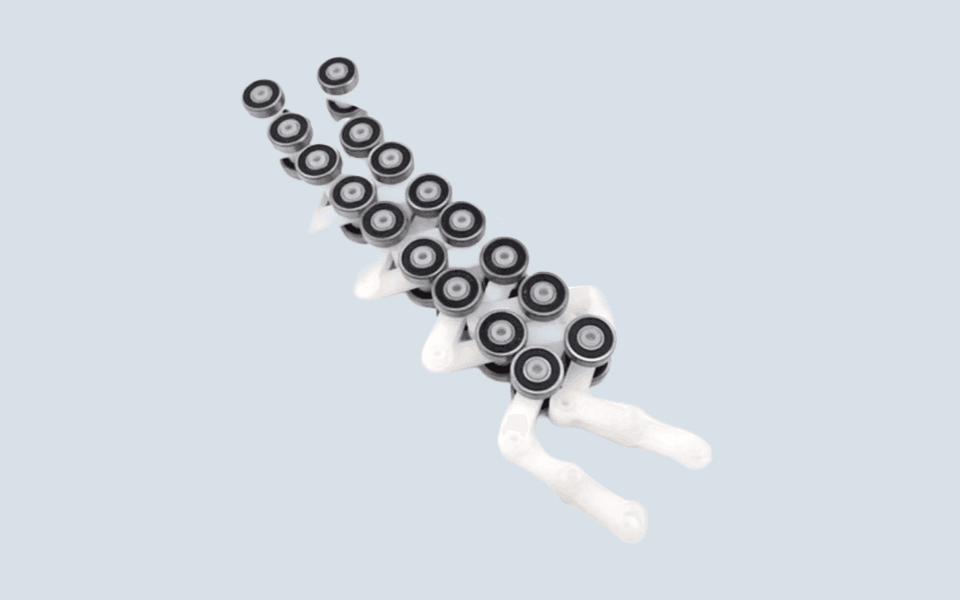

Escalator Rotary Chain

Rotational Transmission Chain for Commercial Escalator Systems

Product Overview

The Escalator Rotary Chain is a rotational transmission component used in commercial escalator systems to transfer driving force between rotating mechanical assemblies during continuous operation.

In infrastructure projects across regions such as Dubai, Brazil, and Spain, rotary chains are commonly applied in escalator drive systems where stable rotational synchronization and continuous mechanical transmission are required. Because escalators operate for long daily hours under heavy passenger traffic, reliable chain performance is essential for maintaining operational stability.

Escalator rotary chains are widely used in:

• shopping malls
• airports
• metro stations
• public transportation systems
• commercial escalator projects

---

Function in Escalator System

The escalator rotary chain mainly supports:

• rotational power transmission
• synchronization of moving mechanical components
• stable continuous drive operation
• transfer of mechanical movement within the escalator system

Stable chain movement is important for reliable escalator performance.

---

Role in Escalator Drive Operation

Inside the escalator system, the rotary chain operates together with:

• drive sprockets
• transmission shafts
• drive motors
• tension systems
• rotating mechanical assemblies

The chain continuously circulates during operation to maintain synchronized rotational movement.

---

Difference Between Rotary Chain and Step Chain

Although both are transmission chains:

• Step Chain → directly moves escalator steps
• Rotary Chain → transfers rotational mechanical power

The rotary chain is more closely associated with internal drive transmission rather than passenger transportation movement.

---

Structural Characteristics

Modern escalator rotary chains are typically designed with:

• reinforced alloy steel structure
• stable rotational transmission capability
• high-load operational durability
• long-term wear resistance

In heavy-duty escalator environments, stable chain structure directly affects drive system reliability.

---

Drive System Coordination

The rotary chain is closely related to:

• rotational synchronization
• drive system efficiency
• continuous transmission stability
• mechanical movement coordination

Proper tension and alignment are important for maintaining smooth operation.

---

Application Context

Escalator rotary chains are commonly used in:

• commercial escalator systems
• public transportation escalators
• airport escalators
• heavy-duty infrastructure projects
• modernization and maintenance projects

In high-traffic environments, rotary chains are subject to continuous operational load and regular inspection requirements.

---

Common Maintenance Situations

Technicians may inspect or replace rotary chains when:

• operational noise becomes abnormal
• chain elongation affects synchronization
• rotational movement becomes unstable
• wear affects transmission efficiency
• tension consistency decreases

Replacing worn chains helps improve transmission stability and reduce mechanical vibration.

---

Practical Notes

From a maintenance perspective:

• chain lubrication directly affects service life
• sprocket wear should be checked during replacement
• alignment accuracy is important for smooth rotational movement

Stable transmission depends on both chain condition and drive system alignment.

---

Frequently Asked Questions

What is an escalator rotary chain used for?
It is used to transfer rotational mechanical power inside escalator drive systems.

Is it the same as a step chain?
No. The rotary chain mainly handles rotational transmission, while the step chain directly drives escalator steps.

When should a rotary chain be replaced?
When wear, elongation, vibration, or unstable transmission affects operational reliability.
