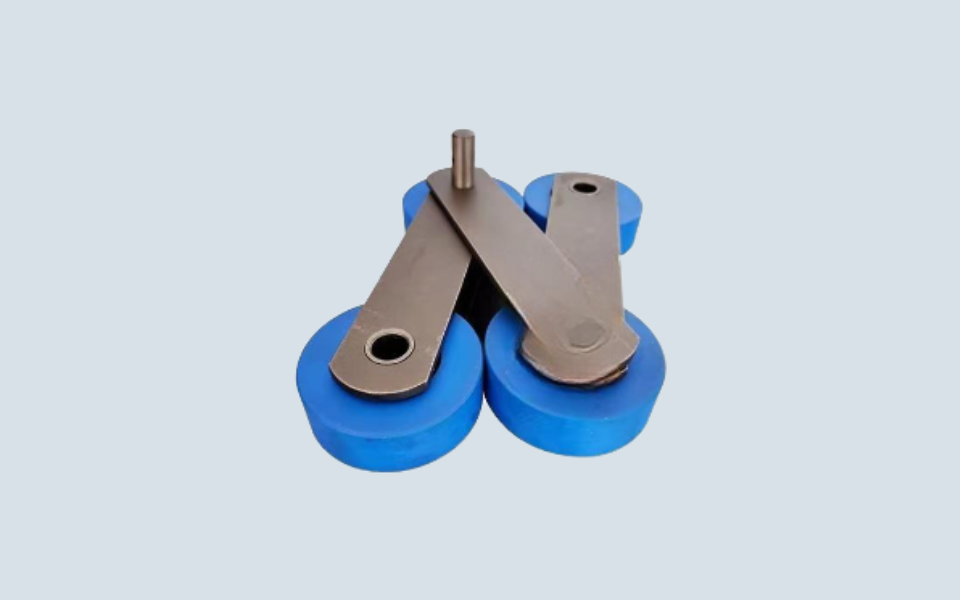

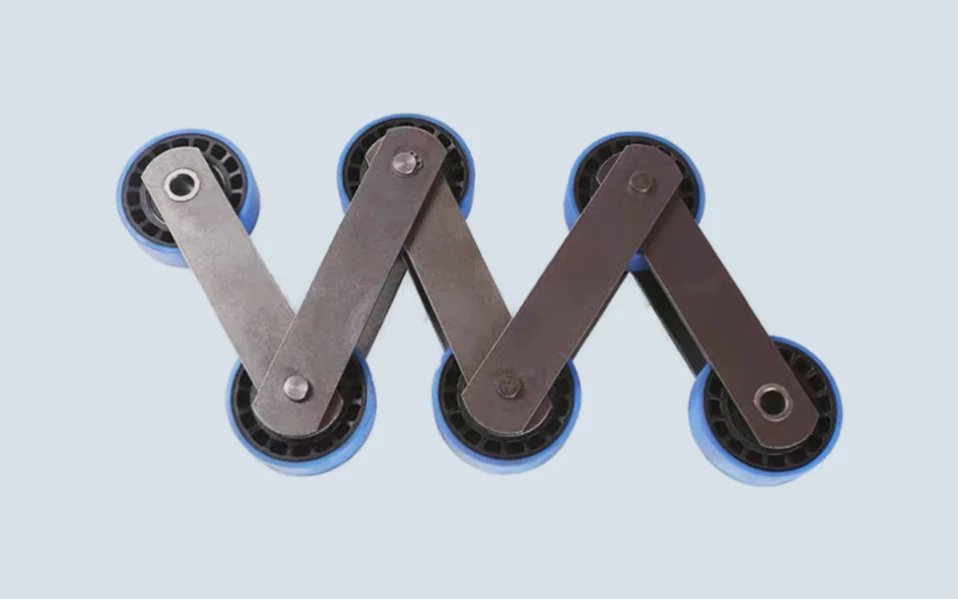

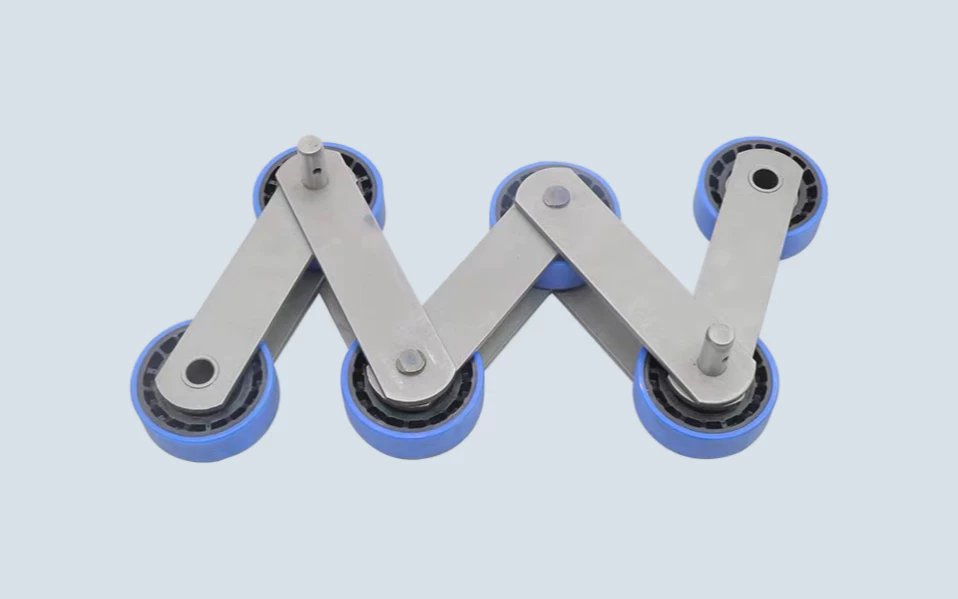

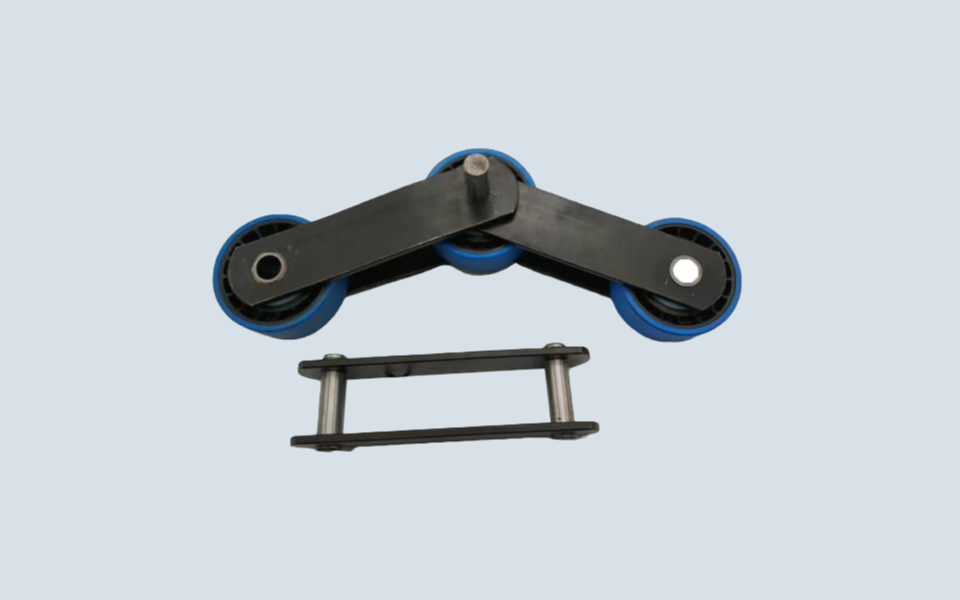

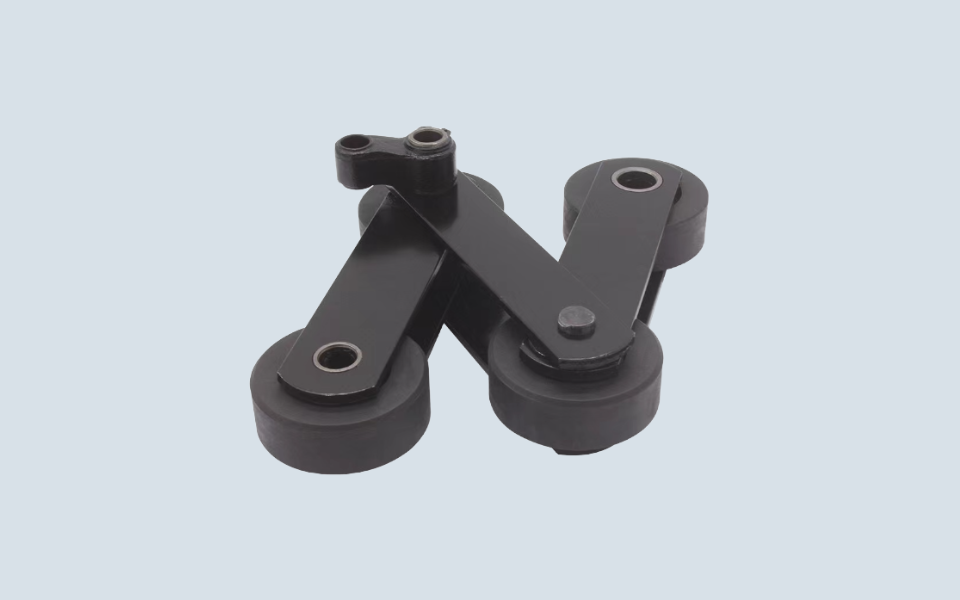

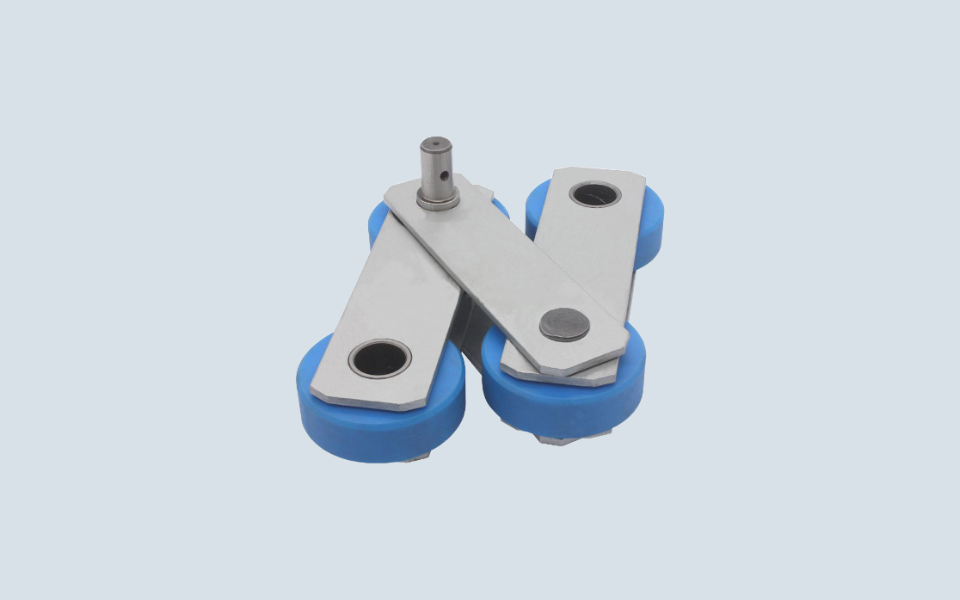

Escalator Step Chain

Drive Transmission Chain for Commercial Escalator Systems

Product Overview

The Escalator Step Chain is one of the core transmission components in commercial escalator systems. It is designed to connect and drive escalator steps in a continuous circulation movement, allowing stable passenger transportation during escalator operation.

In infrastructure projects across regions such as Dubai, Brazil, and Germany, step chains are widely used in shopping malls, airports, metro stations, and public transportation systems where escalators operate continuously under heavy passenger traffic. Because the chain carries both movement force and passenger load, long-term durability and stable synchronization are essential for reliable operation.

Escalator step chains are commonly used in:

• commercial escalators
• public transportation escalators
• airport escalator systems
• heavy-duty infrastructure projects
• modernization and maintenance projects

Function in Escalator System

The escalator step chain mainly supports:

• continuous circulation of escalator steps
• transmission of driving force from the motor system
• synchronization of step movement
• stable passenger transportation during operation

Stable chain movement is critical for safe and smooth escalator performance.

Role in Escalator Operation

Inside the escalator system, the step chain operates together with:

• escalator steps
• drive sprockets
• guide tracks
• drive motor assemblies
• tension systems

The chain continuously circulates through the escalator structure during operation while supporting repeated load-bearing movement.

Structural Characteristics

Modern escalator step chains are typically designed with:

• heavy-duty alloy steel structure
• reinforced pin and link assemblies
• high-load transmission capability
• long-term wear resistance

In high-traffic commercial environments, chain durability directly affects maintenance intervals and operational reliability.

Difference Between Step Chain and Drive Chain

Although both are transmission components:

• Step Chain → directly moves escalator steps
• Drive Chain → transfers power inside the drive system

The step chain is more directly associated with passenger transportation movement.

Safety and Synchronization

Escalator step chains are closely related to:

• step movement synchronization
• passenger transportation stability
• drive system coordination
• safe continuous circulation operation

Proper chain tension and alignment are important for maintaining operational safety.

Application Context

Escalator step chains are commonly used in:

• shopping malls
• airports
• metro stations
• public transportation systems
• commercial building escalators

In heavy-duty transportation environments, step chains are subject to continuous operational stress and regular inspection requirements.

Common Maintenance Situations

Technicians may inspect or replace step chains when:

• chain elongation becomes excessive
• abnormal operational noise appears
• synchronization issues occur
• wear affects movement stability
• chain tension becomes inconsistent

Replacing worn chains helps improve operational smoothness and escalator reliability.

Practical Notes

From a maintenance perspective:

• chain tension directly affects synchronization quality
• sprocket wear should be checked together with chain condition
• lubrication condition influences long-term durability

Proper alignment and maintenance help extend service life.

Frequently Asked Questions

What is an escalator step chain used for?
It is used to drive and circulate escalator steps during operation.

Why is chain synchronization important?
Because unstable synchronization may affect passenger safety and smooth escalator movement.

When should an escalator step chain be replaced?
When excessive wear, elongation, or operational instability affects safe operation.

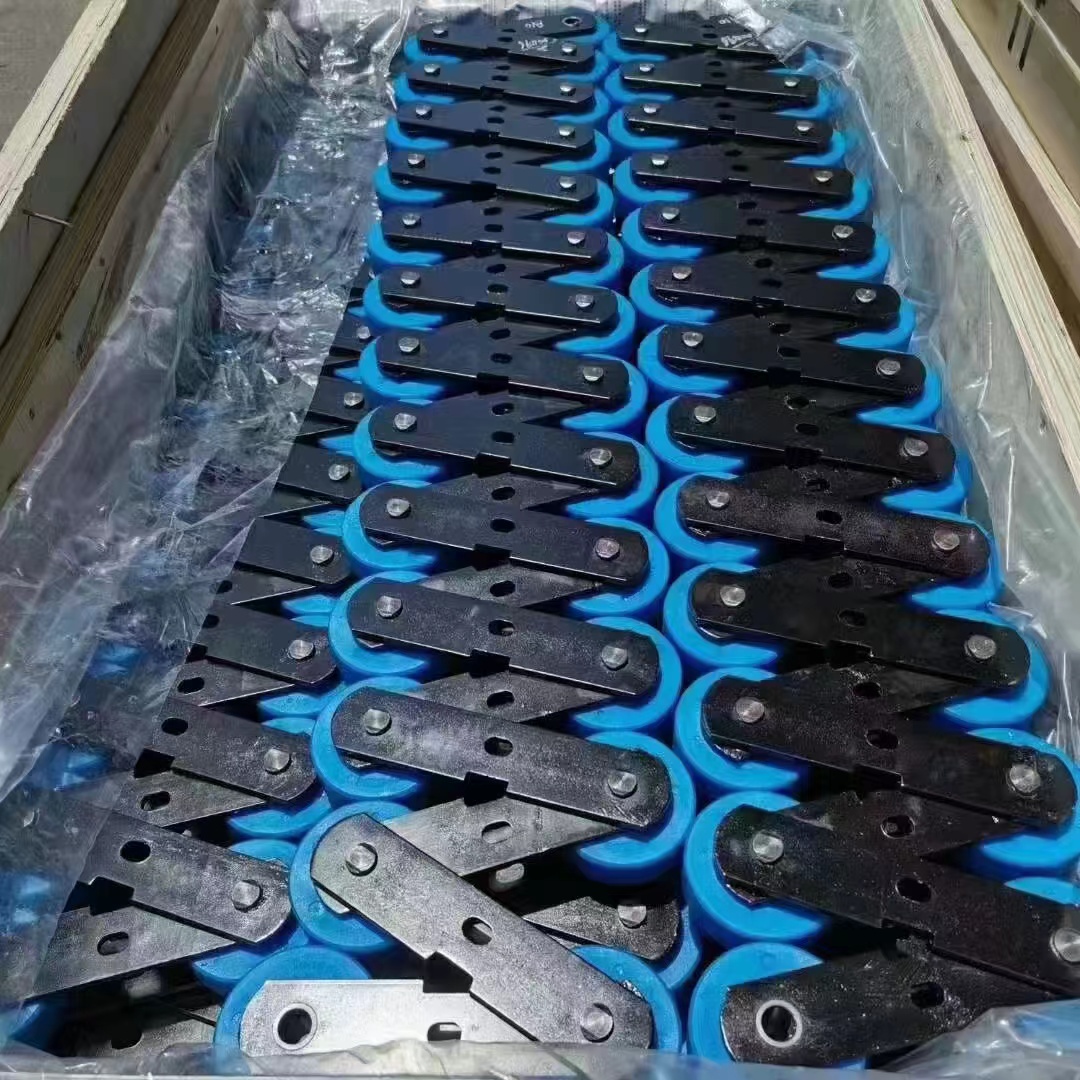

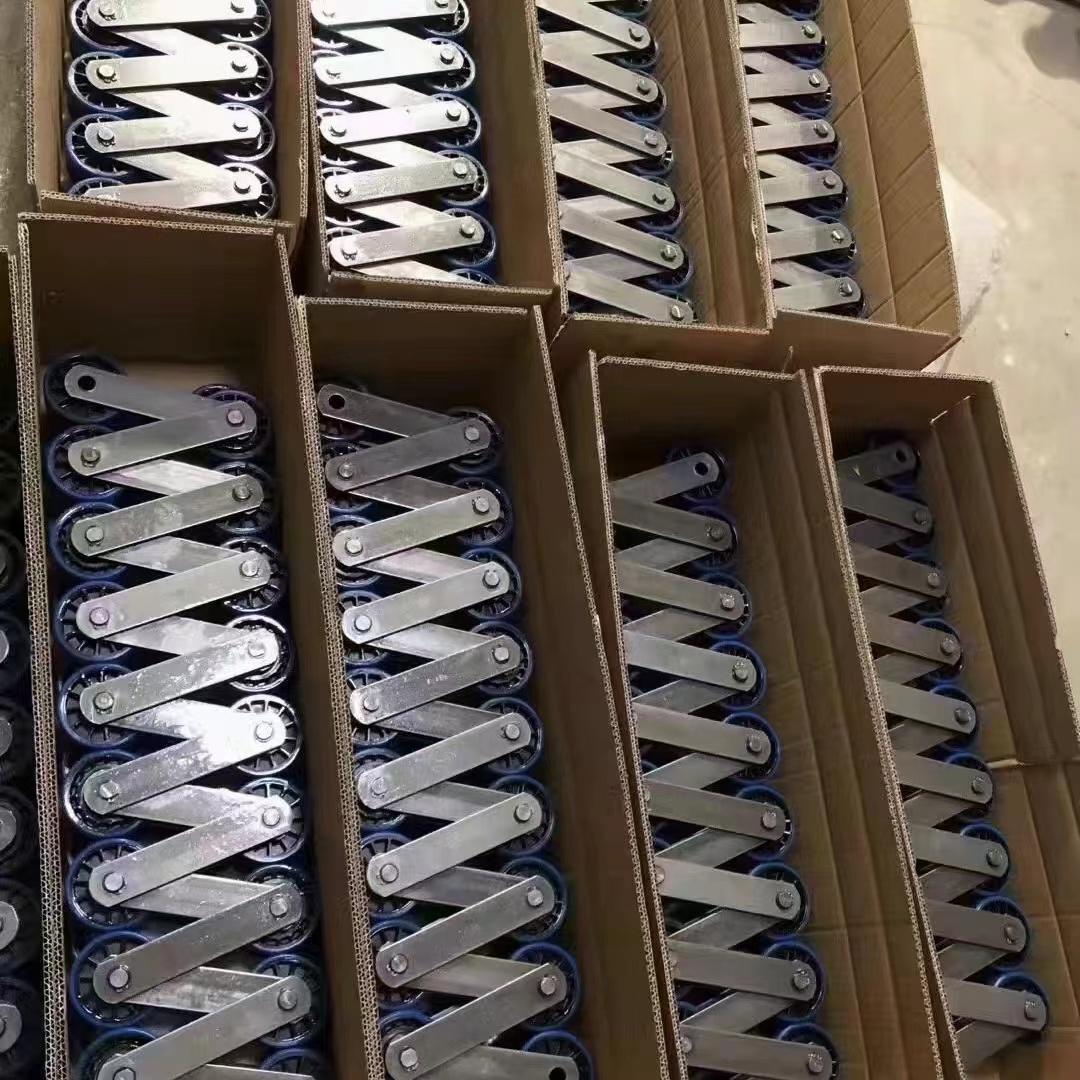

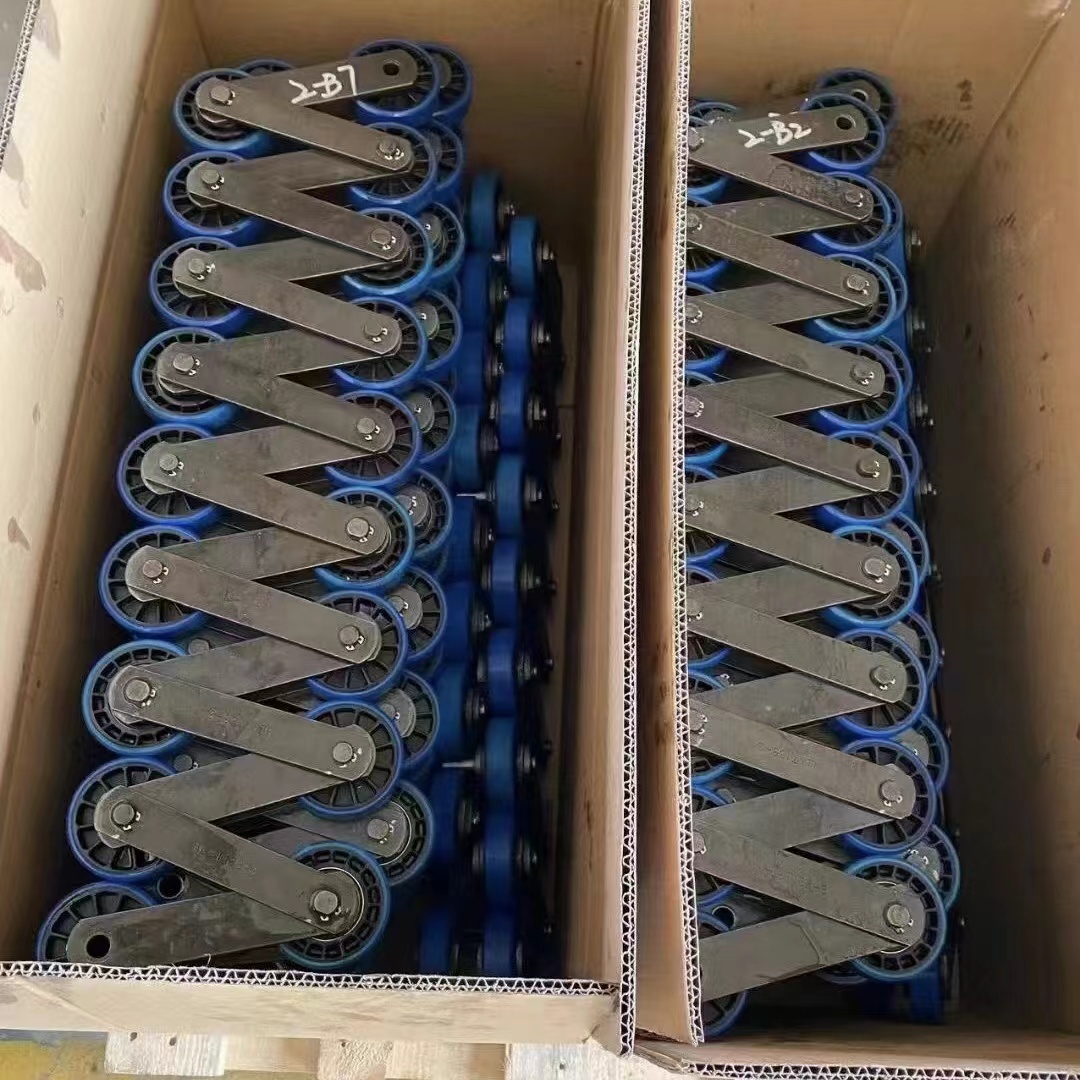

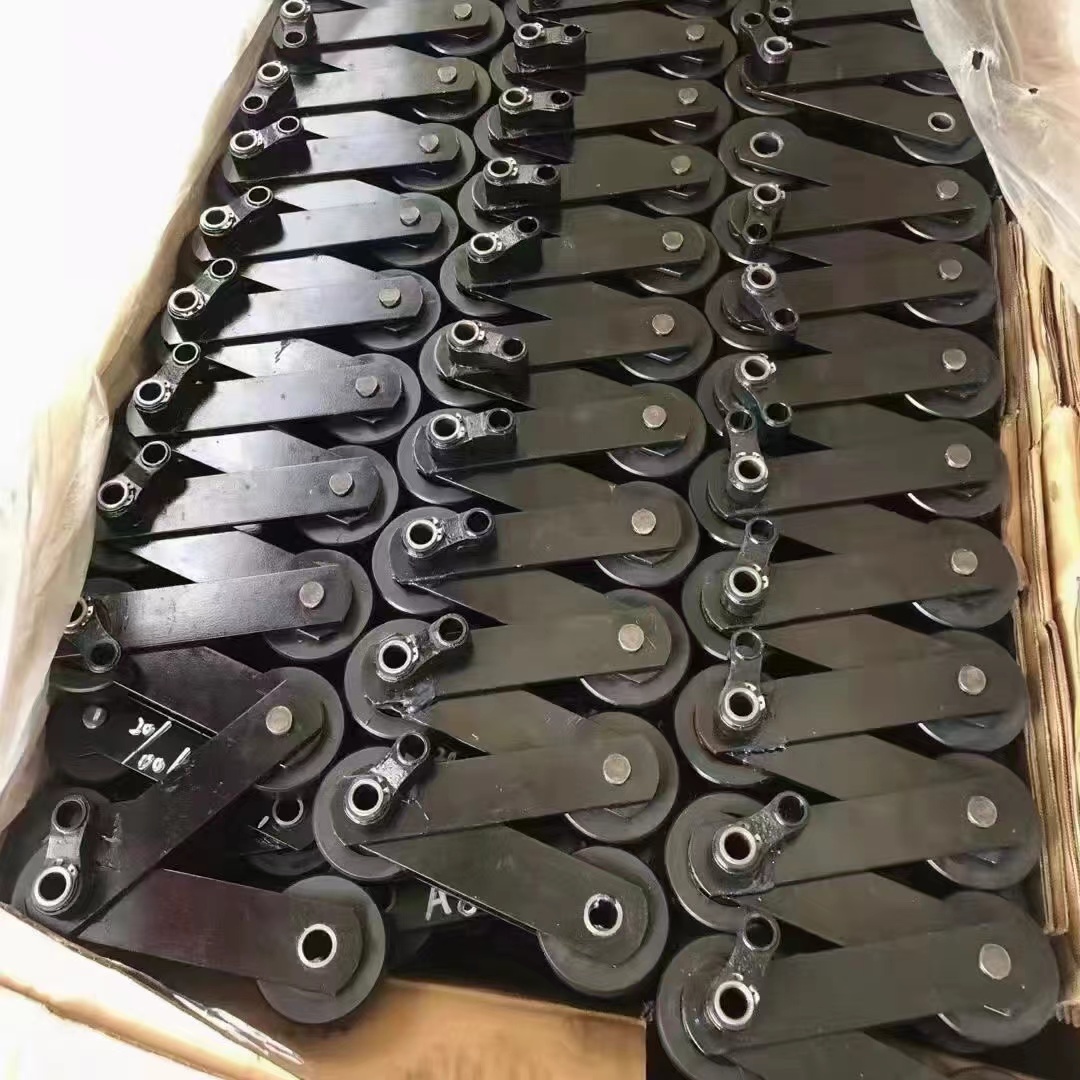

Packing and Shipping
