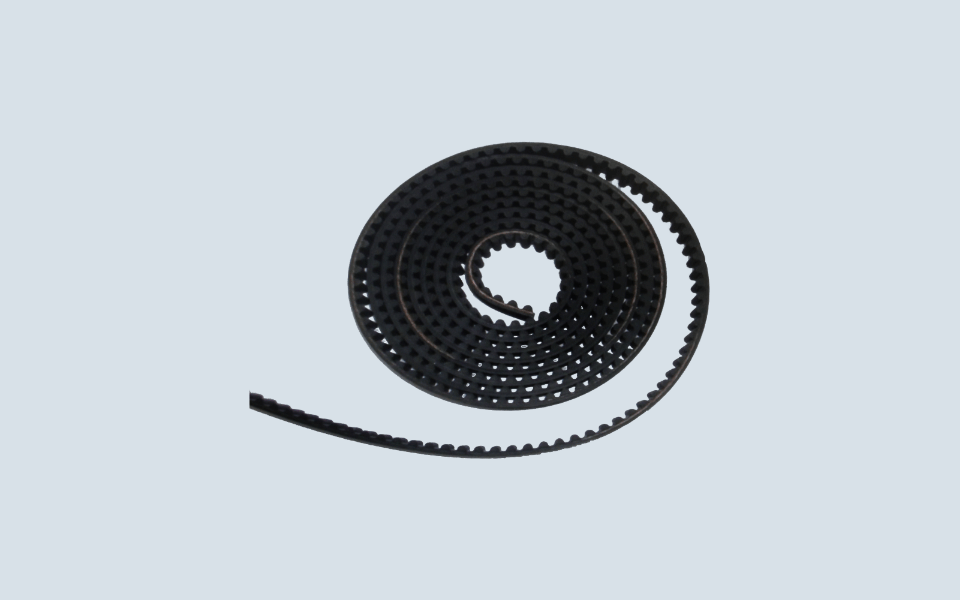

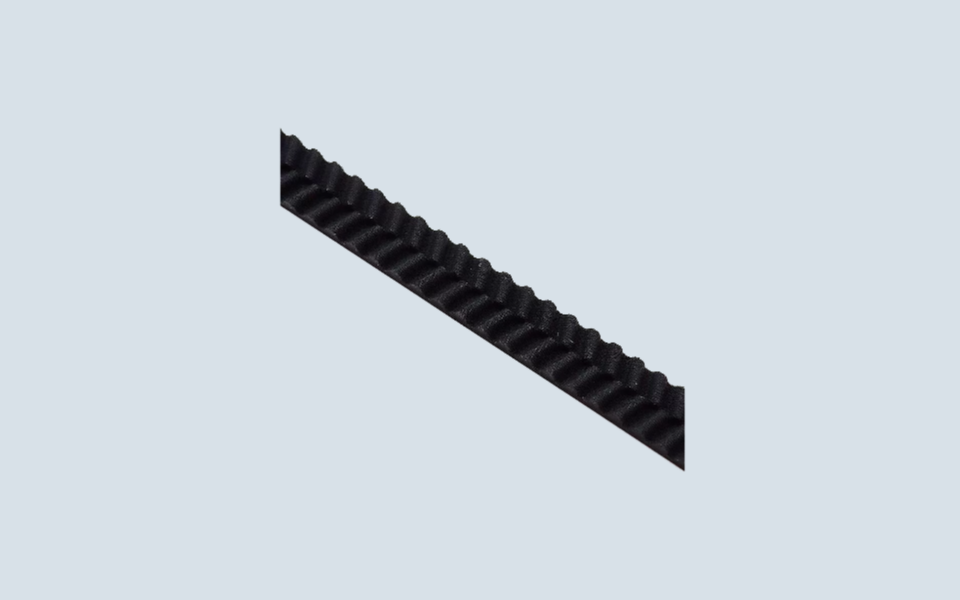

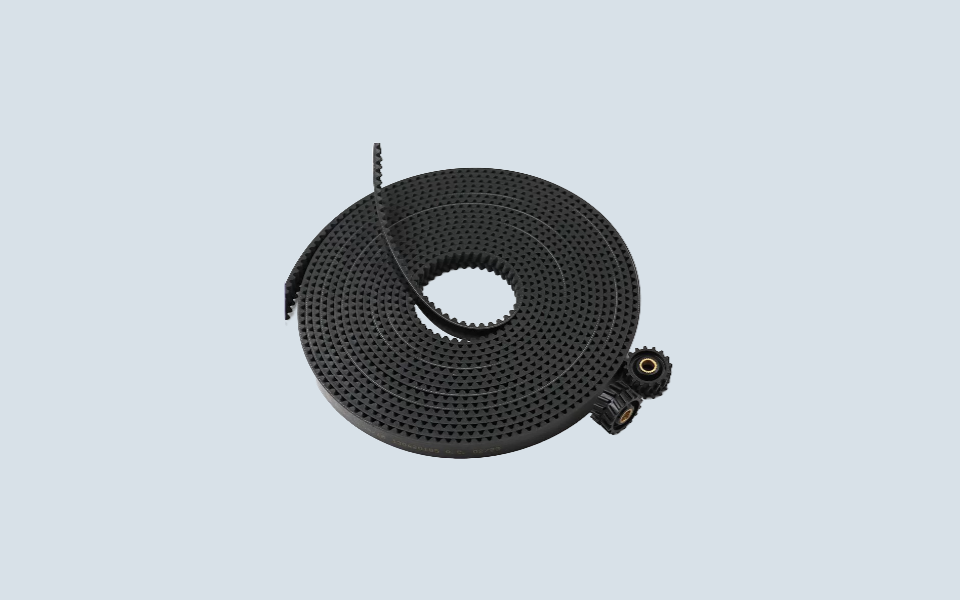

Fermator Door Motor Belt PMVC PM10 12mm 15mm

Transmission Belt for Elevator Door Operator Systems

Product Overview

The Fermator Door Motor Belt PMVC PM10 12mm 15mm is a transmission component used in elevator automatic door operator systems. It is designed to transfer motor movement to the door mechanism, allowing smooth and synchronized opening and closing operation.

In maintenance projects across regions such as Spain and Mexico, these belts are commonly used in Fermator PMVC and PM10 door operator systems where stable transmission performance is required during continuous door cycling.

The 12mm and 15mm versions are typically selected according to door operator configuration and transmission requirements.

Function in Door System

The motor belt mainly supports:

• transmission of motor power
• synchronization of door movement
• stable opening and closing operation
• reduction of movement slippage during operation

Stable belt performance is important for maintaining consistent door response.

PMVC and PM10 Compatibility

These transmission belts are commonly associated with:

• Fermator PMVC door motors
• Fermator PM10 door operator systems
• automatic center opening door systems
• side opening door mechanisms

Correct belt matching helps maintain stable transmission behavior.

12mm and 15mm Variants

The two versions are generally selected based on:

• transmission structure requirements
• pulley configuration
• system load conditions
• operator design specifications

Choosing the correct belt width is important for proper movement synchronization.

Difference from Belt Rollers

Compared with belt rollers:

• Belt Roller → guides belt movement
• Motor Belt → transfers driving power

The motor belt operates as the main transmission connection between the motor and door mechanism.

Application Context

This component is commonly used in:

• Fermator automatic door systems
• PMVC PM10 operator configurations
• passenger elevators
• maintenance and modernization projects

In elevators with frequent operation cycles, transmission belts are considered regular wear-related components.

Common Maintenance Situations

Technicians may inspect or replace the belt when:

• door movement becomes inconsistent
• slipping or abnormal noise appears
• belt wear becomes visible
• synchronization performance decreases

Replacing worn belts often improves transmission smoothness and operational stability.

Practical Notes

From a maintenance perspective:

• belt tension directly affects movement quality
• pulley alignment should be checked during replacement
• incorrect belt width may affect transmission stability

Stable door operation depends on proper coordination between the motor, belt, and pulley system.

Frequently Asked Questions

What is the Fermator PMVC PM10 motor belt used for?
It is used to transfer motor power inside elevator automatic door systems.

What is the difference between 12mm and 15mm belts?
They are used for different transmission configurations and operator requirements.

When should the belt be replaced?
When slipping, abnormal noise, or visible wear affects door operation.
