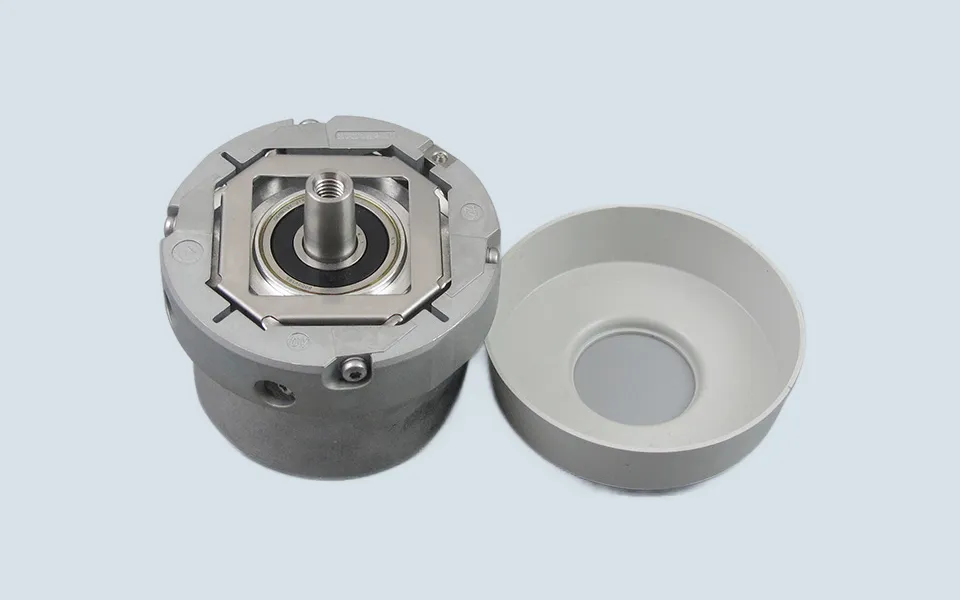

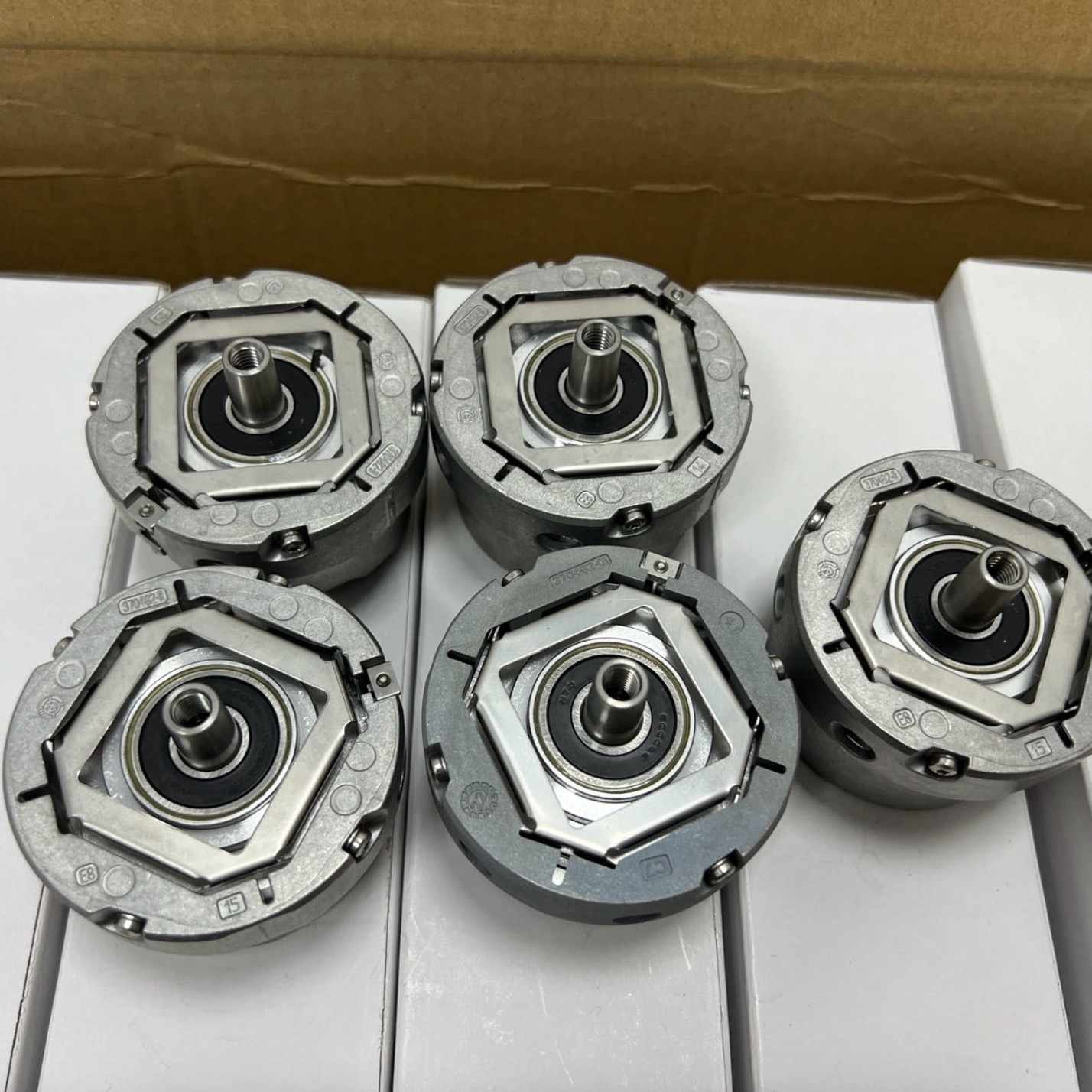

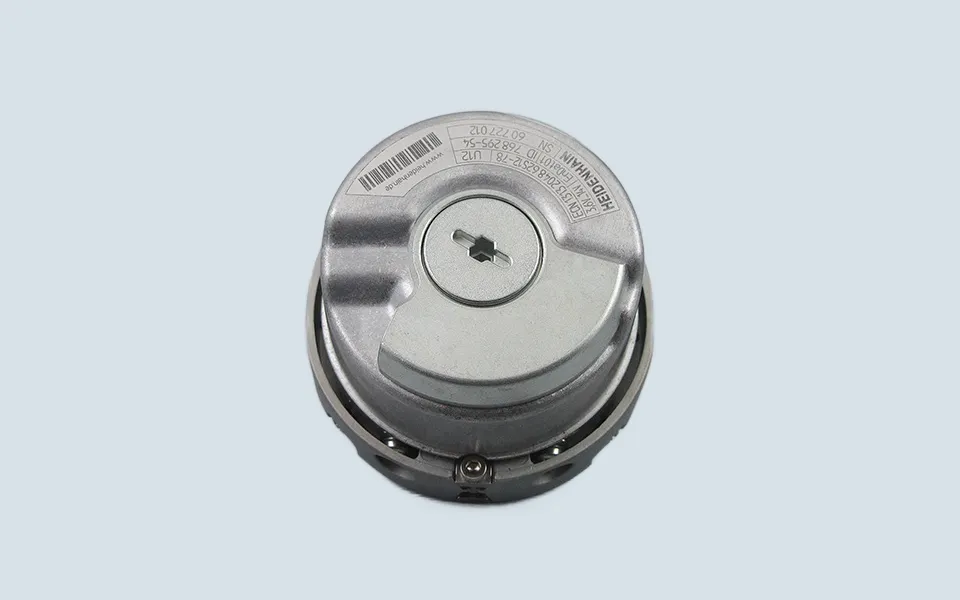

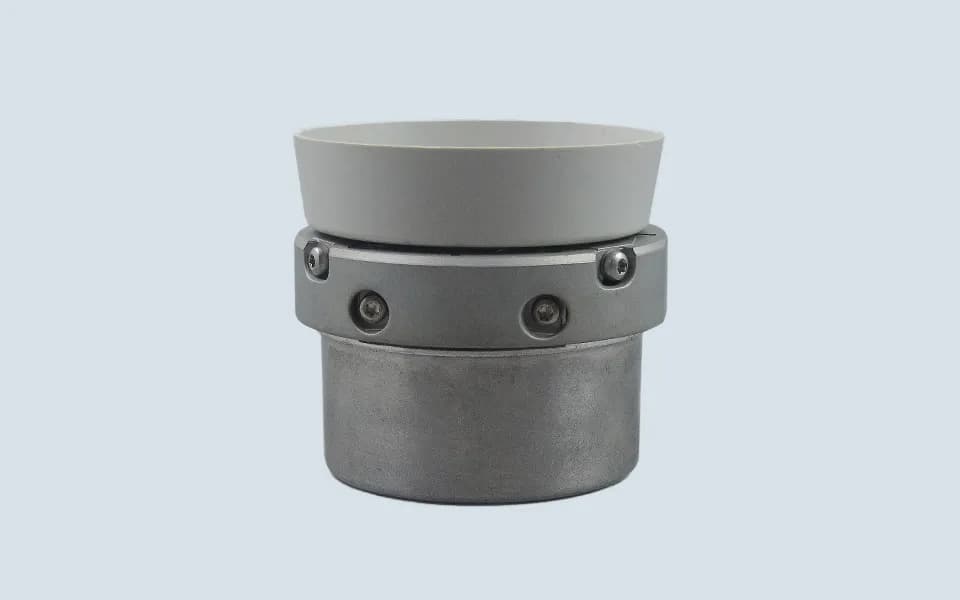

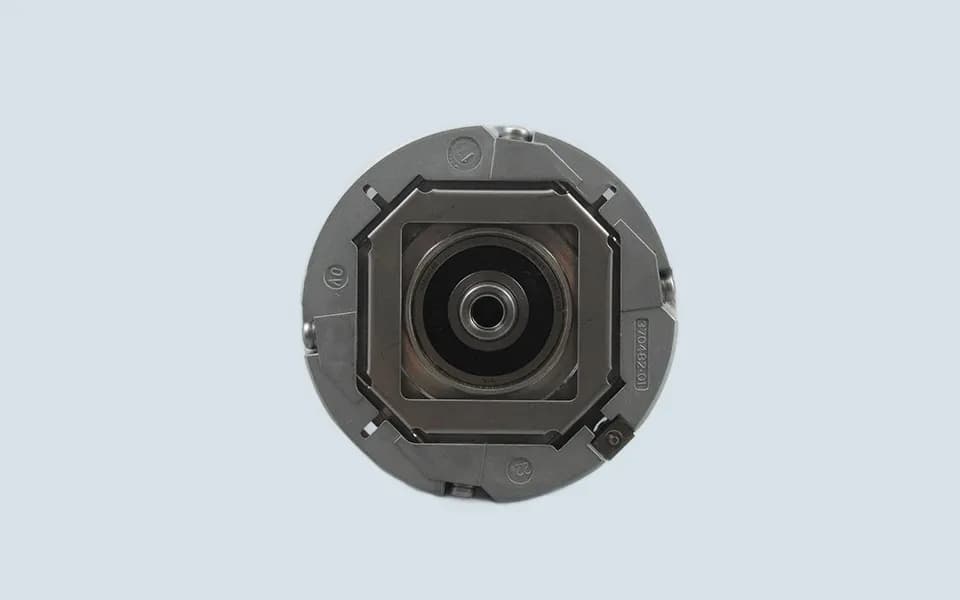

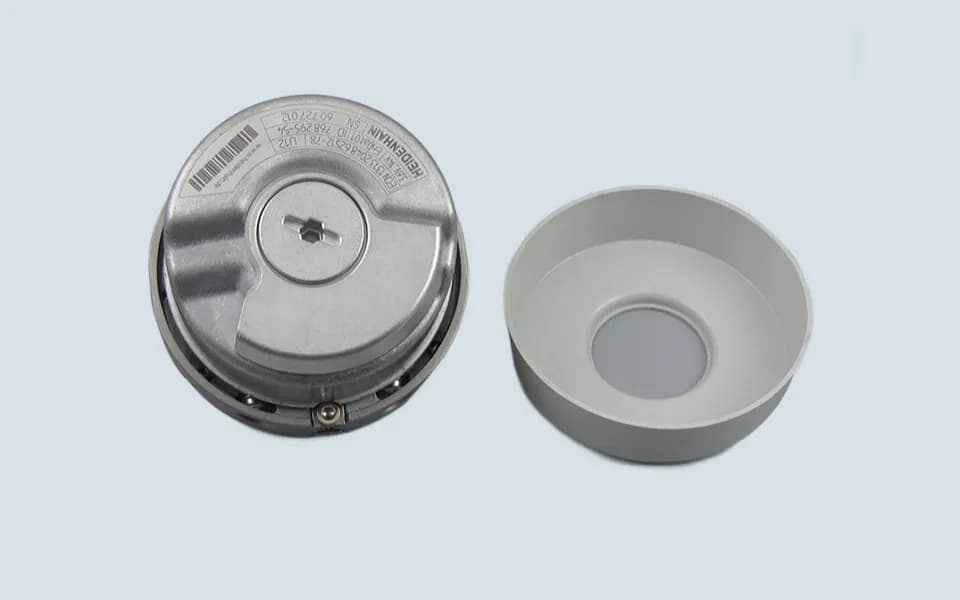

Heidenhain 1313 Encoder

Reliable Feedback Encoder for Elevator Drive and Position Control

Product Overview

The Heidenhain 1313 Encoder is a feedback device used in elevator systems to monitor motor movement and provide position signals for control adjustment. Compared with newer or higher-spec models, this type of encoder is often seen in systems where long-term stability and compatibility with existing setups are more important than advanced features.

In maintenance work across regions such as Italy and Saudi Arabia, the 1313 encoder is commonly associated with installations that have been in operation for years, where replacement parts need to match the original system configuration closely. In these cases, consistency of signal output is usually the primary concern.

Rather than focusing on performance upgrades, this type of encoder is typically selected to maintain reliable operation within an established system.

---

Role in Elevator System

The encoder functions as part of the feedback loop in motor control.

Its main roles include:

• monitoring rotational movement of the motor
• providing position reference signals
• supporting stable speed regulation
• maintaining consistent stopping behavior

In practical use, it helps the control system keep the elevator running in a predictable and controlled manner.

---

Application Characteristics

Unlike higher-performance encoders used in newer installations, the 1313 model is more commonly found in:

• existing elevator systems
• long-term maintenance projects
• replacement of original installed components
• systems where compatibility is critical

In European maintenance environments such as Italy, technicians often prioritize matching the original encoder model rather than switching to a different type.

---

System Integration

The encoder typically operates together with:

• inverter or drive unit
• traction motor
• control board
• braking system

In older systems, the integration between these components is often tightly configured, making correct encoder selection important.

---

Performance Considerations

From a practical perspective, the focus is usually on:

• stable signal output
• consistent performance over time
• compatibility with existing control systems
• minimal deviation from original specifications

This makes it suitable for maintaining system reliability rather than enhancing performance.

---

Maintenance and Replacement

Technicians may check or replace the encoder when:

• elevator leveling becomes inconsistent
• speed feedback appears unstable
• control system reports signal errors
• movement behavior becomes irregular

In many cases, replacing the encoder with the same model helps restore normal operation without further system adjustment.

---

Frequently Asked Questions

What is the Heidenhain 1313 encoder used for?
It is used to provide position and speed feedback in elevator drive systems.

Is it suitable for new installations?
It is more commonly used in existing systems where compatibility with original components is required.

Why not replace it with a newer model?
Because matching the original encoder often ensures stable integration with the control system.
