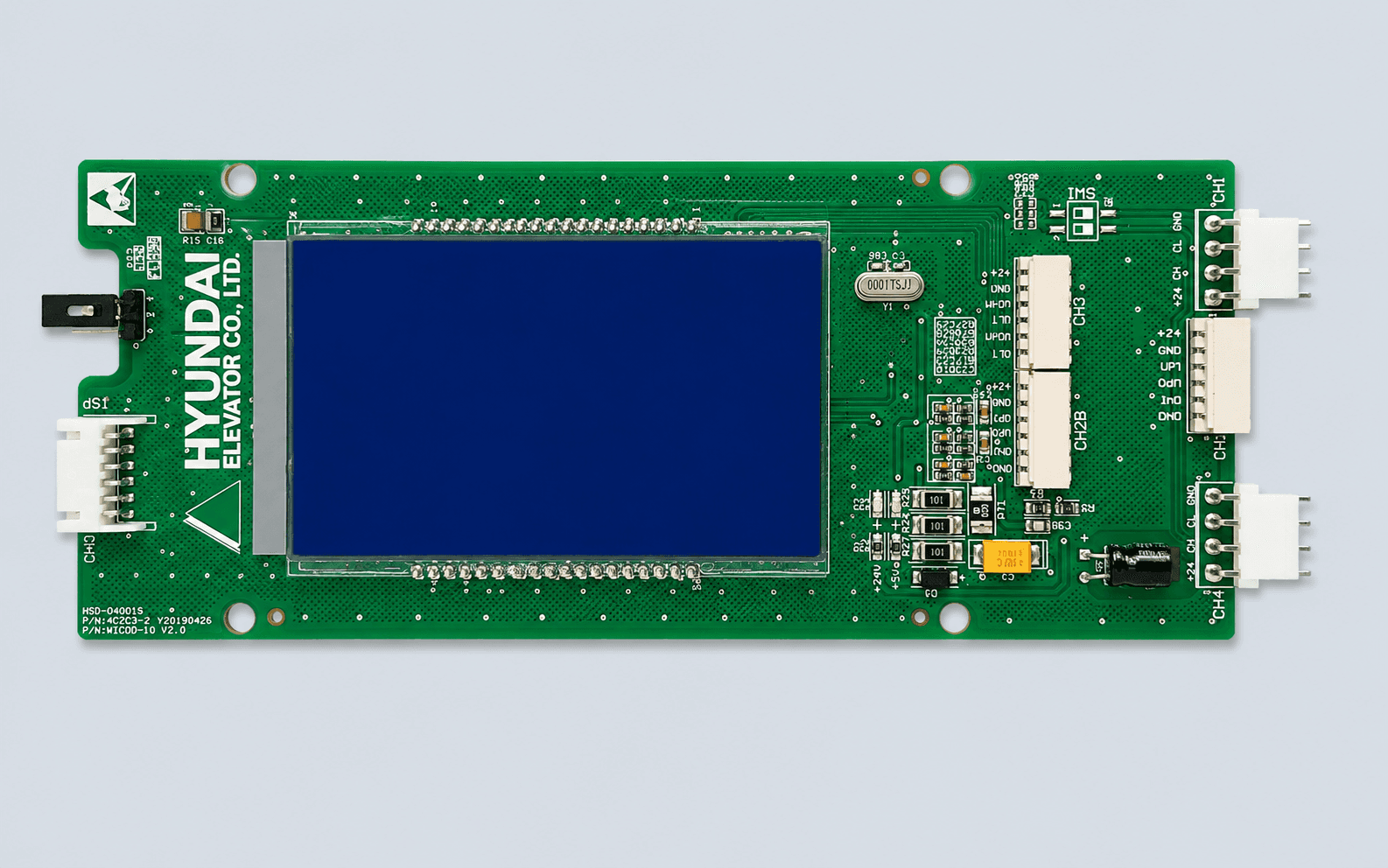

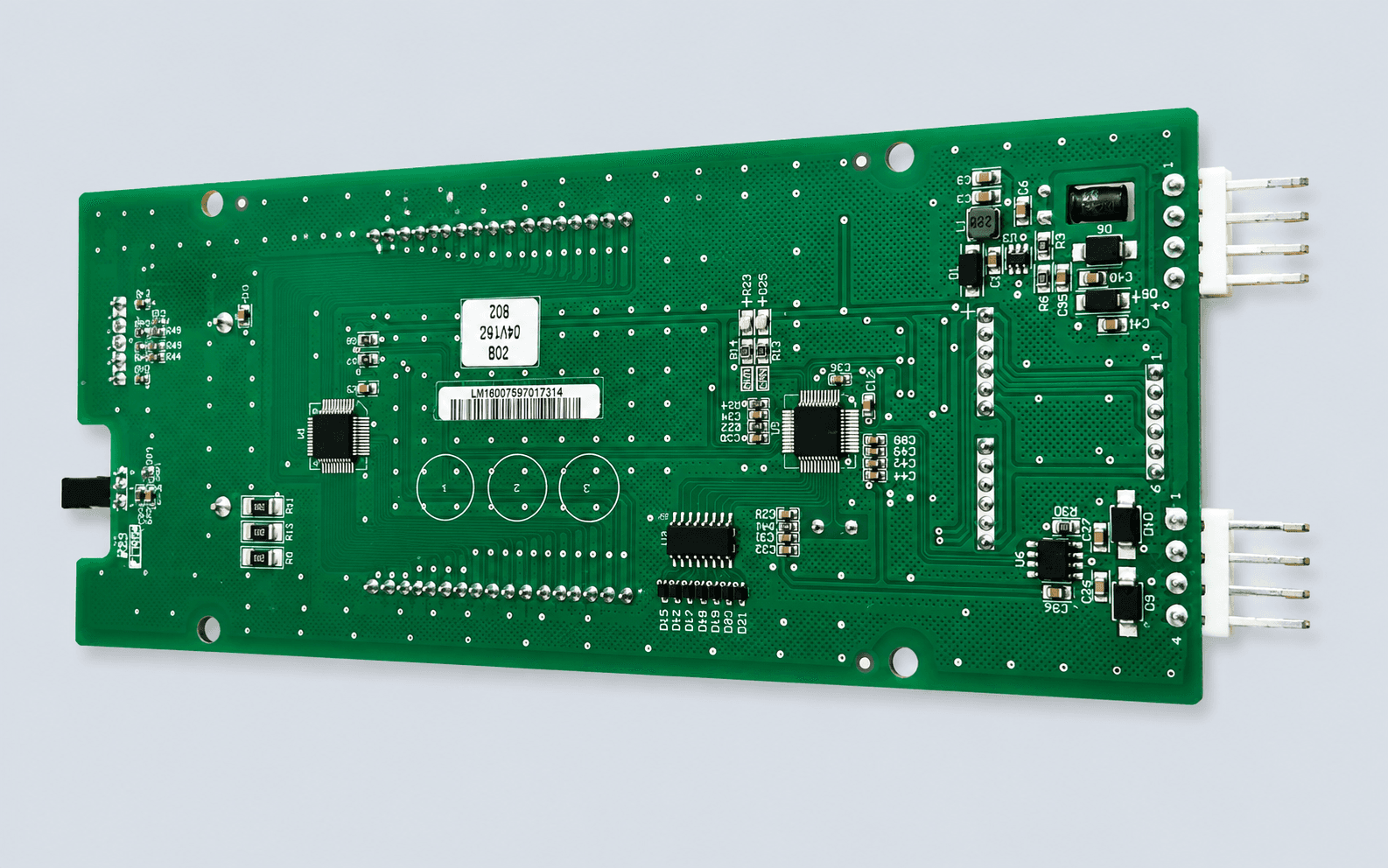

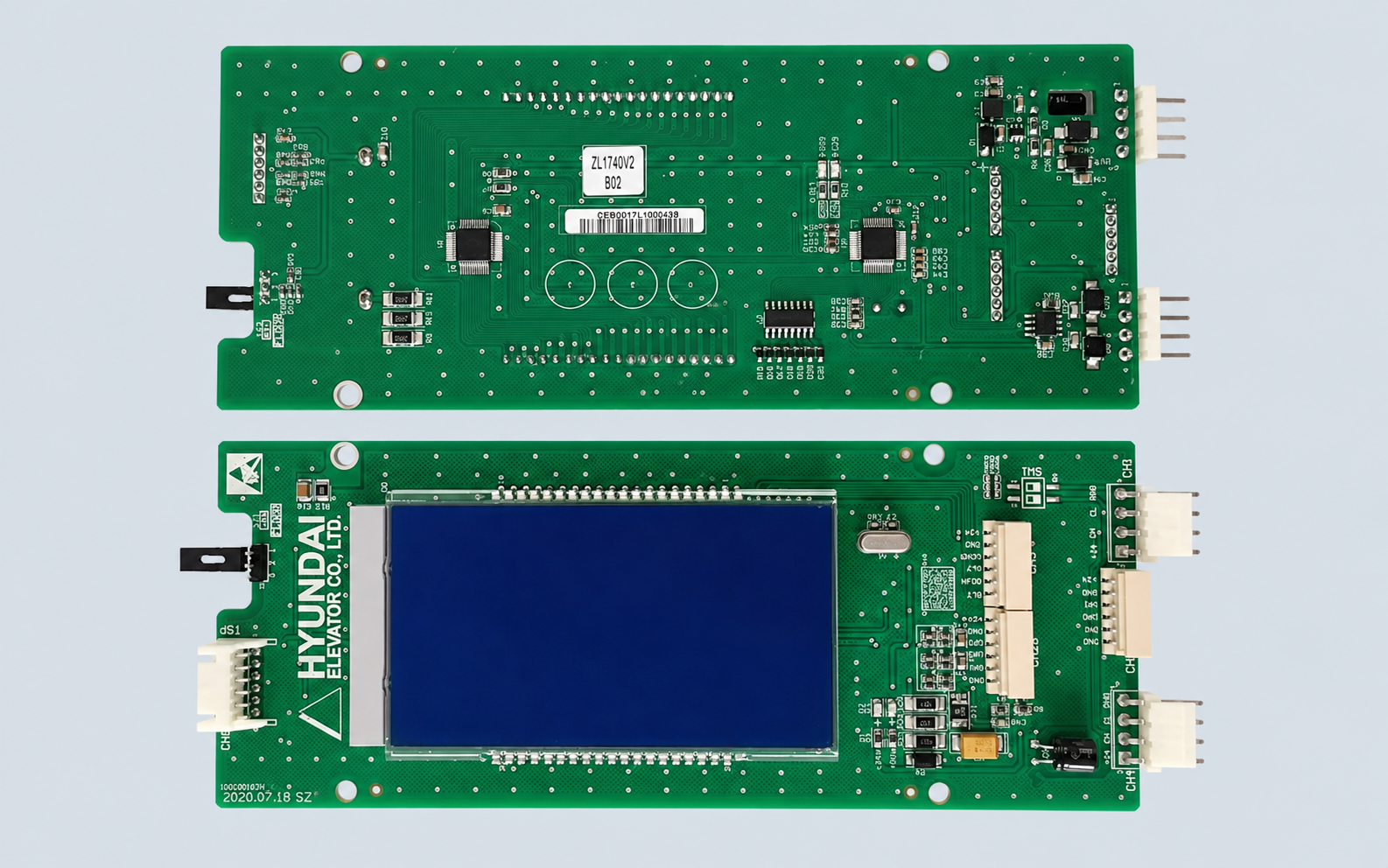

Hyundai 04VL16Z B02 B03 B04 LCD Display Board

The Hyundai 04VL16Z B02, B03 and B04 LCD Display Board is an elevator passenger information display used in operating panel and landing indication applications. It is supplied for replacement where the existing display carries the 04VL16Z model marking.

One Display Family, Different Versions

The 04VL16Z is an LCD-type elevator display rather than a conventional dot-matrix indicator. Different units may be marked B02, B03 or B04, so the complete version information should be checked when sourcing a replacement.

These versions should not be selected only by the front screen appearance.

For model confirmation, please provide:

• Display model: 04VL16Z

• Version: B02, B03 or B04

• Front and rear photos

• LCD screen appearance

• Connector positions

• PCB markings

• Related COP or LOP installation

• Required quantity

Match the Version on the Existing Unit

The 04VL16Z display can be found as part of an elevator operating or indication panel. Although B02, B03 and B04 belong to the same model family, differences in PCB configuration, software or connections may exist.

The safest method is to match the complete model and version against the original display assembly before replacement.

FAQ

What is the Hyundai 04VL16Z used for?

It is used as an elevator LCD display panel for passenger floor and operating information.

Are B02, B03 and B04 the same?

They are versions of the 04VL16Z display family, but they should not automatically be treated as directly interchangeable without checking the original unit.

What information is needed before ordering?

Please provide the 04VL16Z version marking, front and rear photos, PCB labels and connector layout.

For Hyundai 04VL16Z B02 / B03 / B04 requirements, send us the original display photos and complete markings for replacement checking before quotation.
