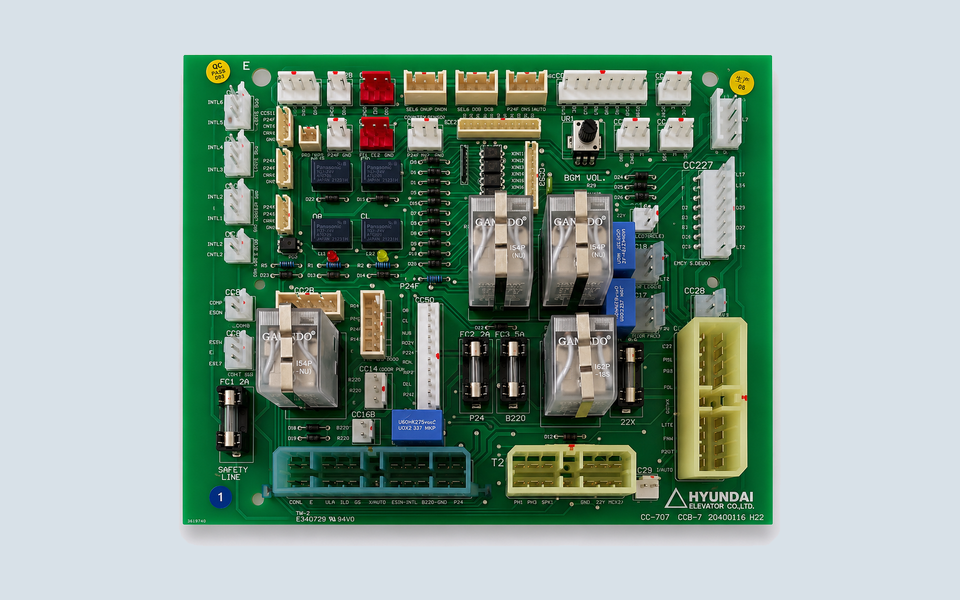

Hyundai CCB-7 20400116 H22 Car Top Interface Board

The Hyundai CCB-7 20400116 H22 Car Top Interface Board is an elevator PCB installed in the car junction box of Hyundai elevator systems. It is used as part of the car-top interface and communication circuit and is mainly supplied for maintenance and replacement of an existing CCB-7 board.

Installed in the Car Junction Box

The CCB-7 board is associated with Hyundai car-top and car junction box systems. Hyundai replacement documentation lists the CCB-7 PC Board for STVF7, LXVF7 and SSVF7 elevator applications.

For replacement, the complete PCB identification should be checked carefully.

Please confirm:

• Board model: CCB-7

• Part number: 20400116

• Hardware marking: H22

• Front and rear PCB photos

• Connector arrangement

• Elevator control system

• Additional labels or revision markings

• Required quantity

Check the Full Board Version

CCB-series boards are available in different versions. For example, CCB-3 and CCB-7 are both used as car-top interface boards but carry different PCB numbers and hardware configurations.

The replacement should therefore match the original board markings and connectors rather than being selected only by the CCB name.

FAQ

What is the Hyundai CCB-7 board used for?

The CCB-7 is used as a car-top interface board installed in the elevator car junction box.

Is 20400116 H22 important when ordering?

Yes. The 20400116 and H22 markings help identify the correct CCB-7 version and should be checked together with the connector layout.

Can a CCB-3 directly replace a CCB-7?

Not automatically. Although both belong to the Hyundai car-top interface board family, their part numbers and hardware versions differ. The original elevator configuration should be confirmed before replacement.

For Hyundai CCB-7 20400116 H22 requirements, send us clear photos of the original PCB for model checking before quotation.
