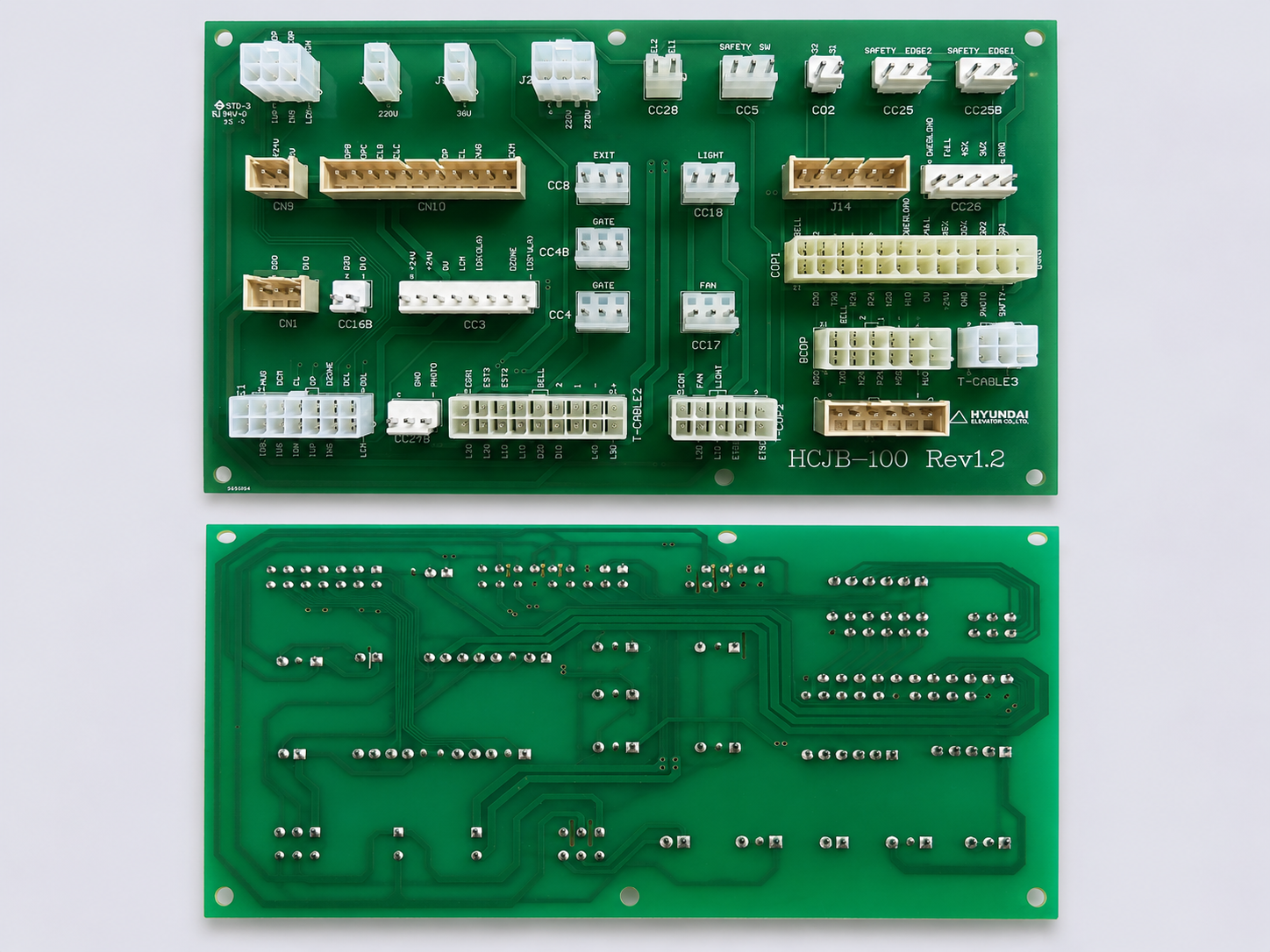

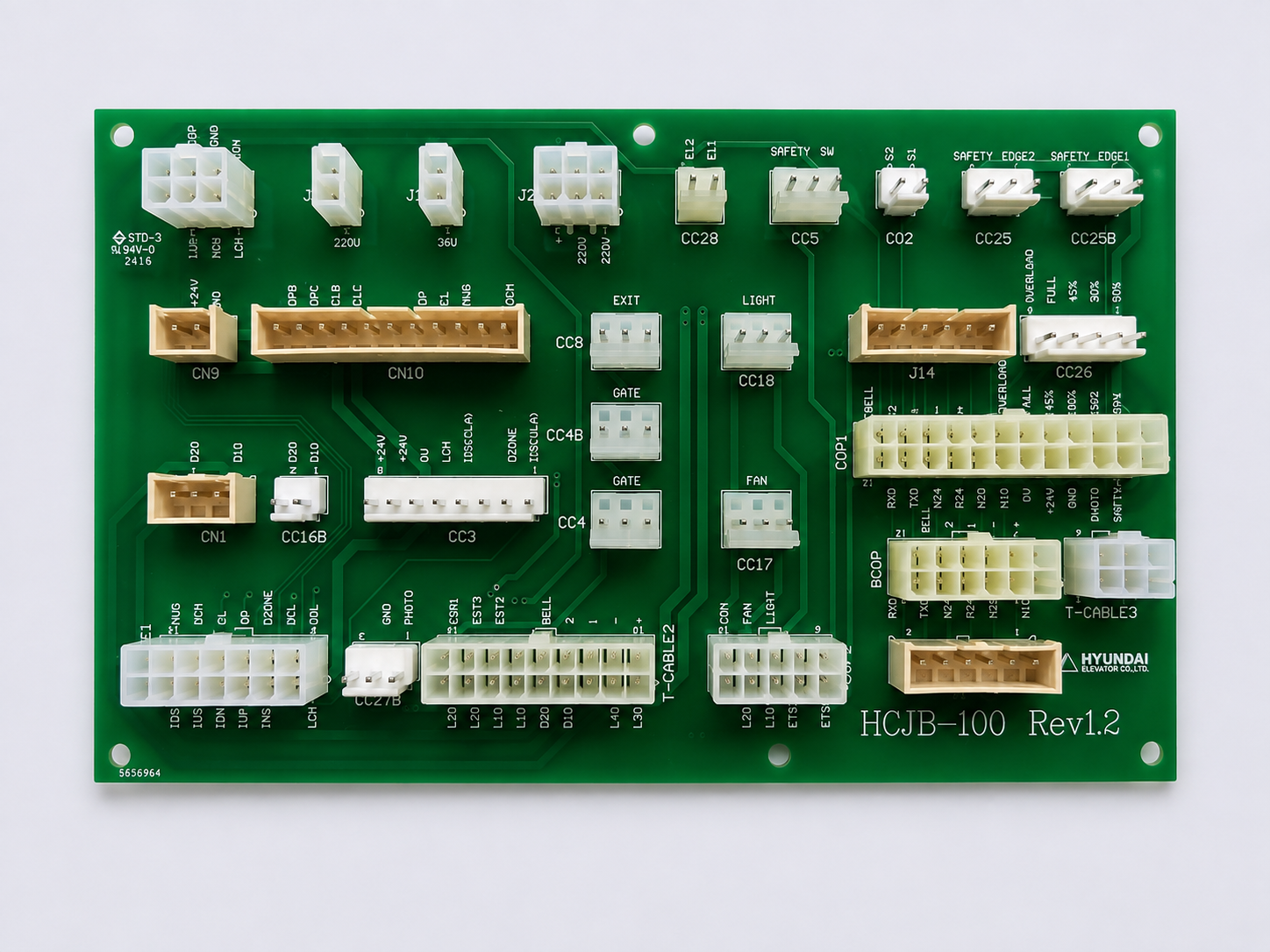

Hyundai STVF2S HCJB-100 Rev1.2 Junction Interface Board

The Hyundai STVF2S HCJB-100 Rev1.2 is an elevator junction and interface PCB used in Hyundai STVF2S elevator systems. It is mainly supplied for maintenance and replacement when the existing HCJB-100 board is damaged or requires replacement.

Confirm the Rev1.2 Version

The complete board identification should be checked before ordering. For this model, HCJB-100 and Rev1.2 are important markings for replacement confirmation.

Please provide:

• Board model: HCJB-100

• Revision: Rev1.2

• Elevator system: STVF2S

• Front and rear PCB photos

• Connector arrangement

• Additional labels or part numbers

• Required quantity

Replacement by Original Board

For older Hyundai elevator systems, similar PCB boards may use different revisions or connector layouts. The replacement should therefore be compared with the original HCJB-100 board rather than selected only by appearance.

If the revision marking is unclear, clear photos of the complete PCB and connectors can help with model checking.

FAQ

Is HCJB-100 Rev1.2 used with Hyundai STVF2S?

Yes. HCJB-100 Rev1.2 is commonly supplied as an interface or junction board for Hyundai STVF2S elevator applications.

Is the Rev1.2 marking important?

Yes. The PCB revision should be checked together with the HCJB-100 model and connector layout before replacement.

What should I send for quotation?

Please send clear front and rear board photos, the HCJB-100 Rev1.2 marking, connector details and required quantity.

For Hyundai STVF2S HCJB-100 Rev1.2 requirements, send us the original PCB information for replacement checking before quotation.
