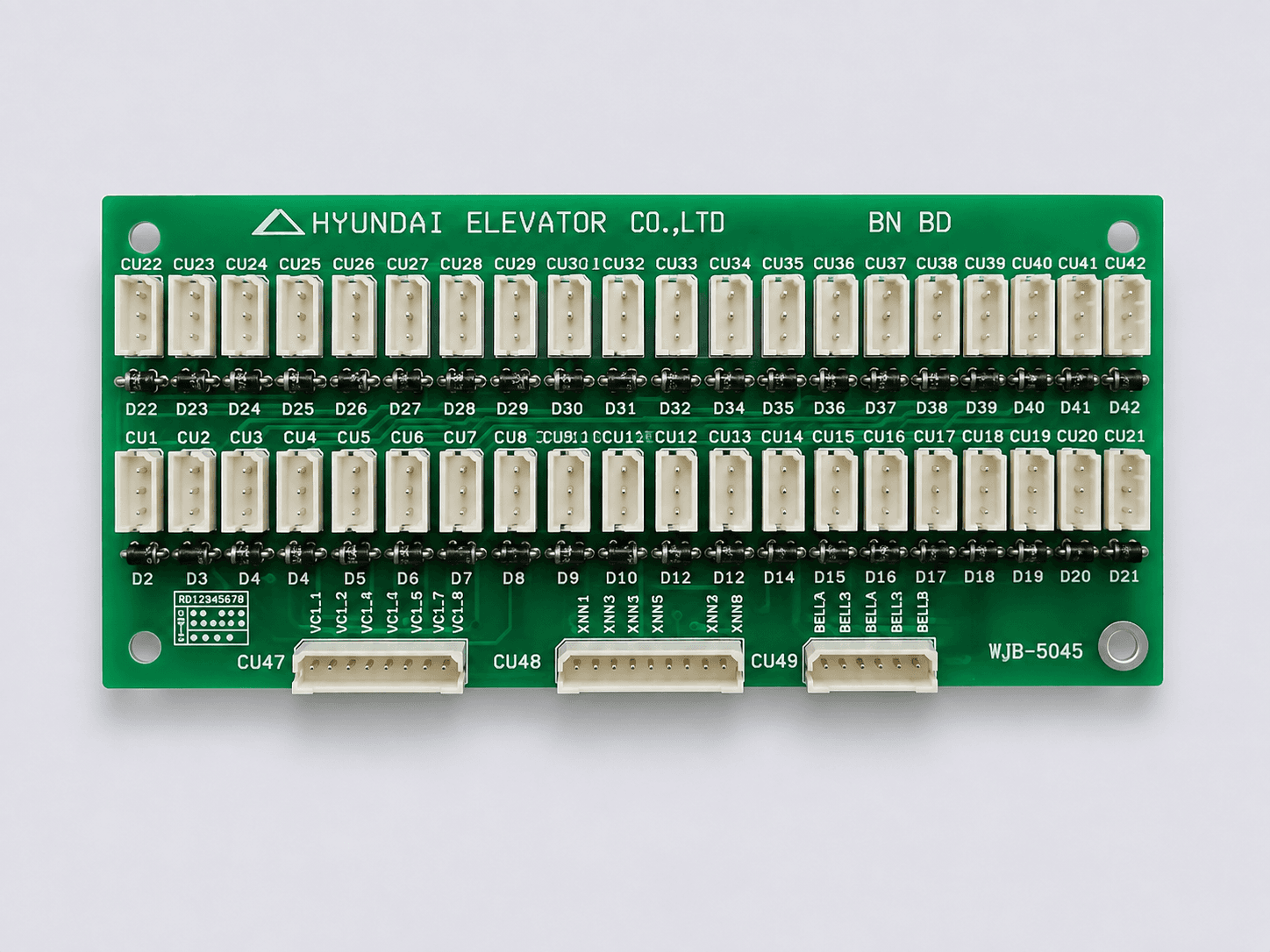

Hyundai STVF7 BN BD Button Board

The Hyundai STVF7 BN BD Button Board is an electronic PCB used inside the car operating panel of Hyundai STVF7 elevators. It is associated with the elevator car button system and is mainly supplied for maintenance and replacement of an existing BN BD board.

Inside the Car Operating Panel

In the STVF7 operating panel arrangement, the BN BD is installed inside the OPB and works as part of the car button system.

For replacement, the original PCB should be checked carefully because button-board versions and operating-panel configurations may differ between elevators.

Please provide:

• Board marking: BN BD

• Elevator system: STVF7

• Front and rear PCB photos

• Complete part number, if available

• Connector arrangement

• Related OPB photos

• Required quantity

Check the Original Panel Configuration

The BN BD should not be selected only by its general board name. Connector positions, PCB markings and the existing car operating panel configuration are useful for confirming the correct replacement.

If an additional Hyundai part number or hardware version appears on the original PCB, please include it when requesting a quotation.

FAQ

What is the Hyundai STVF7 BN BD used for?

The BN BD is used as a button board inside the Hyundai elevator car operating panel.

Is BN BD the same as an OPB communication board?

No. Hyundai STVF7 documentation shows the BN BD and OPB-340 board as separate components within the operating-panel system.

What should I send for replacement confirmation?

Please send clear front and rear photos of the BN BD, connector layout, any printed part numbers and a photo of the related car operating panel.

For Hyundai STVF7 BN BD requirements, send us the original board information for model checking before quotation.
