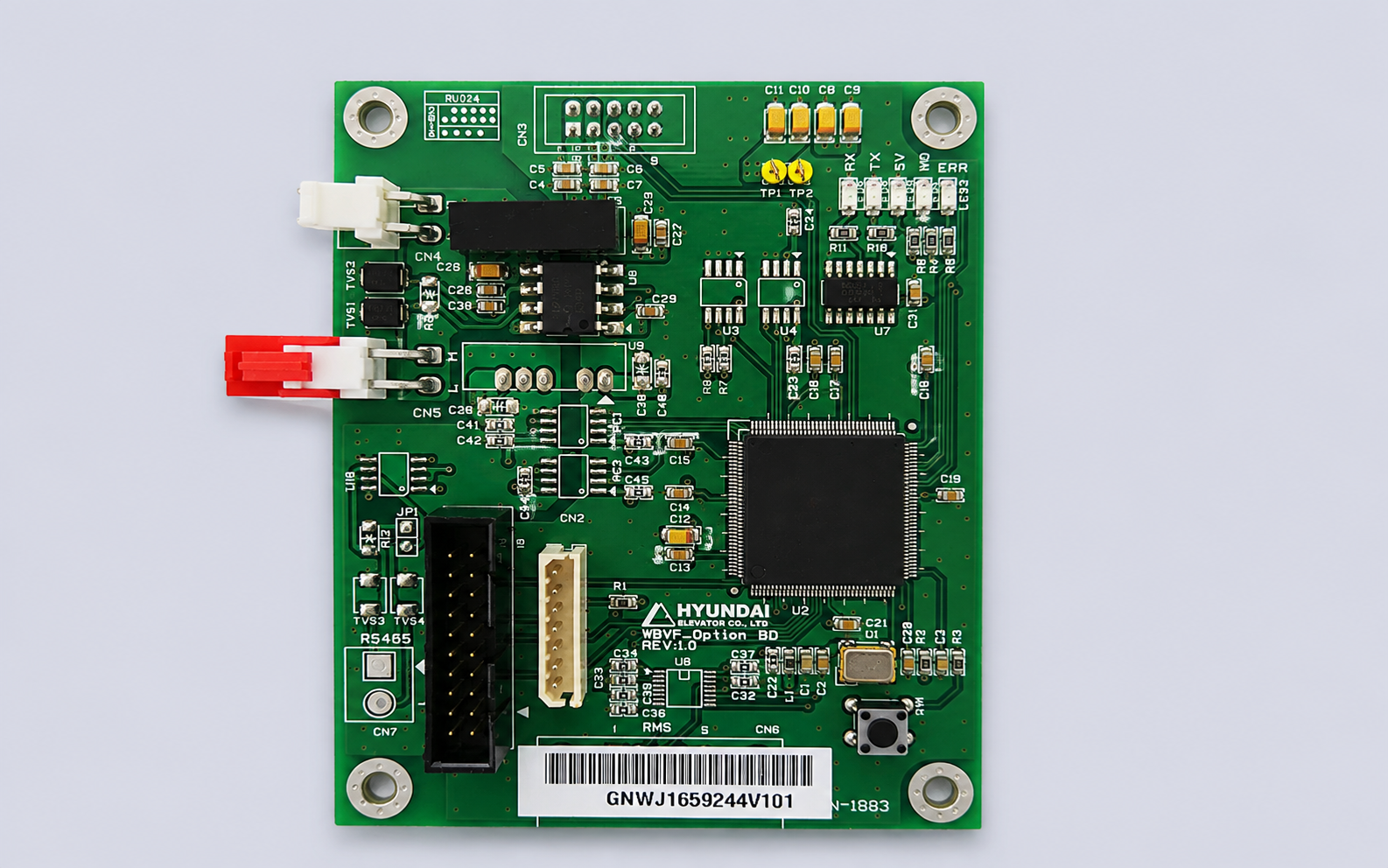

Hyundai STVF9 WBVF Option BD Rev1.0

The Hyundai STVF9 WBVF Option BD Rev1.0 is an elevator group and parallel control board used in Hyundai STVF9 systems. It supports communication and coordination between elevators operating under duplex or group-control configurations.

For Group and Parallel Control

The WBVF Option BD is different from the WBVF main control board or inverter gate board. Its application is associated with elevator parallel and group control, where multiple elevator controllers need to exchange operating information.

When replacing this board, please confirm:

• Board model: WBVF Option BD

• Revision: Rev1.0

• Elevator system: STVF9

• Additional marking such as CC-963, if present

• Front and rear PCB photos

• Connector arrangement

• Existing parallel or group-control configuration

• Required quantity

Check the Original Version

WBVF Option boards may have different identification markings or system configurations. A similar-looking PCB should not automatically be considered interchangeable.

The original revision, connectors and group-control setup should be checked before replacement.

FAQ

What is the Hyundai WBVF Option BD used for?

It is commonly used as a parallel or group-control board in Hyundai STVF9 elevator systems.

Is WBVF Option BD the same as the WBVF main board?

No. The WBVF Option BD is listed separately as a group-control option board, while the WBVF-C Main is a main control board.

Is CC-963 important when ordering?

Some WBVF Option BD versions are identified with CC-963. If this marking appears on the original PCB, it should be included when confirming the replacement.

For Hyundai STVF9 WBVF Option BD Rev1.0 requirements, send us the original PCB photos and system information for replacement checking before quotation.
