Hyundai STVF9 WBVF HIP Board Rev1.3

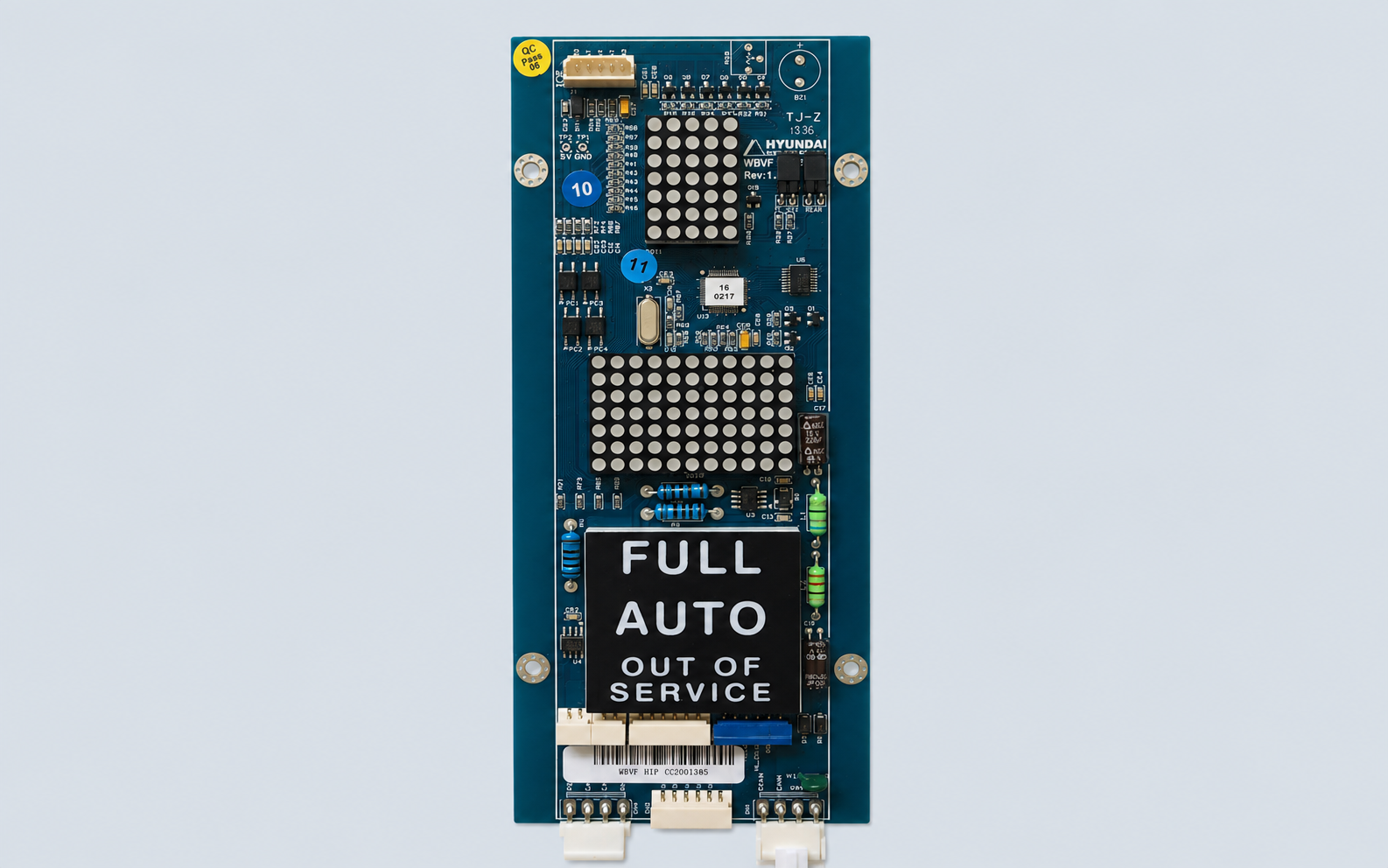

The Hyundai STVF9 WBVF HIP Board Rev1.3 is a hall indicator and landing display PCB used in the STVF9 elevator system. A commonly documented identification for this version is CC-910 Rev1.3.

Part of the Hall CAN System

The WBVF HIP Board works in the landing indication and hall call system. It communicates through the elevator CAN network and supports floor indication together with related landing functions.

The board includes connections associated with:

• Hall UP / DOWN call buttons

• 24VDC power and CAN communication

• Floor ID setting

• Hall chime or hall lantern

• Parking input

• Fireman return input

This makes the HIP Board more than a simple passenger display PCB. Correct communication and floor configuration are also important during replacement.

Check CC-910 and Rev1.3 Together

A typical board may be identified by:

• System: STVF9

• Board family: WBVF HIP

• Reference: CC-910

• Revision: Rev1.3

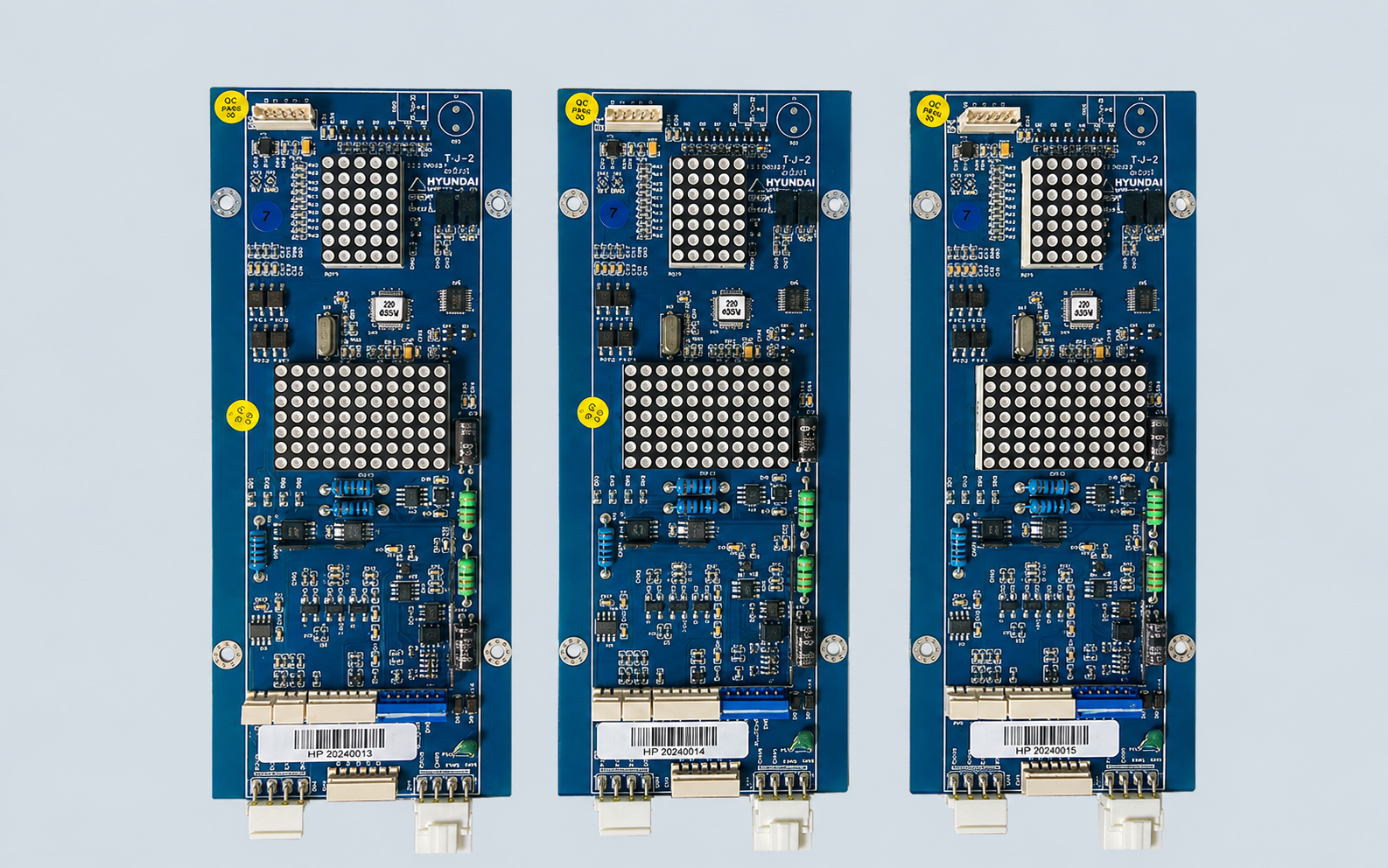

When sourcing a replacement, compare the complete PCB marking, revision and connector layout with the existing board.

FAQ

What is the WBVF HIP Board used for?

It is used as a hall indicator and landing call display/control board in Hyundai STVF9 elevator applications.

Is CC-910 related to WBVF HIP Rev1.3?

Yes. CC-910 Rev1.3 is a documented version of the Hyundai STVF9 WBVF HIP Board.

Does the floor setting need to be checked after replacement?

Yes. The HIP board supports floor ID setting, so the replacement board should be configured according to the actual landing.

For Hyundai STVF9 WBVF HIP Board Rev1.3 requirements, send us clear photos of the original PCB, CC number and connector layout for replacement checking before quotation.
