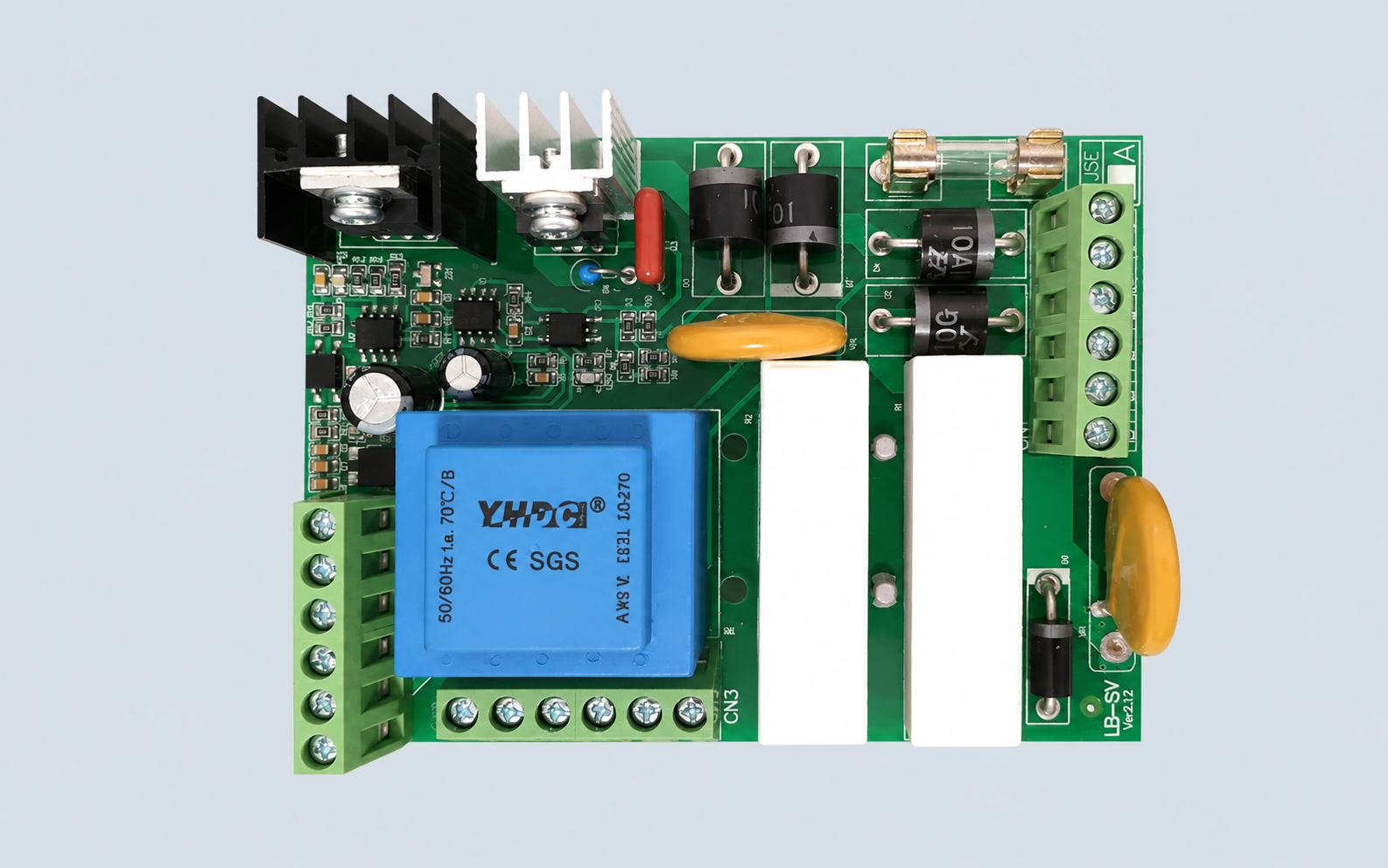

Hyundai LB-SV Ver2.12 Brake Power Board

The Hyundai LB-SV Ver2.12 Brake Power Board is an electronic PCB used in the elevator brake power and control circuit. It is mainly required for maintenance and replacement when the existing LB-SV board is damaged or the brake power circuit needs repair.

A Board Connected to the Brake Circuit

Unlike a general elevator control PCB, the LB-SV is associated specifically with the electromagnetic brake power and control system.

The Ver2.12 marking is important because LB-SV boards can be found in several hardware versions. A different version should not automatically be considered a direct replacement.

For part identification, please check:

• Board model: LB-SV

• Version: Ver2.12

• Front and rear PCB photos

• Power and terminal connections

• Additional voltage or component markings

• Related elevator brake information

• Required quantity

Why the Version Should Be Checked

LB-SV boards with similar layouts may carry different version numbers. Before installation, the PCB version and connection arrangement should be compared with the original board.

FAQ

What is the LB-SV Ver2.12 Board used for?

It is used in the elevator brake power control circuit and is associated with operation of the electromagnetic brake.

Can another LB-SV version replace Ver2.12?

Not necessarily. Different versions may have changes in circuitry or connection configuration, so the original board should be checked first.

What should I send for quotation?

Please send clear photos showing the LB-SV Ver2.12 marking, terminals, connectors and any additional electrical information on the board.

For Hyundai LB-SV Ver2.12 requirements, send us the original PCB photos for replacement checking before quotation.
