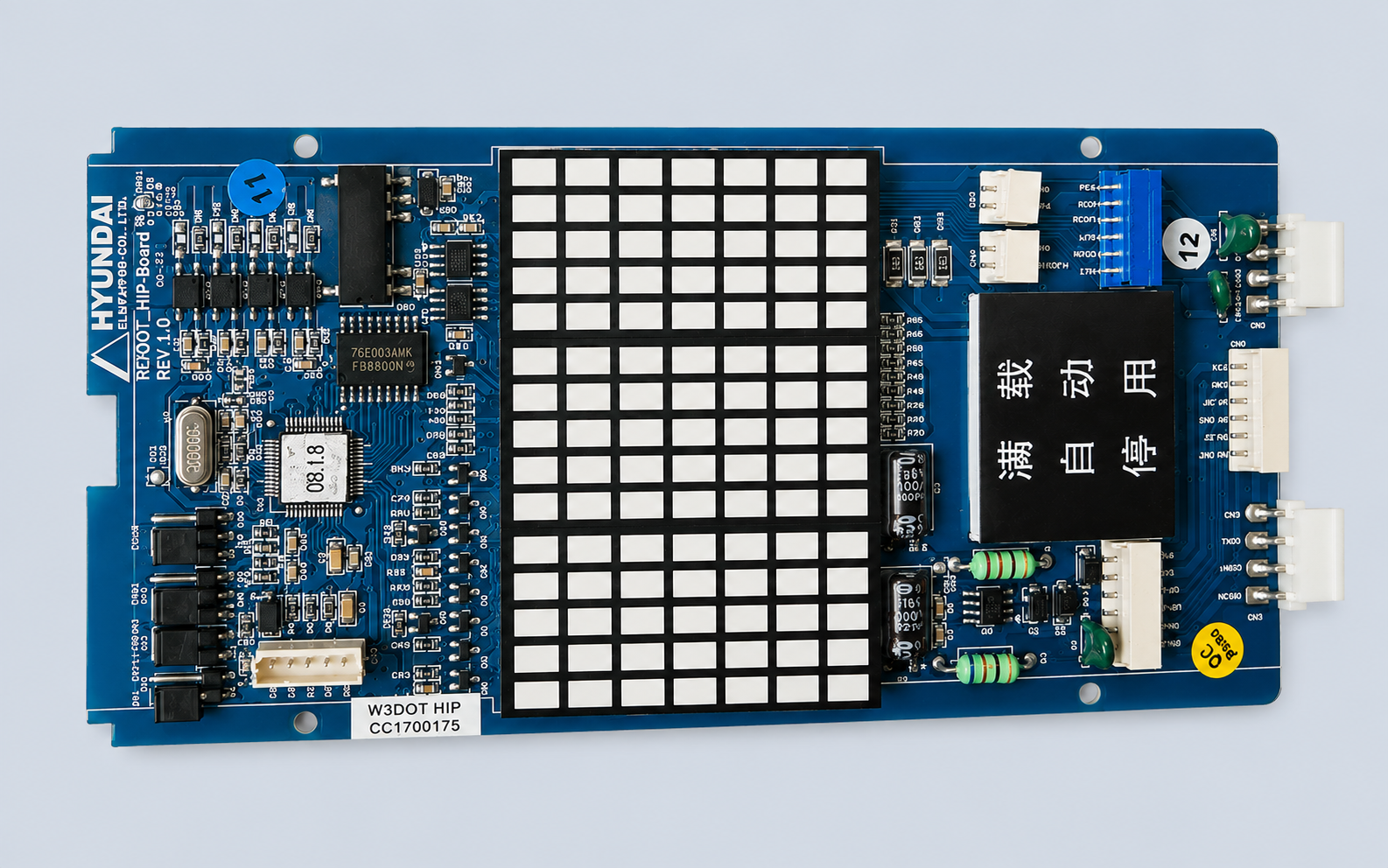

Hyundai W3DOT_HIP Hall Indicator Display Board

The Hyundai W3DOT_HIP Board is an elevator hall indicator and dot-matrix display PCB used in Hyundai elevator landing systems. It is designed to provide floor and operating information while connecting with related hall signaling components.

More Than a Floor Display

The 3DOT_HIP display system is designed for three-character floor indication and includes connections for several landing functions.

Depending on the elevator configuration, the board can interface with:

• Up and down hall call buttons

• 24V power and CAN communication

• Arrival gong or hall lantern

• Floor setting controls

• Fire service input

• Parking or lock functions

Because several functions can be integrated around the display board, connector layout is important when selecting a replacement.

How to Identify the Correct Board

For a W3DOT_HIP replacement, please check:

• Board marking: W3DOT_HIP

• PCB revision

• Front and rear board photos

• Display layout

• Connector positions

• Elevator system information

• Additional part numbers or labels

• Required quantity

If the existing board has already been replaced before, use the currently installed PCB as the main reference rather than relying only on the elevator model.

FAQ

What is the W3DOT_HIP Board used for?

It is used as a hall floor indicator and display PCB within the Hyundai elevator landing indication system.

Does the board only display floor numbers?

No. The related 3DOT_HIP design also includes connections for hall buttons, CAN communication, arrival signaling and other landing functions.

Can another Hyundai display board replace W3DOT_HIP?

Not automatically. The display type, PCB revision and connector configuration should be compared before replacement.

For Hyundai W3DOT_HIP Board requirements, send us clear photos of the original display PCB for model checking before quotation.
