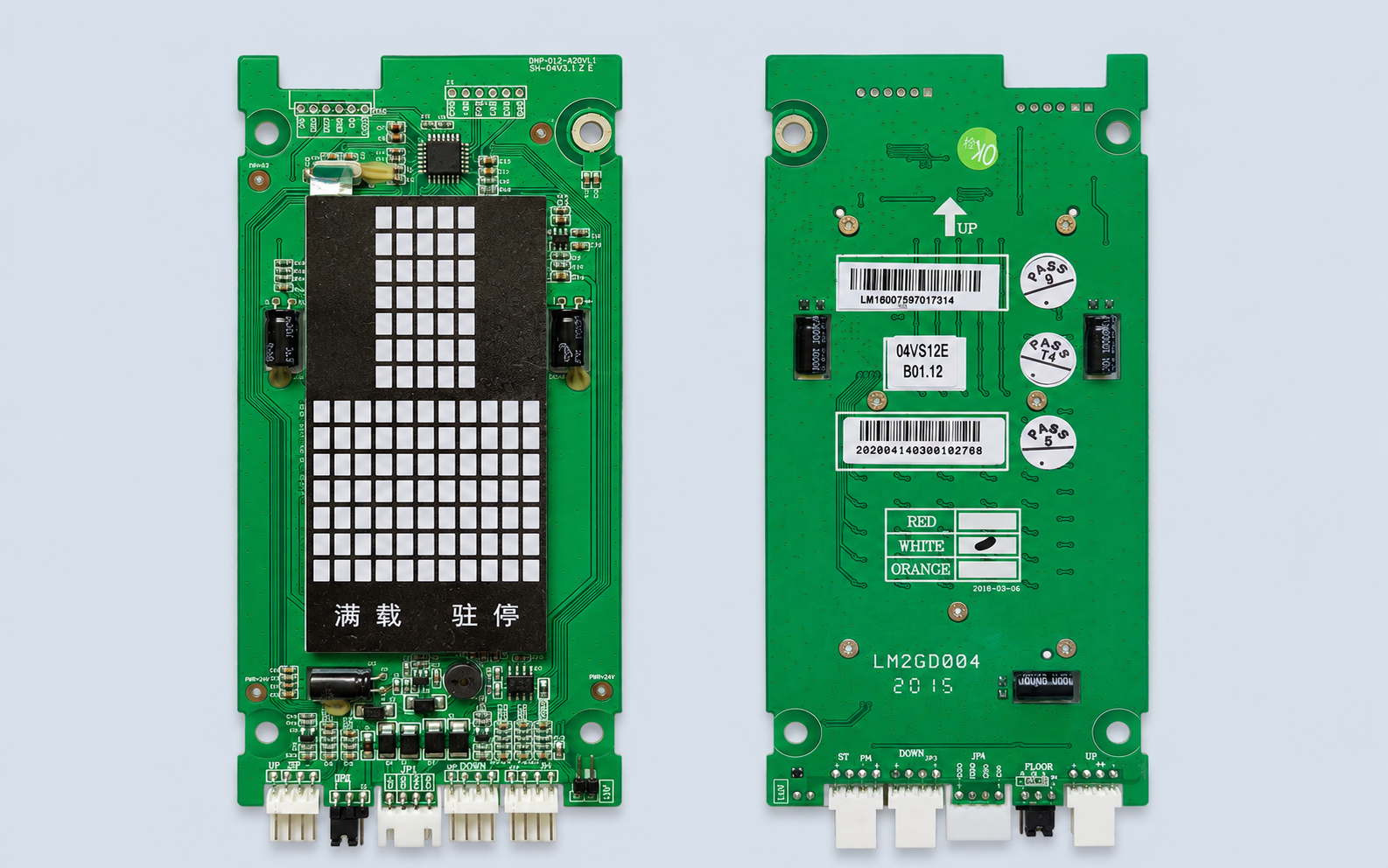

Hyundai STVF9 SM.04VS12E B01.12 Display Board

The Hyundai STVF9 SM.04VS12E B01.12 Display Board is an elevator dot-matrix display PCB used in landing call and floor indication applications. It is mainly supplied for replacement where the existing display is identified with the SM.04VS12E model and B01.12 marking.

For Landing Call and Floor Indication

The SM.04VS12E is associated with the elevator outbound call display system. It provides passenger-facing floor and operating information at the landing and works together with the elevator control and communication system.

For this type of display board, matching the communication configuration is especially important. Two boards may have a similar display layout but use different protocols or connector arrangements.

Use B01.12 as Part of the Identification

Before replacement, please compare the complete information on the existing unit:

• Elevator system: STVF9

• Display model: SM.04VS12E

• Version / marking: B01.12

• Front and rear PCB photos

• Dot-matrix display appearance

• Connector arrangement

• Additional labels or part numbers

• Required quantity

If the original board has additional protocol or software markings, please include them when requesting a quotation.

FAQ

What is the SM.04VS12E used for?

It is used as an elevator landing call and dot-matrix floor display board.

Can another 04VS12E display replace B01.12 directly?

Not automatically. The protocol, PCB version and connector configuration should be checked against the original board before replacement.

What is most useful for model confirmation?

Clear front and rear photos showing the SM.04VS12E model, B01.12 marking, connectors and complete display assembly are recommended.

For Hyundai STVF9 SM.04VS12E B01.12 requirements, send us the original display photos and identification markings for replacement checking before quotation.
