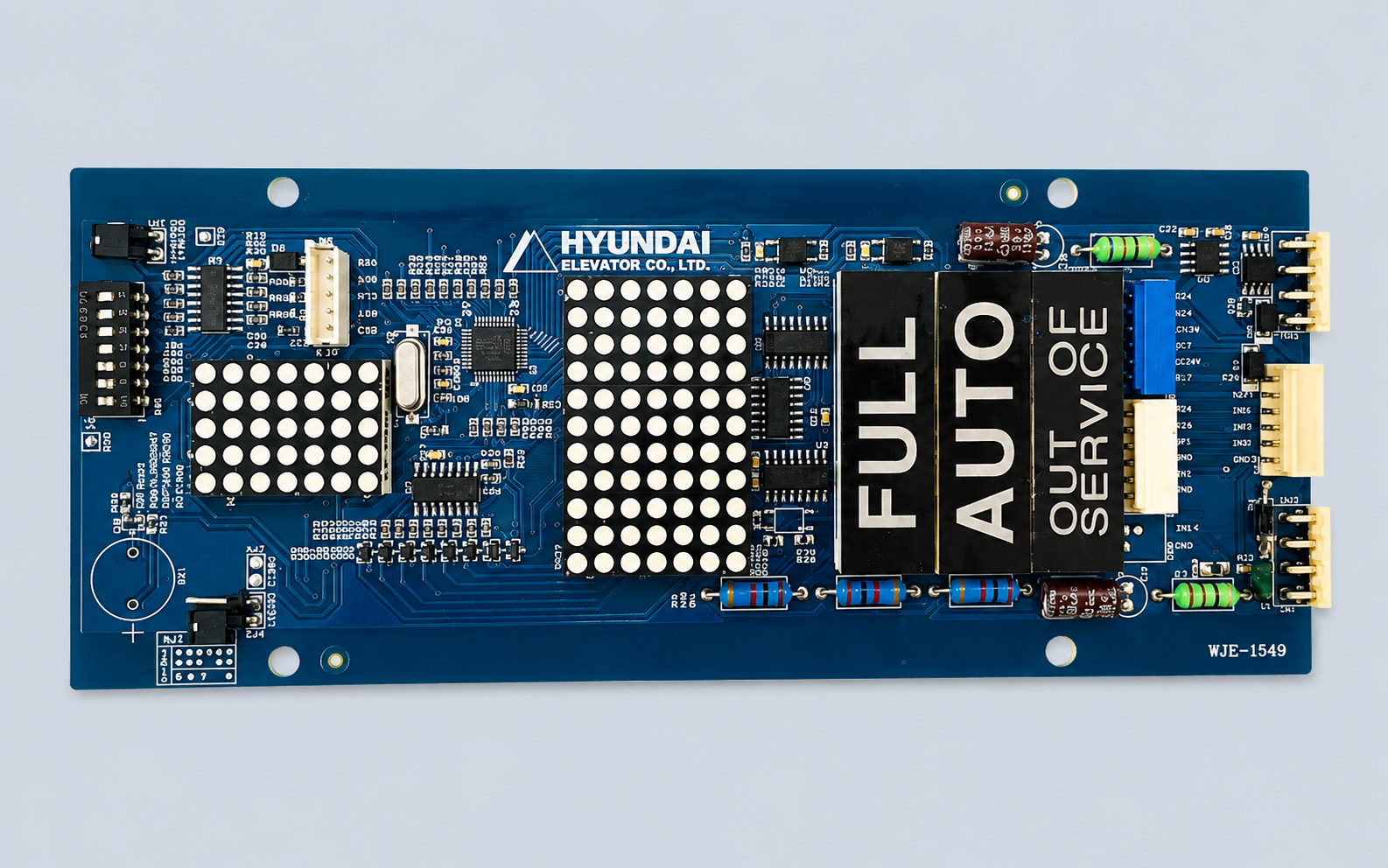

Hyundai HIP-CM0 Elevator Display Board

The Hyundai HIP-CM0 Elevator Display Board is an electronic indicator PCB used in Hyundai elevator landing display systems. It forms part of the hall operating and indication panel, providing passenger-facing floor and elevator status information.

Start With the Board Identification

HIP-CM0 boards are commonly identified by several markings. Depending on the version, the original unit may show:

• Model: HIP-CM0

• Revision: REV6

• DWG No.: 26300047

• Reference number: WJE-1549

• Additional PCB or production markings

These numbers are useful when distinguishing the correct display board from other Hyundai HIP series products.

Used in the Landing Display System

The HIP-CM0 is associated with the elevator hall display or landing operating panel rather than the main elevator controller.

When an existing indicator develops display problems or the PCB is physically damaged, the complete board and display assembly should be checked before selecting a replacement.

Please send front and rear photos showing the connectors, PCB markings and related hall panel configuration.

FAQ

What is the Hyundai HIP-CM0 used for?

It is used as a display and hall indicator PCB in Hyundai elevator landing panel applications.

Is 26300047 related to HIP-CM0?

Yes. DWG No. 26300047 is commonly associated with HIP-CM0 display boards, especially REV6 versions.

What should I check before ordering?

Confirm the HIP-CM0 model, revision, DWG number, connector layout and original display configuration.

For Hyundai HIP-CM0 requirements, send us the existing board photos and complete markings for replacement checking before quotation.
