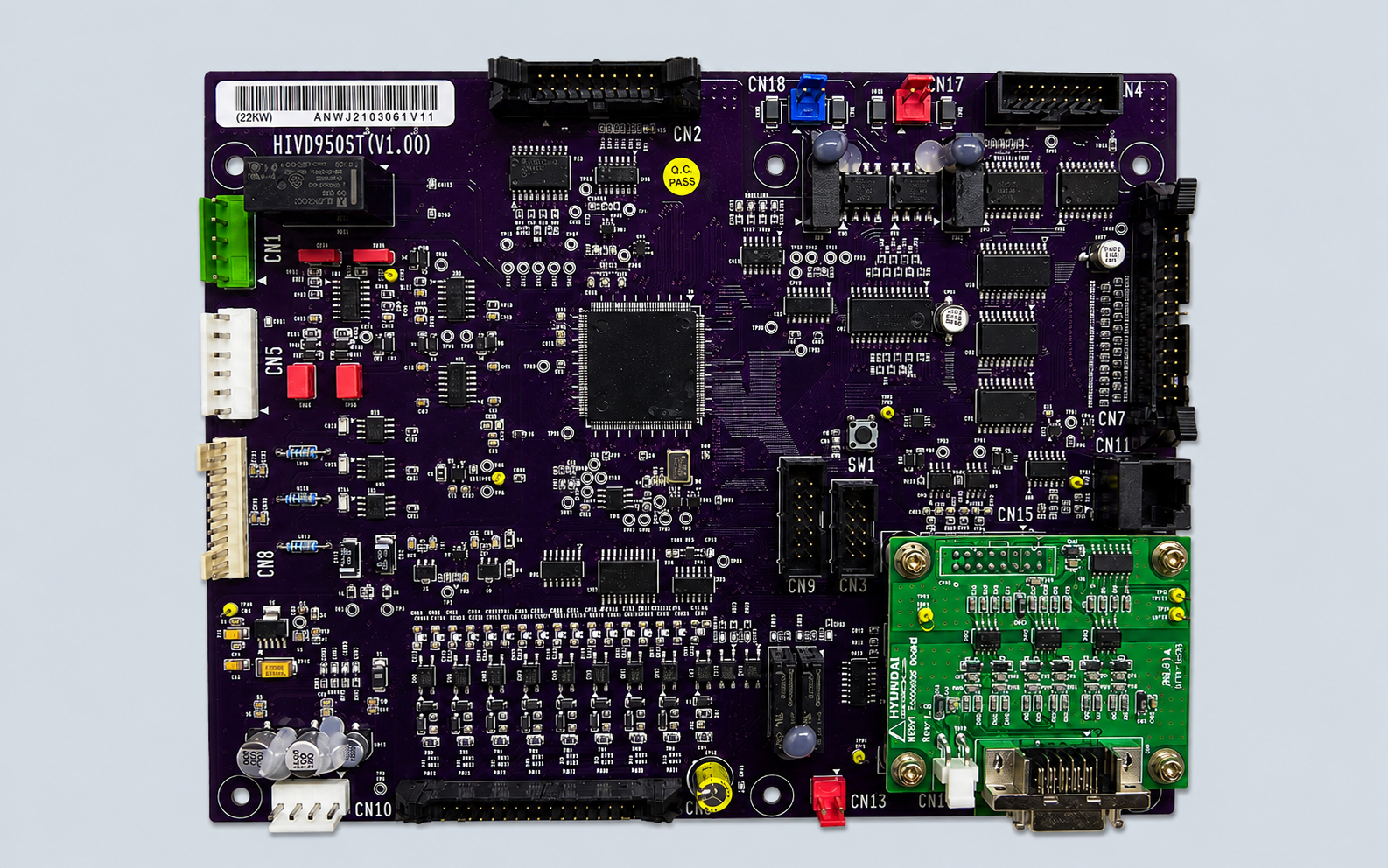

Hyundai HIVD910GT HIVD950ST Inverter Main Board

The Hyundai HIVD910GT HIVD950ST Inverter Main Board is the main control PCB used inside Hyundai HIVD910GT elevator drive systems. It belongs to the inverter control section and should be distinguished from the SMPS board, gate board, sensing board and other power components inside the drive.

HIVD950ST Is the Board Identification

In this application, HIVD910GT identifies the elevator inverter system, while HIVD950ST is commonly found as the mainboard identification.

A commonly documented version is:

• Inverter application: HIVD910GT

• Main board: HIVD950ST

• Common version: V1.00

• Motor application: Synchronous motor drive

This distinction is useful when the complete inverter is still installed but only the internal main control PCB needs replacement.

Check the Board and Drive Together

The HIVD910GT drive contains several separate electronic boards, and a mainboard should not be selected only by the inverter housing.

For replacement confirmation, please provide:

• HIVD950ST board marking

• PCB version

• Front and rear board photos

• Connector arrangement

• Complete HIVD910GT inverter model

• Inverter power rating

• Inverter nameplate

• Required quantity

If the original PCB carries V1.00, V2.00 or another revision, include the complete version marking when requesting a replacement.

FAQ

What is Hyundai HIVD950ST?

HIVD950ST is an inverter main control board associated with Hyundai elevator drive applications, including HIVD910GT.

Is HIVD950ST the complete HIVD910GT inverter?

No. HIVD910GT is the inverter drive system, while HIVD950ST refers to the internal main control board in this product application.

Does the HIVD950ST version need to match?

Yes. Different HIVD950ST-related mainboard versions exist, so the original PCB version and connector configuration should be confirmed before replacement.

For Hyundai HIVD910GT HIVD950ST requirements, send us clear photos of the original mainboard and complete inverter nameplate for replacement checking before quotation.
